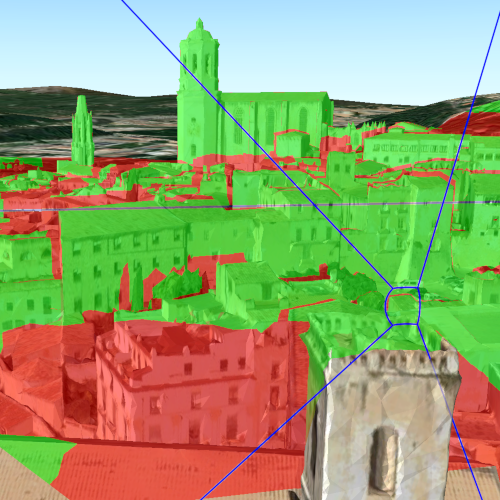

Viewshed (camera)

// [WriteFile Name=ViewshedCamera, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ViewshedCamera.h"

// ArcGIS Maps SDK headers
#include "AnalysisListModel.h"
#include "AnalysisOverlay.h"
#include "AnalysisOverlayListModel.h"
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "IntegratedMeshLayer.h"
#include "LayerListModel.h"
#include "LocationViewshed.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

ViewshedCamera::ViewshedCamera(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

void ViewshedCamera::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<ViewshedCamera>("Esri.Samples", 1, 0, "ViewshedCameraSample");
}

void ViewshedCamera::componentComplete()
{
  QQuickItem::componentComplete();

  // Create a scene
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  m_scene = new Scene(BasemapStyle::ArcGISImageryStandard, this);

  // Set a base surface
  Surface* surface = new Surface(this);
  surface->elevationSources()->append(
        new ArcGISTiledElevationSource(
          QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"),
          this));
  m_scene->setBaseSurface(surface);

  // Create and add the Girona, Spain integrated mesh layer
  IntegratedMeshLayer* gironaMeshLayer = new IntegratedMeshLayer(QUrl("https://tiles.arcgis.com/tiles/z2tnIkrLQ2BRzr6P/arcgis/rest/services/Girona_Spain/SceneServer"), this);
  m_scene->operationalLayers()->append(gironaMeshLayer);

  // Add an AnalysisOverlay to display the viewshed analysis result
  m_analysisOverlay = new AnalysisOverlay(this);
  m_sceneView->analysisOverlays()->append(m_analysisOverlay);

  // Set initial viewpoint
  setInitialViewpoint();

  // Add the Scene to the Sceneview
  m_sceneView->setArcGISScene(m_scene);
}

void ViewshedCamera::calculateViewshed()
{
  if (!m_viewshed)
  {
    // Create the viewshed
    const double minDistance = 1;
    const double maxDistance = 1000;
    m_viewshed = new LocationViewshed(m_sceneView->currentViewpointCamera(), minDistance, maxDistance, this);

    // display the frustum
    m_viewshed->setFrustumOutlineVisible(true);

    // Add the viewshed to the overlay
    m_analysisOverlay->analyses()->append(m_viewshed);
  }
  else
  {
    m_viewshed->updateFromCamera(m_sceneView->currentViewpointCamera());
  }
}

void ViewshedCamera::setInitialViewpoint()
{
  const double x_longitude = 2.82691;
  const double y_latitude = 41.985;
  const double z_altitude = 124.987;
  Point pt(x_longitude, y_latitude, z_altitude, SpatialReference(4326));

  const double heading = 332.131;
  const double pitch = 82.4732;
  const double roll = 0;
  Camera camera(pt, heading, pitch, roll);

  Viewpoint initViewpoint(pt, camera);
  m_scene->setInitialViewpoint(initViewpoint);
}

// [WriteFile Name=ViewshedCamera, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef VIEWSHEDCAMERA_H
#define VIEWSHEDCAMERA_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
class Scene;
class SceneQuickView;
class AnalysisOverlay;
class LocationViewshed;
}

class ViewshedCamera : public QQuickItem
{
  Q_OBJECT

public:
  explicit ViewshedCamera(QQuickItem* parent = nullptr);
  ~ViewshedCamera() override = default;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void calculateViewshed();

private:
  void setInitialViewpoint();

  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::AnalysisOverlay* m_analysisOverlay = nullptr;
  Esri::ArcGISRuntime::LocationViewshed* m_viewshed = nullptr;
};

#endif // VIEWSHEDCAMERA_H

// [WriteFile Name=ViewshedCamera, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

ViewshedCameraSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    SceneView {
        objectName: "sceneView"
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Button {
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }
        text: "Calculate Viewshed"
        onClicked: calculateViewshed();
    }
}

// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ViewshedCamera.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Viewshed Camera"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ViewshedCamera::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Analysis/ViewshedCamera/ViewshedCamera.qml"));

  view.show();

  return app.exec();
}
