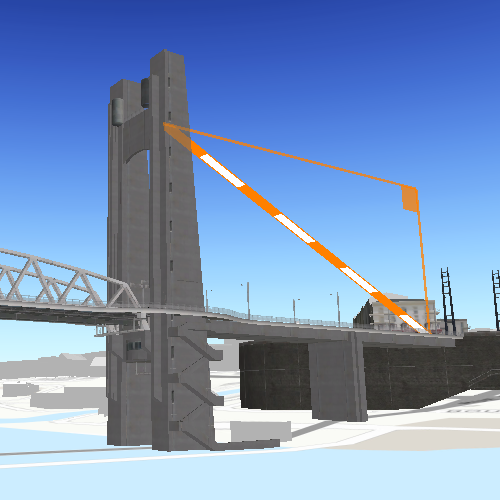

Distance measurement analysis

// [WriteFile Name=DistanceMeasurementAnalysis, Category=Analysis]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "DistanceMeasurementAnalysis.h"

// ArcGIS Maps SDK headers
#include "AnalysisListModel.h"
#include "AnalysisOverlay.h"
#include "AnalysisOverlayListModel.h"
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "CoreTypes.h"
#include "Distance.h"
#include "ElevationSourceListModel.h"
#include "LayerListModel.h"
#include "LinearUnit.h"
#include "LocationDistanceMeasurement.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

DistanceMeasurementAnalysis::DistanceMeasurementAnalysis(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISTopographic, this))
{
  // create a new elevation source from Terrain3D REST service
  ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);

  // Add a Scene Layer
  ArcGISSceneLayer* sceneLayer = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0"), this);
  sceneLayer->setAltitudeOffset(1); // The elevation source is a very fine resolution so we raise the scene layer slightly so it does not clip the surface

  m_scene->operationalLayers()->append(sceneLayer);
}

DistanceMeasurementAnalysis::~DistanceMeasurementAnalysis() = default;

void DistanceMeasurementAnalysis::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<DistanceMeasurementAnalysis>("Esri.Samples", 1, 0, "DistanceMeasurementAnalysisSample");
}

SceneQuickView* DistanceMeasurementAnalysis::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void DistanceMeasurementAnalysis::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
    return;

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);
  emit sceneViewChanged();

  // Add Analysis Overlay
  AnalysisOverlay* analysisOverlay = new AnalysisOverlay(this);
  m_sceneView->analysisOverlays()->append(analysisOverlay);

  // Create and add the LocationDistanceMeasurement
  const Point startLocation(-4.494677, 48.384472, 24.772694, SpatialReference::wgs84());
  const Point endLocation(-4.495646, 48.384377, 58.501115, SpatialReference::wgs84());
  m_distanceAnalysis = new LocationDistanceMeasurement(startLocation, endLocation, this);
  m_distanceAnalysis->setUnitSystem(UnitSystem::Metric);
  analysisOverlay->analyses()->append(m_distanceAnalysis);

  // Set initial viewpoint
  constexpr double distance = 400.0;
  constexpr double pitch = 45.0;
  constexpr double heading = 0.0;
  constexpr double roll = 0.0;
  const Camera initCamera(startLocation, distance, heading, pitch, roll);
  const Viewpoint initViewpoint(startLocation, distance, initCamera);
  m_scene->setInitialViewpoint(initViewpoint);

  connectSignals();
}

void DistanceMeasurementAnalysis::connectSignals()
{
  // connect to signal to obtain updated distances
  connect(m_distanceAnalysis, &LocationDistanceMeasurement::measurementChanged, this, [this](const Distance& directDistance,
                                                                                             const Distance& horizontalDistance,
                                                                                             const Distance& verticalDistance)
  {
    m_directDistance = QString::number(directDistance.value(), 'f', 2) + QString(" %1").arg(directDistance.unit().abbreviation());
    m_horizontalDistance = QString::number(horizontalDistance.value(), 'f', 2) + QString(" %1").arg(horizontalDistance.unit().abbreviation());
    m_verticalDistance = QString::number(verticalDistance.value(), 'f', 2) + QString(" %1").arg(verticalDistance.unit().abbreviation());
    emit directDistanceChanged();
    emit horizontalDistanceChanged();
    emit verticalDistanceChanged();
  });

  // connect to mouse signals to update the analysis

  // When the mouse is pressed and held, start updating the distance analysis end point
  connect(m_sceneView, &SceneQuickView::mousePressedAndHeld, this, [this](QMouseEvent& mouseEvent)
  {
    m_isPressAndHold = true;
    m_sceneView->screenToLocationAsync(mouseEvent.position().x(), mouseEvent.position().y()).then(this, [this](const Point& pt)
    {
      onScreenToLocationCompleted_(pt);
    });
  });

  // When the mouse is released...
  connect(m_sceneView, &SceneQuickView::mouseReleased, this, [this](QMouseEvent& mouseEvent)
  {
    // Check if the mouse was released from a pan gesture
    if (m_isNavigating)
    {
      m_isNavigating = false;
      return;
    }

    // Ignore if Right click
    if (mouseEvent.button() == Qt::RightButton)
      return;

    // If pressing and holding, do nothing
    if (m_isPressAndHold)
      m_isPressAndHold = false;
    // Else get the location from the screen coordinates
    else
      m_sceneView->screenToLocationAsync(mouseEvent.position().x(), mouseEvent.position().y()).then(this, [this](const Point& pt)
      {
        onScreenToLocationCompleted_(pt);
      });
  });

  // Update the distance analysis when the mouse moves if it is a press and hold movement
  connect(m_sceneView, &SceneQuickView::mouseMoved, this, [this](QMouseEvent& mouseEvent)
  {
    if (m_isPressAndHold)
      m_sceneView->screenToLocationAsync(mouseEvent.position().x(), mouseEvent.position().y()).then(this, [this](const Point& pt)
      {
        onScreenToLocationCompleted_(pt);
      });
  });

  // Set a flag when mousePressed signal emits
  connect(m_sceneView, &SceneQuickView::mousePressed, this, [this]
  {
    m_isNavigating = false;
  });

  // Set a flag when viewpointChanged signal emits
  connect(m_sceneView, &SceneQuickView::viewpointChanged, this, [this]
  {
    m_isNavigating = true;
  });
}

void DistanceMeasurementAnalysis::onScreenToLocationCompleted_(const Point& pt)
{
  // If it was from a press and hold, update the end location
  if (m_isPressAndHold)
    m_distanceAnalysis->setEndLocation(pt);
  // Else if it was a normal mouse click (press and release), update the start location
  else
    m_distanceAnalysis->setStartLocation(pt);
}

void DistanceMeasurementAnalysis::setUnits(const QString& unitName)
{
  if (!m_distanceAnalysis)
    return;

  if (unitName == "Metric")
    m_distanceAnalysis->setUnitSystem(UnitSystem::Metric);
  else
    m_distanceAnalysis->setUnitSystem(UnitSystem::Imperial);
}

QString DistanceMeasurementAnalysis::directDistance() const
{
  return m_directDistance;
}

QString DistanceMeasurementAnalysis::horizontalDistance() const
{
  return m_horizontalDistance;
}

QString DistanceMeasurementAnalysis::verticalDistance() const
{
  return m_verticalDistance;
}

// [WriteFile Name=DistanceMeasurementAnalysis, Category=Analysis]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef DISTANCEMEASUREMENTANALYSIS_H
#define DISTANCEMEASUREMENTANALYSIS_H

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class LocationDistanceMeasurement;
class Point;
class Scene;
class SceneQuickView;
}

Q_MOC_INCLUDE("SceneQuickView.h");

class DistanceMeasurementAnalysis : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::SceneQuickView* sceneView READ sceneView WRITE setSceneView NOTIFY sceneViewChanged)
  Q_PROPERTY(QString directDistance READ directDistance NOTIFY directDistanceChanged)
  Q_PROPERTY(QString horizontalDistance READ horizontalDistance NOTIFY horizontalDistanceChanged)
  Q_PROPERTY(QString verticalDistance READ verticalDistance NOTIFY verticalDistanceChanged)

public:
  explicit DistanceMeasurementAnalysis(QObject* parent = nullptr);
  ~DistanceMeasurementAnalysis() override;

  static void init();
  Q_INVOKABLE void setUnits(const QString& unitName);

signals:
  void sceneViewChanged();
  void directDistanceChanged();
  void horizontalDistanceChanged();
  void verticalDistanceChanged();

private:
  Esri::ArcGISRuntime::SceneQuickView* sceneView() const;
  void setSceneView(Esri::ArcGISRuntime::SceneQuickView* sceneView);
  void onScreenToLocationCompleted_(const Esri::ArcGISRuntime::Point& pt);

  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::LocationDistanceMeasurement* m_distanceAnalysis = nullptr;
  QString m_directDistance;
  QString m_horizontalDistance;
  QString m_verticalDistance;
  bool m_isPressAndHold = false;
  bool m_isNavigating = false;
  QString directDistance() const;
  QString horizontalDistance() const;
  QString verticalDistance() const;
  void connectSignals();
};

#endif // DISTANCEMEASUREMENTANALYSIS_H

// [WriteFile Name=DistanceMeasurementAnalysis, Category=Analysis]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {

    SceneView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on SceneView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the scene etc. and supply the view
    DistanceMeasurementAnalysisSample {
        id: model
        sceneView: view
    }

    Rectangle {
        anchors {
            fill: resultsColumn
            margins: -5
        }
        color: "black"
        opacity: 0.5
        radius: 5
    }

    Column {
        id: resultsColumn
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }
        spacing: 5

        Row {
            spacing: 5
            Text {
                text: "Direct Distance:"
                color: "white"
            }
            Text {
                id: directDistanceText
                color: "white"
                text: model.directDistance
            }
        }
        Row {
            spacing: 5
            Text {
                text: "Vertical Distance:"
                color: "white"
            }
            Text {
                id: verticalDistanceText
                color: "white"
                text: model.verticalDistance
            }
        }
        Row {
            spacing: 5
            Text {
                text: "Horizontal Distance:"
                color: "white"
            }
            Text {
                id: horizontalDistanceText
                color: "white"
                text: model.horizontalDistance
            }
        }
        Row {
            id: row
            spacing: 5
            Text {
                text: "Unit System:"
                color: "white"
            }
            ComboBox {
                id: comboBox
                model: ["Metric", "Imperial"]
                onCurrentTextChanged: model.setUnits(currentText);
            }
        }
    }
}

// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "DistanceMeasurementAnalysis.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("DistanceMeasurementAnalysis"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  DistanceMeasurementAnalysis::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Analysis/DistanceMeasurementAnalysis/main.qml"));

  return app.exec();
}

// Copyright 2022 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    DistanceMeasurementAnalysis {
        anchors.fill: parent
    }
}
