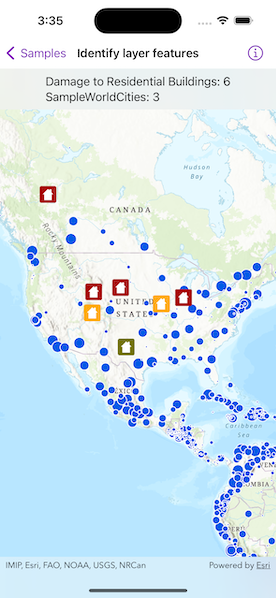

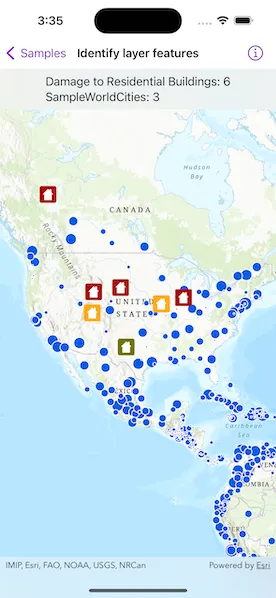

Identify layer features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
// Copyright 2023 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct IdentifyLayerFeaturesView: View {
    /// A map with a topographic basemap centered on the United States.
    @State private var map: Map = {
        let map = Map(basemapStyle: .arcGISTopographic)
        map.initialViewpoint = Viewpoint(
            center: Point(x: -10977012.785807, y: 4514257.550369, spatialReference: .webMercator),
            scale: 68015210
        )
        return map
    }()

    /// The tapped screen point.
    @State private var tapScreenPoint: CGPoint?

    /// The string text for the identify layer results overlay.
    @State private var overlayText = "Tap on the map to identify feature layers."

    /// The error shown in the error alert.
    @State private var error: (any Error)?

    var body: some View {
        ZStack {
            MapViewReader { proxy in
                MapView(map: map)
                    .onSingleTapGesture { screenPoint, _ in
                        tapScreenPoint = screenPoint
                    }
                    .task {
                        do {
                            // Add map image layer to the map.
                            let mapImageLayer = ArcGISMapImageLayer(url: .worldCities)
                            try await mapImageLayer.load()

                            // Hide continent and world layers.
                            mapImageLayer.subLayerContents[1].isVisible = false
                            mapImageLayer.subLayerContents[2].isVisible = false
                            map.addOperationalLayer(mapImageLayer)

                            // Add feature layer to the map.
                            let featureTable = ServiceFeatureTable(url: .damageAssessment)
                            try await featureTable.load()
                            let featureLayer = FeatureLayer(featureTable: featureTable)
                            map.addOperationalLayer(featureLayer)
                        } catch {
                            // Present error load the layers if any.
                            self.error = error
                        }
                    }
                    .task(id: tapScreenPoint) {
                        // Identify layers using the screen point.
                        if let screenPoint = tapScreenPoint,
                           let results = try? await proxy.identifyLayers(
                            screenPoint: screenPoint,
                            tolerance: 12,
                            returnPopupsOnly: false,
                            maximumResultsPerLayer: 10
                           ) {
                            handleIdentifyResults(results)
                        }
                    }
                    .overlay(alignment: .top) {
                        Text(overlayText)
                            .frame(maxWidth: .infinity, alignment: .center)
                            .padding(8)
                            .background(.thinMaterial, ignoresSafeAreaEdges: .horizontal)
                    }
                    .errorAlert(presentingError: $error)
            }
        }
    }
}

private extension IdentifyLayerFeaturesView {
    /// Updates the overlay text based on the identify layer results.
    /// - Parameter results: An `IdentifyLayerResult` array to handle.
    func handleIdentifyResults(_ results: [IdentifyLayerResult]) {
        // Get layer names and geoelement counts from the results.
        let identifyLayerResultInfo: [(layerName: String, geoElementsCount: Int)] = results.map { identifyLayerResult in
            let layerName = identifyLayerResult.layerContent.name
            let geoElementsCount = geoElementsCountFromResult(identifyLayerResult)
            return (layerName, geoElementsCount)
        }

        let message = identifyLayerResultInfo
            .map { "\($0.layerName): \($0.geoElementsCount)" }
            .joined(separator: "\n")

        let totalGeoElementsCount = identifyLayerResultInfo.map(\.geoElementsCount).reduce(0, +)

        // Update overlay text with the geo-elements found if any.
        overlayText = totalGeoElementsCount > 0 ? message : "No element found."
    }

    /// Counts the geo-elements from an identify layer result using recursion.
    /// - Parameter result: The `IdentifyLayerResult` to count.
    /// - Returns: The count of the geo-elements.
    private func geoElementsCountFromResult(_ identifyResult: IdentifyLayerResult) -> Int {
        // Get geoElements count from the result.
        var count = identifyResult.geoElements.count

        // Get the count using recursion from the result's sublayer results if any.
        for result in identifyResult.sublayerResults {
            count += geoElementsCountFromResult(result)
        }
        return count
    }
}

private extension URL {
    /// A world cities image layer URL.
    static var worldCities: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/SampleWorldCities/MapServer")!
    }

    /// A damage assessment feature layer URL.
    static var damageAssessment: URL {
        URL(string: "https://sampleserver6.arcgisonline.com/arcgis/rest/services/DamageAssessment/FeatureServer/0")!
    }
}

#Preview {
    IdentifyLayerFeaturesView()
}
