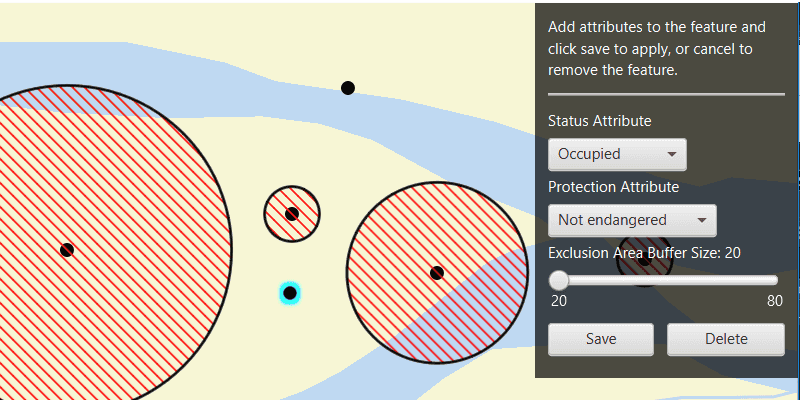

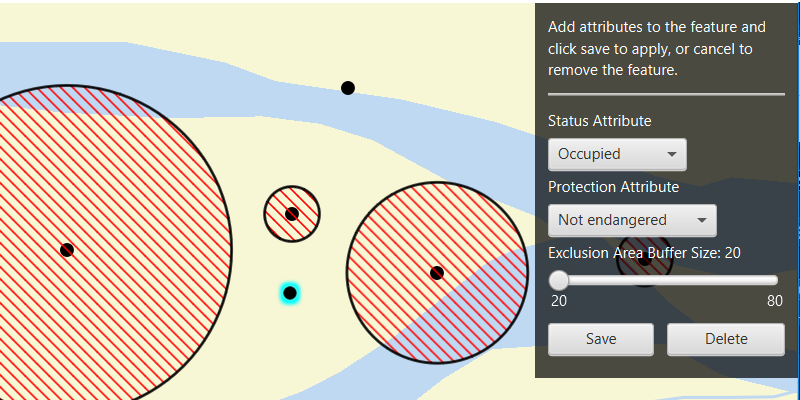

Add features with contingent values

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.add_features_with_contingent_values {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.add_features_with_contingent_values to javafx.fxml;

  exports com.esri.samples.add_features_with_contingent_values;
}

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.add_features_with_contingent_values;

import java.io.File;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.concurrent.ExecutionException;

import javafx.beans.property.SimpleBooleanProperty;
import javafx.collections.FXCollections;
import javafx.fxml.FXML;
import javafx.geometry.Point2D;
import javafx.scene.control.Alert;
import javafx.scene.control.ComboBox;
import javafx.scene.control.Label;
import javafx.scene.control.Slider;
import javafx.scene.input.MouseButton;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.data.ArcGISFeature;
import com.esri.arcgisruntime.data.CodedValue;
import com.esri.arcgisruntime.data.CodedValueDomain;
import com.esri.arcgisruntime.data.ContingencyConstraintViolation;
import com.esri.arcgisruntime.data.ContingentCodedValue;
import com.esri.arcgisruntime.data.ContingentRangeValue;
import com.esri.arcgisruntime.data.ContingentValue;
import com.esri.arcgisruntime.data.ContingentValuesDefinition;
import com.esri.arcgisruntime.data.ContingentValuesResult;
import com.esri.arcgisruntime.data.Feature;
import com.esri.arcgisruntime.data.Geodatabase;
import com.esri.arcgisruntime.data.GeodatabaseFeatureTable;
import com.esri.arcgisruntime.data.QueryParameters;
import com.esri.arcgisruntime.geometry.Geometry;
import com.esri.arcgisruntime.geometry.GeometryEngine;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.layers.ArcGISVectorTiledLayer;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.Basemap;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.symbology.SimpleFillSymbol;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;
import com.esri.arcgisruntime.symbology.SimpleRenderer;

public class AddFeaturesWithContingentValuesController {

  @FXML private MapView mapView;
  @FXML private ComboBox<CodedValue> statusComboBox;
  @FXML private ComboBox<CodedValue> protectionComboBox;
  @FXML private Label label;
  @FXML private Slider bufferSlider;
  @FXML private VBox attributeControlsVBox;
  @FXML private Label addFeatureLabel;
  @FXML private Label attributesLabel;

  private ArcGISFeature newFeature;
  private ContingentValuesDefinition contingentValuesDefinition;
  private FeatureLayer featureLayer;
  private Graphic graphic;
  private Geodatabase geodatabase;
  private GeodatabaseFeatureTable geodatabaseFeatureTable;
  private GraphicsOverlay graphicsOverlay;

  private final SimpleBooleanProperty isEditingFeatureProperty = new SimpleBooleanProperty(false);

  /**
   * Called after FXML loads. Sets up map.
   */
  public void initialize() {

    try {

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // display the name of the coded values in the attribute combo boxes
      protectionComboBox.setButtonCell(new CodedValueListCell());
      protectionComboBox.setCellFactory(c -> new CodedValueListCell());
      statusComboBox.setButtonCell(new CodedValueListCell());
      statusComboBox.setCellFactory(c -> new CodedValueListCell());

      // control updates to the UI
      isEditingFeatureProperty.addListener(((observable, oldValue, newValue) -> {
        if (newValue) {
          addFeatureLabel.setVisible(false);
          attributesLabel.setVisible(true);
          attributeControlsVBox.setDisable(false);
        } else {
          addFeatureLabel.setVisible(true);
          attributesLabel.setVisible(false);
          attributeControlsVBox.setDisable(true);
        }
      }));

      // create a new vector tile package from a vector tile package path
      var vectorTiledLayer = new ArcGISVectorTiledLayer(new File(System.getProperty("data.dir"), "./samples-data" +
              "/FillmoreTopographicMap.vtpk").getAbsolutePath());
      // create a new basemap with the vector tiled layer and create a new map from it
      var basemap = new Basemap(vectorTiledLayer);
      ArcGISMap map = new ArcGISMap(basemap);

      // set the map to the map view
      mapView.setMap(map);

      // create a graphics overlay to display the nest buffer exclusion area
      graphicsOverlay = new GraphicsOverlay();
      var bufferSymbol = new SimpleFillSymbol(SimpleFillSymbol.Style.FORWARD_DIAGONAL,
              Color.RED, new SimpleLineSymbol(SimpleLineSymbol.Style.SOLID, Color.BLACK, 2));
      graphicsOverlay.setRenderer(new SimpleRenderer(bufferSymbol));
      // create a new simple marker symbol to mark where new feature is being added on the map
      var symbol = new SimpleMarkerSymbol(SimpleMarkerSymbol.Style.CIRCLE, Color.BLACK, 11);
      // add the graphics overlay to the mapview
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      geodatabase = new Geodatabase(new File(System.getProperty("data.dir"),
              "./samples-data/ContingentValuesBirdNests.geodatabase").getAbsolutePath());
      // wait for the geodatabase to finish loading and check it has loaded
      geodatabase.addDoneLoadingListener(() -> {
        if (geodatabase.getLoadStatus() == LoadStatus.LOADED) {

          // get the BirdNests geodatabase feature table, and wait for it to load
          geodatabaseFeatureTable = geodatabase.getGeodatabaseFeatureTable("BirdNests");
          geodatabaseFeatureTable.addDoneLoadingListener(() -> {
            if (geodatabaseFeatureTable.getLoadStatus() == LoadStatus.LOADED) {
              // create a new feature that matches the schema of the geodatabase feature table
              newFeature = (ArcGISFeature) geodatabaseFeatureTable.createFeature();
              featureLayer = new FeatureLayer(geodatabaseFeatureTable);
              map.getOperationalLayers().add(featureLayer);

              // when the feature layer has loaded, set the viewpoint on the map to its full extent, and add buffers to
              // the features
              featureLayer.addDoneLoadingListener(() -> {
                if (featureLayer.getLoadStatus() == LoadStatus.LOADED) {
                  mapView.setViewpointGeometryAsync(featureLayer.getFullExtent(), 50);
                  // queries the features in the feature table and applies a buffer to them
                  // set up query parameters for generating buffer graphic
                  queryAndBufferFeatures();
                  getAndLoadContingentDefinitionAndSetStatusAttribute();
                  mapView.setDisable(false);
                }
              });
            } else if (geodatabase.getLoadStatus() == LoadStatus.FAILED_TO_LOAD) {
              new Alert(Alert.AlertType.ERROR, "Geodatabase failed to load").show();
            }
          });
          // load the geodatabase feature table
          geodatabaseFeatureTable.loadAsync();
        }
      });
      // load the geodatabase
      geodatabase.loadAsync();

      // set up mouse clicked listener
      mapView.setOnMouseClicked(event -> {
        if (event.isStillSincePress() && event.getButton() == MouseButton.PRIMARY) {
          isEditingFeatureProperty.set(true);

          // if the newFeature object is null, create a new feature and set its attributes from the already populated UI
          if (newFeature == null) {
            newFeature = (ArcGISFeature) geodatabaseFeatureTable.createFeature();
            newFeature.getAttributes().put("Status", statusComboBox.getSelectionModel().getSelectedItem().getCode());
            newFeature.getAttributes().put("Protection",
                    protectionComboBox.getSelectionModel().getSelectedItem().getCode());
            newFeature.getAttributes().put("BufferSize", (int) bufferSlider.getValue());
          }

          // create a point from where the user clicked
          Point2D point = new Point2D(event.getX(), event.getY());
          Point mapPoint = mapView.screenToLocation(point);
          // get the normalized geometry for the clicked location and use it as the feature's geometry
          Point normalizedMapPoint = (Point) GeometryEngine.normalizeCentralMeridian(mapPoint);
          newFeature.setGeometry(normalizedMapPoint);

          // check if the graphics overlay already contains the graphic, and if not, add it to the graphics overlay
          if (!graphicsOverlay.getGraphics().contains(graphic)) {
            graphic = new Graphic();
            graphicsOverlay.getGraphics().add(graphic);
            graphic.setSymbol(symbol);
            graphic.setGeometry(newFeature.getGeometry());
            graphic.setSelected(true);
          } else {
            // otherwise, update the geometry of the graphic as the user clicks the map
            graphic.setGeometry(newFeature.getGeometry());
          }
        }
      });
    } catch (Exception e) {
      // on any error, display the stack trace
      e.printStackTrace();
    }
  }

  /**
   * Gets and loads the contingent values definition from the geodatabase feature table, checks it contains field groups, and gets
   * the coded value domains from the "Status" field.
   */
  private void getAndLoadContingentDefinitionAndSetStatusAttribute() {

    // get and load the table's contingent values definition. this must be loaded after the table has loaded
    contingentValuesDefinition = geodatabaseFeatureTable.getContingentValuesDefinition();
    contingentValuesDefinition.addDoneLoadingListener(() -> {
      // check the contingent values definition has field groups (if the list is empty, there are no
      // contingent values defined for this table
      if (contingentValuesDefinition.getLoadStatus() == LoadStatus.LOADED && !contingentValuesDefinition.getFieldGroups().isEmpty()) {
        // get the coded value domains for the "Status" field name
        CodedValueDomain statusCodedValueDomain =
                (CodedValueDomain) geodatabaseFeatureTable.getField("Status").getDomain();
        // add each returned coded value as an item to the status combo box
        for (CodedValue codedValue : statusCodedValueDomain.getCodedValues()) {
          // requires some mapping of object code back to string
          statusComboBox.getItems().add(codedValue);
        }
        // once the combo box has been populated with coded values, select the first one
        if (statusComboBox.getItems().size() == statusCodedValueDomain.getCodedValues().size()) {
          statusComboBox.getSelectionModel().selectFirst();
        }
        // check the contingent values are valid
        contingentValuesAreValid();
      }
    });
    contingentValuesDefinition.loadAsync();
  }

  /**
   * Handles interaction with the status combo box. Gets the coded value chosen from the combo box and sets it as
   * the feature's "Status" attribute.
   */
  @FXML
  private void handleStatusComboBox() {
    // add "Status" attribute to the new feature: this will allow the related contingent value in the
    // "Protected" field to be detected
    newFeature.getAttributes().put("Status", statusComboBox.getSelectionModel().getSelectedItem().getCode());

    // get contingent values for the protection field
    ContingentValuesResult protectionContingentValues = geodatabaseFeatureTable.getContingentValues(newFeature,
            "Protection");

    // get contingent values by field group for the protection field group
    List<ContingentValue> protectionFieldGroupValues =
            protectionContingentValues.getContingentValuesByFieldGroup().get("ProtectionFieldGroup");
    List<CodedValue> contingentCodedValues = FXCollections.observableArrayList();
    protectionFieldGroupValues.forEach(contingentValue -> {
      var contingentCodedValue = (ContingentCodedValue) contingentValue; // cast to required contingent value type
      contingentCodedValues.add(contingentCodedValue.getCodedValue());
    });

    // add contingent coded values to the protection attribute combobox
    protectionComboBox.setItems(FXCollections.observableArrayList(contingentCodedValues));

    // once the combo box has populated, select the first coded value
    if (protectionComboBox.getItems().size() == protectionFieldGroupValues.size()) {
      protectionComboBox.getSelectionModel().selectFirst();
    }
  }

  /**
   * Handles interaction with the protection combo box. Gets the coded value chosen from the combo box and sets it as
   * the feature's "Protection" attribute. Also sets the min and max value of the bufferSlider based on the contingent
   * range value of the returned contingent range value.
   */
  @FXML
  private void handleProtectionComboBox() {

    if (protectionComboBox.getSelectionModel().getSelectedItem() != null) {
      // put the value chosen from the protection combobox as the attribute for the new feature
      newFeature.getAttributes().put("Protection", protectionComboBox.getSelectionModel().getSelectedItem().getCode());

      // get contingent values for the buffer size field
      ContingentValuesResult bufferContingentValues = geodatabaseFeatureTable.getContingentValues(newFeature,
              "BufferSize");
      // get contingent range values for the buffer size field group
      ContingentRangeValue bufferRangeValue =
              (ContingentRangeValue) bufferContingentValues.getContingentValuesByFieldGroup()
                      .get("BufferSizeFieldGroup").get(0); // cast to required contingent value type

      // get the minimum and maximum value from the buffer contingent range values
      var minValue = (Integer) bufferRangeValue.getMinValue();
      var maxValue = (Integer) bufferRangeValue.getMaxValue();

      // set the min and max value of the buffer slider depending on the returned value of the contingent range value
      bufferSlider.setMin(minValue);
      bufferSlider.setMax(maxValue);
      bufferSlider.setValue(minValue);
      // set the "BufferSize" attribute to that of the value of the slider
      newFeature.getAttributes().put("BufferSize", (int) bufferSlider.getValue());
      // update label to show buffer size value
      label.setText("Exclusion Area Buffer Size: " + (Math.round(bufferSlider.getValue())));
    }
  }

  /**
   * Handles interaction with the buffer slider. Gets the buffer slider value and sets is as the feature's "BufferSize"
   * attribute.
   */
  @FXML
  private void handleBufferSlider() {

    // set the initial attribute and the text to the min of the contingent range value
    newFeature.getAttributes().put("BufferSize", (int) Math.round(bufferSlider.getValue()));
    label.setText("Exclusion Area Buffer Size: " + (Math.round(bufferSlider.getValue())));
  }

  /**
   * Queries features in the geodatabase feature table, and creates a buffer for each feature based on its "BufferSize"
   * attribute.
   */
  private void queryAndBufferFeatures() {

    // create new query parameters and set its where clause
    var queryParameters = new QueryParameters();
    queryParameters.setWhereClause("BufferSize > 0");

    // get all the features that have buffer size greater than zero
    var results = geodatabaseFeatureTable.queryFeaturesAsync(queryParameters);
    results.addDoneListener(() -> {

      try {
        // clear the existing buffer graphics
        graphicsOverlay.getGraphics().clear();

        // get the features from the result
        var featureQueryResult = results.get();
        for (Feature feature : featureQueryResult) {

          // get the feature's buffer size attribute and create a new buffer geometry from it
          Integer bufferDistance = (Integer) feature.getAttributes().get("BufferSize");
          Geometry buffer = GeometryEngine.buffer(feature.getGeometry(), bufferDistance);
          Graphic bufferGraphic = new Graphic(buffer);
          graphicsOverlay.getGraphics().add(bufferGraphic);
        }
      } catch (InterruptedException | ExecutionException e) {
        e.printStackTrace();
      }
    });
  }

  /**
   * Validate contingency constraints of the new feature. If there are constraints, an error dialog will display.
   */
  private boolean contingentValuesAreValid() {

    List<ContingencyConstraintViolation> contingencyConstraintViolations = geodatabaseFeatureTable
            .validateContingencyConstraints(newFeature);
    int numberOfViolations = contingencyConstraintViolations.size();

    // if the number of contingency constraint violations is zero, the attribute map satisfies all contingencies
    if (numberOfViolations == 0) {
      return true;
    } else {
      List<String> fieldGroupsNames = new ArrayList<>();
      contingencyConstraintViolations.forEach(contingencyConstraintViolation -> {
        fieldGroupsNames.add(contingencyConstraintViolation.getFieldGroup().getName());
      });
      String errorType = contingencyConstraintViolations.get(0).getType().toString();
      new Alert(Alert.AlertType.ERROR,
              errorType + "! " + numberOfViolations + " violations found in: " + Arrays.toString(fieldGroupsNames.toArray())).show();
      return false;
    }
  }

  /**
   * Handles interaction with the save button. Checks that the contingent values set to the feature are valid and
   * adds the feature to the geodatabase feature table.
   */
  @FXML
  private void handleSaveButton() {

    if (contingentValuesAreValid()) {
      // add the feature to the table
      geodatabaseFeatureTable.addFeatureAsync(newFeature).addDoneListener(() -> {
        // query and buffer features again now that a new feature has been added to the table
        queryAndBufferFeatures();
        // now the new feature has been added set it to null to continue adding new features
        newFeature = null;
        // reset the UI until the user clicks to add a point
        isEditingFeatureProperty.set(false);
        graphic.setSelected(false);

      });
    }
  }

  /**
   * Handles interaction with the Delete button. Deletes the created feature from the geodatabase feature table.
   */
  @FXML
  private void deleteFeature() {

    // delete the feature from the geodatabase feature table
    var delete = geodatabaseFeatureTable.deleteFeatureAsync(newFeature);

    // now the new feature has been deleted set it to null to continue adding new features, and remove the graphic
    delete.addDoneListener(() -> {
      newFeature = null;
      graphicsOverlay.getGraphics().remove(graphic);
    });

    // reset the UI until the user clicks to add a point
    isEditingFeatureProperty.set(false);
    graphic.setSelected(false);
  }

  /**
   * Stops and releases all resources used in application.
   */
  void terminate() {

    if (mapView != null) {
      mapView.dispose();
      geodatabase.close();
    }
  }
}

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.add_features_with_contingent_values;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class AddFeaturesWithContingentValuesSample extends Application {

  private static AddFeaturesWithContingentValuesController controller;

  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/add_features_with_contingent_values/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Add Features With Contingent Values Sample");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.esri.samples.add_features_with_contingent_values;

import javafx.scene.control.ListCell;

import com.esri.arcgisruntime.data.CodedValue;

/**
 * Shows the name of the Coded Value in the attribute selection ComboBox.
 */
public class CodedValueListCell extends ListCell<CodedValue> {
  @Override
  protected void updateItem(CodedValue item, boolean empty) {
    super.updateItem(item, empty);
    if (empty) {
      setText(null);
    } else {
      setText(item.getName());
    }
  }
}
