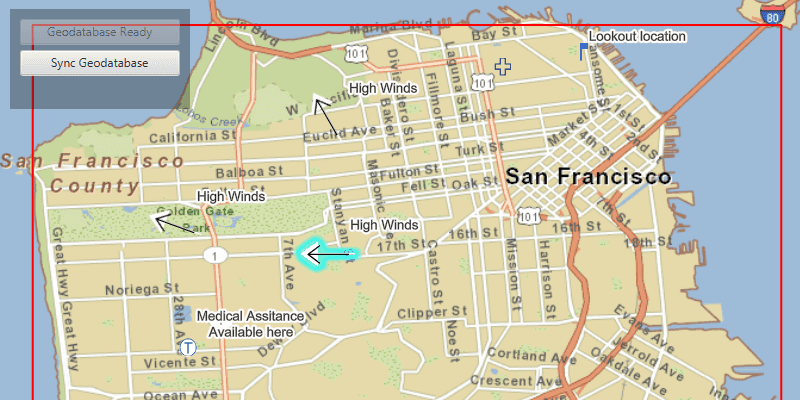

Edit and sync features

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.edit_and_sync_features {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.edit_and_sync_features to javafx.fxml;

  exports com.esri.samples.edit_and_sync_features;
}

/*
 * Copyright 2019 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.edit_and_sync_features;

import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.concurrent.ExecutionException;

import javafx.beans.value.ChangeListener;
import javafx.beans.value.ObservableValue;
import javafx.fxml.FXML;
import javafx.geometry.Point2D;
import javafx.scene.control.Alert;
import javafx.scene.control.Button;
import javafx.scene.control.ProgressBar;
import javafx.scene.input.MouseButton;
import javafx.scene.paint.Color;

import com.esri.arcgisruntime.concurrent.Job;
import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.Feature;
import com.esri.arcgisruntime.data.Geodatabase;
import com.esri.arcgisruntime.data.ServiceFeatureTable;
import com.esri.arcgisruntime.data.TileCache;
import com.esri.arcgisruntime.geometry.Envelope;
import com.esri.arcgisruntime.geometry.GeometryEngine;
import com.esri.arcgisruntime.geometry.GeometryType;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.layers.ArcGISTiledLayer;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.layers.LayerContent;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.Basemap;
import com.esri.arcgisruntime.mapping.GeoElement;
import com.esri.arcgisruntime.mapping.view.DrawStatus;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.IdentifyLayerResult;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.mapping.view.ViewpointChangedListener;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.symbology.SimpleRenderer;
import com.esri.arcgisruntime.tasks.geodatabase.GenerateGeodatabaseJob;
import com.esri.arcgisruntime.tasks.geodatabase.GenerateGeodatabaseParameters;
import com.esri.arcgisruntime.tasks.geodatabase.GeodatabaseSyncTask;
import com.esri.arcgisruntime.tasks.geodatabase.SyncGeodatabaseJob;
import com.esri.arcgisruntime.tasks.geodatabase.SyncGeodatabaseParameters;
import com.esri.arcgisruntime.tasks.geodatabase.SyncLayerOption;

public class EditAndSyncFeaturesController {

  @FXML private Button generateButton;
  @FXML private MapView mapView;
  @FXML private ProgressBar progressBar;
  @FXML private Button syncButton;

  private final Graphic downloadAreaGraphic = new Graphic();
  private GeodatabaseSyncTask geodatabaseSyncTask;
  private Geodatabase geodatabase;
  private ArcGISMap map;
  private ViewpointChangedListener viewpointChangedListener;
  private Feature selectedFeature;

  private ServiceFeatureTable onlineFeatureTable; // keep loadable in scope to avoid garbage collection

  @FXML
  private void initialize() {

    try {
      // create a basemap from a local tile cache
      File tpkFile = new File(System.getProperty("data.dir"), "./samples-data/sanfrancisco/SanFrancisco.tpk");
      TileCache sanFranciscoTileCache = new TileCache(tpkFile.getAbsolutePath());
      ArcGISTiledLayer tiledLayer = new ArcGISTiledLayer(sanFranciscoTileCache);
      Basemap basemap = new Basemap(tiledLayer);

      // create a map with the basemap and set it to the map view
      map = new ArcGISMap(basemap);
      mapView.setMap(map);

      // create a graphics overlay for displaying the download area
      GraphicsOverlay graphicsOverlay = new GraphicsOverlay();
      graphicsOverlay.setRenderer(new SimpleRenderer(new SimpleLineSymbol(SimpleLineSymbol.Style.SOLID,
          Color.RED, 2)));
      graphicsOverlay.getGraphics().add(downloadAreaGraphic);
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      // update the download area graphic when the map is initially drawn and when the viewpoint is changed
      viewpointChangedListener = viewpointChangedEvent -> updateDownloadArea();

      ChangeListener<DrawStatus> drawStatusPropertyChangedListener = new ChangeListener<>() {
        @Override
        public void changed(ObservableValue<? extends DrawStatus> observable, DrawStatus oldValue, DrawStatus newValue) {
          if (newValue == DrawStatus.COMPLETED) {
            updateDownloadArea();
            mapView.drawStatusProperty().removeListener(this);
          }
        }
      };
      mapView.drawStatusProperty().addListener(drawStatusPropertyChangedListener);
      mapView.addViewpointChangedListener(viewpointChangedListener);

      // create a geodatabase sync task using the feature service URL
      String featureServiceUrl = "https://sampleserver6.arcgisonline" +
          ".com/arcgis/rest/services/Sync/WildfireSync/FeatureServer";
      geodatabaseSyncTask = new GeodatabaseSyncTask(featureServiceUrl);
      geodatabaseSyncTask.loadAsync();

      // load the geodatabase sync task to get its contents
      geodatabaseSyncTask.addDoneLoadingListener(() -> {
        if (geodatabaseSyncTask.getLoadStatus() == LoadStatus.LOADED) {
          // look through the feature service layers
          geodatabaseSyncTask.getFeatureServiceInfo().getLayerInfos().forEach(layerInfo -> {
            // get the URL for this particular layer
            String featureLayerURL = featureServiceUrl + "/" + layerInfo.getId();

            // create the service feature table
            onlineFeatureTable = new ServiceFeatureTable(featureLayerURL);
            onlineFeatureTable.loadAsync();

            // add feature layers to the map from feature tables with point geometries (to make editing easier)
            onlineFeatureTable.addDoneLoadingListener(() -> {
              if (onlineFeatureTable.getLoadStatus() == LoadStatus.LOADED &&
                  onlineFeatureTable.getGeometryType() == GeometryType.POINT) {
                map.getOperationalLayers().add(new FeatureLayer(onlineFeatureTable));
              }
            });
          });

          generateButton.setDisable(false);
        } else {
          new Alert(Alert.AlertType.ERROR, "Error loading geodatabase sync task").show();
        }
      });
    } catch (Exception ex) {
      // on any error, display the stacktrace
      ex.printStackTrace();
    }

  }

  /**
   * Generates a local geodatabase of the features in the download area and displays it in the map.
   */
  @FXML
  private void generateGeodatabase() {
    // only allow geodatabase generation once
    generateButton.setDisable(true);
    // stop updating the download area when changing the viewpoint
    mapView.removeViewpointChangedListener(viewpointChangedListener);

    // create generate geodatabase parameters for the download area
    final ListenableFuture<GenerateGeodatabaseParameters> generateGeodatabaseParametersFuture = geodatabaseSyncTask
        .createDefaultGenerateGeodatabaseParametersAsync(downloadAreaGraphic.getGeometry());
    generateGeodatabaseParametersFuture.addDoneListener(() -> {
      try {
        // create generate geodatabase parameters not returning attachments
        GenerateGeodatabaseParameters generateGeodatabaseParameters = generateGeodatabaseParametersFuture.get();
        generateGeodatabaseParameters.setReturnAttachments(false);

        // create a temporary file for the geodatabase
        File tempFile = File.createTempFile("gdb", ".geodatabase");
        tempFile.deleteOnExit();

        // create and start the generate job
        GenerateGeodatabaseJob generateGeodatabaseJob = geodatabaseSyncTask.generateGeodatabase(generateGeodatabaseParameters, tempFile.getAbsolutePath());
        generateGeodatabaseJob.start();

        // show the job's progress in the progress bar
        progressBar.setVisible(true);
        generateGeodatabaseJob.addProgressChangedListener(() ->
            progressBar.setProgress((double) generateGeodatabaseJob.getProgress() / 100.0)
        );

        // get the geodatabase when done
        generateGeodatabaseJob.addJobDoneListener(() -> {
          if (generateGeodatabaseJob.getStatus() == Job.Status.SUCCEEDED) {
            geodatabase = generateGeodatabaseJob.getResult();
            geodatabase.loadAsync();

            // display the contents of the geodatabase to the map
            geodatabase.addDoneLoadingListener(() -> {
              progressBar.setVisible(false);
              if (geodatabase.getLoadStatus() == LoadStatus.LOADED) {

                // remove the existing layers from the map
                map.getOperationalLayers().clear();

                // iterate through the feature tables in the geodatabase and add new layers to the map
                geodatabase.getGeodatabaseFeatureTables().forEach(geodatabaseFeatureTable -> {
                  geodatabaseFeatureTable.loadAsync();
                  geodatabaseFeatureTable.addDoneLoadingListener(() -> {
                    if (geodatabaseFeatureTable.getGeometryType() == GeometryType.POINT) {
                      // create a new feature layer from the table and add it to the map
                      FeatureLayer featureLayer = new FeatureLayer(geodatabaseFeatureTable);
                      map.getOperationalLayers().add(featureLayer);
                    }
                  });
                });

                generateButton.setDisable(true);
                allowEditing();
              } else {
                new Alert(Alert.AlertType.ERROR, "Error loading geodatabase").show();
              }
            });
          } else {
            new Alert(Alert.AlertType.ERROR, "Error generating geodatabase").show();
          }
        });

      } catch (InterruptedException | ExecutionException e) {
        new Alert(Alert.AlertType.ERROR, "Error generating geodatabase parameters").show();
        progressBar.setVisible(false);
      } catch (IOException e) {
        new Alert(Alert.AlertType.ERROR, "Error creating temp file for geodatabase").show();
        progressBar.setVisible(false);
      }
    });
  }

  /**
   * Adds an event handler to allow the user to interactively select and move features in the map.
   */
  private void allowEditing() {
    mapView.setOnMouseClicked(e -> {
      if (e.isStillSincePress() && e.getButton() == MouseButton.PRIMARY) {
        Point2D screenPoint = new Point2D(e.getX(), e.getY());
        if (selectedFeature != null) {
          // move the selected feature to the clicked location and update it in the feature table
          Point point = mapView.screenToLocation(screenPoint);
          if (GeometryEngine.intersects(point, downloadAreaGraphic.getGeometry())) {
            selectedFeature.setGeometry(point);
            selectedFeature.getFeatureTable().updateFeatureAsync(selectedFeature).addDoneListener(() -> syncButton.setDisable(false));
          } else {
            new Alert(Alert.AlertType.WARNING, "Cannot move feature outside downloaded area.").show();
          }
        } else {
          // identify which feature was clicked and select it
          ListenableFuture<List<IdentifyLayerResult>> identifyLayersFuture = mapView.identifyLayersAsync(screenPoint, 1,
              false);
          identifyLayersFuture.addDoneListener(() -> {
            try {
              // get the result of the query
              List<IdentifyLayerResult> identifyLayerResults = identifyLayersFuture.get();
              if (!identifyLayerResults.isEmpty()) {
                // retrieve the first result and get it's contents
                IdentifyLayerResult firstResult = identifyLayerResults.get(0);
                LayerContent layerContent = firstResult.getLayerContent();
                // check that the result is a feature layer and has elements
                if (layerContent instanceof FeatureLayer && !firstResult.getElements().isEmpty()) {
                  FeatureLayer featureLayer = (FeatureLayer) layerContent;
                  // retrieve the geoelements in the feature layer
                  GeoElement identifiedElement = firstResult.getElements().get(0);
                  if (identifiedElement instanceof Feature) {
                    Feature feature = (Feature) identifiedElement;
                    featureLayer.selectFeature(feature);
                    // keep track of the selected feature to move it
                    selectedFeature = feature;
                  }
                }
              }
            } catch (InterruptedException | ExecutionException ex) {
              ex.printStackTrace();
            }
          });
        }
      } else if (e.isStillSincePress() && e.getButton() == MouseButton.SECONDARY) {
        // clear the selection on a right-click
        clearSelection();
        selectedFeature = null;
      }
    });
  }

  /**
   * Syncs changes made on either the local or web service geodatabase with each other.
   */
  @FXML
  private void syncGeodatabase() {
    clearSelection();
    syncButton.setDisable(true);
    selectedFeature = null;
    mapView.setOnMouseClicked(null);

    // create parameters for the sync task
    SyncGeodatabaseParameters syncGeodatabaseParameters = new SyncGeodatabaseParameters();
    syncGeodatabaseParameters.setSyncDirection(SyncGeodatabaseParameters.SyncDirection.BIDIRECTIONAL);
    syncGeodatabaseParameters.setRollbackOnFailure(false);

    // specify the layer IDs of the feature tables to sync (all in this case)
    geodatabase.getGeodatabaseFeatureTables().forEach(geodatabaseFeatureTable -> {
      long serviceLayerId = geodatabaseFeatureTable.getServiceLayerId();
      SyncLayerOption syncLayerOption = new SyncLayerOption(serviceLayerId);
      syncGeodatabaseParameters.getLayerOptions().add(syncLayerOption);
    });

    // create a sync job with the parameters and start it
    final SyncGeodatabaseJob syncGeodatabaseJob = geodatabaseSyncTask.syncGeodatabase(syncGeodatabaseParameters, geodatabase);
    syncGeodatabaseJob.start();

    // show the job's progress in the progress bar
    progressBar.setVisible(true);
    syncGeodatabaseJob.addProgressChangedListener(() ->
        progressBar.setProgress((double) syncGeodatabaseJob.getProgress() / 100.0)
    );

    // notify the user when the sync is complete
    syncGeodatabaseJob.addJobDoneListener(() -> {
      if (syncGeodatabaseJob.getStatus() == Job.Status.SUCCEEDED) {
        new Alert(Alert.AlertType.INFORMATION, "Geoatabase sync successful").show();
      } else {
        new Alert(Alert.AlertType.ERROR, "Error syncing geodatabase").show();
      }

      progressBar.setVisible(false);
      allowEditing();
    });
  }

  /**
   * Clears selection in all layers of the map.
   */
  private void clearSelection() {
    map.getOperationalLayers().forEach(layer -> {
      if (layer instanceof FeatureLayer) {
        ((FeatureLayer) layer).clearSelection();
      }
    });
  }

  /**
   * Updates the download area graphic to show a red border around the current view extent that will be downloaded if
   * taken offline.
   */
  private void updateDownloadArea() {
    if (map.getLoadStatus() == LoadStatus.LOADED) {
      // upper left corner of the area to take offline
      Point2D minScreenPoint = new Point2D(50, 50);
      // lower right corner of the downloaded area
      Point2D maxScreenPoint = new Point2D(mapView.getWidth() - 50, mapView.getHeight() - 50);
      // convert screen points to map points
      Point minPoint = mapView.screenToLocation(minScreenPoint);
      Point maxPoint = mapView.screenToLocation(maxScreenPoint);
      // use the points to define and return an envelope
      if (minPoint != null && maxPoint != null) {
        Envelope envelope = new Envelope(minPoint, maxPoint);
        downloadAreaGraphic.setGeometry(envelope);
      }
    }
  }

  /**
   * Stops the animation and disposes of application resources.
   */
  void terminate() {

    if (mapView != null) {
      mapView.dispose();
    }
  }
}

/*
 * Copyright 2019 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.edit_and_sync_features;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class EditAndSyncFeaturesSample extends Application {

  private static EditAndSyncFeaturesController controller;

  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/edit_and_sync_features/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Edit And Sync Features Sample");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
