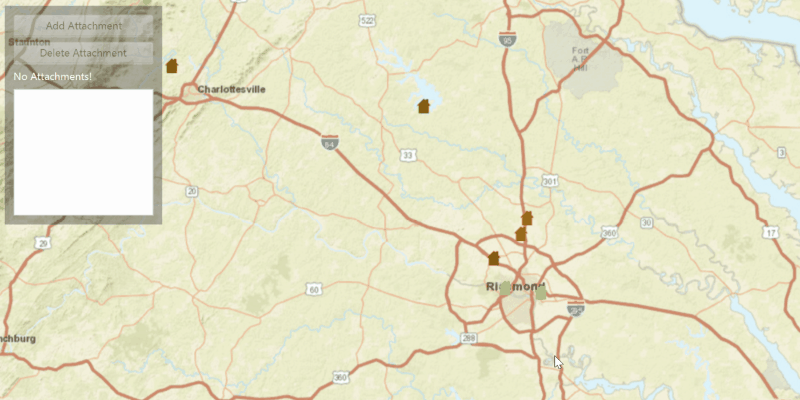

Edit feature attachments

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.edit_feature_attachments {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;

  // require other modules that the application uses
  requires org.apache.commons.io;

  exports com.esri.samples.edit_feature_attachments;
}

/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.edit_feature_attachments;

import org.apache.commons.io.IOUtils;
import java.util.List;

import javafx.application.Application;
import javafx.application.Platform;
import javafx.geometry.Insets;
import javafx.geometry.Point2D;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.ListView;
import javafx.scene.input.MouseButton;
import javafx.scene.layout.Background;
import javafx.scene.layout.BackgroundFill;
import javafx.scene.layout.CornerRadii;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.scene.paint.Paint;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.data.ArcGISFeature;
import com.esri.arcgisruntime.data.Attachment;
import com.esri.arcgisruntime.data.ServiceFeatureTable;
import com.esri.arcgisruntime.layers.FeatureLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.GeoElement;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.MapView;

public class EditFeatureAttachmentsSample extends Application {

  private ListView<String> attachmentList;
  private Label attachmentsLabel;
  private ArcGISFeature selected;
  private List<Attachment> attachments;
  private ServiceFeatureTable featureTable;
  private MapView mapView;

  @Override
  public void start(Stage stage) {

    try {
      // create stack pane and application scene
      var stackPane = new StackPane();
      var scene = new Scene(stackPane);
      scene.getStylesheets().add(getClass().getResource("/edit_feature_attachments/style.css").toExternalForm());

      // set title, size, and add scene to stage
      stage.setTitle("Edit Feature Attachments Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a control panel
      VBox controlsVBox = new VBox(6);
      controlsVBox.setBackground(new Background(new BackgroundFill(Paint.valueOf("rgba(0,0,0,0.3)"), CornerRadii.EMPTY,
        Insets.EMPTY)));
      controlsVBox.setPadding(new Insets(10.0));
      controlsVBox.setMaxSize(180, 250);
      controlsVBox.getStyleClass().add("panel-region");

      // create add/delete buttons
      Button addAttachmentButton = new Button("Add Attachment");
      addAttachmentButton.setMaxWidth(Double.MAX_VALUE);
      addAttachmentButton.setDisable(true);

      Button deleteAttachmentButton = new Button("Delete Attachment");
      deleteAttachmentButton.setMaxWidth(Double.MAX_VALUE);
      deleteAttachmentButton.setDisable(true);

      // create a list to show selected feature's attachments
      attachmentList = new ListView<>();
      attachmentsLabel = new Label("Attachments: ");
      attachmentsLabel.getStyleClass().add("panel-label");
      attachmentList.getSelectionModel().selectedItemProperty().addListener(event -> deleteAttachmentButton.setDisable(attachmentList.getSelectionModel().getSelectedIndex() == -1));

      // get image attachment
      byte[] image = IOUtils.toByteArray(getClass().getResourceAsStream("/edit_feature_attachments/destroyed.png"));

      // button click to add image attachment to selected feature
      addAttachmentButton.setOnAction(e -> addAttachment(image));

      // button click to delete selected attachment
      deleteAttachmentButton.setOnAction(e -> deleteAttachment(attachmentList.getSelectionModel().getSelectedIndex()));

      // add controls to the panel
      controlsVBox.getChildren().addAll(addAttachmentButton, deleteAttachmentButton, attachmentsLabel, attachmentList);

      // create a map with the streets basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_STREETS);

      // create a map view and set the map to it
      mapView = new MapView();
      mapView.setMap(map);

      // set a viewpoint on the map view
      mapView.setViewpoint(new Viewpoint(40, -95, 36978595));

      // set selection color
      mapView.getSelectionProperties().setColor(Color.BLUE);

      // create service feature table from URL
      featureTable = new ServiceFeatureTable("https://sampleserver6.arcgisonline.com/arcgis/rest/services/DamageAssessment/FeatureServer/0");

      // create a feature layer from service feature table
      var featureLayer = new FeatureLayer(featureTable);

      // add the feature layer to the ArcGISMap
      map.getOperationalLayers().add(featureLayer);

      // show alert if layer fails to load
      featureLayer.addDoneLoadingListener(() -> {
        if (featureLayer.getLoadStatus() != LoadStatus.LOADED) {
          displayMessage("Error", "Error loading feature layer");
        }
      });

      mapView.setOnMouseClicked(event -> {
        if (event.isStillSincePress() && event.getButton() == MouseButton.PRIMARY) {
          // create a map point from a point
          Point2D point = new Point2D(event.getX(), event.getY());

          // clear previous results
          featureLayer.clearSelection();
          addAttachmentButton.setDisable(true);
          attachmentList.getItems().clear();

          // get the clicked feature
          mapView.identifyLayerAsync(featureLayer, point, 1, false, 1).toCompletableFuture()
            .whenComplete((identifyLayerResult, exception) -> {
              if (exception == null) {
                // if the identification operation completes successfully, get the list of identified GeoElements
                // if nothing is identified, an empty list will be returned
                List<GeoElement> identified = identifyLayerResult.getElements();
                if (!identified.isEmpty()) {
                  // only proceed if an element was identified
                  GeoElement element = identified.get(0);
                  if (element instanceof ArcGISFeature) {
                    // if the element is an ArcGISFeature, select the feature
                    selected = (ArcGISFeature) element;
                    featureLayer.selectFeature(selected);
                    selected.loadAsync();
                    selected.addDoneLoadingListener(() -> {
                      if (selected.getLoadStatus() == LoadStatus.LOADED) {
                        fetchAttachmentsAsync(selected);
                      } else {
                        displayMessage("Error", "Element failed to load!");
                      }
                    });
                    addAttachmentButton.setDisable(false);
                  }
                }
              } else {
                // if the identification operation completes with an exception, display an error
                displayMessage("Exception getting identify result", exception.getCause().getMessage());
              }
            });
        }
      });

      // add map view and control panel to stack pane
      stackPane.getChildren().addAll(mapView, controlsVBox);
      StackPane.setAlignment(controlsVBox, Pos.TOP_LEFT);
      StackPane.setMargin(controlsVBox, new Insets(10, 0, 0, 10));
    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  /**
   * Updates the UI with a list of a feature's attachments.
   */
  private void fetchAttachmentsAsync(ArcGISFeature feature) {

    feature.fetchAttachmentsAsync().toCompletableFuture().whenComplete(
      (attachmentResults, exception) -> {
        if (exception == null) {
          // if the attachments were fetched successfully, update the UI attachments list
          attachments = attachmentResults;

          Platform.runLater(() -> {
            attachmentList.getItems().clear();
            if (!attachments.isEmpty()) {
              attachmentsLabel.setText("Attachments: ");
              attachments.forEach(attachment -> attachmentList.getItems().add(attachment.getName()));
            } else {
              attachmentsLabel.setText("No Attachments!");
            }
          });
        } else {
          displayMessage("Exception getting feature attachments", exception.getCause().getMessage());
        }
      });
  }

  /**
   * Adds an attachment to a Feature.
   *
   * @param attachment byte array of attachment
   */
  private void addAttachment(byte[] attachment) {

    if (selected.canEditAttachments()) {
      // update feature table and apply update to server when new feature is added
      selected.addAttachmentAsync(attachment, "image/png", "edit_feature_attachments/destroyed.png")
        .toCompletableFuture()
        .thenCompose(addedAttachment -> featureTable.updateFeatureAsync(selected).toCompletableFuture())
        .thenRun(() -> applyEdits(featureTable));
    } else {
      displayMessage(null, "Cannot add attachment.");
    }
  }

  /**
   * Deletes a selected attachment from a Feature.
   */
  private void deleteAttachment(int attachmentIndex) {

    if (selected.canEditAttachments()) {
      // update feature table and apply update to server when new feature is deleted
      selected.deleteAttachmentAsync(attachments.get(attachmentIndex)).toCompletableFuture()
        .thenCompose(unused -> featureTable.updateFeatureAsync(selected).toCompletableFuture())
        .thenRun(() -> applyEdits(featureTable));
    } else {
      displayMessage(null, "Cannot delete attachment");
    }
  }

  /**
   * Sends any edits on the ServiceFeatureTable to the server.
   *
   * @param featureTable service feature table
   */
  private void applyEdits(ServiceFeatureTable featureTable) {

    // apply the changes to the server
    featureTable.applyEditsAsync().toCompletableFuture().whenComplete(
      (editResults, exception) -> {
        // check if the server edit was successful
        if (exception == null) {
          if (!editResults.isEmpty()) {
            // check for any errors. In this case we are only updating 1 feature so just check the first result
            if (!editResults.get(0).hasCompletedWithErrors()) {
              // if there are no errors, display a success message
              displayMessage("Success", "Edited feature successfully");
            } else {
              if (editResults.get(0).getError() != null) {
                // if there is an error, throw
                throw editResults.get(0).getError();
              }
            }
          }
          // update the displayed list of attachments
          fetchAttachmentsAsync(selected);
        } else {
          displayMessage("Error applying edits on server ", exception.getCause().getMessage());
        }
      });
  }

  /**
   * Shows a message in an alert dialog.
   *
   * @param title   title of alert
   * @param message message to display
   */
  private void displayMessage(String title, String message) {

    Platform.runLater(() -> {
      Alert dialog = new Alert(Alert.AlertType.INFORMATION);
      dialog.initOwner(mapView.getScene().getWindow());
      dialog.setHeaderText(title);
      dialog.setContentText(message);
      dialog.showAndWait();
    });
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {

    // release resources when the application closes
    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }

}
