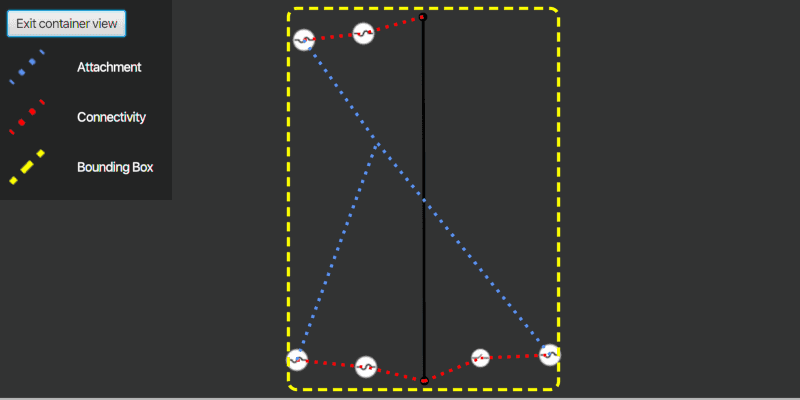

Display content of utility network container

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.display_content_of_utility_network_container {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.display_content_of_utility_network_container to javafx.fxml;

  exports com.esri.samples.display_content_of_utility_network_container;
}

/*
 * Copyright 2021 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.esri.samples.display_content_of_utility_network_container;

import com.esri.arcgisruntime.concurrent.ListenableFuture;
import com.esri.arcgisruntime.data.ArcGISFeature;
import com.esri.arcgisruntime.geometry.Geometry;
import com.esri.arcgisruntime.geometry.GeometryEngine;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.layers.SubtypeFeatureLayer;
import com.esri.arcgisruntime.loadable.LoadStatus;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.DrawStatus;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.IdentifyLayerResult;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.security.AuthenticationChallengeHandler;
import com.esri.arcgisruntime.security.AuthenticationChallengeResponse;
import com.esri.arcgisruntime.security.AuthenticationManager;
import com.esri.arcgisruntime.security.UserCredential;
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
import com.esri.arcgisruntime.symbology.Symbol;
import com.esri.arcgisruntime.utilitynetworks.UtilityAssociation;
import com.esri.arcgisruntime.utilitynetworks.UtilityAssociationType;
import com.esri.arcgisruntime.utilitynetworks.UtilityElement;
import com.esri.arcgisruntime.utilitynetworks.UtilityNetwork;

import javafx.fxml.FXML;
import javafx.geometry.Point2D;
import javafx.scene.control.Alert;
import javafx.scene.control.ProgressIndicator;
import javafx.scene.image.ImageView;
import javafx.scene.input.MouseButton;
import javafx.scene.input.MouseEvent;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;

import java.util.ArrayList;
import java.util.List;

public class DisplayContentOfUtilityNetworkContainerController {

  @FXML private VBox vBox;
  @FXML private MapView mapView;
  @FXML private ProgressIndicator progressIndicator;
  @FXML private ImageView attachmentImageView;
  @FXML private ImageView boundingBoxImageView;
  @FXML private ImageView connectivityImageView;

  private ArcGISFeature selectedContainerFeature;
  private GraphicsOverlay graphicsOverlay;
  private SimpleLineSymbol boundingBoxSymbol;
  private SimpleLineSymbol attachmentSymbol;
  private SimpleLineSymbol connectivitySymbol;
  private UtilityNetwork utilityNetwork;
  private Viewpoint previousViewpoint;

  public void initialize() {

    try {

      // create a new graphics overlay to display container view contents
      graphicsOverlay = new GraphicsOverlay();
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      // create three new simple line symbols for displaying container view features
      boundingBoxSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.DASH, Color.YELLOW, 3);
      attachmentSymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.DOT, Color.CORNFLOWERBLUE, 3);
      connectivitySymbol = new SimpleLineSymbol(SimpleLineSymbol.Style.DOT, Color.RED, 3);

      // set image views for the association and bounding box symbols to display them in the legend
      attachmentImageView.setImage(attachmentSymbol.createSwatchAsync(Color.TRANSPARENT).get());
      connectivityImageView.setImage(connectivitySymbol.createSwatchAsync(Color.TRANSPARENT).get());
      boundingBoxImageView.setImage(boundingBoxSymbol.createSwatchAsync(Color.TRANSPARENT).get());

      // set user credentials to authenticate with the feature service and webmap url
      // NOTE: a licensed user is required to perform utility network operations
      // NOTE: Never hardcode login information in a production application. This is done solely for the sake of the sample.
      var userCredential = new UserCredential("viewer01", "I68VGU^nMurF");
      AuthenticationChallengeHandler authenticationChallengeHandler = authenticationChallenge ->
        new AuthenticationChallengeResponse(AuthenticationChallengeResponse.Action.CONTINUE_WITH_CREDENTIAL, userCredential);
      AuthenticationManager.setAuthenticationChallengeHandler(authenticationChallengeHandler);

      // create a new map from the web map URL (includes ArcGIS Pro subtype group layers with only container features visible)
      ArcGISMap map = new ArcGISMap("https://sampleserver7.arcgisonline.com/portal/home/item.html?id=813eda749a9444e4a9d833a4db19e1c8");
      // the feature service url contains a utility network used to find associations shown in this sample
      String featureServiceURL = "https://sampleserver7.arcgisonline.com/server/rest/services/UtilityNetwork/NapervilleElectric/FeatureServer";

      // create a utility network, add it to the map's collection of utility networks, and load it
      utilityNetwork = new UtilityNetwork(featureServiceURL);
      map.getUtilityNetworks().add(utilityNetwork);
      utilityNetwork.addDoneLoadingListener(() -> {
        // show an error if the utility network did not load
        if (utilityNetwork.getLoadStatus() != LoadStatus.LOADED) {
          new Alert(Alert.AlertType.ERROR, "Error loading Utility Network.").show();
        }
      });
      utilityNetwork.loadAsync();

      // bind progress indicator visibility to map view draw status
      progressIndicator.visibleProperty().bind(mapView.drawStatusProperty().isEqualTo(DrawStatus.IN_PROGRESS));

      // set the map to the mapview and set the map view's viewpoint
      mapView.setMap(map);
      mapView.setViewpoint(new Viewpoint(41.801504, -88.163718, 4e3));

    } catch (Exception e) {
      e.printStackTrace();
    }
  }

  /**
   * Identifies the feature clicked on the map, gets their containment associations and elements, and displays the content
   * of the elements features in a container view.
   *
   * @param e event registered when the map view is clicked on
   */
  @FXML
  private void handleMapViewClicked(MouseEvent e) {

    if (e.getButton() == MouseButton.PRIMARY && e.isStillSincePress()) {
      // get the clicked map point
      Point2D screenPoint = new Point2D(e.getX(), e.getY());

      // identify the feature clicked on
      ListenableFuture<List<IdentifyLayerResult>> identifyLayerResultsFuture =
        mapView.identifyLayersAsync(screenPoint, 10, false);
      identifyLayerResultsFuture.addDoneListener(() -> {
        try {
          // get the result of the query
          List<IdentifyLayerResult> identifyLayerResults = identifyLayerResultsFuture.get();

          // check that results have been returned
          if (!identifyLayerResults.isEmpty()) {

            identifyLayerResults.forEach(layerResult -> {
              // check if the layer result is a subtype feature layer
              if (layerResult.getLayerContent() instanceof SubtypeFeatureLayer) {
                // loop through each sub layer result
                layerResult.getSublayerResults().forEach(sublayerResult -> {
                  // filter the sublayer result's elements to find the first one which is an ArcGIS feature
                  sublayerResult.getElements().stream().filter(element -> element instanceof ArcGISFeature)
                    .findFirst().ifPresent(geoElement -> selectedContainerFeature = (ArcGISFeature) geoElement);
                });
              }
            });

            // create a container element using the selected feature
            if (selectedContainerFeature != null) {

              UtilityElement containerElement = utilityNetwork.createElement(selectedContainerFeature);

              // get the containment associations from this element to display its content
              ListenableFuture<List<UtilityAssociation>> containmentAssociationsFuture =
                utilityNetwork.getAssociationsAsync(containerElement, UtilityAssociationType.CONTAINMENT);

              containmentAssociationsFuture.addDoneListener(() -> {
                try {
                  // get and store a list of elements from the result of the query
                  List<UtilityElement> contentElements = new ArrayList<>();

                  // get the list of containment associations and loop through them to get their elements
                  List<UtilityAssociation> containmentAssociations = containmentAssociationsFuture.get();
                  containmentAssociations.forEach(association -> {
                    UtilityElement utilityElement = association.getFromElement().getObjectId() ==
                      containerElement.getObjectId() ? association.getToElement() : association.getFromElement();
                    contentElements.add(utilityElement);
                  });

                  // check the list of elements isn't empty, and store the current viewpoint (this will be used later
                  // when exiting the container view
                  if (!contentElements.isEmpty()) {
                    previousViewpoint = mapView.getCurrentViewpoint(Viewpoint.Type.BOUNDING_GEOMETRY);
                    mapView.getMap().getOperationalLayers().forEach(layer -> layer.setVisible(false));

                    // enable container view vbox and disable interaction with the map view to avoid navigating away from container view
                    vBox.setVisible(true);
                    mapView.setDisable(true);

                    // fetch the features from the elements
                    ListenableFuture<List<ArcGISFeature>> fetchFeaturesFuture = utilityNetwork.fetchFeaturesForElementsAsync(contentElements);
                    fetchFeaturesFuture.addDoneListener(() -> {
                      try {
                        // get the content features and give them each a symbol, and add them as a graphic to the graphics overlay
                        List<ArcGISFeature> contentFeatures = fetchFeaturesFuture.get();
                        contentFeatures.forEach(content -> {
                          Symbol symbol = content.getFeatureTable().getLayerInfo().getDrawingInfo().getRenderer().getSymbol(content);
                          graphicsOverlay.getGraphics().add(new Graphic(content.getGeometry(), symbol));
                        });

                        Geometry firstGraphic = graphicsOverlay.getGraphics().get(0).getGeometry();
                        double containerViewScale = containerElement.getAssetType().getContainerViewScale();

                        if (graphicsOverlay.getGraphics().size() == 1 && firstGraphic instanceof Point) {
                          mapView.setViewpointCenterAsync((Point) firstGraphic, containerViewScale).addDoneListener(() -> {

                            // the bounding box, which defines the container view, may be computed using the extent of the features
                            // it contains or centered around its geometry at the container's view scale
                            Geometry boundingBox = mapView.getCurrentViewpoint(Viewpoint.Type.BOUNDING_GEOMETRY).getTargetGeometry();
                            identifyAssociationsWithExtent(boundingBox);
                            new Alert(Alert.AlertType.INFORMATION, "This feature has no associations").show();

                          });

                        } else {
                          Geometry boundingBox = GeometryEngine.buffer(graphicsOverlay.getExtent(), 0.05);
                          identifyAssociationsWithExtent(boundingBox);
                        }

                      } catch (Exception ex) {
                        new Alert(Alert.AlertType.ERROR, "Error fetching features for elements.").show();
                        ex.printStackTrace();
                      }
                    });

                  } else {
                    new Alert(Alert.AlertType.ERROR, "No content elements found").show();
                  }

                } catch (Exception ex) {
                  new Alert(Alert.AlertType.ERROR, "Error getting containment associations.").show();
                  ex.printStackTrace();
                }
              });
            } else new Alert(Alert.AlertType.ERROR, "No feature found").show();
          }

        } catch (Exception ex) {
          new Alert(Alert.AlertType.ERROR, "Error getting result of the query.").show();
          ex.printStackTrace();
        }
      });
    }
  }

  /**
   * Get associations for the specified geometry and display its associations.
   *
   * @param boundingBox the geometry from which to get associations.
   */
  private void identifyAssociationsWithExtent(Geometry boundingBox) {

    // adds a graphic representing the bounding box of the associations identified and zooms to its extent
    graphicsOverlay.getGraphics().add(new Graphic(boundingBox, boundingBoxSymbol));
    mapView.setViewpointGeometryAsync(GeometryEngine.buffer(graphicsOverlay.getExtent(), 0.05));

    // get the associations for this extent to display how content features are attached or connected.
    ListenableFuture<List<UtilityAssociation>> extentAssociations = utilityNetwork.getAssociationsAsync(graphicsOverlay.getExtent());

    extentAssociations.addDoneListener(() -> {
      try {
        extentAssociations.get().forEach(association -> {
          // assign the appropriate symbol if the association is an attachment or connectivity type
          Symbol symbol = association.getAssociationType() == UtilityAssociationType.ATTACHMENT ? attachmentSymbol :
            connectivitySymbol;
          graphicsOverlay.getGraphics().add(new Graphic(association.getGeometry(), symbol));
        });

      } catch (Exception ex) {
        new Alert(Alert.AlertType.ERROR, "Error getting extent associations").show();
        ex.printStackTrace();
      }
    });
  }

  /**
   * Hides the exit container button, clears the graphics that were added to the graphics overlay,
   * returns the viewpoint to where it was prior to entering the container view, enables map view interaction,
   * and sets all the layers in the map's operational layers to visible, when the container view is exited.
   */
  @FXML
  private void handleExitButtonClicked() {

    vBox.setVisible(false);
    graphicsOverlay.getGraphics().clear();
    mapView.setDisable(false);
    mapView.setViewpointAsync(previousViewpoint);
    mapView.getMap().getOperationalLayers().forEach(layer -> layer.setVisible(true));

  }

  /**
   * Stops and releases all resources used in application.
   */
  public void terminate() {

    if (mapView != null) {
      mapView.dispose();
    }
  }
}

/*
 * Copyright 2021 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.esri.samples.display_content_of_utility_network_container;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class DisplayContentOfUtilityNetworkContainerSample extends Application {

  private DisplayContentOfUtilityNetworkContainerController controller;

  @Override
  public void start(Stage stage) throws Exception {

    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/display_content_of_utility_network_container/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set title, size, and add scene to stage
    stage.setTitle("Display Content of Utility Network Container Sample");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
