Highlight areas intersecting borough boundaries

Explore in the sandboxView live

This sample shows how FeatureEffect can be used to draw attention features of interest. In this case, the map highlights areas in Greater London that intersect the boundaries of London boroughs. The map (inspired by this tweet) shows the overall index of multiple deprivation in 2019 experienced by people living in the Greater London area. This index is calculated for every Lower Layer Super Output Area (LSOA). The layer is symbolized to show an IMD decile, where 1 is the most deprived 10% of the LSOA.

How it works

At version 4.22, we added a support for FeatureEffect on several layer classes including FeatureLayer. When the IMD deprivation FeatureLayer is loaded, we set the following feature effects on the layer. We apply a drop-shadow feature effect to the features that intersect the borough boundaries, while applying blur and brightness effects to the features that are excluded from the filter criteria. The resulting map will make it easier to spot if the residents are more likely to experience deprivation if they live on a borough boundary.

Use dark colors for code blocks

1
2
3
4
5
6
7
8
9
10
11
webmap.when(() => {
  const imdLayer = webmap.layers.items[0];
    const featureFilter = {
      where: "BoroughEdge='true'"
    };
    imdLayer.featureEffect = {
      filter: featureFilter,
      includedEffect: "drop-shadow(3px, 3px, 3px, black)",
      excludedEffect: "blur(1px) brightness(65%)"
    }
});

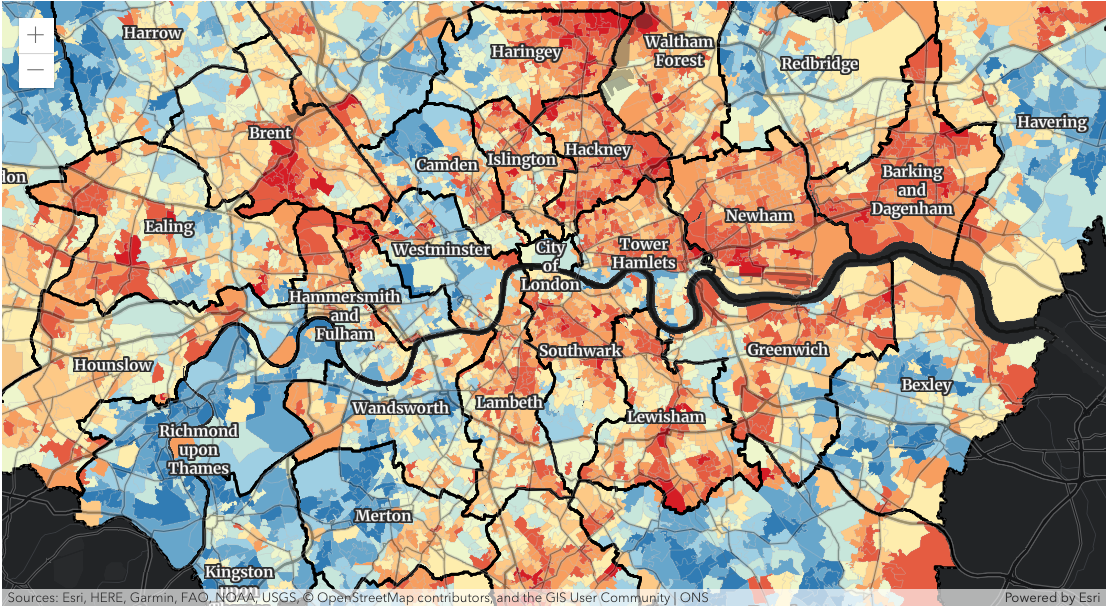

The map would look like the following if the feature effect was not applied to the layer.
