This sample demonstrates how to present Viewsheds in Slides using the ViewshedLayer.

The app loads a webscene which includes some slides and already existing viewsheds. Next, it creates an additional layer to add a viewshed programmatically:

      const viewshedLayer = new ViewshedLayer({
        title: "Viewpoint 3",
        source: new ViewshedAnalysis(),
      });

      const viewshed = new Viewshed({
        observer: new Point({
          spatialReference: {
            latestWkid: 3857,
            wkid: 102100,
          },
          x: -7912158.0615638,
          y: 5213199.964671738,
          z: 30,
        }),

      });
      viewshedLayer.source.viewsheds.add(viewshed);

To edit the viewsheds, the interactive property of the respective ViewshedLayerView needs to bet set to true. The sample uses a switch to toggle the interactivity.

            const layerView = await viewElement.whenLayerView(layer);
            layerView.interactive = !layerView.interactive;

Interactive viewshed analysis

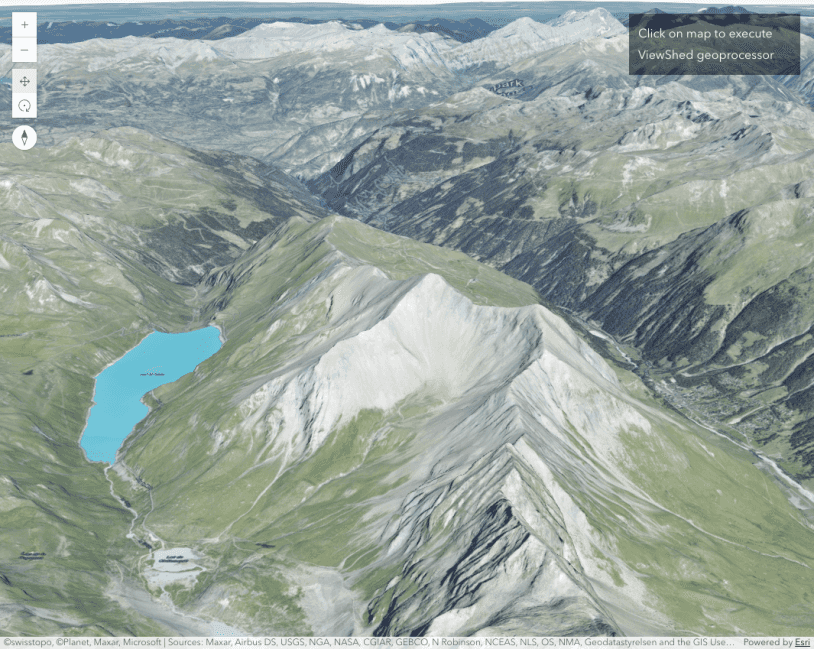

Geoprocessing - viewshed analysis

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no" />
    <title>ViewshedLayer in slides | Sample | ArcGIS Maps SDK for JavaScript</title>

    <!-- Load the ArcGIS Maps SDK for JavaScript from CDN -->
    <script type="module" src="https://js.arcgis.com/5.0/"></script>

    <style>
      html,
      body {
        margin: 0;
        height: 100%;
      }

      arcgis-layer-list,
      #viewshedControls {
        width: 220px;
      }
      calcite-label {
        --calcite-label-margin-bottom: 0;
      }
      #promptText {
        margin-top: 5px;
      }

      #menu {
        display: flex;
        justify-content: center;
      }
      #slideSelector {
        position: absolute;
        bottom: 25px;
        display: none;
      }
    </style>
  </head>

  <body>
    <arcgis-scene item-id="c8486d8fdbc34e468e5d5dc2458c0aa3">
      <arcgis-zoom slot="top-left"></arcgis-zoom>
      <arcgis-navigation-toggle slot="top-left"></arcgis-navigation-toggle>
      <arcgis-compass slot="top-left"></arcgis-compass>

      <calcite-card id="viewshedControls" slot="top-right">
        <calcite-label layout="inline-space-between">
          Edit visible viewsheds
          <calcite-switch id="interactivitySwitch"></calcite-switch>
        </calcite-label>
        <div id="promptText" style="display: none">
          <em>Hover and click on a viewshed to select it. Drag the handles to edit it.</em>
        </div>
      </calcite-card>
      <arcgis-layer-list slot="top-right"></arcgis-layer-list>
    </arcgis-scene>

    <div id="menu">
      <calcite-segmented-control id="slideSelector" width="full"> </calcite-segmented-control>
    </div>

    <script type="module">
      const [ViewshedLayer, ViewshedAnalysis, Viewshed, Slide, Point] = await $arcgis.import([
        "@arcgis/core/layers/ViewshedLayer.js",
        "@arcgis/core/analysis/ViewshedAnalysis.js",
        "@arcgis/core/analysis/Viewshed.js",
        "@arcgis/core/webscene/Slide.js",
        "@arcgis/core/geometry/Point.js",
      ]);

      // Get a reference to the Scene component and other elements.
      const viewElement = document.querySelector("arcgis-scene");
      const slideSelector = document.getElementById("slideSelector");
      const interactivitySwitch = document.getElementById("interactivitySwitch");
      const promptText = document.getElementById("promptText");

      // Wait until the component is loaded.
      await viewElement.viewOnReady();

      /**********************************************
       * Add UI element that navigates between slides
       *********************************************/
      const slides = viewElement.map.presentation.slides;

      // Loop through slides in the collection and create a button for each.
      for (const slide of slides) {
        const index = slides.indexOf(slide);
        const button = createSlideButton(slide, index, false);
        slideSelector.appendChild(button);
      }
      slideSelector.addEventListener("calciteSegmentedControlChange", () => {
        const slide = slides.getItemAt(slideSelector.selectedItem.value);
        slide.applyTo(viewElement.view, {
          speedFactor: 0.4,
        });
      });
      /**********************************************
       * Create additional viewshed layer and add a new slide for it
       *********************************************/


      const viewshedLayer = new ViewshedLayer({
        title: "Viewpoint 3",
        source: new ViewshedAnalysis(),
      });

      const viewshed = new Viewshed({
        observer: new Point({
          spatialReference: {
            latestWkid: 3857,
            wkid: 102100,
          },
          x: -7912158.0615638,
          y: 5213199.964671738,
          z: 30,
        }),

        farDistance: 176.10907675350214,
        heading: 299.4705057474978,
        tilt: 97.98528109253681,
        horizontalFieldOfView: 360,
        verticalFieldOfView: 180,

      });
      viewshedLayer.source.viewsheds.add(viewshed);

      // Add it to the group layer so that it appears as the last in the layer list.
      const viewshedGroupLayer = viewElement.map.allLayers.find(
        (layer) => layer.title === "Viewsheds",
      );
      viewshedGroupLayer.add(viewshedLayer, 0);
      // Add a new slide from current view.
      Slide.createFrom(viewElement.view).then((slide) => {
        slide.title.text = "Visibility from street";
        const button = createSlideButton(slide, slides.length, true);
        slideSelector.appendChild(button);
        viewElement.map.presentation.slides.add(slide);
        // Once done, make the slide selector buttons visible.
        slideSelector.style.display = "flex";
      });
      /**********************************************
       * Add switch to edit viewsheds interactively
       *********************************************/

      interactivitySwitch.addEventListener("calciteSwitchChange", toggleInteractivity);

      /**********************************************
       * Helper functions
       *********************************************/

      function createSlideButton(slide, index, active) {
        const segmentedControlItem = document.createElement("calcite-segmented-control-item");
        // Set the "value" atttribute to slide index to later use it for getting each slide.
        segmentedControlItem.setAttribute("value", index);
        segmentedControlItem.textContent = slide.title.text;
        if (active) {
          segmentedControlItem.setAttribute("checked", "");
        }
        return segmentedControlItem;
      }
      // Make all viewshedlayers interactive or not.
      async function toggleInteractivity() {
        for (const layer of viewshedGroupLayer.layers) {
          if (layer.type === "viewshed") {

            const layerView = await viewElement.whenLayerView(layer);
            layerView.interactive = !layerView.interactive;

            promptText.style.display = layerView.interactive ? "flex" : "none";
          }
        }
      }
    </script>
  </body>
</html>
