Add a layer to a local scene to visualize and interact with 3D building models developed using Building Information Modeling (BIM) tools.

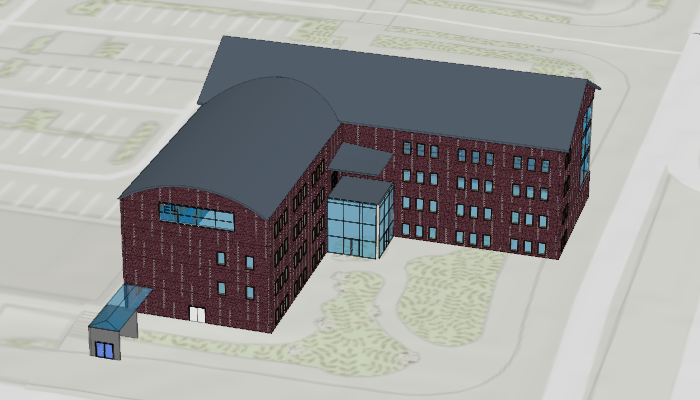

Image of add building scene layer

Use case

Building Scene Layers allow you to display and analyze detailed building models created from 3D BIM data. Unlike 3D object scene layers, which represent all features within a single layer, Building Scene Layers are organized into a hierarchy of sublayers representing individual building components such as walls, light fixtures, and mechanical systems. These sublayers are often grouped by disciplines like Architectural, Mechanical, or Structural. This structure enables deeper interaction and analysis of both interior and exterior features, providing insight into how a building is designed, used, and situated in its spatial context.

How to use the sample

When loaded, the sample displays a scene with a Building Scene Layer. By default, the Overview sublayer is visible, showing the building’s exterior shell. Use the “Full Model” toggle to switch to the Full Model sublayer, which reveals the building’s components. Pan around and zoom in to observe the detailed features such as walls, light fixtures, mechanical systems, and more, both outside and inside the building.

How it works

Create a local scene object with the ArcGISScene(BasemapStyle, SceneViewingMode) constructor.
Create an ArcGISTiledElevationSource object and add it to the local scene’s base surface.
Create a BuildingSceneLayer and add it to the local scene’s operational layers.
Create a LocalSceneView object to display the scene.
Set the local scene to the LocalSceneView.

Relevant API

ArcGISTiledElevationSource
BuildingSceneLayer
BuildingSublayer
LocalSceneView
Scene

Sample Code

MainActivity.kt

AddBuildingSceneLayerScreen.kt

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addbuildingscenelayer

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.addbuildingscenelayer.screens.AddBuildingSceneLayerScreen
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)
        enableEdgeToEdge()

        setContent {
            SampleAppTheme {
                AddBuildingSceneLayerApp()
            }
        }
    }

    @Composable
    private fun AddBuildingSceneLayerApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            AddBuildingSceneLayerScreen(
                sampleName = getString(R.string.add_building_scene_layer_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addbuildingscenelayer.screens

import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.material3.SegmentedButton
import androidx.compose.material3.SegmentedButtonDefaults
import androidx.compose.material3.SingleChoiceSegmentedButtonRow
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.LaunchedEffect
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableIntStateOf
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.ArcGISTiledElevationSource
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.layers.BuildingSceneLayer
import com.arcgismaps.mapping.layers.buildingscene.BuildingSublayer
import com.arcgismaps.mapping.view.Camera
import com.arcgismaps.mapping.view.SceneViewingMode
import com.arcgismaps.toolkit.geoviewcompose.LocalSceneView
import com.arcgismaps.toolkit.geoviewcompose.LocalSceneViewProxy
import com.esri.arcgismaps.sample.sampleslib.components.LoadingDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen layout for the sample app
 */
@Composable
fun AddBuildingSceneLayerScreen(sampleName: String) {
    // A boolean value to indicate if the building scene layer is loaded
    var isLoaded by remember { mutableStateOf(false) }

    val elevationSource = remember {
        ArcGISTiledElevationSource("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer")
    }

    val buildingSceneLayer = remember {
        BuildingSceneLayer("https://www.arcgis.com/home/item.html?id=669f6279c579486eb4a0acc7eb59d7ca")
            .apply {
                // Sets the altitude offset of the building scene layer.
                // Upon first inspection of the model, it does not line up with the global
                // elevation layer perfectly. To fix this, add an altitude offset to align
                // the model with the ground surface.
                altitudeOffset = 1.0
            }
    }

    val localSceneViewProxy = remember { LocalSceneViewProxy() }

    // The overview sublayer which represents the exterior shell of the building.
    var overviewSublayer: BuildingSublayer? = null

    // The full model sublayer which contains all the features of the building.
    var fullModelSublayer: BuildingSublayer? = null

    val arcGISScene = remember {
        ArcGISScene(
            viewingMode = SceneViewingMode.Local,
            basemapStyle = BasemapStyle.ArcGISTopographic
        ).apply {
            baseSurface.elevationSources.add(elevationSource)
            operationalLayers.add(buildingSceneLayer)
        }
    }

    // Set a viewpoint camera to see the building
    LaunchedEffect(Unit) {
        buildingSceneLayer.load().onSuccess {
            isLoaded = true
            localSceneViewProxy.setViewpointCamera(
                Camera(
                    locationPoint = Point(
                        x = -13045114.646632874,
                        y = 4036662.761124578,
                        z = 511.0,
                        spatialReference = SpatialReference.webMercator()
                    ),
                    heading = 343.0,
                    pitch = 64.0,
                    roll = 0.0
                )
            )
        }
    }

    // Get the overview and full model sublayers for the seggmented choice button
    LaunchedEffect(Unit) {
        buildingSceneLayer.load().onSuccess {
            val sublayers = buildingSceneLayer.sublayers
            overviewSublayer = sublayers.first { it.modelName == "Overview" }
            fullModelSublayer = sublayers.first { it.modelName == "FullModel" }
        }
    }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it),
            ) {
                if (!isLoaded) {
                    LoadingDialog(loadingMessage = "Loading building scene layer...")
                }
                LocalSceneView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f),
                    localSceneViewProxy = localSceneViewProxy,
                    scene = arcGISScene
                )

                var selectedIndex by remember { mutableIntStateOf(0) }
                val options = remember { listOf("Overview", "Full Model") }

                Row(modifier = Modifier.fillMaxWidth(),
                    horizontalArrangement = Arrangement.Center,
                    verticalAlignment = Alignment.CenterVertically) {

                    SingleChoiceSegmentedButtonRow(modifier = Modifier.padding(10.dp)) {
                        options.forEachIndexed { index, label ->
                            SegmentedButton(
                                shape = SegmentedButtonDefaults.itemShape(
                                    index = index,
                                    count = options.size
                                ),
                                onClick = { selectedIndex = index },
                                selected = index == selectedIndex,
                                label = { Text(label) }
                            )
                        }
                    }

                    if (selectedIndex == 0) {
                        fullModelSublayer?.isVisible = false
                        overviewSublayer?.isVisible = true
                    } else {
                        fullModelSublayer?.isVisible = true
                        overviewSublayer?.isVisible = false
                    }
                }
            }
        }
    )
}
