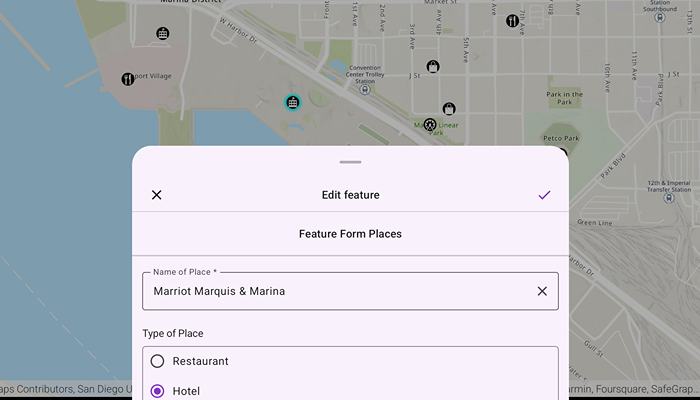

Edit features using feature forms

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.editfeaturesusingfeatureforms

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.components.MapViewModel
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.screens.MainScreen
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        ArcGISEnvironment.applicationContext = this
        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                val mapViewModel: MapViewModel = viewModel()
                MainScreen(mapViewModel)
            }
        }
    }
}

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.components

import android.app.Application
import androidx.compose.ui.unit.dp
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.data.ArcGISFeature
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.exceptions.FeatureFormValidationException
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.PortalItem
import com.arcgismaps.mapping.featureforms.FeatureForm
import com.arcgismaps.mapping.featureforms.FeatureFormDefinition
import com.arcgismaps.mapping.featureforms.FieldFormElement
import com.arcgismaps.mapping.featureforms.FormElement
import com.arcgismaps.mapping.featureforms.GroupFormElement
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.StateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch

/**
 * A view model for the MainScreen UI
 */
class MapViewModel(application: Application) : AndroidViewModel(application) {

    val mapViewProxy = MapViewProxy()

    // feature forms enabled web-map showcasing places of interest with form fields
    private var portalItem = PortalItem(application.getString(R.string.feature_form_web_map))

    val map = ArcGISMap(portalItem)

    // keep track of the selected feature form
    private val _featureForm = MutableStateFlow<FeatureForm?>(null)
    val featureForm: StateFlow<FeatureForm?> = _featureForm.asStateFlow()

    // keep track of the list of validation errors
    private val _errors = MutableStateFlow<List<ErrorInfo>>(listOf())
    val errors: StateFlow<List<ErrorInfo>> = _errors.asStateFlow()

    // create a ViewModel to handle dialog interactions
    val messageDialogVM: MessageDialogViewModel = MessageDialogViewModel()

    init {
        viewModelScope.launch {
            // load a map that has a FeatureFormDefinition on any of its layers
            map.load()
        }
    }

    /**
     * Apply attribute edits to the Geodatabase backing the ServiceFeatureTable
     * and refresh the local feature. Persisting changes to attributes is
     * not part of the FeatureForm API.
     *
     * @param onEditsCompleted Invoked when edits are applied successfully
     */
    fun applyEdits(onEditsCompleted: () -> Unit) {
        val featureForm = _featureForm.value
            ?: return messageDialogVM.showMessageDialog("Feature form state is not configured")

        // update the state flow with the list of validation errors found
        _errors.value = validateFormInputEdits(featureForm)
        // if there are no errors then update the feature
        if (_errors.value.isEmpty()) {
            val serviceFeatureTable = featureForm.feature.featureTable as? ServiceFeatureTable
                ?: return messageDialogVM.showMessageDialog("Cannot save feature edit without a ServiceFeatureTable")

            viewModelScope.launch {
                // commits changes of the edited feature to the database
                featureForm.finishEditing().onSuccess {
                    serviceFeatureTable.serviceGeodatabase?.let { database ->
                        if (database.serviceInfo?.canUseServiceGeodatabaseApplyEdits == true) {
                            // applies all local edits in the tables to the service
                            database.applyEdits().onFailure {
                                return@onFailure messageDialogVM.showMessageDialog(
                                    title = it.message.toString(),
                                    description = it.cause.toString()
                                )
                            }
                        } else {
                            // uploads any changes to the local table to the feature service
                            serviceFeatureTable.applyEdits().onFailure {
                                return@onFailure messageDialogVM.showMessageDialog(
                                    title = it.message.toString(),
                                    description = it.cause.toString()
                                )
                            }
                        }
                    }
                    // resets the attributes and geometry to the values in the data source
                    featureForm.feature.refresh()
                    // unselect the feature after the edits have been saved
                    (featureForm.feature.featureTable?.layer as FeatureLayer).clearSelection()
                    // dismiss dialog when edits are completed
                    onEditsCompleted()
                }.onFailure {
                    return@onFailure messageDialogVM.showMessageDialog(
                        title = it.message.toString(),
                        description = it.cause.toString()
                    )
                }
            }
        }
    }

    /**
     * Performs validation checks on the given [featureForm] with local edits.
     * Return a list of [ErrorInfo] if errors are found, if not, empty list is returned.
     */
    private fun validateFormInputEdits(featureForm: FeatureForm): List<ErrorInfo> {
        val errors = mutableListOf<ErrorInfo>()
        // If an element is editable or derives its value from an arcade expression,
        // its errors must be corrected before submitting the form
        featureForm.validationErrors.value.forEach { entry ->
            entry.value.forEach { error ->
                featureForm.elements.getFormElement(entry.key)?.let { formElement ->
                    // Ignore validation on non-editable and non-visible elements
                    if (formElement.isEditable.value || formElement.hasValueExpression) {
                        errors.add(
                            ErrorInfo(
                                fieldName = formElement.label,
                                error = error as FeatureFormValidationException
                            )
                        )
                    }
                }
            }
        }
        return errors
    }

    /**
     * Cancels the commit by resetting the validation errors.
     */
    fun cancelCommit() {
        // reset the validation errors
        _errors.value = listOf()
    }

    /**
     * Discard edits and unselects feature from the layer
     */
    fun rollbackEdits() {
        // discard local edits to the feature form
        _featureForm.value?.discardEdits()
        // unselect the feature
        (_featureForm.value?.feature?.featureTable?.layer as FeatureLayer).clearSelection()
        // reset the validation errors
        _errors.value = listOf()
    }

    /**
     * Perform an identify the tapped [ArcGISFeature] and retrieve the
     * layer's [FeatureFormDefinition] to create the respective [FeatureForm]
     */
    fun onSingleTapConfirmed(singleTapEvent: SingleTapConfirmedEvent) {
        viewModelScope.launch {
            mapViewProxy.identifyLayers(
                screenCoordinate = singleTapEvent.screenCoordinate,
                tolerance = 22.dp,
                returnPopupsOnly = false
            ).onSuccess { results ->
                try {
                    results.forEach { result ->
                        result.geoElements.firstOrNull {
                            it is ArcGISFeature && (it.featureTable?.layer as? FeatureLayer)?.featureFormDefinition != null
                        }?.let {
                            val feature = it as ArcGISFeature
                            val layer = feature.featureTable!!.layer as FeatureLayer
                            val featureForm = FeatureForm(feature)
                            // select the feature
                            layer.selectFeature(feature)
                            // set the UI to an editing state with the FeatureForm
                            _featureForm.value = featureForm
                        }
                    }
                } catch (e: Exception) {
                    messageDialogVM.showMessageDialog(
                        title = "Failed to create feature form for the feature",
                        description = e.message.toString()
                    )
                }
            }
        }
    }
}

/**
 * Returns the [FieldFormElement] with the given [fieldName] in the [FeatureForm]. If none exists
 * null is returned.
 */
fun List<FormElement>.getFormElement(fieldName: String): FieldFormElement? {
    val fieldElements = filterIsInstance<FieldFormElement>()
    val element = if (fieldElements.isNotEmpty()) {
        fieldElements.firstNotNullOfOrNull {
            if (it.fieldName == fieldName) it else null
        }
    } else {
        null
    }

    return element ?: run {
        val groupElements = filterIsInstance<GroupFormElement>()
        if (groupElements.isNotEmpty()) {
            groupElements.firstNotNullOfOrNull {
                it.elements.getFormElement(fieldName)
            }
        } else {
            null
        }
    }
}

/**
 * Class that provides a validation error [error] for the field with name [fieldName].
 */
data class ErrorInfo(val fieldName: String, val error: FeatureFormValidationException)

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.screens

import android.content.res.Configuration
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.heightIn
import androidx.compose.foundation.layout.navigationBarsPadding
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.wrapContentSize
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Check
import androidx.compose.material.icons.filled.Close
import androidx.compose.material3.AlertDialog
import androidx.compose.material3.Button
import androidx.compose.material3.Card
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.ExperimentalMaterial3Api
import androidx.compose.material3.HorizontalDivider
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.ModalBottomSheet
import androidx.compose.material3.OutlinedButton
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.material3.rememberModalBottomSheetState
import androidx.compose.runtime.Composable
import androidx.compose.runtime.LaunchedEffect
import androidx.compose.runtime.collectAsState
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberCoroutineScope
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.text.style.TextAlign
import androidx.compose.ui.tooling.preview.Preview
import androidx.compose.ui.unit.dp
import androidx.compose.ui.window.Dialog
import com.arcgismaps.toolkit.featureforms.FeatureForm
import com.arcgismaps.toolkit.featureforms.ValidationErrorVisibility
import com.arcgismaps.toolkit.featureforms.theme.FeatureFormDefaults
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.R
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.components.ErrorInfo
import com.esri.arcgismaps.sample.editfeaturesusingfeatureforms.components.MapViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import kotlinx.coroutines.launch

@OptIn(ExperimentalMaterial3Api::class)
@Composable
fun MainScreen(mapViewModel: MapViewModel) {

    val scope = rememberCoroutineScope()
    var showBottomSheet by remember { mutableStateOf(false) }
    val sheetState = rememberModalBottomSheetState()

    // the feature form the currently selected feature
    val featureForm by mapViewModel.featureForm.collectAsState()
    // the validation errors found when the edits are applied
    val formValidationErrors by mapViewModel.errors.collectAsState()

    // boolean trackers for save and discard edits dialogs
    var showSaveEditsDialog by remember { mutableStateOf(false) }
    var showDiscardEditsDialog by remember { mutableStateOf(false) }

    Scaffold(
        modifier = Modifier.fillMaxSize(),
        topBar = { SampleTopAppBar(title = stringResource(R.string.edit_features_using_feature_forms_app_name)) }
    ) { padding ->
        // display the composable map using the mapViewModel
        MapView(
            arcGISMap = mapViewModel.map,
            mapViewProxy = mapViewModel.mapViewProxy,
            modifier = Modifier
                .padding(padding)
                .fillMaxSize(),
            onSingleTapConfirmed = { mapViewModel.onSingleTapConfirmed(it) }
        )

        // update bottom sheet visibility when a feature is selected
        LaunchedEffect(featureForm) {
            showBottomSheet = featureForm != null
        }

        if (showBottomSheet && featureForm != null) {
            // display feature form bottom sheet
            ModalBottomSheet(
                onDismissRequest = {
                    showBottomSheet = false
                    showDiscardEditsDialog = true
                },
                sheetState = sheetState
            ) {
                // top bar to manage save or discard edits
                TopFormBar(
                    onClose = { showDiscardEditsDialog = true },
                    onSave = {
                        showSaveEditsDialog = true
                        mapViewModel.applyEdits {
                            scope.launch {
                                sheetState.hide()
                                showBottomSheet = false
                                showSaveEditsDialog = false
                            }
                        }
                    })
                // display the selected feature form using the Toolkit component
                FeatureForm(
                    featureForm = featureForm!!,
                    modifier = Modifier
                        .fillMaxSize()
                        .padding(top = 20.dp)
                        .navigationBarsPadding(),
                    validationErrorVisibility = ValidationErrorVisibility.Automatic,
                    colorScheme = FeatureFormDefaults.colorScheme(
                        groupElementColors = FeatureFormDefaults.groupElementColors(
                            outlineColor = MaterialTheme.colorScheme.secondary,
                            labelColor = MaterialTheme.colorScheme.onSurface,
                            supportingTextColor = MaterialTheme.colorScheme.onSurfaceVariant,
                            containerColor = MaterialTheme.colorScheme.surfaceContainer
                        )
                    ),
                    typography = FeatureFormDefaults.typography(
                        readOnlyFieldTypography = FeatureFormDefaults.readOnlyFieldTypography(
                            labelStyle = MaterialTheme.typography.headlineSmall,
                            textStyle = MaterialTheme.typography.bodyMedium,
                            supportingTextStyle = MaterialTheme.typography.labelLarge
                        )
                    )
                )
            }
        }
    }

    if (showSaveEditsDialog && formValidationErrors.isNotEmpty() && showBottomSheet) {
        // validation errors found, cancel the commit and show validation errors
        ValidationErrorsDialog(errors = formValidationErrors) {
            showSaveEditsDialog = false
            mapViewModel.cancelCommit()
        }
    } else if (showSaveEditsDialog && showBottomSheet) {
        // no validation errors found, show dialog when committing edits
        SaveFormDialog()
    }

    if (showDiscardEditsDialog) {
        DiscardEditsDialog(
            onConfirm = {
                mapViewModel.rollbackEdits()
                scope.launch {
                    sheetState.hide()
                    showDiscardEditsDialog = false
                    showBottomSheet = false
                }
            },
            onCancel = {
                showDiscardEditsDialog = false
                showBottomSheet = true
            }
        )
    }

    // Display a MessageDialog with any error information
    mapViewModel.messageDialogVM.apply {
        if (dialogStatus) {
            MessageDialog(
                title = messageTitle,
                description = messageDescription,
                onDismissRequest = ::dismissDialog
            )
        }
    }
}

@Composable
fun DiscardEditsDialog(onConfirm: () -> Unit, onCancel: () -> Unit) {
    AlertDialog(
        onDismissRequest = onCancel,
        confirmButton = {
            Button(onClick = onConfirm) {
                Text(text = stringResource(R.string.discard))
            }
        },
        dismissButton = {
            OutlinedButton(onClick = onCancel) {
                Text(text = stringResource(R.string.cancel))
            }
        },
        title = {
            Text(text = stringResource(R.string.discard_edits))
        },
        text = {
            Text(text = stringResource(R.string.all_changes_will_be_lost))
        }
    )
}

@Composable
fun TopFormBar(
    onClose: () -> Unit = {},
    onSave: () -> Unit = {},
) {
    Column {
        Row(
            modifier = Modifier
                .fillMaxWidth()
                .padding(horizontal = 12.dp),
            horizontalArrangement = Arrangement.Absolute.SpaceBetween,
            verticalAlignment = Alignment.CenterVertically
        ) {
            IconButton(onClick = onClose) {
                Icon(
                    imageVector = Icons.Default.Close,
                    contentDescription = "Close Feature Editor"
                )
            }
            Text(
                text = "Edit feature",
                style = MaterialTheme.typography.titleMedium,
                textAlign = TextAlign.Center
            )
            IconButton(onClick = onSave) {
                Icon(
                    imageVector = Icons.Default.Check,
                    contentDescription = "Save Feature",
                    tint = MaterialTheme.colorScheme.primary
                )
            }
        }
        HorizontalDivider()
    }
}

@Composable
private fun SaveFormDialog() {
    // show a progress dialog when no errors are present
    Dialog(onDismissRequest = { /* cannot be dismissed */ }) {
        Card(modifier = Modifier.wrapContentSize()) {
            Column(
                modifier = Modifier.padding(25.dp),
                horizontalAlignment = Alignment.CenterHorizontally,
                verticalArrangement = Arrangement.Center,
            ) {
                CircularProgressIndicator()
                Spacer(modifier = Modifier.height(10.dp))
                Text(text = "Saving..")
            }
        }
    }
}

@Composable
private fun ValidationErrorsDialog(errors: List<ErrorInfo>, onDismissRequest: () -> Unit) {
    // show all the validation errors in a dialog
    AlertDialog(
        onDismissRequest = onDismissRequest,
        modifier = Modifier.heightIn(max = 600.dp),
        confirmButton = {
            Row(
                modifier = Modifier.fillMaxWidth(),
                horizontalArrangement = Arrangement.Center
            ) {
                Button(onClick = onDismissRequest) {
                    Text(text = stringResource(R.string.view))
                }
            }
        },
        title = {
            Column {
                Text(
                    modifier = Modifier.fillMaxWidth(),
                    text = "Form Validation Errors",
                    style = MaterialTheme.typography.titleLarge,
                    textAlign = TextAlign.Center
                )
            }
        },
        text = {
            Card(modifier = Modifier.fillMaxWidth()) {
                Column(modifier = Modifier.padding(15.dp)) {
                    Text(
                        text = stringResource(R.string.attributes_failed, errors.count()),
                        color = MaterialTheme.colorScheme.error
                    )
                    Spacer(modifier = Modifier.height(10.dp))
                    LazyColumn(verticalArrangement = Arrangement.spacedBy(10.dp)) {
                        items(errors.count()) { index ->
                            Text(
                                text = "${errors[index].fieldName}: ${errors[index].error::class.simpleName.toString()}",
                                color = MaterialTheme.colorScheme.error
                            )
                        }
                    }
                }
            }
        }
    )
}

@Preview
@Preview(uiMode = Configuration.UI_MODE_NIGHT_YES)
@Composable
fun SavePreview() {
    SampleAppTheme { SaveFormDialog() }
}

@Preview(showBackground = true)
@Preview(uiMode = Configuration.UI_MODE_NIGHT_YES)
@Composable
fun ValidationErrorsPreview() {
    SampleAppTheme { ValidationErrorsDialog(listOf()) { } }
}

@Preview(showBackground = true)
@Preview(uiMode = Configuration.UI_MODE_NIGHT_YES)
@Composable
fun DiscardEditsDialogPreview() {
    SampleAppTheme { DiscardEditsDialog(onConfirm = {}) {} }
}

@Preview(showBackground = true)
@Composable
fun TopFormBarPreview() {
    SampleAppTheme { TopFormBar() }
}
