Project geometry

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.projectgeometry

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.projectgeometry.screens.ProjectGeometryScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                ProjectGeometryApp()
            }
        }
    }

    @Composable
    private fun ProjectGeometryApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            ProjectGeometryScreen(
                sampleName = getString(R.string.project_geometry_app_name)
            )
        }
    }
}

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.projectgeometry.components

import android.app.Application
import android.graphics.BitmapFactory
import android.graphics.drawable.BitmapDrawable
import androidx.core.graphics.drawable.toDrawable
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.geometry.GeometryEngine
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.PictureMarkerSymbol
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.projectgeometry.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch

class ProjectGeometryViewModel(app: Application) : AndroidViewModel(app) {
    // create a map with a navigation night basemap style
    val arcGISMap = ArcGISMap(BasemapStyle.ArcGISStreetsNight).apply {
        // set the default viewpoint to Redlands,CA
        initialViewpoint = Viewpoint(
            latitude = 34.058,
            longitude = -117.195,
            scale = 5e4
        )
    }
    // create a MapViewProxy to interact with the MapView
    val mapViewProxy = MapViewProxy()

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    // state flow of a point and its projection for presentation in UI
    private val _pointProjectionFlow = MutableStateFlow<PointProjection?>(null)
    val pointProjectionFlow = _pointProjectionFlow.asStateFlow()

    // setup the red pin marker image as bitmap drawable
    private val markerDrawable: BitmapDrawable by lazy {
        // load the bitmap from resources and create a drawable
        val bitmap = BitmapFactory.decodeResource(app.resources, R.drawable.pin_symbol)
        bitmap.toDrawable(app.resources)
    }

    // setup the red pin marker as a Graphic
    private val markerGraphic: Graphic by lazy {
        // creates a symbol from the marker drawable
        val markerSymbol = PictureMarkerSymbol.createWithImage(markerDrawable).apply {
            // resize the symbol into a smaller size
            width = 30f
            height = 30f
            // offset in +y axis so the marker spawned is right on the touch point
            offsetY = 25f
        }
        // create the graphic from the symbol
        Graphic(symbol = markerSymbol)
    }

    val graphicsOverlay = GraphicsOverlay().apply {
        graphics.add(markerGraphic)
    }

    init {
        viewModelScope.launch {
            arcGISMap.load().onFailure { error ->
                messageDialogVM.showMessageDialog(
                    title = "Failed to load map",
                    description = error.message.toString()
                )
            }
        }
    }

    fun onMapViewTapped(event: SingleTapConfirmedEvent) {
        event.mapPoint?.let { point ->
            // update the marker location to where the user tapped on the map
            markerGraphic.geometry = point
            // set mapview to recenter to the tapped location
            viewModelScope.launch {
                // set mapview to recenter to the tapped location
                mapViewProxy.setViewpointCenter(point)
            }
            // project the point from web mercator to WGS84
            val projectedPoint =
                GeometryEngine.projectOrNull(
                    geometry = point,
                    spatialReference = SpatialReference.wgs84()
                )
            projectedPoint?.let { projection ->
                _pointProjectionFlow.value = PointProjection(point, projection)
            } ?: messageDialogVM.showMessageDialog(
                title = "Error",
                description = "Couldn't project point."
            )
        }
    }
}

/**
 * Data class representing a point and its projection into another spatial reference.
 */
data class PointProjection (val original: Point, val projection: Point)

/* Copyright 2024 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.projectgeometry.screens

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.geometry.Point
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.projectgeometry.R
import com.esri.arcgismaps.sample.projectgeometry.components.ProjectGeometryViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar
import java.util.Locale

/**

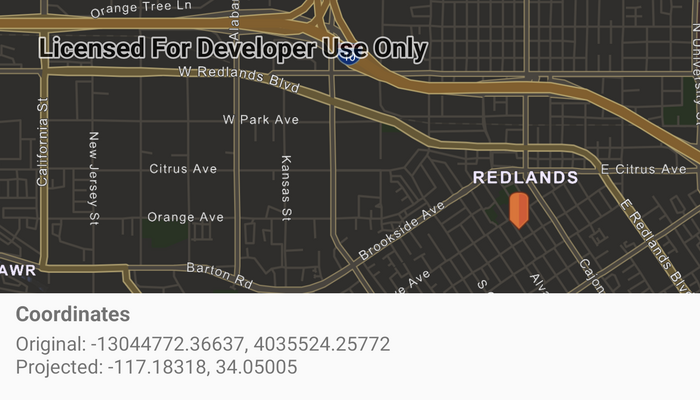

 * Main screen layout for the sample app
 */
@Composable
fun ProjectGeometryScreen(sampleName: String) {
    val mapViewModel: ProjectGeometryViewModel = viewModel()
    val pointProjectionInfo by mapViewModel.pointProjectionFlow.collectAsStateWithLifecycle()

    val infoText = pointProjectionInfo?.let { (original, projection) ->
        stringResource(
            R.string.projection_info_text,
            original.toDisplayFormat(),
            projection.toDisplayFormat()
        )
    } ?: ""

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it),
            ) {
                MapView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f),
                    arcGISMap = mapViewModel.arcGISMap,
                    mapViewProxy = mapViewModel.mapViewProxy,
                    graphicsOverlays = listOf(mapViewModel.graphicsOverlay),
                    onSingleTapConfirmed = mapViewModel::onMapViewTapped
                )

                Row(
                    modifier = Modifier
                        .padding(12.dp)
                        .fillMaxWidth()
                ) {
                    Column {
                        Text(
                            text = pointProjectionInfo?.let { stringResource(R.string.title_text) }
                                ?: stringResource(R.string.tap_to_begin),
                            fontWeight = FontWeight.Bold
                        )
                        Text(
                            text = infoText,
                            minLines = 2
                        )
                    }
                }

            }

            mapViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/**
 * Extension function for the Point type that returns
 * a float-precision formatted string suitable for display
 */
private fun Point.toDisplayFormat() =
    "${String.format(Locale.getDefault(),"%.5f", x)}, ${String.format(Locale.getDefault(),"%.5f", y)}"
