Overview
One indicator of a region's growth is the number of permits issued for new construction. Exploring and analyzing permit activity can help regional planners ensure that development occurs in accordance to the area's long-term goals. One area that has recently experienced rapid growth is Montgomery County, Maryland, a suburban county near Washington, D.C. County planners want to observe spatial and temporal growth trends, find out why certain areas are growing faster than others, and communicate key information about the county's growth to the public.
In this notebook, you'll explore Montgomery County permit data. First, you'll add the permit data from ArcGIS Living Atlas of the World. You'll explore the data and become familiar with exactly what kind of information it contains. Then, you'll analyze the data to detect patterns and find out why growth is occurring. Once you've gathered your findings from your exploration and analysis, you'll share your work online.
Explore the data
To better understand trends in permit activity in Montgomery County, you'll add a dataset of permits issued since 2010. Before you begin your analysis, however, it's important to explore your data and understand what it shows and does not show. You'll familiarize yourself with the data's attributes, sort the data by type, and visualize spatial and temporal trends. In doing so, you'll gain context for your analysis and know exactly which questions you still need to ask to find out why, where, and when growth is occurring.
Connect to your ArcGIS online organization.
from arcgis.gis import GIS
import pandas as pd
from arcgis.features import GeoAccessor, GeoSeriesAccessor
agol_gis = GIS()
Search for the Commercial Permits since 2010 layer. You can specify the owner's name to get more specific results. To search for content from the Living Atlas, or content shared by other users on ArcGIS Online, set outside_org=True
.
data = agol_gis.content.search('title: Commercial Permits since 2010', 'Feature layer',
outside_org=True)
data[0]
Get the first item from the results.
permits = data[0]
Since the item is a Feature Layer Collection, accessing the layers property gives us a list of FeatureLayer objects. The permit layer is the first layer in this item. Visualize this layer on a map of Montgomery County, Maryland.
permit_layer = permits.layers[0]
permit_map = agol_gis.map('Montgomery County, Maryland', zoomlevel=9)
permit_map
You can add a number of different layer objects such as FeatureLayer, FeatureCollection, ImageryLayer, MapImageLayer to the map by calling the add_layer()
method.
permit_map.add_layer(permit_layer)
Data Exploration
Now that you've added the permit data, you'll explore its contents. Geographic data doesn't only contain information about location; it can also include other attributes not seen on a map.
Convert the layer into a spatially-enabled dataframe to explore these attributes.
permit_layer
<FeatureLayer url:"https://services8.arcgis.com/gNrBvIUXaCagAxJ2/arcgis/rest/services/Commercial_Permits_Since_2010_q9lDty/FeatureServer/0">
sdf = pd.DataFrame.spatial.from_layer(permit_layer)
tail()
method gives the last 5 rows of the dataframe.
sdf.tail()
SHAPE | added_date | address | applicatio | bldgareanu | building_a | city | dayofmonth_added_date | dayofmonth_final_date | dayofmonth_issue_date | ... | second_final_date | second_issue_date | state | status | use_code | work_type | year_added_date | year_final_date | year_issue_date | zip_code | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7507 | {"x": -77.19663, "y": 39.104148, "spatialRefer... | 2014-01-02 | 9609 MEDICAL CENTER DR | COMMERCIAL BUILDING | 2069.43 | 2069.43 | ROCKVILLE | 2 | <NA> | 27 | ... | <NA> | 0 | MD | Stop Work | BUSINESS BUILDING | ADD | 2014 | <NA> | 2015 | 20850 |
7508 | {"x": -77.027461, "y": 38.999474, "spatialRefe... | 2014-01-31 | 1015 SPRING ST | COMMERCIAL BUILDING | 707.91 | 707.91 | SILVER SPRING | 31 | 25 | 18 | ... | 0 | 0 | MD | Stop Work | BUSINESS BUILDING | ADD | 2014 | 2014 | 2014 | 20910 |
7509 | {"x": -77.201951, "y": 39.285193, "spatialRefe... | 2014-02-11 | 26100 WOODFIELD RD | COMMERCIAL BUILDING | 0.0 | 0.0 | DAMASCUS | 11 | <NA> | 13 | ... | <NA> | 0 | MD | Stop Work | BUSINESS BUILDING | CONSTRUCT | 2014 | <NA> | 2014 | 20872 |
7510 | {"x": -77.17405, "y": 38.999234, "spatialRefer... | 2014-03-06 | 8500 RIVER RD | COMMERCIAL BUILDING | 472.02 | 472.02 | BETHESDA | 6 | <NA> | 11 | ... | <NA> | 0 | MD | Stop Work | COMMERCIAL MISCELLANEOUS STRUC | CONSTRUCT | 2014 | <NA> | 2014 | 20817 |
7511 | {"x": -77.17405, "y": 38.999234, "spatialRefer... | 2014-03-10 | 8500 RIVER RD | COMMERCIAL BUILDING | 8461.55 | 8461.55 | BETHESDA | 10 | <NA> | 11 | ... | <NA> | 0 | MD | Stop Work | COMMERCIAL MISCELLANEOUS STRUC | CONSTRUCT | 2014 | <NA> | 2014 | 20817 |
5 rows × 48 columns
The permit data contains a long list of attributes. Some attributes have self-explanatory names, while others may have names that can be difficult to understand without context. The list of attributes can be obtained using the columns of the dataframe.
sdf.columns
Index(['SHAPE', 'added_date', 'address', 'applicatio', 'bldgareanu', 'building_a', 'city', 'dayofmonth_added_date', 'dayofmonth_final_date', 'dayofmonth_issue_date', 'dayofweek_added_date', 'dayofweek_final_date', 'dayofweek_issue_date', 'declared_v', 'declvalnu', 'descriptio', 'fid', 'final_date', 'hour_added_date', 'hour_final_date', 'hour_issue_date', 'issue_date', 'latitude', 'location', 'longitude', 'minute_added_date', 'minute_final_date', 'minute_issue_date', 'month_added_date', 'month_final_date', 'month_issue_date', 'objectid', 'permit_num', 'quarter_added_date', 'quarter_final_date', 'quarter_issue_date', 'rowid', 'second_added_date', 'second_final_date', 'second_issue_date', 'state', 'status', 'use_code', 'work_type', 'year_added_date', 'year_final_date', 'year_issue_date', 'zip_code'], dtype='object')
sdf.describe().T
count | mean | min | 25% | 50% | 75% | max | std | |
---|---|---|---|---|---|---|---|---|
added_date | 7512 | 2013-09-03 16:26:27.220447232 | 2010-01-04 00:00:00 | 2011-11-16 18:00:00 | 2013-08-29 00:00:00 | 2015-06-16 00:00:00 | 2017-04-17 00:00:00 | NaN |
bldgareanu | 7512.0 | 8693.80027 | 0.0 | 120.168 | 1379.0 | 4186.5 | 1548205.0 | 41041.713725 |
building_a | 7512.0 | 8693.80027 | 0.0 | 120.168 | 1379.0 | 4186.5 | 1548205.0 | 41041.713725 |
dayofmonth_added_date | 7512.0 | 15.883253 | 1.0 | 9.0 | 16.0 | 23.0 | 31.0 | 8.567638 |
dayofmonth_final_date | 3890.0 | 15.57455 | 1.0 | 8.0 | 16.0 | 23.0 | 31.0 | 8.892878 |
dayofmonth_issue_date | 7054.0 | 15.95336 | 1.0 | 8.0 | 16.0 | 23.0 | 31.0 | 8.813776 |
dayofweek_added_date | 7512.0 | 3.087593 | 0.0 | 2.0 | 3.0 | 4.0 | 6.0 | 1.403647 |
dayofweek_final_date | 3890.0 | 3.028021 | 0.0 | 2.0 | 3.0 | 4.0 | 6.0 | 1.496026 |
dayofweek_issue_date | 7054.0 | 3.107315 | 1.0 | 2.0 | 3.0 | 4.0 | 6.0 | 1.370517 |
declared_v | 7512.0 | 551598.996733 | 0.0 | 20000.0 | 57465.0 | 164175.0 | 85000000.0 | 3562007.866605 |
declvalnu | 7512.0 | 551598.996733 | 0.0 | 20000.0 | 57465.0 | 164175.0 | 85000000.0 | 3562007.866605 |
fid | 7512.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
final_date | 3890 | 2014-01-06 10:47:48.894601728 | 2010-02-26 00:00:00 | 2012-07-18 00:00:00 | 2014-03-13 12:00:00 | 2015-07-22 00:00:00 | 2017-04-17 00:00:00 | NaN |
hour_added_date | 7512.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
hour_final_date | 3890.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
hour_issue_date | 7054.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
issue_date | 7054 | 2013-10-17 19:48:05.511766528 | 2010-01-21 00:00:00 | 2012-02-28 00:00:00 | 2013-09-30 00:00:00 | 2015-07-09 00:00:00 | 2017-04-17 00:00:00 | NaN |
latitude | 7512.0 | 39.078655 | 38.943754 | 38.998268 | 39.05274 | 39.155405 | 39.327524 | 0.087368 |
longitude | 7512.0 | -77.129365 | -77.484224 | -77.203195 | -77.112745 | -77.058127 | -76.924048 | 0.096566 |
minute_added_date | 7512.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
minute_final_date | 3890.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
minute_issue_date | 7054.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
month_added_date | 7512.0 | 6.45434 | 1.0 | 4.0 | 6.0 | 9.0 | 12.0 | 3.288958 |
month_final_date | 3890.0 | 6.739589 | 1.0 | 4.0 | 7.0 | 10.0 | 12.0 | 3.405606 |
month_issue_date | 7054.0 | 6.627871 | 1.0 | 4.0 | 7.0 | 9.0 | 12.0 | 3.299935 |
objectid | 7512.0 | 5346.088525 | 1.0 | 2611.5 | 5202.0 | 8041.25 | 11224.0 | 3176.491099 |
permit_num | 7512.0 | 652461.075346 | 528631.0 | 584859.5 | 647250.5 | 716736.25 | 796193.0 | 76139.847677 |
quarter_added_date | 7512.0 | 2.487487 | 1.0 | 2.0 | 2.0 | 3.0 | 4.0 | 1.080123 |
quarter_final_date | 3890.0 | 2.574036 | 1.0 | 2.0 | 3.0 | 4.0 | 4.0 | 1.09994 |
quarter_issue_date | 7054.0 | 2.539269 | 1.0 | 2.0 | 3.0 | 3.0 | 4.0 | 1.08367 |
rowid | 7512.0 | 5346.088525 | 1.0 | 2611.5 | 5202.0 | 8041.25 | 11224.0 | 3176.491099 |
second_added_date | 7512.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
second_final_date | 3890.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
second_issue_date | 7054.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
year_added_date | 7512.0 | 2013.180511 | 2010.0 | 2011.0 | 2013.0 | 2015.0 | 2017.0 | 2.051371 |
year_final_date | 3890.0 | 2013.498972 | 2010.0 | 2012.0 | 2014.0 | 2015.0 | 2017.0 | 1.972848 |
year_issue_date | 7054.0 | 2013.286646 | 2010.0 | 2012.0 | 2013.0 | 2015.0 | 2017.0 | 1.999234 |
zip_code | 7512.0 | 20852.257455 | 0.0 | 20832.0 | 20871.0 | 20901.0 | 21771.0 | 483.077952 |
Query the types of attributes and explore the data.
sdf.dtypes
SHAPE geometry added_date datetime64[ns] address string[python] applicatio string[python] bldgareanu Float64 building_a Float64 city string[python] dayofmonth_added_date Int32 dayofmonth_final_date Int32 dayofmonth_issue_date Int32 dayofweek_added_date Int32 dayofweek_final_date Int32 dayofweek_issue_date Int32 declared_v Float64 declvalnu Float64 descriptio string[python] fid Int32 final_date datetime64[ns] hour_added_date Int32 hour_final_date Int32 hour_issue_date Int32 issue_date datetime64[ns] latitude Float64 location string[python] longitude Float64 minute_added_date Int32 minute_final_date Int32 minute_issue_date Int32 month_added_date Int32 month_final_date Int32 month_issue_date Int32 objectid Int64 permit_num Int32 quarter_added_date Int32 quarter_final_date Int32 quarter_issue_date Int32 rowid Int32 second_added_date Int32 second_final_date Int32 second_issue_date Int32 state string[python] status string[python] use_code string[python] work_type string[python] year_added_date Int32 year_final_date Int32 year_issue_date Int32 zip_code Int32 dtype: object
sdf['work_type'].unique()
<StringArray> [ 'CONSTRUCT', 'ALTER', 'COMMERCIAL CHANGE OF USE', 'RESTORE AND / OR REPAIR', 'ADD', 'BUILD FOUNDATION', 'INSTALL', 'REPLACE', 'CONSTRUCT SHEETING/SHORING', 'FINAL ONLY AP'] Length: 10, dtype: string
sdf['status'].unique()
<StringArray> ['Finaled', 'Issued', 'Open', 'Stop Work'] Length: 4, dtype: string
sdf['use_code'].unique()
<StringArray> [ 'MULTI-FAMILY DWELLING', 'BUSINESS BUILDING', 'MERCANTILE BUILDING', 'COMMERCIAL MISCELLANEOUS STRUC'] Length: 4, dtype: string
Permits by Status
The groupby()
method groups the rows per the column and does calculations, such as finding their counts, as shown in the following code.
permits_by_status = sdf.groupby(sdf['status']).size()
permits_by_status
status Finaled 3860 Issued 2997 Open 455 Stop Work 200 dtype: int64
There are only four permit statuses: Issued, Finaled, Open, and Stop Work. To visualize the number of permits for each status, you'll create a pie chart.
Since the dataframe attributes just show the count of status, you can consider any attribute to graph the status count.
%matplotlib inline
import matplotlib.pyplot as plt
plt.axis('equal')
permits_by_status.plot(kind='pie', legend=False, label='Permits by Status');

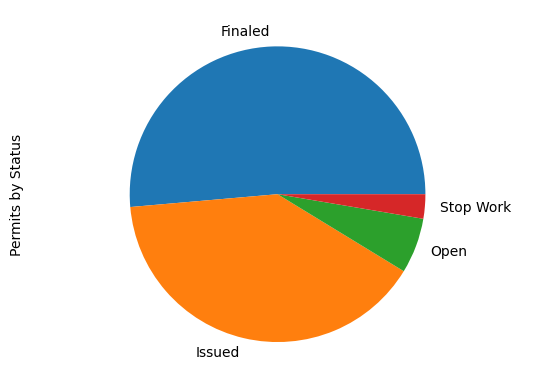

The pie chart above shows the four permit statuses, with the size of each status determined by the number of permits. The vast majority of permits are either Issued or Finaled. Finaled permits are issued permits that have also had the requisite inspections performed.
It's helpful to visualize the spatial distribution of permit attributes on a map. You'll change the map so that each permit's symbol represents its status.
permits_by_status_map = agol_gis.map('Montgomery County, Maryland')
permits_by_status_map
sdf.spatial.plot(kind='map', map_widget=permits_by_status_map,
renderer_type='u', # specify the unique value renderer using its notation 'u'
col='status') # column to get unique values from
True
Permits by Type
permits_by_type = sdf.groupby(['use_code']).size()
permits_by_type
use_code BUSINESS BUILDING 3461 COMMERCIAL MISCELLANEOUS STRUC 1197 MERCANTILE BUILDING 1016 MULTI-FAMILY DWELLING 1838 dtype: int64
The series is not sorted properly. Use the sort()
method to sort it from highest count to lowest count. The most common use code, Business Buildings, has almost twice as many permits as the second highest, Multi-family Dwelling. The top four use codes together comprise the majority of all permits, so these use codes may be the most important to focus on in your analysis later.
permits_by_type.sort_values(ascending=False, inplace=True)
permits_by_type.head()
use_code BUSINESS BUILDING 3461 MULTI-FAMILY DWELLING 1838 COMMERCIAL MISCELLANEOUS STRUC 1197 MERCANTILE BUILDING 1016 dtype: int64
Clean up the data
Before you begin analysis of your data, you'll hide attribute fields you don't intend to use, rename fields with unclear names, and filter your dataset to only show permits with the four most common use codes. These changes won't permanently affect the original dataset, but they will make the data easier to work with and understand.
'Declared_V', 'Building_A', 'Applicatio' attribute fields describe aspects of the data that aren't important for your analysis. You'll drop these fields.
sdf.drop(['declared_v', 'building_a', 'applicatio'], axis=1, inplace=True)
sdf.columns
Index(['SHAPE', 'added_date', 'address', 'bldgareanu', 'city', 'dayofmonth_added_date', 'dayofmonth_final_date', 'dayofmonth_issue_date', 'dayofweek_added_date', 'dayofweek_final_date', 'dayofweek_issue_date', 'declvalnu', 'descriptio', 'fid', 'final_date', 'hour_added_date', 'hour_final_date', 'hour_issue_date', 'issue_date', 'latitude', 'location', 'longitude', 'minute_added_date', 'minute_final_date', 'minute_issue_date', 'month_added_date', 'month_final_date', 'month_issue_date', 'objectid', 'permit_num', 'quarter_added_date', 'quarter_final_date', 'quarter_issue_date', 'rowid', 'second_added_date', 'second_final_date', 'second_issue_date', 'state', 'status', 'use_code', 'work_type', 'year_added_date', 'year_final_date', 'year_issue_date', 'zip_code'], dtype='object')
The fields are no longer listed.
Next, you'll rename some of the attribute fields with shortened or unclear names so that their names are more descriptive.
sdf.rename(columns={"descriptio": "Description", "bldgareanu": "Building_Area", "declvalnu": "Declared_Value"}, inplace=True)
sdf.columns
Index(['SHAPE', 'added_date', 'address', 'Building_Area', 'city', 'dayofmonth_added_date', 'dayofmonth_final_date', 'dayofmonth_issue_date', 'dayofweek_added_date', 'dayofweek_final_date', 'dayofweek_issue_date', 'Declared_Value', 'Description', 'fid', 'final_date', 'hour_added_date', 'hour_final_date', 'hour_issue_date', 'issue_date', 'latitude', 'location', 'longitude', 'minute_added_date', 'minute_final_date', 'minute_issue_date', 'month_added_date', 'month_final_date', 'month_issue_date', 'objectid', 'permit_num', 'quarter_added_date', 'quarter_final_date', 'quarter_issue_date', 'rowid', 'second_added_date', 'second_final_date', 'second_issue_date', 'state', 'status', 'use_code', 'work_type', 'year_added_date', 'year_final_date', 'year_issue_date', 'zip_code'], dtype='object')
There are other fields that you may want to either rename or remove, but for the purposes of this lesson, these are enough.
Filter the permits
Next, you'll filter the permits to reduce the number of records in your analysis. As you saw previously, there are four types of permits that comprise over half the total number of permits. Focusing your analysis on just these four types will reduce the amount of data to analyze without ignoring the most important types of development. To remove the other use codes, you'll create a filter.
permits_by_type.head(4) # top 4 Use_Codes
use_code BUSINESS BUILDING 3461 MULTI-FAMILY DWELLING 1838 COMMERCIAL MISCELLANEOUS STRUC 1197 MERCANTILE BUILDING 1016 dtype: int64
filtered_permits = list(permits_by_type.head(4).index)
filtered_permits
['BUSINESS BUILDING', 'MULTI-FAMILY DWELLING', 'COMMERCIAL MISCELLANEOUS STRUC', 'MERCANTILE BUILDING']
To visualize the top 4 Use Codes on a map, you can filer the dataframe with Use_Code containing only the top 4 attribute value.
filtered_df = sdf.loc[sdf['use_code'].isin(filtered_permits)]
filtered_df.head()
SHAPE | added_date | address | Building_Area | city | dayofmonth_added_date | dayofmonth_final_date | dayofmonth_issue_date | dayofweek_added_date | dayofweek_final_date | ... | second_final_date | second_issue_date | state | status | use_code | work_type | year_added_date | year_final_date | year_issue_date | zip_code | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | {"x": -77.278324, "y": 39.178067, "spatialRefe... | 2010-01-07 | 13536 WATERFORD HILLS BLVD | 1336.0 | GERMANTOWN | 7 | 13 | 8 | 4 | 2 | ... | 0 | 0 | MD | Finaled | MULTI-FAMILY DWELLING | CONSTRUCT | 2010 | 2012 | 2011 | 20874 |
1 | {"x": -77.27829, "y": 39.178056, "spatialRefer... | 2010-01-07 | 13538 WATERFORD HILLS BLVD | 1730.0 | GERMANTOWN | 7 | 15 | 8 | 4 | 4 | ... | 0 | 0 | MD | Finaled | MULTI-FAMILY DWELLING | CONSTRUCT | 2010 | 2012 | 2011 | 20874 |
2 | {"x": -77.278256, "y": 39.178045, "spatialRefe... | 2010-01-07 | 13540 WATERFORD HILLS BLVD | 1336.0 | GERMANTOWN | 7 | 15 | 8 | 4 | 4 | ... | 0 | 0 | MD | Finaled | MULTI-FAMILY DWELLING | CONSTRUCT | 2010 | 2012 | 2011 | 20874 |
3 | {"x": -77.278223, "y": 39.178035, "spatialRefe... | 2010-01-07 | 13542 WATERFORD HILLS BLVD | 1730.0 | GERMANTOWN | 7 | 15 | 8 | 4 | 4 | ... | 0 | 0 | MD | Finaled | MULTI-FAMILY DWELLING | CONSTRUCT | 2010 | 2012 | 2011 | 20874 |
4 | {"x": -77.278189, "y": 39.178024, "spatialRefe... | 2010-01-07 | 13544 WATERFORD HILLS BLVD | 1336.0 | GERMANTOWN | 7 | 15 | 8 | 4 | 4 | ... | 0 | 0 | MD | Finaled | MULTI-FAMILY DWELLING | CONSTRUCT | 2010 | 2012 | 2011 | 20874 |
5 rows × 45 columns
sdf.shape, filtered_df.shape
((7512, 45), (7512, 45))
The dataset is filtered. Instead of more than 11,000 permits, the filtered dataframe has about 7,500.
Visualize filtered dataset
filtered_map = agol_gis.map('Montgomery County, Maryland')
filtered_map
filtered_df.spatial.plot(kind='map', map_widget=filtered_map,
renderer_type='u', # specify the unique value renderer using its notation 'u'
col='use_code') # column to get unique values from
True
Visualize temporal and spatial trends
Your data show permits, but what do these permits say about when and where growth is happening in the county? Your data also contains temporal attribute fields, such as Added_Date, which indicates when a permit was first added to the system. The field has several values that break down the data by year, month, and even hour.
Split the Added_date to get year, month, week_of_day
sdf['datetime'] = pd.to_datetime(sdf['added_date'], unit='ms')
sdf['year'], sdf['month'], sdf['day_of_week'] = sdf.datetime.dt.year, sdf.datetime.dt.month, sdf.datetime.dt.dayofweek
Visualize permits by time of issue
You'll create chart cards for the year, month, and day subfields to visualize patterns in permit activity over time.
import seaborn as sns
sns.countplot(x="year", data=sdf);
The chart shows the number of permits issued each year since 2010. (The year 2017 has significantly fewer permits because the dataset only covers part of 2017.) You can compare the number of permits visually by the size of each bar. Although some fluctuation occurs from year to year, most years had similar permit activity.
Similarly you can visualize it by month as well as day_of_week
sns.countplot(x="month", data=sdf);

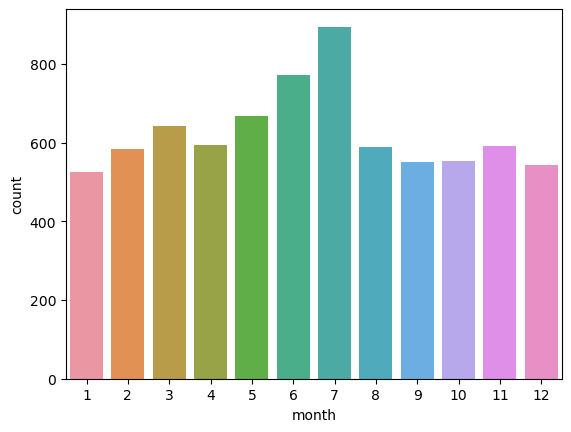

This bar chart changes to show the number of permits issued by month. Based on the chart, the highest permit activity occurs in June and July.
sns.countplot(x="day_of_week", data=sdf);
Almost all permit activity occurs on weekdays. Government offices are closed on weekends, so few permits are issued then.
ddf = sdf.set_index('datetime')
ddf['num'] = 1
ddf['num'].resample('M').sum().plot();
A huge spike in permit activity occurred in mid-2011. What caused this spike? Is it an increase in overall permit activity, or is it mostly an increase in a certain type of permit? You'll plot the number of permits based on Use_Code to find which one cased the spike.
fig = plt.figure(figsize=(15,5))
ax = fig.add_subplot(1, 1, 1)
ax.plot(ddf['num'].resample('M').sum(), 'k', label='Total permits')
for use_code in filtered_permits:
x = ddf[ddf.use_code == use_code]['num'].resample('M').sum()
ax.plot(x, label=use_code)
ax.legend();

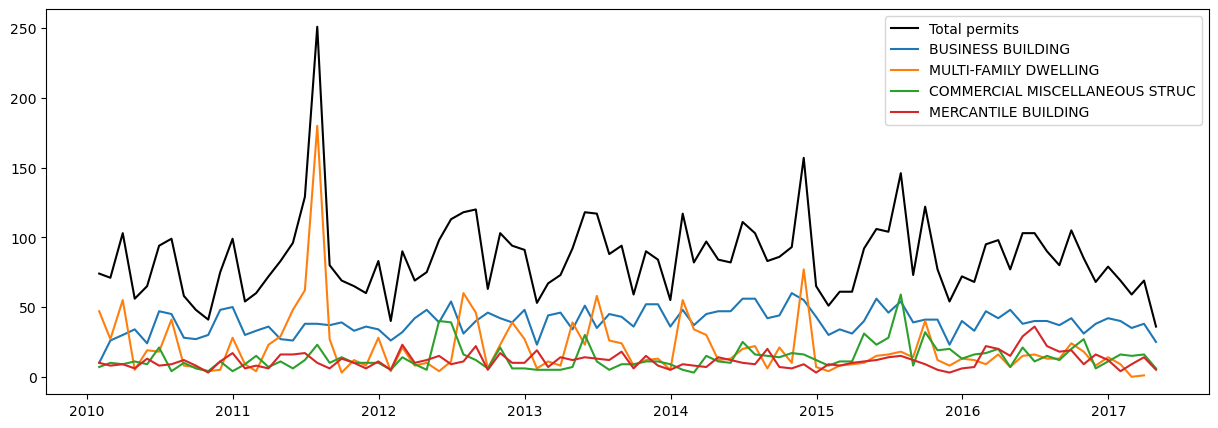

Based on the legend, permit activity spiked in 2011 due to a sharp increase in the number of multifamily dwelling permits issued. This likely means that there was large residential growth in 2011.
You've investigated some temporal patterns in your data. Next, you'll look at spatial patterns. Are there certain areas in the county that have experienced a relatively high degree of permit activity? Was the 2011 spike in residential permits in a specific location? To find out, you'll change the symbology of the map card to show hot spots, or areas with concentrations of points.
hotspot_map = agol_gis.map('Germantown, Montgomery County, Maryland')
hotspot_map
sdf.spatial.plot(kind='map', map_widget=hotspot_map,
renderer_type='h',
col='status')
True
The hot spots show up where there is a high concentration of permits. The highest concentration areas are in the southeast and northwest corners of the county, which correspond to the major population centers of Germantown and the suburban communities near Washington, D.C.
Next, you'll see if the 2011 permit spike corresponds to a specific area of the map. The code below filters the dataframe to only show permits from 2011 and highlights related data in the map. In this case, the heat map changes to show the hot spot in the northwest part of the county, near Germantown.
hotspot_2011_map = agol_gis.map('Germantown, Montgomery County, Maryland')
hotspot_2011_map
sdf[sdf.year==2011].spatial.plot(kind='map', map_widget=hotspot_2011_map,
renderer_type='h',
col='status') # column to get unique values from
True
