Finding suitable spots for placing heart defibrillator equipments in public

In this sample, we will observe how site suitability analyses can be performed using the ArcGIS API for Python. The objective of this sample is to find locations in the city of Philadelphia that are suitable for placing AED (Automated External Defibrillator) for public emergencies.

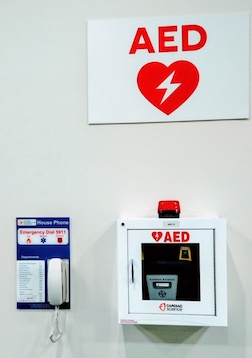

Image of an AED device attached to a wall at San Diego Convention Center during Esri UC

The criteria for suitable places are those that have high incidence of OHCA (Out of Hospital Cardiac Arrests) and be accessible to public, such as commercial areas.

As inputs, we start with geocoded OCHA (Out-of-Hospital Cardiac Arrest) point data, along with a few base layers for the city of Pittsburgh published as feature layers. As output, we need to generate a list of locations that have a high incidence of heart-attacks and located within commercial areas, allowing easy access at times of emergencies.

Getting set up

from arcgis.gis import GIS
from arcgis.mapping import WebMap
from arcgis.widgets import MapView
from arcgis.features import FeatureCollection, use_proximity
from datetime import datetime
gis = GIS(url='https://pythonapi.playground.esri.com/portal', username='arcgis_python', password='amazing_arcgis_123')

Load input datasets

ohca_item = gis.content.get('a5719916dff4442789a59680c25a4284')
ohca_item
Pittsburgh heart attacks
OHCA in PittsburghFeature Layer Collection by api_data_owner
Last Modified: June 21, 2018
0 comments, 102 views
ohca_map_item = gis.content.get('b8b6cf2bcbeb4903a5372b7f4cbfb252')
ohca_map_item
Pittsburgh heart attacks
Map showing cardiac arrest information in PittsburghWeb Map by api_data_owner
Last Modified: March 11, 2020
0 comments, 44 views

Let us take a look at the layers available in this item

for lyr in ohca_item.layers:
    print(lyr.properties.name)
Heart attack incidence
Streets
Zoning
Boundary

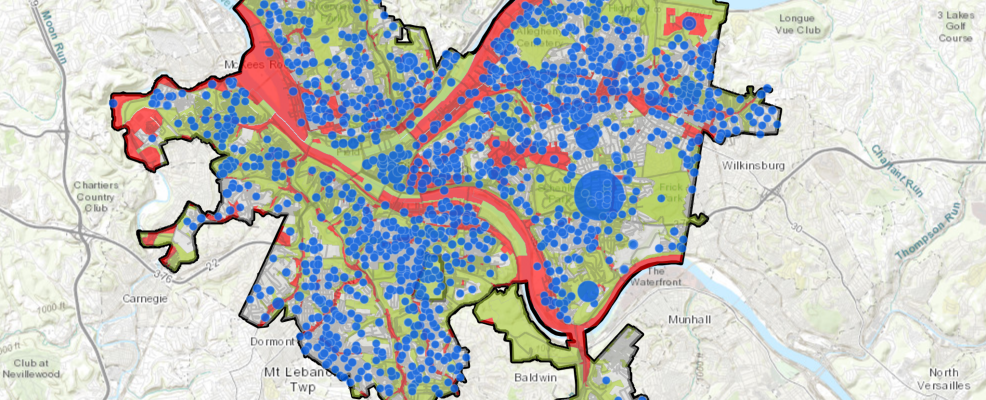

Let us display the Web Map item to view these layers on a map.

map1 = MapView(item=ohca_map_item)
map1.legend=True
map1

Outline of the analysis

The idea of this analysis is to find places suitable for placing the AED devices. Based on prior knowledge we happen to know areas that are commercial, accessible to public and showing a high incidence of out-of-hospital cardiac arrests are good candidates. We will build the suitability model by performing these steps:

  • use Zoning polygon layer to identify commercial areas and build a 600 feet buffer around them
  • perform density analysis on Heart attack incidence point layer
  • perform spatial overlay to find overlapping locations

Create a 600 feet buffer around commercial areas

The Zoning feature layer contains polygon features that represent different zones such as commercial, residential etc. We need to select those features that correspond to commercial zones and create a buffer of 600 feet around them. The 600 feet area roughly corresponds to two-blocks, a walk able distance in case of an emergency.

Select commercial zones

To select the commercial zones using a query, we need to know what columns and values are available. Hence, let us construct a small query that gives the first few rows / features.

zoning_flayer = ohca_item.layers[2]
zoning_sdf = zoning_flayer.query(result_record_count=5, return_all_records=False, as_df=True)
zoning_sdf
objectidareaperimeterzoning_zoning_idzon_newsymbolacressqmilescodenamexycode_2zoning_groupedSHAPE
011.591398e+0752563.17625521R1D-L80370.1080.576R1D-LSingle-Unit Detached Residential/Low Density1.340082e+06429618.202356R1D-LResidential{'rings': [[[-80.01772016299998, 40.4977767210...
128.107219e+041524.91035522R2-L80370.1080.576R2-LTwo-Unit Residential/Low Density1.338226e+06432380.904671R2-LNon Commercial{'rings': [[[-80.01757926499994, 40.4981592720...
232.591469e+0614071.08445526R2-L8360.4610.094R2-LTwo-Unit Residential/Low Density1.335954e+06430498.618340R2-LNon Commercial{'rings': [[[-80.02201914599993, 40.4938213470...
348.370962e+055395.62555517RP8519.3060.030RPResidential Planned Unit Development1.340037e+06431409.546743RPResidential{'rings': [[[-80.01117829099985, 40.4967724760...
459.650762e+03441.32365519RM-M840.2230.000RM-MMulti-Unit Residential/Low Density1.339642e+06431798.332613RM-MResidential{'rings': [[[-80.01130567899997, 40.4967769370...

The column zoning_grouped contains zoning categories. We are intersted in those polygons that correspond to the Commercial category.

zoning_commercial_fset = zoning_flayer.query(where="zoning_grouped = 'Commercial'")
commercial_zone_df = zoning_commercial_fset.sdf
commercial_zone_df.head(5)[['name','zoning_grouped']] #display the first 5 results
namezoning_grouped
0Urban Industrial DistrictCommercial
1Local Neighborhood CommercialCommercial
2Local Neighborhood CommercialCommercial
3General IndustrialCommercial
4Educational/Medical InstitutionalCommercial
commercial_zone_df.shape
(317, 16)

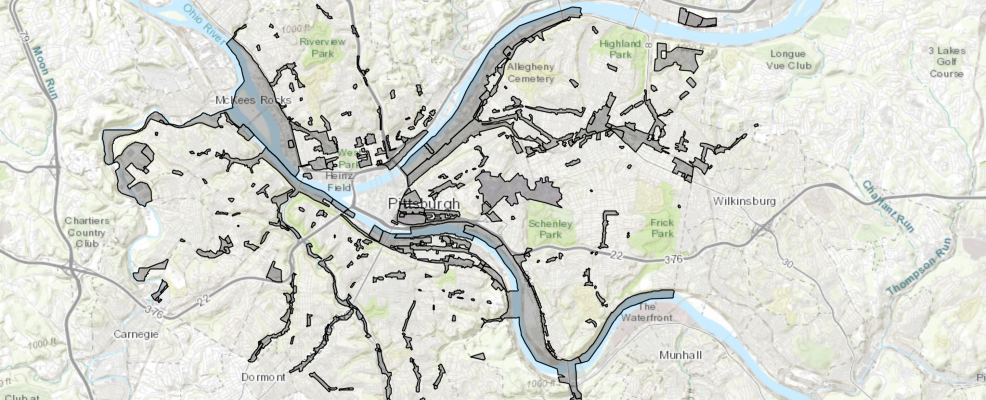

Let us draw the selected polygons on a map

zone_map = gis.map("Pittsburgh, PA")
zone_map
zone_map.draw(zoning_commercial_fset)

Thus, from 965 zoning polygons, we have narrowed down to 317.

Create buffers around commercial zones

The ArcGIS API for Python allows you to define definition queries or filters on Feature Layers. When you run a spatial analysis on those layers, only the features that fit the filter criteria you specified will be used. Thus, you can use the 'where' clause you used earlier (to get commercial zones) to set as a filter on the zoning_flayer and pass that as the input to the create_buffers tool. The advantage of this workflow is, you are not sending the features from the local FeatureSet object to the tool, instead, you are asking to the tool to get the features directly from the feature layer which is colocated with the tool. This paradigm of colocating the compute with the data is highly preferred to improve efficiency and scalability of your analyses.

# create a filter using the where clause from earlier
zoning_flayer.filter = "zoning_grouped = 'Commercial'"
# create a timestamp to create a unique output
timestamp=datetime.now().strftime('%d_%m_%Y_%H_%M_%S')

# create buffers
commercial_buffers = use_proximity.create_buffers(input_layer=zoning_flayer,
                                                  distances=[600],units='Feet',
                                                  dissolve_type='Dissolve',
                                                 output_name=f'commercial_buffers_{timestamp}')
commercial_buffers
commercial_buffers_28_05_2021_09_36_44
Feature Layer Collection by arcgis_python
Last Modified: May 28, 2021
0 comments, 0 views

Draw the results on the commercial_zone_map created above

zone_map.add_layer(commercial_buffers)

Create a density map to find areas of high heart attack incidence

To calculate the density, we use calculate_density tool available under the raster module and provide the Heart attack incidence feature layer as its input. This layer has a column named num_incidence that additionally specifies the number of heart attacks that happened at each point location. Below we bring up a few of the features to get an idea.

ha_incidence = ohca_item.layers[0] #the first layer in the input feature layer collection
ha_incidence_fset = ha_incidence.query(result_record_count=10, return_all_records=False)
ha_incidence_fset.sdf.head(10)
objectid_1fid_1idpop2000noyesnum_incidenceSHAPE
01010100{"x": -79.97274830899988, "y": 40.437756305000...
128996100{"x": -79.97639852099996, "y": 40.437202953000...
2312135100{"x": -79.98023401899997, "y": 40.438334899000...
3413143100{"x": -79.9818761219999, "y": 40.4383995900001...
45252615100{"x": -79.98428402499985, "y": 40.437456611000...
5628298100{"x": -79.98319929899998, "y": 40.436778390000...
67303142100{"x": -79.98183133499987, "y": 40.437055132000...
7851520400{"x": -79.98873209699991, "y": 40.435164507000...
8970710200{"x": -79.98717537399989, "y": 40.437418760000...
9107273536100{"x": -79.9918783149999, "y": 40.4381269750001...

Calculate density

from arcgis.raster.analytics import calculate_density
from arcgis.raster.functions import *
# create a timestamp to create a unique output
timestamp=datetime.now().strftime('%d_%m_%Y_%H_%M_%S')

ha_density = calculate_density(ha_incidence, count_field='num_incidence',
                               output_cell_size={'distance':150,'units':'feet'},
                               output_name = f'ha_density_{timestamp}')
print(ha_density)
<Item title:"ha_density_28_05_2021_09_38_24" type:Imagery Layer owner:arcgis_python>

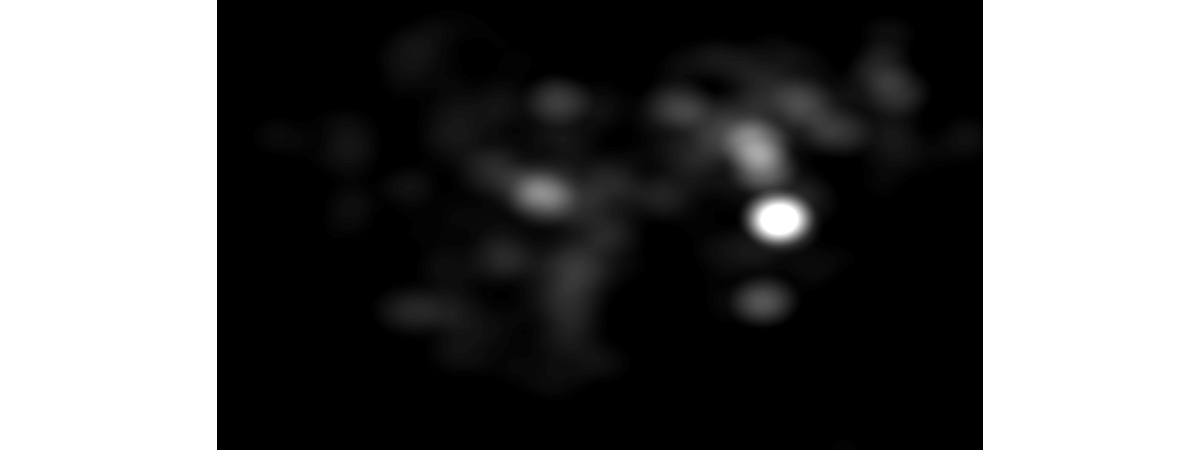

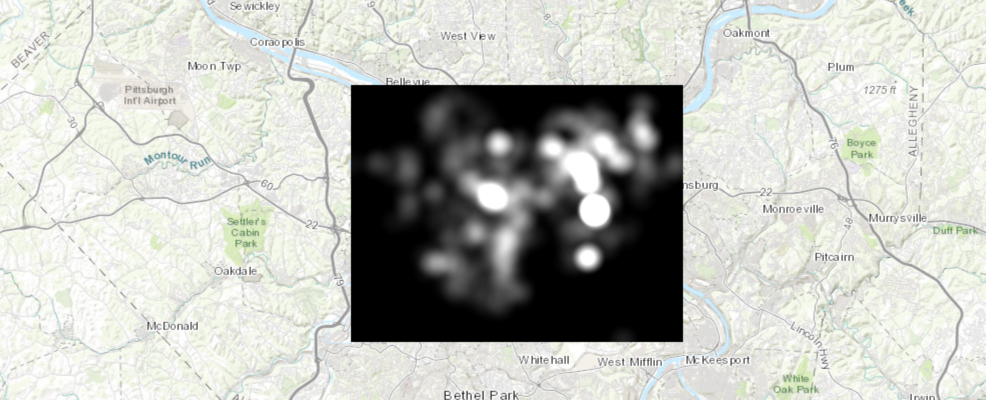

Let us display the density raster on a map

density_map = gis.map("Pittsburgh, PA", zoomlevel=11)
density_map

Use the stretch raster function to enhance the density layer before adding it to the map:

density_layer = ha_density.layers[0]

stretch_rf = stretch(density_layer, stretch_type='StdDev',num_stddev=2)
colormap_rf = colormap(stretch_rf, colormap_name='Gray')
density_map.add_layer(colormap_rf, {"opacity":0.5})

From the density_map, we see certain regions (in shades of white) have a higher density of heart attack incidences compared to the rest.

Reclassify the density raster

Calculate density tool returns the number of incidences per sq.mile. We are interested in the number of heart attacks at a larger scale of about 5 square blocks. In Pittsburgh, each block spans about 300 ft in length, thus 5 sq. blocks cover an area of 1500 x 1500 sq.feet. We apply remap raster function to convert the density from sq. miles to that in 5 block area

import matplotlib.pyplot as plt
%matplotlib inline
import numpy as np

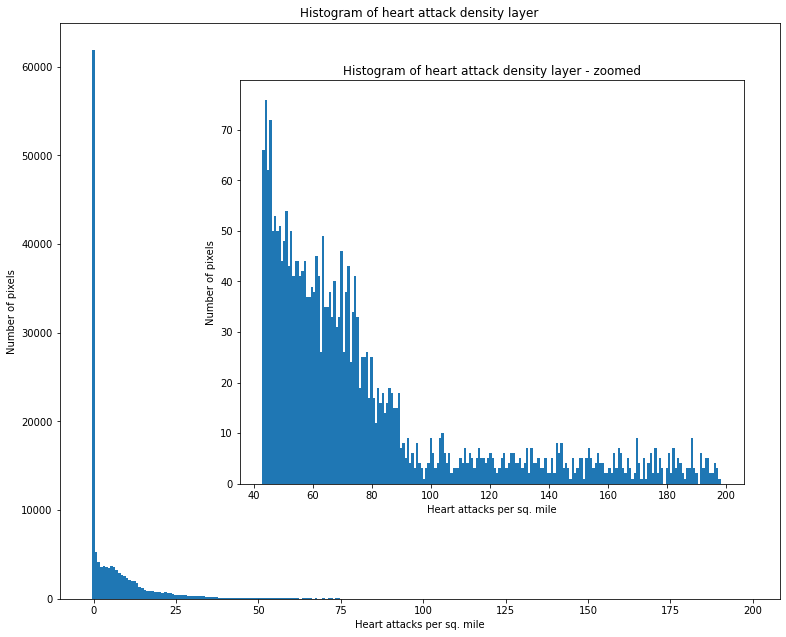

Plot the histogram to view actual density values and its distribution. The histograms property of the ImageryLayer object returns you histogram of each of its bands.

density_hist = density_layer.histograms

Construct the X axis such that it ranges from min value to max value of the pixel range in the image.

x = np.linspace(density_hist[0]['min'], density_hist[0]['max'], num=density_hist[0]['size'])
fig = plt.figure(figsize=(10,8))
ax = fig.add_axes([0,0,1,1])
ax.bar(x,density_hist[0]['counts'])
ax.set_title("Histogram of heart attack density layer")
ax.set_xlabel("Heart attacks per sq. mile")
ax.set_ylabel("Number of pixels")

ax2 = fig.add_axes([0.25,0.2,0.7,0.7])
ax2.bar(x[-200:], density_hist[0]['counts'][-200:])
ax2.set_title("Histogram of heart attack density layer - zoomed")
ax2.set_xlabel("Heart attacks per sq. mile")
ax2.set_ylabel("Number of pixels")
Text(0, 0.5, 'Number of pixels')
<Figure size 720x576 with 2 Axes>

Convert units from sqmile to city blocks

The inset histogram chart has the histogram zoomed to view the distribution in the upper end of the density spectrum. We are interested in selecting those regions that have a heart attack of at least 5 per 5 block area. To achieve this, we need to convert the density from square miles to 5 square blocks.

conversion_value = (1500*1500)/(5280*5280)
density_5blocks = density_layer * conversion_value #raster arithmetic
density_5blocks
<ImageryLayer url:"https://pythonapi.playground.esri.com/ra/rest/services/Hosted/ha_density_28_05_2021_09_38_24/ImageServer">

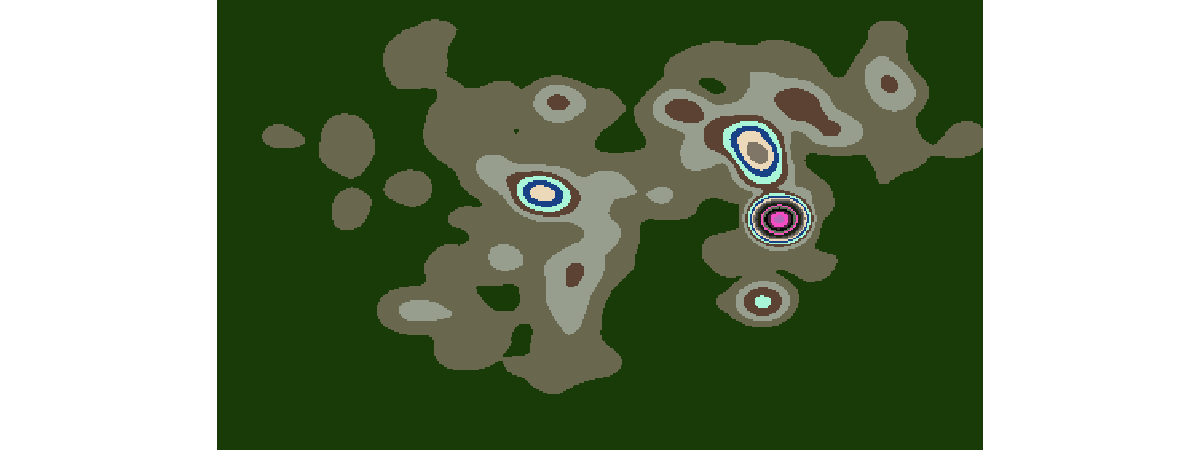

Let us remap this continuous density raster to a binary layer representing whether a pixel represents high enough density or not.

density_classified_color = colormap(density_5blocks, colormap_name='Random',astype='u8')
density_classified_color
<ImageryLayer url:"https://pythonapi.playground.esri.com/ra/rest/services/Hosted/ha_density_28_05_2021_09_38_24/ImageServer">

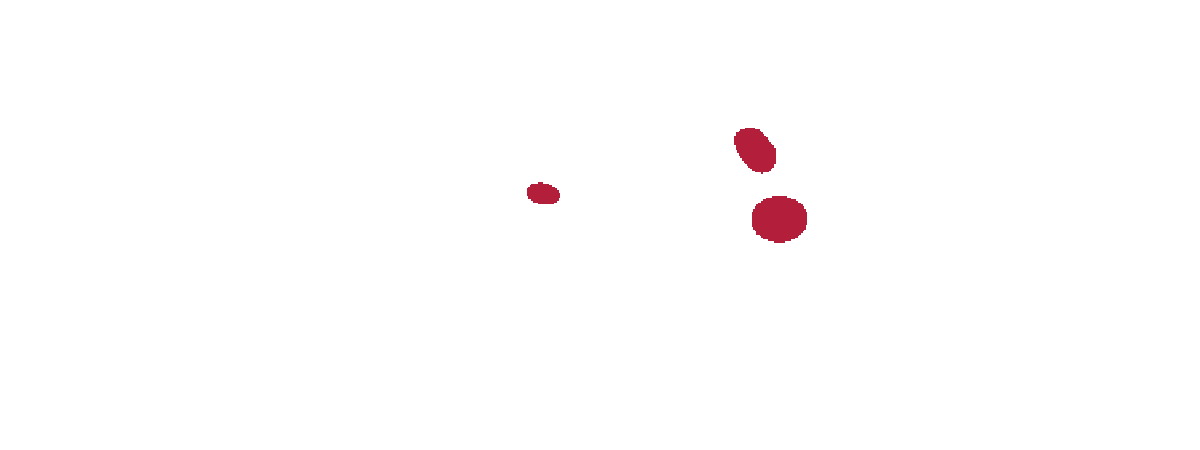

Next, we classify the density raster such that pixels that have heart attacks greater than 5 get value 1 and rest become 'no data' pixels.

#remap pixel values to create a binary raster
density_classified = remap(density_5blocks, input_ranges=[5,16], output_values=[1],astype='u8',no_data_ranges=[0,5])
density_classified_viz = colormap(density_classified, colormap_name='Random', astype='u8')
density_classified_viz
<ImageryLayer url:"https://pythonapi.playground.esri.com/ra/rest/services/Hosted/ha_density_28_05_2021_09_38_24/ImageServer">

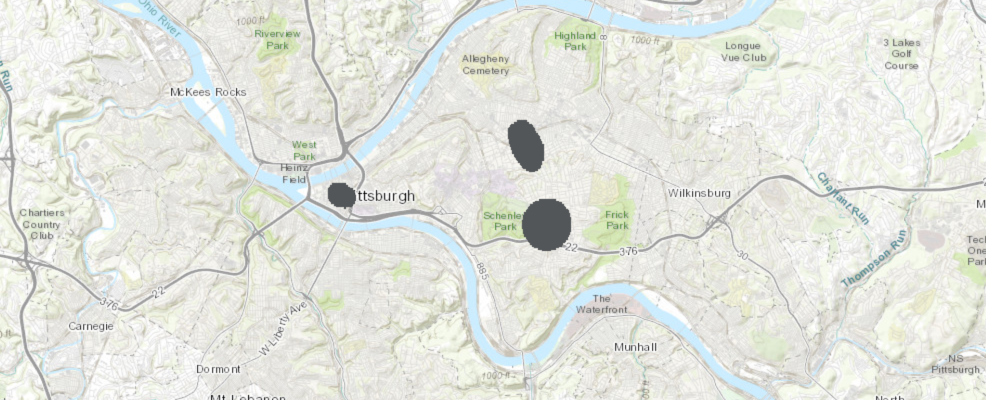

Through classification, we have determined there are 3 hotspots in our density raster. Let us overlay this on a map to see which areas these hotspots correspond to.

density_map2 = gis.map("Pittsburgh, PA")
density_map2
density_map2.add_layer(density_classified_viz)

Perform overlay analysis

The site selection condition requires two inputs, the heart attack density layer (which we created earlier) and the accessibility layer (from the buffer analysis). To perform overlay, we need to convert the buffers layer to a raster layer of matching cell size as that of the density raster layer. To perform this conversion we use the convert_feature_to_raster method.

from arcgis.raster.analytics import convert_feature_to_raster
# create a timestamp to create a unique output
timestamp=datetime.now().strftime('%d_%m_%Y_%H_%M_%S')

# convert zoning buffer polygon to a raster layer of matching cell size
buffer_raster = convert_feature_to_raster(commercial_buffers.layers[0],
                                          output_cell_size={'distance':150, 'units':'feet'},
                                          output_name=f'buffer_raster_{timestamp}')

print(buffer_raster)
<Item title:"buffer_raster_28_05_2021_09_44_37" type:Imagery Layer owner:arcgis_python>

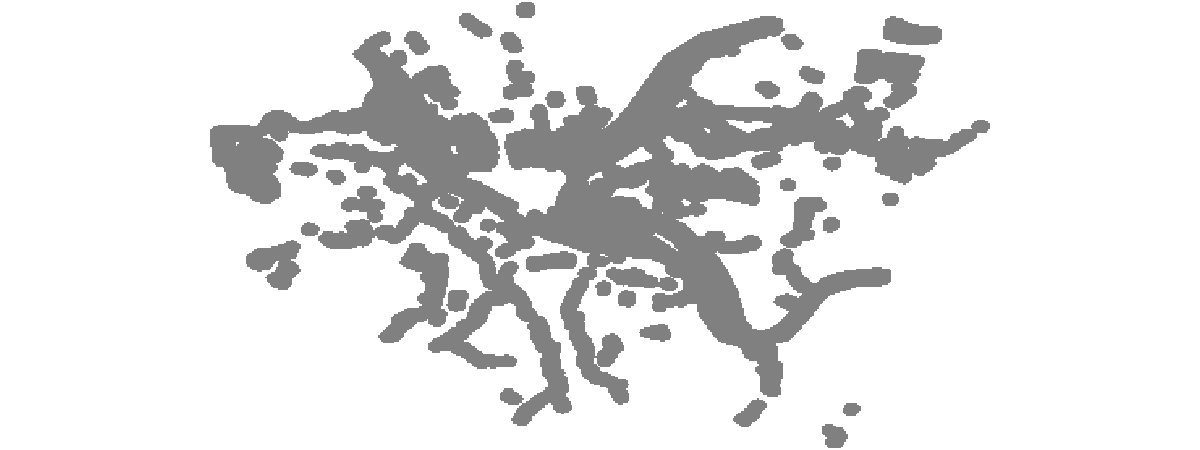

Query the layer to quickly visualize it as an image

buffer_raster = buffer_raster.layers[0]
buffer_raster
<ImageryLayer url:"https://pythonapi.playground.esri.com/ra/rest/services/Hosted/buffer_raster_28_05_2021_09_44_37/ImageServer">

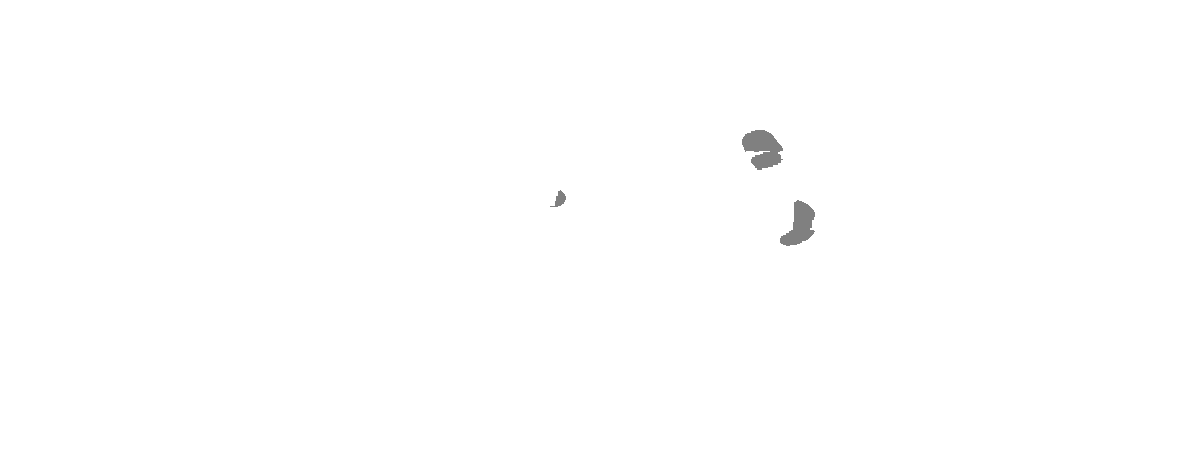

The raster module of the Python API provides numerous raster functions. Of which we use the bitwise_and local function which returns an image with pixels that match in both the input rasters.

bool_overlay = bitwise_and([buffer_raster,density_classified])
bool_overlay
<ImageryLayer url:"https://pythonapi.playground.esri.com/ra/rest/services/Hosted/buffer_raster_28_05_2021_09_44_37/ImageServer">

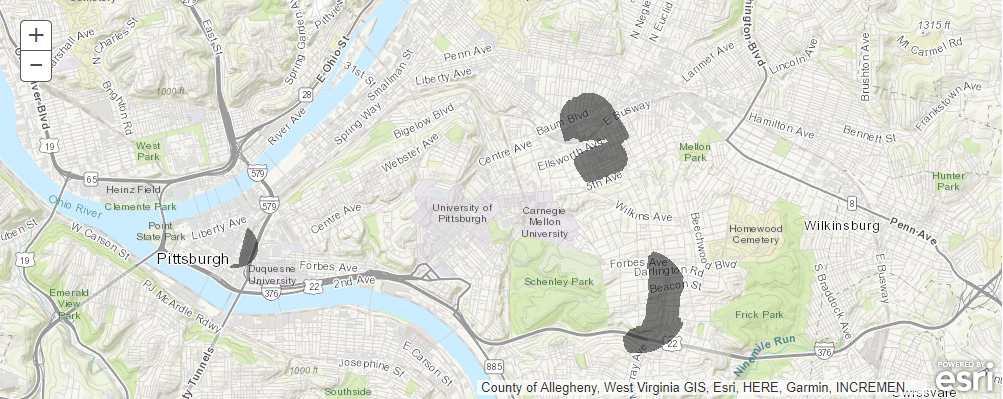

Let us overlay this final result on a map to visualize the regions that are suitable to locating new AED devices.

map3 = gis.map("Carnegie Mellon University, PA")
map3
map3.add_layer(bool_overlay)


Conclusion

Thus, in this sample, we observed how site-suitability analyses can be performed using ArcGIS and the ArcGIS API for Python. We started with the requirements for placing new AED devices as -- high intensity of cardiac arrests and proximity to commercial areas. Using a combination of feature analysis and raster analysis, we were able to process and extract the suitable sites. The analyst could convert the results from raster to vector, perform a centroid operation on the polygons, followed by reverse geocode to get the addresses of these 3 suitable locations for reporting and further action.
