Historical Wildfire Analysis

Spatial wildfire occurrence data, referred to as the Fire Program Analysis fire-occurrence database (FPA FOD), for the United States, 1992-2015 was obtained from https://www.fs.usda.gov/rds/archive/Product/RDS-2013-0009.4/. The dataset contains data on:

1.88 Million US Wildfires
24 years of geo-referenced wildfire records

Given this data, can we answer the following questions?

Are wildfires increasing over time?
Where are the fire hot spots?
Can Machine Learning categorize the cause of the fire given the size, location and date?

That would give investigators a data driven way to prioritize cases for further investigation.

from arcgis import *
import pandas as pd
import numpy as np

gis = GIS(profile='deldev.maps')

from arcgis.features import GeoAccessor, GeoSeriesAccessor

wildfires_df = pd.DataFrame.spatial.from_featureclass(r'C:\demo\FPA_FOD_20170508.gdb\Fires')

wildfires_df.shape

(1880465, 39)

df = wildfires_df[['FIRE_YEAR', 'DISCOVERY_DATE', 'DISCOVERY_DOY',
       'STAT_CAUSE_DESCR', 'FIRE_SIZE', 'STATE', 'FIPS_CODE', 'FIPS_NAME', 'SHAPE']]

df.head()

	FIRE_YEAR	DISCOVERY_DATE	DISCOVERY_DOY	STAT_CAUSE_DESCR	FIRE_SIZE	STATE	FIPS_CODE	FIPS_NAME	SHAPE
0	2005	2005-02-02	33	Miscellaneous	0.10	CA	063	Plumas	{'x': -121.00583333000003, 'y': 40.03694443999...
1	2004	2004-05-12	133	Lightning	0.25	CA	061	Placer	{'x': -120.40444444000002, 'y': 38.93305556000...
2	2004	2004-05-31	152	Debris Burning	0.10	CA	017	El Dorado	{'x': -120.73555555999997, 'y': 38.98416666999...
3	2004	2004-06-28	180	Lightning	0.10	CA	003	Alpine	{'x': -119.91333333, 'y': 38.55916666999997, '...
4	2004	2004-06-28	180	Lightning	0.10	CA	003	Alpine	{'x': -119.93305555999996, 'y': 38.55916666999...

Exploratory Data Analysis

df['x'] = df.SHAPE.apply(lambda g: g['x'])
df['y'] = df.SHAPE.apply(lambda g: g['y'])
smdf = wildfires_df[['FIRE_YEAR', 'DISCOVERY_DATE', 'DISCOVERY_DOY',
       'STAT_CAUSE_DESCR', 'FIRE_SIZE', 'STATE', 'FIPS_CODE', 'FIPS_NAME', 'x', 'y']]
smdf.to_pickle('fires.pkl')

pd.options.mode.chained_assignment = None

df['MONTH'] = pd.DatetimeIndex(df['DISCOVERY_DATE']).month
df['DAY_OF_WEEK'] = df['DISCOVERY_DATE'].dt.dayofweek
df_arson = df[df['STAT_CAUSE_DESCR']=='Arson']
dfa = df_arson['DAY_OF_WEEK'].value_counts()
df_lightning = df[df['STAT_CAUSE_DESCR']=='Lightning']
dfl = df_lightning['DAY_OF_WEEK'].value_counts()

%matplotlib inline
import matplotlib.pyplot as plt

plt.style.use('ggplot')
sorted_df = df.sort_values('FIRE_YEAR')
fire_freq = sorted_df.groupby('FIRE_YEAR').count()
x = np.asarray(fire_freq.axes[0])
y = np.asarray(df.groupby('FIRE_YEAR').size())

lyr = gis.content.search('Demographic Profile')[0]
lyr

Demographic Profile

Feature Layer Collection by deldev
Last Modified: March 02, 2018
0 comments, 0 views

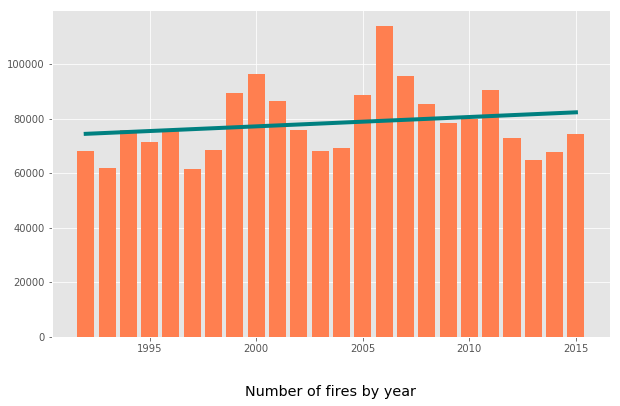

Have wildfires become more frequent over time?

fig, ax = plt.subplots(figsize=(10,6))
ax.bar(x, y, color='coral')
plt.title('Number of fires by year', y=-0.2)
fit1 = np.polyfit(x, y, deg=1)
ax.plot(x, x*fit1[0] + fit1[1], color='teal', linewidth=4);

<matplotlib.figure.Figure at 0x24b8cf0da20>

What are the causes of wildfire?

distribution = df['STAT_CAUSE_DESCR'].value_counts()

plt.figure(figsize=(6,6))
plt.title('Distribution by cause', y=-0.15)
plt.pie(distribution, labels=list(distribution.index[:-2]) + ['', '']);
plt.axis('equal');

<matplotlib.figure.Figure at 0x24b88ce0908>

Does the day of week matter?

ind = np.arange(7)
width = 0.35

fig, ax   = plt.subplots(figsize=(10,6))
arson     = ax.bar(ind, dfa.sort_index(), width, color='coral')
lightning = ax.bar(ind + width, dfl.sort_index(), width, color='teal')

ax.set_title('Wildfires by day of week', y=-0.15)
ax.set_xticklabels(('', 'Mon', 'Tues', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'))
ax.legend((arson[0], lightning[0]), ('Arson', 'Lightning'), loc=2);

<matplotlib.figure.Figure at 0x24b8bf83cc0>

Mapping and Spatial Analysis

wildfires = gis.content.import_data(wildfires_df)

from arcgis.features.analysis import find_hot_spots
hotspots = find_hot_spots(wildfires, 20, 'Miles', output_name='Hot Spots US_Historical_Wildfires_20')

hotspots = gis.content.get('8f9e60e114c749a9864e4adb9643d096')

usmap = gis.map('United States')
usmap.add_layer(hotspots)
usmap

Can Machine Learning categorize the cause of the fire?

Since arson is a significant preventable cause for many wildfires, it would be instructive to see if Machine Learning techniques can be used to classify if a fire was caused due to arson given some basic data that is available when the fire is first discovered or when investigations begin. This can be framed as a binary classification problem.

Such a technique could give investigators a data driven way to prioritize cases for further investigation.

from sklearn.model_selection import train_test_split
from sklearn import tree, preprocessing
import sklearn.ensemble as ske
import pandas as pd
import matplotlib.pyplot as plt

%matplotlib inline
%config IPCompleter.greedy=True

df = pd.read_pickle('fires.pkl')

df['MONTH'] = pd.DatetimeIndex(df['DISCOVERY_DATE']).month
df['DAY_OF_WEEK'] = df['DISCOVERY_DATE'].dt.dayofweek

ca_fires = df[df.STATE=='CA']
ca_fires['ARSON'] = ca_fires['STAT_CAUSE_DESCR'].apply(lambda x: 1 if x == 'Arson' else 0)

pdf = ca_fires[ ['FIRE_YEAR', 'DISCOVERY_DOY', 'FIPS_CODE', 'FIRE_SIZE', 'x', 'y', 'MONTH', 'DAY_OF_WEEK', 'ARSON'] ]
pdf = pdf.dropna()

Feature Engineering: Use geoenrichment to add features

analysis_variables = [
    'TOTPOP_CY',  # 2016 Population: Total Population (Esri)
    'HHPOP_CY',   # 2016 Household Population (Esri)
    'FAMPOP_CY',  # 2016 Family Population (Esri)
    'DIVINDX_CY', # 2016 Diversity Index (Esri)
    'TOTHH_CY',   # 2016 Total Households (Esri)
    'AVGHHSZ_CY', # 2016 Average Household Size (Esri)

    'MALES_CY',   # 2016 Gender: Male Population (Esri)
    'FEMALES_CY', # 2016 Gender: Female Population (Esri)

    'MEDAGE_CY',  # 2016 Age: Median Age (Esri)

    'AVGFMSZ_CY', # 2016 Income: Average Family Size (Esri)
    'MEDHINC_CY', # 2016 Income: Median Household Income (Esri)
    'AVGHINC_CY', # 2016 Income: Average Household Income (Esri)

    'EDUCBASECY', # 2016 Educational Attainment Base (Esri)
    'NOHS_CY',    # 2016 Education: Less than 9th Grade (Esri)
    'SOMEHS_CY',  # 2016 Education: 9-12th Grade/No Diploma (Esri)
    'HSGRAD_CY',  # 2016 Education: High School Diploma (Esri)
    'GED_CY',     # 2016 Education: GED/Alternative Credential (Esri)
    'SMCOLL_CY',  # 2016 Education: Some College/No Degree (Esri)
    'ASSCDEG_CY', # 2016 Education: Associate's Degree (Esri)
    'BACHDEG_CY', # 2016 Education: Bachelor's Degree (Esri)
]

from arcgis.geoenrichment import *

usa = Country.get('US')
counties = usa.subgeographies.states['California'].counties

enrich_df = enrich(list(counties.values()), analysis_variables=analysis_variables)

pdf['StdGeographyID'] = '06' + pdf['FIPS_CODE']
merged = pd.merge(pdf, enrich_df, on='StdGeographyID')
cols = ['FIRE_YEAR', 'DISCOVERY_DOY', 'FIPS_CODE', 'FIRE_SIZE', 'x', 'y', 'MONTH', 'DAY_OF_WEEK', 'ARSON'] + analysis_variables
mdf = merged[cols]

mdf.head()

	FIRE_YEAR	DISCOVERY_DOY	FIPS_CODE	FIRE_SIZE	x	y	MONTH	DAY_OF_WEEK	TOTPOP_CY	...	MEDHINC_CY	AVGHINC_CY	EDUCBASECY	NOHS_CY	SOMEHS_CY	HSGRAD_CY	GED_CY	SMCOLL_CY	ASSCDEG_CY	BACHDEG_CY
0	2005	33	063	0.1	-121.005833	40.036944	2	2	19292	...	45275	66596	14802	447	909	3153	415	4803	1672	2048
1	2005	153	063	2.3	-120.451111	39.817222	6	3	19292	...	45275	66596	14802	447	909	3153	415	4803	1672	2048
2	2005	234	063	0.5	-121.147500	39.872222	8	0	19292	...	45275	66596	14802	447	909	3153	415	4803	1672	2048
3	2005	241	063	0.1	-120.903889	39.962222	8	0	19292	...	45275	66596	14802	447	909	3153	415	4803	1672	2048
4	2005	242	063	1.0	-120.706667	40.056944	8	1	19292	...	45275	66596	14802	447	909	3153	415	4803	1672	2048

5 rows × 29 columns

m = gis.map('California')
m

lyr = gis.content.import_data(enrich_df, title='Demographic Profile')

m.add_layer(lyr, {'renderer':'ClassedColorRenderer', 'field':'AVGHINC_CY'})

Fit Random Forest classifier and check accuracy

X = mdf.drop(['ARSON'], axis=1).values
y = mdf['ARSON'].values
X_train, X_test, y_train, y_test = train_test_split(X,y,test_size=0.3, random_state=42)

clf_rf = ske.RandomForestClassifier(n_estimators=200)
clf_rf = clf_rf.fit(X_train, y_train)

print(clf_rf.score(X_test, y_test))

0.9212070907689571

Summary: Given some basic data, available when a fire is first discovered, it is possible to predict with over 90% accuracy if the fire was the result of arson.

Citations

Short, Karen C. 2017. Spatial wildfire occurrence data for the United States, 1992-2015 [FPA_FOD_20170508]. 4th Edition. Fort Collins, CO: Forest Service Research Data Archive. https://doi.org/10.2737/RDS-2013-0009.4
