Display geometry editor information during interaction | ArcGIS Maps SDK for Qt

View on GitHub

Sample viewer app

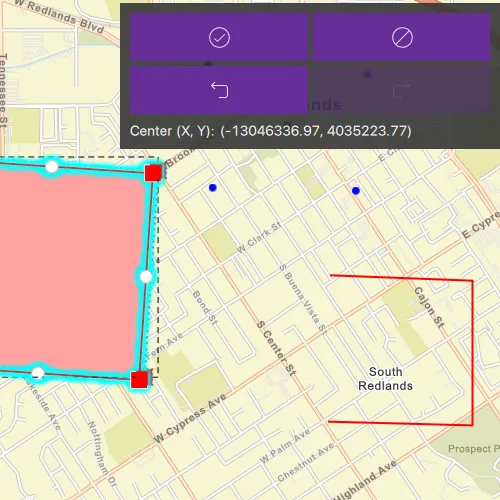

Use the geometry editor to see information about the geometry editor’s previewed geometry during an editing interaction.

Use case

The geometry editor can provide information about the geometry being created or edited during an interaction. This information can be used to give feedback to the user to show the effect of the interaction on the geometry.

How to use the sample

Tap a graphic to edit its geometry by moving, rotating, or scaling the geometry. During the interaction, information about the geometry will be displayed to provide feedback to the user.

Use the buttons in the settings view to undo or redo changes made to the geometry, and use the Discard edits and Save edits buttons to discard or save changes, respectively.

How it works

Create a GeometryEditor and set it on the MapView.
Connect to GeometryEditor::interactionPreviewChanged to receive a GeometryEditorInteractionPreview during an interaction.
Use GeometryEditorInteractionPreview::previewGeometry and GeometryEditorInteractionPreview::interactionType to display information about move, rotate, and scale interactions.
Identify a Graphic with MapView::identifyGraphicsOverlayAsync and call GeometryEditor::start with its geometry.
Use GeometryEditor::undo and GeometryEditor::redo to change the edit history.
Call GeometryEditor::stop and apply the returned geometry to the edited graphic to save the result.

Relevant API

Geometry
GeometryEditor
GeometryEditorInteractionPreview
GeometryEditorInteractionType
Graphic
GraphicsOverlay

Additional information

The GeometryEditor::interactionPreviewChanged signal is emitted continuously during an interaction, so it should not be used to trigger resource-intensive operations.

Sample code

DisplayGeometryEditorInformationDuringInteraction.cpp

DisplayGeometryEditorInformationDuringInteraction.h

DisplayGeometryEditorInformationDuringInteraction.qml

// [WriteFile Name=DisplayGeometryEditorInformationDuringInteraction, Category=EditData]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "DisplayGeometryEditorInformationDuringInteraction.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "ErrorException.h"
#include "Geometry.h"
#include "GeometryEditor.h"
#include "GeometryEditorInteractionPreview.h"
#include "GeometryEditorTypes.h"
#include "GeometryTypes.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "IdentifyGraphicsOverlayResult.h"
#include "ImmutablePart.h"
#include "ImmutablePartCollection.h"
#include "ImmutablePointCollection.h"
#include "InteractionConfiguration.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Multipoint.h"
#include "Point.h"
#include "Polygon.h"
#include "Polyline.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SymbolTypes.h"
#include "VertexTool.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QtMath>

// STL headers
#include <cmath>
#include <memory>

using namespace Esri::ArcGISRuntime;

DisplayGeometryEditorInformationDuringInteraction::DisplayGeometryEditorInformationDuringInteraction(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISStreets, this)),
  m_graphicsOverlay(new GraphicsOverlay(this)),
  m_geometryEditor(new GeometryEditor(this))
{
  m_map->setInitialViewpoint(Viewpoint::fromJson(
    R"({"rotation":0.0,"scale":17000,"targetGeometry":{"spatialReference":{"wkid":3857},"x":-13045202.018086127,"y":4035612.571361517}})"));

  VertexTool* vertexTool = new VertexTool(this);
  InteractionConfiguration* configuration = new InteractionConfiguration(this);
  configuration->setAllowVertexCreation(false);
  configuration->setAllowMidVertexSelection(false);
  configuration->setAllowDeletingSelectedElement(false);
  configuration->setAllowVertexSelection(false);
  configuration->setAllowPartCreation(false);
  vertexTool->setConfiguration(configuration);
  m_geometryEditor->setTool(vertexTool);

  createInitialGraphics();

  connect(m_geometryEditor, &GeometryEditor::isStartedChanged, this,
          &DisplayGeometryEditorInformationDuringInteraction::geometryEditorStartedChanged);
  connect(m_geometryEditor, &GeometryEditor::canUndoChanged, this, &DisplayGeometryEditorInformationDuringInteraction::canUndoChanged);
  connect(m_geometryEditor, &GeometryEditor::canRedoChanged, this, &DisplayGeometryEditorInformationDuringInteraction::canRedoChanged);
  connect(m_geometryEditor, &GeometryEditor::interactionPreviewChanged, this,
          &DisplayGeometryEditorInformationDuringInteraction::onInteractionPreviewChanged);
}

DisplayGeometryEditorInformationDuringInteraction::~DisplayGeometryEditorInformationDuringInteraction() = default;

void DisplayGeometryEditorInformationDuringInteraction::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<DisplayGeometryEditorInformationDuringInteraction>("Esri.Samples", 1, 0, "DisplayGeometryEditorInformationDuringInteractionSample");
}

void DisplayGeometryEditorInformationDuringInteraction::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
  {
    return;
  }

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);
  m_mapView->setGeometryEditor(m_geometryEditor);

  connect(m_mapView, &MapQuickView::mouseClicked, this, &DisplayGeometryEditorInformationDuringInteraction::onMapClicked);
  emit mapViewChanged();
}

MapQuickView* DisplayGeometryEditorInformationDuringInteraction::mapView() const
{
  return m_mapView;
}

void DisplayGeometryEditorInformationDuringInteraction::createInitialGraphics()
{
  const Polygon polygon = geometry_cast<Polygon>(Geometry::fromJson(
    R"({"rings":[[[-13046991.222211758,4034618.5047884779],[-13046991.222211758,4035962.0723415823],[-13045677.652220398,4035962.0723415823],[-13045677.652220398,4034618.5047884779],[-13046991.222211758,4034618.5047884779]]],"spatialReference":{"wkid":3857}})"));
  const Polyline polyline = geometry_cast<Polyline>(Geometry::fromJson(
    R"({"paths":[[[-13044533.805088846,4034221.5100018946],[-13043597.938505623,4034197.1337576872],[-13043597.938505623,4035135.572073034],[-13044522.634505576,4035170.5449295067]]],"spatialReference":{"wkid":3857}})"));
  const Multipoint multipoint = geometry_cast<Multipoint>(Geometry::fromJson(
    R"({"points":[[-13045283.292102993,4035739.1925106063],[-13045314.922186911,4036533.8852012255],[-13044798.24723932,4036138.7808295386],[-13044354.514637273,4035719.3623426706],[-13044281.57229173,4036473.0999132735]],"spatialReference":{"wkid":3857}})"));

  SimpleLineSymbol* redOutline = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor(255, 0, 0), 2, this);
  SimpleFillSymbol* polygonSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(255, 0, 0, 75), redOutline, this);
  SimpleMarkerSymbol* pointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor(0, 0, 255), 8, this);

  m_graphicsOverlay->graphics()->append({
    new Graphic(multipoint, pointSymbol, this),
    new Graphic(polygon, polygonSymbol, this),
    new Graphic(polyline, redOutline, this),
  });
}

void DisplayGeometryEditorInformationDuringInteraction::onMapClicked(const QMouseEvent& mouseEvent)
{
  if (m_geometryEditor->isStarted())
  {
    return;
  }

  m_mapView->identifyGraphicsOverlayAsync(m_graphicsOverlay, mouseEvent.position(), 10, false, this)
    .then(this,
          [this](IdentifyGraphicsOverlayResult* rawResult)
  {
    const std::unique_ptr<IdentifyGraphicsOverlayResult> result(rawResult);
    if (!result || result->graphics().isEmpty())
    {
      return;
    }

    m_editingGraphic = result->graphics().first();
    m_geometryEditor->start(m_editingGraphic->geometry());
    m_geometryEditor->selectGeometry();
    m_editingGraphic->setVisible(false);
  })
    .onFailed(this, [](const ErrorException& error)
  {
    qDebug() << "Identify failed:" << error.error().message();
  });
}

void DisplayGeometryEditorInformationDuringInteraction::onInteractionPreviewChanged(GeometryEditorInteractionPreview* interactionPreview)
{
  if (!interactionPreview)
  {
    clearInteractionInformation();
    return;
  }

  // The preview is parented to GeometryEditor, so it would be cleaned up automatically.
  // We can delete it earlier after this callback because we do not retain it beyond this update.
  interactionPreview->deleteLater();

  switch (interactionPreview->interactionType())
  {
    case GeometryEditorInteractionType::Scale:
      setScaleInformation(interactionPreview->previewGeometry());
      break;
    case GeometryEditorInteractionType::Rotate:
      setRotationInformation(interactionPreview->previewGeometry());
      break;
    case GeometryEditorInteractionType::Move:
      setMoveInformation(interactionPreview->previewGeometry());
      break;
    case GeometryEditorInteractionType::Create:
      clearInteractionInformation();
      return;
  }

  m_interactionInfoVisible = true;
  emit interactionInfoChanged();
}

void DisplayGeometryEditorInformationDuringInteraction::setScaleInformation(const Geometry& previewGeometry)
{
  const Envelope originalExtent = m_geometryEditor->geometry().extent();
  const Envelope previewExtent = previewGeometry.extent();
  if (qFuzzyIsNull(originalExtent.width()) || qFuzzyIsNull(originalExtent.height()))
  {
    clearInteractionInformation();
    return;
  }

  const double scaleX = previewExtent.width() / originalExtent.width();
  const double scaleY = previewExtent.height() / originalExtent.height();
  m_interactionDescription = tr("Scale factor (X, Y):");
  m_interactionValue = QString("(%1, %2)").arg(QString::number(scaleX, 'f', 2), QString::number(scaleY, 'f', 2));
}

void DisplayGeometryEditorInformationDuringInteraction::setRotationInformation(const Geometry& previewGeometry)
{
  const Point center = m_geometryEditor->geometry().extent().center();
  const Point originalPoint = firstPoint(m_geometryEditor->geometry());
  const Point previewPoint = firstPoint(previewGeometry);
  if (originalPoint.isEmpty() || previewPoint.isEmpty())
  {
    clearInteractionInformation();
    return;
  }

  const double vector1X = originalPoint.x() - center.x();
  const double vector1Y = originalPoint.y() - center.y();
  const double vector2X = previewPoint.x() - center.x();
  const double vector2Y = previewPoint.y() - center.y();
  const double crossProduct = (vector1X * vector2Y) - (vector1Y * vector2X);
  const double dotProduct = (vector1X * vector2X) + (vector1Y * vector2Y);
  const double angle = qRadiansToDegrees(std::atan2(crossProduct, dotProduct));
  const double clockwiseAngle = std::fmod(-angle + 360.0, 360.0);

  m_interactionDescription = tr("Rotation angle (degrees):");
  m_interactionValue = QString::number(clockwiseAngle, 'f', 2);
}

void DisplayGeometryEditorInformationDuringInteraction::setMoveInformation(const Geometry& previewGeometry)
{
  const Point center = previewGeometry.extent().center();
  m_interactionDescription = tr("Center (X, Y):");
  m_interactionValue = QString("(%1, %2)").arg(QString::number(center.x(), 'f', 2), QString::number(center.y(), 'f', 2));
}

Point DisplayGeometryEditorInformationDuringInteraction::firstPoint(const Geometry& geometry)
{
  switch (geometry.geometryType())
  {
    case GeometryType::Polygon:
    {
      const Polygon polygon = geometry_cast<Polygon>(geometry);
      return polygon.parts().isEmpty() ? Point() : polygon.parts().part(0).startPoint();
    }
    case GeometryType::Polyline:
    {
      const Polyline polyline = geometry_cast<Polyline>(geometry);
      return polyline.parts().isEmpty() ? Point() : polyline.parts().part(0).startPoint();
    }
    case GeometryType::Multipoint:
    {
      const Multipoint multipoint = geometry_cast<Multipoint>(geometry);
      return multipoint.points().isEmpty() ? Point() : multipoint.points().point(0);
    }
    default:
      return {};
  }
}

void DisplayGeometryEditorInformationDuringInteraction::undo()
{
  m_geometryEditor->undo();
}

void DisplayGeometryEditorInformationDuringInteraction::redo()
{
  m_geometryEditor->redo();
}

void DisplayGeometryEditorInformationDuringInteraction::cancelEdits()
{
  finishEditing(false);
}

void DisplayGeometryEditorInformationDuringInteraction::saveEdits()
{
  finishEditing(true);
}

void DisplayGeometryEditorInformationDuringInteraction::finishEditing(bool save)
{
  if (!m_geometryEditor->isStarted())
  {
    return;
  }

  const Geometry result = m_geometryEditor->stop();
  if (save && m_editingGraphic && !result.isEmpty())
  {
    m_editingGraphic->setGeometry(result);
  }

  if (m_editingGraphic)
  {
    m_editingGraphic->setVisible(true);
    m_editingGraphic = nullptr;
  }
  clearInteractionInformation();
}

void DisplayGeometryEditorInformationDuringInteraction::clearInteractionInformation()
{
  if (!m_interactionInfoVisible && m_interactionDescription.isEmpty() && m_interactionValue.isEmpty())
  {
    return;
  }

  m_interactionInfoVisible = false;
  m_interactionDescription.clear();
  m_interactionValue.clear();
  emit interactionInfoChanged();
}

bool DisplayGeometryEditorInformationDuringInteraction::geometryEditorStarted() const
{
  return m_geometryEditor->isStarted();
}

bool DisplayGeometryEditorInformationDuringInteraction::canUndo() const
{
  return m_geometryEditor->canUndo();
}

bool DisplayGeometryEditorInformationDuringInteraction::canRedo() const
{
  return m_geometryEditor->canRedo();
}

// [WriteFile Name=DisplayGeometryEditorInformationDuringInteraction, Category=EditData]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef DISPLAYGEOMETRYEDITORINFORMATIONDURINGINTERACTION_H
#define DISPLAYGEOMETRYEDITORINFORMATIONDURINGINTERACTION_H

// Qt headers
#include <QObject>
#include <QString>

class QMouseEvent;

namespace Esri::ArcGISRuntime
{
  class Geometry;
  class GeometryEditor;
  class GeometryEditorInteractionPreview;
  class Graphic;
  class GraphicsOverlay;
  class Map;
  class MapQuickView;
  class Point;
} // namespace Esri::ArcGISRuntime

Q_MOC_INCLUDE("MapQuickView.h");

class DisplayGeometryEditorInformationDuringInteraction : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool geometryEditorStarted READ geometryEditorStarted NOTIFY geometryEditorStartedChanged)
  Q_PROPERTY(bool canUndo READ canUndo NOTIFY canUndoChanged)
  Q_PROPERTY(bool canRedo READ canRedo NOTIFY canRedoChanged)
  Q_PROPERTY(bool interactionInfoVisible MEMBER m_interactionInfoVisible NOTIFY interactionInfoChanged)
  Q_PROPERTY(QString interactionDescription MEMBER m_interactionDescription NOTIFY interactionInfoChanged)
  Q_PROPERTY(QString interactionValue MEMBER m_interactionValue NOTIFY interactionInfoChanged)

public:
  explicit DisplayGeometryEditorInformationDuringInteraction(QObject* parent = nullptr);
  ~DisplayGeometryEditorInformationDuringInteraction() override;

  static void init();

  Q_INVOKABLE void undo();
  Q_INVOKABLE void redo();
  Q_INVOKABLE void cancelEdits();
  Q_INVOKABLE void saveEdits();

signals:
  void mapViewChanged();
  void geometryEditorStartedChanged();
  void canUndoChanged();
  void canRedoChanged();
  void interactionInfoChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  bool geometryEditorStarted() const;
  bool canUndo() const;
  bool canRedo() const;

  void createInitialGraphics();
  void onMapClicked(const QMouseEvent& mouseEvent);
  void onInteractionPreviewChanged(Esri::ArcGISRuntime::GeometryEditorInteractionPreview* interactionPreview);
  void setScaleInformation(const Esri::ArcGISRuntime::Geometry& previewGeometry);
  void setRotationInformation(const Esri::ArcGISRuntime::Geometry& previewGeometry);
  void setMoveInformation(const Esri::ArcGISRuntime::Geometry& previewGeometry);
  void finishEditing(bool save);
  void clearInteractionInformation();

  static Esri::ArcGISRuntime::Point firstPoint(const Esri::ArcGISRuntime::Geometry& geometry);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::GeometryEditor* m_geometryEditor = nullptr;
  Esri::ArcGISRuntime::Graphic* m_editingGraphic = nullptr;
  QString m_interactionDescription;
  QString m_interactionValue;
  bool m_interactionInfoVisible = false;
};

#endif // DISPLAYGEOMETRYEDITORINFORMATIONDURINGINTERACTION_H

// [WriteFile Name=DisplayGeometryEditorInformationDuringInteraction, Category=EditData]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Controls.Basic as Basic
import QtQuick.Layouts
import Esri.Samples

Item {
    id: root

    MapView {
        id: mapView
        anchors.fill: root

        Component.onCompleted: forceActiveFocus()
    }

    DisplayGeometryEditorInformationDuringInteractionSample {
        id: sampleModel
        mapView: mapView
    }

    component AccentButton: Basic.Button {
        id: accentButton

        display: AbstractButton.IconOnly
        icon.width: 32
        icon.height: 32
        icon.color: "#ffffff"
        opacity: enabled ? 1 : 0.3

        background: Rectangle {
            implicitHeight: 48
            color: accentButton.down ? Qt.darker(accentButton.palette.highlight, 1.2) :
                                       accentButton.hovered ? Qt.lighter(accentButton.palette.highlight, 1.1) :
                                                              accentButton.palette.highlight
        }
    }

    Control {
        readonly property real maximumWidth: Math.max(0, Math.min(380, root.width - 20))

        width: sampleModel.geometryEditorStarted ? maximumWidth :
                                                   Math.min(maximumWidth, promptLabel.implicitWidth + leftPadding + rightPadding)
        padding: 10

        anchors {
            top: root.top
            right: root.right
            margins: 10
        }

        background: Rectangle {
            color: palette.base
            opacity: 0.9

            MouseArea {
                anchors.fill: parent
                acceptedButtons: Qt.LeftButton | Qt.RightButton
                onClicked: mouse => mouse.accepted = true
                onDoubleClicked: mouse => mouse.accepted = true
                onWheel: wheel => wheel.accepted = true
            }
        }

        contentItem: ColumnLayout {
            spacing: 8

            Label {
                id: promptLabel

                visible: !sampleModel.geometryEditorStarted
                text: qsTr("Tap a graphic to start the geometry editor.")
                wrapMode: Text.WordWrap

                Layout.fillWidth: true
            }

            GridLayout {
                columns: 2
                visible: sampleModel.geometryEditorStarted

                AccentButton {
                    text: qsTr("Save edits")
                    icon.source: "qrc:/Samples/EditData/DisplayGeometryEditorInformationDuringInteraction/check-circle-24.svg"

                    Layout.fillWidth: true

                    ToolTip.visible: hovered
                    ToolTip.text: text

                    onClicked: sampleModel.saveEdits()
                }

                AccentButton {
                    text: qsTr("Discard edits")
                    icon.source: "qrc:/Samples/EditData/DisplayGeometryEditorInformationDuringInteraction/circle-disallowed-24.svg"

                    Layout.fillWidth: true

                    ToolTip.visible: hovered
                    ToolTip.text: text

                    onClicked: sampleModel.cancelEdits()
                }

                AccentButton {
                    text: qsTr("Undo")
                    enabled: sampleModel.canUndo
                    icon.source: "qrc:/Samples/EditData/DisplayGeometryEditorInformationDuringInteraction/undo-24.svg"

                    Layout.fillWidth: true

                    ToolTip.visible: hovered
                    ToolTip.text: text

                    onClicked: sampleModel.undo()
                }

                AccentButton {
                    text: qsTr("Redo")
                    enabled: sampleModel.canRedo
                    icon.source: "qrc:/Samples/EditData/DisplayGeometryEditorInformationDuringInteraction/redo-24.svg"

                    Layout.fillWidth: true

                    ToolTip.visible: hovered
                    ToolTip.text: text

                    onClicked: sampleModel.redo()
                }
            }

            RowLayout {
                visible: sampleModel.interactionInfoVisible

                Layout.fillWidth: true

                Label {
                    text: sampleModel.interactionDescription
                    wrapMode: Text.WordWrap
                }

                Label {
                    text: sampleModel.interactionValue
                    // ensure the size of the text displayed doesn't
                    // judder as the numbers rapidly change on interacting
                    font.features: ({ "tnum": 1 })
                }
            }
        }
    }
}
