Cut geometry

View on GitHub

Cut a geometry along a polyline.

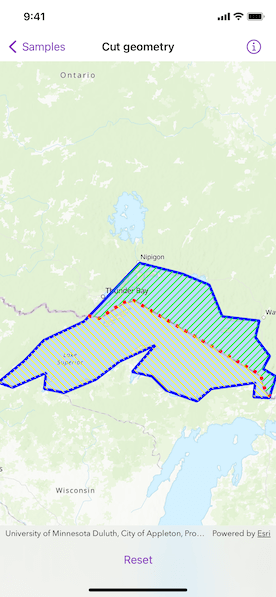

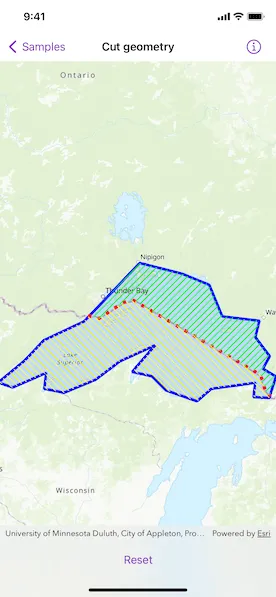

Screenshot of cut geometry sample

Use case

You might cut a polygon representing a large parcel to subdivide it into smaller parcels.

How to use the sample

Tap the button to cut the polygon with the polyline and see the resulting parts (shaded in different colors).

How it works

  1. Pass a Geometry and a Polyline to the static GeometryEngine.cut(_:usingCutter:) method to cut the geometry along the given polyline.
  2. Loop through the returned list of part geometries. Some geometries may be multi-part.
  3. Create a Graphic instance from the part and add it to a GraphicsOverlay.

Relevant API

  • Geometry
  • GeometryEngine
  • Graphic
  • GraphicsOverlay
  • Polygon
  • Polyline
  • static GeometryEngine.cut(_:usingCutter:)

Tags

cut, geometry, split

Sample Code

CutGeometryView.swift
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
// Copyright 2022 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct CutGeometryView: View {
    /// A Boolean value indicating whether the geometry is cut.
    @State private var isGeometryCut = false

    /// The view model for the sample.
    @StateObject private var model = Model()

    var body: some View {
        MapView(map: model.map, graphicsOverlays: model.graphicsOverlays)
            .toolbar {
                ToolbarItem(placement: .bottomBar) {
                    Button(isGeometryCut ? "Reset" : "Cut") {
                        if isGeometryCut {
                            model.removeAllGraphics()
                        } else {
                            model.cutGeometry()
                        }
                        isGeometryCut.toggle()
                    }
                }
            }
    }
}

private extension CutGeometryView {
    /// The model used to store the geo model and other expensive objects
    /// used in this view.
    class Model: ObservableObject {
        /// A map with a topographic basemap style and an initial viewpoint of Lake Superior.
        let map: Map = {
            let map = Map(basemapStyle: .arcGISTopographic)
            map.initialViewpoint = Viewpoint(boundingGeometry: Geometry.lakeSuperiorPolygon)
            return map
        }()

        /// A graphics overlay containing the Lake Superior polygon and a border line.
        private let lakeGraphicsOverlay: GraphicsOverlay = {
            let lakeSuperiorGraphic = Graphic(
                geometry: .lakeSuperiorPolygon,
                symbol: SimpleFillSymbol(
                    color: .blue.withAlphaComponent(0.1),
                    outline: SimpleLineSymbol(style: .solid, color: .blue, width: 4)
                )
            )
            let borderGraphic = Graphic(
                geometry: .borderPolyline,
                symbol: SimpleLineSymbol(style: .dot, color: .red, width: 5)
            )
            return GraphicsOverlay(graphics: [lakeSuperiorGraphic, borderGraphic])
        }()

        /// The graphics overlay containing cut graphics.
        private let cutGraphicsOverlay = GraphicsOverlay()

        /// The graphics overlays used in this sample.
        var graphicsOverlays: [GraphicsOverlay] {
            return [lakeGraphicsOverlay, cutGraphicsOverlay]
        }

        /// Cuts geometry and adds resulting graphics.
        func cutGeometry() {
            // Cuts the Lake Superior polygon using the border polyline.
            let parts = GeometryEngine.cut(.lakeSuperiorPolygon, usingCutter: .borderPolyline)
            guard parts.count == 2,
                  let firstPart = parts.first,
                  let secondPart = parts.last else {
                return
            }
            // Creates the graphics for the Canadian and USA sides of Lake Superior.
            let canadaSideGraphic = Graphic(geometry: firstPart, symbol: SimpleFillSymbol(style: .backwardDiagonal, color: .green))
            let usaSideGraphic = Graphic(geometry: secondPart, symbol: SimpleFillSymbol(style: .forwardDiagonal, color: .yellow))
            // Adds the graphics to the graphics overlay.
            cutGraphicsOverlay.addGraphics([canadaSideGraphic, usaSideGraphic])
        }

        /// Removes all cut graphics.
        func removeAllGraphics() {
            cutGraphicsOverlay.removeAllGraphics()
        }
    }
}

private extension Geometry {
    /// A polygon representing the area of Lake Superior.
    static var lakeSuperiorPolygon: ArcGIS.Polygon {
        Polygon(
            points: [
                Point(x: -10254374.668616, y: 5908345.076380),
                Point(x: -10178382.525314, y: 5971402.386779),
                Point(x: -10118558.923141, y: 6034459.697178),
                Point(x: -9993252.729399, y: 6093474.872295),
                Point(x: -9882498.222673, y: 6209888.368416),
                Point(x: -9821057.766387, y: 6274562.532928),
                Point(x: -9690092.583250, y: 6241417.023616),
                Point(x: -9605207.742329, y: 6206654.660191),
                Point(x: -9564786.389509, y: 6108834.986367),
                Point(x: -9449989.747500, y: 6095091.726408),
                Point(x: -9462116.153346, y: 6044160.821855),
                Point(x: -9417652.665244, y: 5985145.646738),
                Point(x: -9438671.768711, y: 5946341.148031),
                Point(x: -9398250.415891, y: 5922088.336339),
                Point(x: -9419269.519357, y: 5855797.317714),
                Point(x: -9467775.142741, y: 5858222.598884),
                Point(x: -9462924.580403, y: 5902686.086985),
                Point(x: -9598740.325877, y: 5884092.264688),
                Point(x: -9643203.813979, y: 5845287.765981),
                Point(x: -9739406.633691, y: 5879241.702350),
                Point(x: -9783061.694736, y: 5922896.763395),
                Point(x: -9844502.151022, y: 5936640.023354),
                Point(x: -9773360.570059, y: 6019099.583107),
                Point(x: -9883306.649729, y: 5968977.105610),
                Point(x: -9957681.938918, y: 5912387.211662),
                Point(x: -10055501.612742, y: 5871965.858842),
                Point(x: -10116942.069028, y: 5884092.264688),
                Point(x: -10111283.079633, y: 5933406.315128),
                Point(x: -10214761.742852, y: 5888134.399970),
                Point(x: -10254374.668616, y: 5901877.659929)
            ],
            spatialReference: .webMercator
        )
    }
    /// A polyline representing the Canada/USA border.
    static var borderPolyline: Polyline {
        Polyline(
            points: [
                Point(x: -9981328.687124, y: 6111053.281447),
                Point(x: -9946518.044066, y: 6102350.620682),
                Point(x: -9872545.427566, y: 6152390.920079),
                Point(x: -9838822.617103, y: 6157830.083057),
                Point(x: -9446115.050097, y: 5927209.572793),
                Point(x: -9430885.393759, y: 5876081.440801),
                Point(x: -9415655.737420, y: 5860851.784463)
            ],
            spatialReference: .webMercator
        )
    }
}
