< meta name = "viewport" content = "width=device-width, initial-scale=1, shrink-to-fit=no" />
< title >Query statistics client-side by distance | Sample | ArcGIS Maps SDK for JavaScript</ title >
<!-- Load the Chart.js library -->
< script src = "https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.4.0/Chart.min.js" ></ script >
< link rel = "stylesheet" href = "https://js.arcgis.com/5.0/esri/themes/light/main.css" />
<!-- Load the ArcGIS Maps SDK for JavaScript from CDN -->
< script type = "module" src = "https://js.arcgis.com/5.0/" ></ script >
const [ MapView , WebMap , Legend , Expand , Bookmarks , lang , promiseUtils , reactiveUtils ] =
"@arcgis/core/views/MapView.js" ,
"@arcgis/core/WebMap.js" ,
"@arcgis/core/widgets/Legend.js" ,
"@arcgis/core/widgets/Expand.js" ,
"@arcgis/core/widgets/Bookmarks.js" ,
"@arcgis/core/core/lang.js" ,
"@arcgis/core/core/promiseUtils.js" ,
"@arcgis/core/core/reactiveUtils.js" ,
// declare chart variables to update as the under interacts with the sample
// load a web map containing homicide statistics
const webmap = new WebMap ({
id : "96cf806c32874026bef5f586315f098c" ,
const view = new MapView ({
// Add UI elements to the view
// Displays instructions to the user for understanding the sample
// And places them in an Expand widget instance
const titleContent = document . createElement ( "div" );
titleContent . style . padding = "15px" ;
titleContent . style . backgroundColor = "white" ;
titleContent . style . width = "350px" ;
titleContent . innerHTML = [
"<div id='title' class='esri-widget'>" ,
"<span id='num-homicides'>0</span> homicides occurred within one mile of the pointer location over the last 10 years." ,
"The average age of the victims is <span id='avg-age'>0</span>. The average time an unsolved case has been" ,
"open is <span id='avg-open-time'>0</span> years." ,
const titleExpand = new Expand ({
expandTooltip : "Summary stats" ,
expanded : view . widthBreakpoint !== "xsmall" ,
view . ui . add ( titleExpand , "top-right" );
const legendExpand = new Expand ({
expanded : view . widthBreakpoint !== "xsmall" ,
view . ui . add ( legendExpand , "bottom-left" );
() => view . widthBreakpoint ,
titleExpand . expanded = widthBreakpoint !== "xsmall" ;
legendExpand . expanded = widthBreakpoint !== "xsmall" ;
const bookmarksWidget = new Bookmarks ({
const bookmarksExpand = new Expand ({
content : bookmarksWidget ,
view . ui . add ( bookmarksExpand , "top-right" );
bookmarksWidget . on ( "select-bookmark" , ( event ) => {
bookmarksExpand . expanded = false ;
// Displays instructions to the user for understanding the sample
// And places them in an Expand widget instance
const sampleInstructions = document . createElement ( "div" );
sampleInstructions . style . padding = "10px" ;
sampleInstructions . style . backgroundColor = "white" ;
sampleInstructions . style . width = "300px" ;
sampleInstructions . innerHTML = [
"<b>Drag</b> the pointer over the data to view stats" ,
"within one mile of the pointer location." ,
const instructionsExpand = new Expand ({
expandTooltip : "How to use this sample" ,
content : sampleInstructions ,
view . ui . add ( instructionsExpand , "top-left" );
let highlightHandle = null ;
* Create charts and start querying the layer view when
* the view is ready and data begins to draw in the view
// Create the charts when the view is ready
const layer = webmap . layers . getItemAt ( 0 );
view . whenLayerView ( layer ). then (( layerView ) => {
. whenOnce (() => ! layerView . updating )
// Query layer view statistics as the user clicks
// or drags the pointer across the view.
view . on ([ "click" , "drag" ], ( event ) => {
// disables navigation by pointer drag
queryStatsOnDrag ( layerView , event )
if ( error . name !== "AbortError" ) {
* Queries statistics against the layer view at the given screen location
const queryStatsOnDrag = promiseUtils . debounce (( layerView , event ) => {
// create a query object for the highlight and the statistics query
const query = layerView . layer . createQuery ();
query . geometry = view . toMap ( event ); // converts the screen point to a map point
query . distance = 1 ; // queries all features within 1 mile of the point
const statsQuery = query . clone ();
// date used to calculate the average time a case has been opened
const dataDownloadDate = Date . UTC ( 2018 , 6 , 5 );
// Create the statistic definitions for querying stats from the layer view
// the `onStatisticField` property can reference a field name or a SQL expression
// `outStatisticFieldName` is the name of the statistic you will reference in the result
// `statisticType` can be sum, avg, min, max, count, stddev
const statDefinitions = [
// Age of crime since it was reported in years
"(" + dataDownloadDate + " - milliseconds) / (1000 * 60 * 60 * 24 * 365.25)" ,
outStatisticFieldName : "avg_open_time_years" ,
outStatisticFieldName : "total" ,
// total homicides by year
// Since separate fields don't exist for each year, we can use
// an expression to return a 1 or a 0 for each year and sum up the
// results to get the total.
onStatisticField : "CASE WHEN reported_year = 2008 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2008" ,
onStatisticField : "CASE WHEN reported_year = 2009 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2009" ,
onStatisticField : "CASE WHEN reported_year = 2010 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2010" ,
onStatisticField : "CASE WHEN reported_year = 2011 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2011" ,
onStatisticField : "CASE WHEN reported_year = 2012 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2012" ,
onStatisticField : "CASE WHEN reported_year = 2013 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2013" ,
onStatisticField : "CASE WHEN reported_year = 2014 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2014" ,
onStatisticField : "CASE WHEN reported_year = 2015 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2015" ,
onStatisticField : "CASE WHEN reported_year = 2016 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2016" ,
onStatisticField : "CASE WHEN reported_year = 2017 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "total_2017" ,
// crime disposition (aka crime statu)
// Since this is a string field, we can use a similar technique to sum
// the total of each status of the crime
onStatisticField : "CASE WHEN disposition = 'Closed by arrest' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_closed_arrest" ,
onStatisticField : "CASE WHEN disposition = 'Open/No arrest' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_open" ,
onStatisticField : "CASE WHEN disposition = 'Closed without arrest' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_closed_no_arrest" ,
// Some victim ages are unknown and indicated with a -99. We'll
// use an expression to treat those unknown ages as 0. This will
// skew the average age slightly downward since we can't exclude those
// values without a where clause. Do use a where clause, we could execute
onStatisticField : "CASE WHEN victim_age_years = -99 THEN 0 ELSE victim_age_years END" ,
outStatisticFieldName : "avg_age" ,
onStatisticField : "CASE WHEN victim_age_years = -99 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_unknown" ,
"CASE WHEN victim_age_years >= 0 AND victim_age_years <= 18 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_18_under" ,
"CASE WHEN victim_age_years >= 19 AND victim_age_years <= 30 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_19_30" ,
"CASE WHEN victim_age_years >= 31 AND victim_age_years <= 44 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_31_44" ,
"CASE WHEN victim_age_years >= 45 AND victim_age_years <= 65 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_45_64" ,
onStatisticField : "CASE WHEN victim_age_years >= 65 THEN 1 ELSE 0 END" ,
outStatisticFieldName : "age_65_over" ,
onStatisticField : "CASE WHEN victim_sex = 'Male' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_males" ,
onStatisticField : "CASE WHEN victim_sex = 'Female' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_females" ,
onStatisticField : "CASE WHEN victim_sex = 'Unknown' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_unknown_gender" ,
onStatisticField : "CASE WHEN victim_race = 'Asian' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_asian" ,
onStatisticField : "CASE WHEN victim_race = 'Black' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_black" ,
onStatisticField : "CASE WHEN victim_race = 'Hispanic' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_hispanic" ,
onStatisticField : "CASE WHEN victim_race = 'White' THEN 1 ELSE 0 END" ,
outStatisticFieldName : "num_white" ,
// add the stat definitions to the statistics query object cloned earlier
statsQuery . outStatistics = statDefinitions ;
// execute the query for all features in the layer view

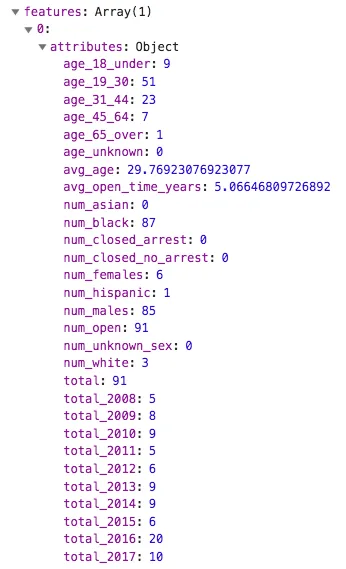

const allStatsResponse = layerView . queryFeatures ( statsQuery ). then (
const stats = response . features [ 0 ]. attributes ;
const openStatsQuery = statsQuery . clone ();
openStatsQuery . where = "disposition = 'Open/No arrest'" ;
// execute the query for only unsolved homicides in the layer view
const unsolvedStatsResponse = layerView . queryFeatures ( openStatsQuery ). then (
const stats = response . features [ 0 ]. attributes ;
// highlight all features within the query distance
layerView . queryObjectIds ( query ). then (( ids ) => {
highlightHandle . remove ();
highlightHandle = layerView . highlight ( ids );
// Return the promises that will resolve to each set of statistics
return promiseUtils . eachAlways ([ allStatsResponse , unsolvedStatsResponse ]);
* Updates the charts with the data returned from the statistic queries.
function updateCharts ( responses ) {
const allStats = responses [ 0 ]. value ;
const unsolvedStats = responses [ 1 ]. value ;
allStats . total_2008 - unsolvedStats . total_2008 ,
allStats . total_2009 - unsolvedStats . total_2009 ,
allStats . total_2010 - unsolvedStats . total_2010 ,
allStats . total_2011 - unsolvedStats . total_2011 ,
allStats . total_2012 - unsolvedStats . total_2012 ,
allStats . total_2013 - unsolvedStats . total_2013 ,
allStats . total_2014 - unsolvedStats . total_2014 ,
allStats . total_2015 - unsolvedStats . total_2015 ,
allStats . total_2016 - unsolvedStats . total_2016 ,
allStats . total_2017 - unsolvedStats . total_2017 ,
unsolvedStats . total_2008 ,
unsolvedStats . total_2009 ,
unsolvedStats . total_2010 ,
unsolvedStats . total_2011 ,
unsolvedStats . total_2012 ,
unsolvedStats . total_2013 ,
unsolvedStats . total_2014 ,
unsolvedStats . total_2015 ,
unsolvedStats . total_2016 ,
unsolvedStats . total_2017 ,
updateChart ( yearChart , yearChartStats );
allStats . age_65_over - unsolvedStats . age_65_over ,
allStats . age_45_64 - unsolvedStats . age_45_64 ,
allStats . age_31_44 - unsolvedStats . age_31_44 ,
allStats . age_19_30 - unsolvedStats . age_19_30 ,
allStats . age_18_under - unsolvedStats . age_18_under ,
allStats . age_unknown - unsolvedStats . age_unknown ,
unsolvedStats . age_65_over ,
unsolvedStats . age_18_under ,
unsolvedStats . age_unknown ,
updateChart ( ageChart , ageChartStats );
const dispositionStats = [
allStats . num_closed_arrest ,
allStats . num_closed_no_arrest ,
updateChart ( dispositionChart , dispositionStats );
allStats . num_males - unsolvedStats . num_males ,
allStats . num_females - unsolvedStats . num_females ,
unsolvedStats . num_females ,
updateChart ( genderChart , genderStats );
allStats . num_asian - unsolvedStats . num_asian ,
allStats . num_black - unsolvedStats . num_black ,
allStats . num_hispanic - unsolvedStats . num_hispanic ,
unsolvedStats . num_hispanic ,
allStats . num_white - unsolvedStats . num_white ,
updateChart ( raceChart , raceStats );
// Update the total numbers in the title UI element
avgAge . textContent = Math . round ( allStats . avg_age );
totalNumber . textContent = allStats . total ;
avgOpenTime . textContent =
unsolvedStats . avg_open_time_years != null
? unsolvedStats . avg_open_time_years . toFixed ( 1 )
* Updates the given chart with new data
function updateChart ( chart , dataValues ) {
if ( chart . config . type === "doughnut" ) {
chart . data . datasets [ 0 ]. data = dataValues ;
chart . data . datasets [ 0 ]. data = dataValues . solved ;
chart . data . datasets [ 1 ]. data = dataValues . unsolved ;
* Creates 5 charts for summarizing homicide data
function createCharts () {
totalNumber = document . getElementById ( "num-homicides" );
avgAge = document . getElementById ( "avg-age" );
avgOpenTime = document . getElementById ( "avg-open-time" );
const yearCanvas = document . getElementById ( "year-chart" );
yearChart = new Chart ( yearCanvas . getContext ( "2d" ), {
backgroundColor : "#149dcf" ,
data : [ 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 ],
label : "Remains unsolved" ,
backgroundColor : "#ed5050" ,
data : [ 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 ],
text : "Homicides by year" ,
const ageCanvas = document . getElementById ( "age-chart" );
ageChart = new Chart ( ageCanvas . getContext ( "2d" ), {
labels : [ "65+" , "45-64" , "31-44" , "18-30" , "0-18" , "Not sure" ],
backgroundColor : "#149dcf" ,
data : [ 0 , 0 , 0 , 0 , 0 , 0 ],
label : "Remains unsolved" ,
backgroundColor : "#ed5050" ,
data : [ 0 , 0 , 0 , 0 , 0 , 0 ],
text : "Homicides by age" ,
const dispositionCanvas = document . getElementById ( "disposition-chart" );
dispositionChart = new Chart ( dispositionCanvas . getContext ( "2d" ), {
labels : [ "Closed by arrest" , "Closed without arrest" , "Open/No arrest" ],
backgroundColor : [ "#149dcf" , "#a6c736" , "#ed5050" ],
borderColor : "rgb(255, 255, 255)" ,
text : "Status of the case" ,
const genderCanvas = document . getElementById ( "gender-chart" );
genderChart = new Chart ( genderCanvas . getContext ( "2d" ), {
labels : [ "Male (solved)" , "Male (unsolved)" , "Female (solved)" , "Female (unsolved)" ],
backgroundColor : [ "#149dcf" , "#0a4d66" , "#ed5050" , "#7c2525" ],
borderColor : "rgb(255, 255, 255)" ,
text : "Gender of the victim" ,
const raceCanvas = document . getElementById ( "race-chart" );
raceChart = new Chart ( raceCanvas . getContext ( "2d" ), {
borderColor : "rgb(255, 255, 255)" ,
data : [ 0 , 0 , 0 , 0 , 0 , 0 , 0 , 0 ],
text : "Race of the victim" ,
< div style = "padding: 15px" >
< canvas id = "year-chart" height = "250" width = "550" ></ canvas >
< canvas id = "age-chart" height = "250" width = "550" ></ canvas >
< canvas id = "disposition-chart" width = "200" height = "350" style = "float: left" ></ canvas >
< canvas id = "gender-chart" width = "200" height = "350" style = "float: left" ></ canvas >
< canvas id = "race-chart" width = "200" height = "350" style = "float: left" ></ canvas >
