See information about the previewed geometry during an interaction using the geometry editor.

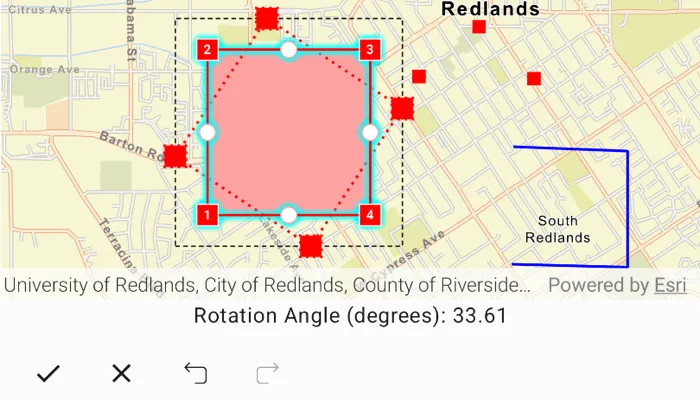

Image of geometry editor with rotation and scaling selection handles visible

Use case

The geometry editor can provide information about the geometry being created or edited during an interaction. This information can be used to give feedback to the user to show the effect of the interaction on the geometry.

How to use the sample

Tap a graphic to edit its geometry by moving, rotating, or scaling the geometry. During the interaction, information about the changes will be displayed to provide feedback to the user.

Use the buttons in the settings view to undo or redo changes made to the geometry. Use the cancel and done buttons to discard and save changes.

How it works

Create a MapViewProxy for interacting with the composable MapView.
Create a composable MapView and pass in the mapViewProxy and geometryEditor (for example, MapView(mapViewProxy = mapViewProxy, geometryEditor = geometryEditor, ...)).
Add an event handler to listen to GeometryEditor.interactionPreviewChanged.
- This event can be used to get information on the state of the geometry during an interaction with the GeometryEditorInteractionPreview parameter.
  - The previewGeometry represents the geometry’s state at that moment.
  - The interactionType can be used to determine the type of interaction that is occurring (create, move, rotate, scale).
  - The interactionElement can be used to determine the element being interacted with (GeometryEditorVertex, GeometryEditorPart, GeometryEditorGeometry).
Start the GeometryEditor using GeometryEditor.start(Geometry) to edit the geometry of one of the graphics.
- To identify the Graphic, use MapViewProxy.identifyGraphicsOverlays(...) and take the first result.
Call GeometryEditor.stop() to finish the editing session, and use the geometry returned from this method to update the existing Graphics.geometry.

Relevant API

Geometry
GeometryEditor
GeometryEditor.interactionPreviewChanged
GeometryEditorInteractionPreview
GeometryEditorInteractionType
Graphic
GraphicsOverlay

Additional information

The GeometryEditor.interactionPreviewChanged event fires continuously during an interaction, therefore it’s not recommended to use it as a trigger for resource intensive actions.

Sample code

DisplayGeometryEditorInformationDuringInteractionViewModel.kt

MainActivity.kt

DisplayGeometryEditorInformationDuringInteractionScreen.kt

/* Copyright 2026 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction.components

import android.app.Application
import androidx.compose.ui.unit.dp
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.Geometry
import com.arcgismaps.geometry.Multipoint
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.Polygon
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SingleTapConfirmedEvent
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditor
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditorInteractionPreview
import com.arcgismaps.mapping.view.geometryeditor.GeometryEditorInteractionType
import com.arcgismaps.mapping.view.geometryeditor.VertexTool
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch
import java.util.Locale
import kotlin.math.PI
import kotlin.math.atan2

class DisplayGeometryEditorInformationDuringInteractionViewModel(app: Application) :
    AndroidViewModel(app) {

    // Create a map with an initial viewpoint of Redlands, CA.
    val arcGISMap = ArcGISMap(BasemapStyle.ArcGISStreets).apply {
        initialViewpoint = Viewpoint(
            center = Point(
                x = -13.045e6, y = 4.0356e6,
                spatialReference = SpatialReference.webMercator()
            ),
            scale = 4e4
        )
    }

    // Create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    // Create a MapViewProxy that will be used to identify features in the MapView
    val mapViewProxy = MapViewProxy()

    // Track graphics identified on tap
    private var identifiedGraphic: Graphic? = null

    // Create a graphics overlay
    val graphicsOverlay = GraphicsOverlay()

    // Create a geometry editor
    val geometryEditor = GeometryEditor().apply {
        tool = VertexTool().apply {
            configuration.apply {
                allowVertexCreation = false
                allowMidVertexSelection = false
                allowDeletingSelectedElement = false
                allowVertexSelection = false
                allowPartCreation = false
            }
        }
    }

    private val polygonLineSymbol = SimpleLineSymbol(
        style = SimpleLineSymbolStyle.Dash,
        color = Color.black,
        width = 1f
    )
    private val polygonSymbol = SimpleFillSymbol(
        style = SimpleFillSymbolStyle.Solid,
        color = Color.fromRgba(r = 255, g = 0, b = 0, a = 100),
        outline = polygonLineSymbol
    )
    private val polylineSymbol = SimpleLineSymbol(
        style = SimpleLineSymbolStyle.Solid,
        color = Color.blue,
        width = 2f
    )
    private val pointSymbol = SimpleMarkerSymbol(
        style = SimpleMarkerSymbolStyle.Square,
        color = Color.red,
        size = 10f
    )

    // State flow string message of rotation angle, scale factors, or coordinates, for presentation in UI
    private val _interactionTransformationMessage = MutableStateFlow<String?>(null)
    val interactionTransformationMessage = _interactionTransformationMessage.asStateFlow()

    init {
        viewModelScope.launch {
            arcGISMap.load().onFailure { messageDialogVM.showMessageDialog(it) }.onSuccess {
                // Create graphics for the initial geometries and add them to the graphics overlay
                graphicsOverlay.graphics.addAll(
                    listOf(
                        Graphic(
                            geometry = Geometry.fromJsonOrNull(redlandsPolygonJson),
                            symbol = polygonSymbol
                        ),
                        Graphic(
                            geometry = Geometry.fromJsonOrNull(redlandsPolylineJson),
                            symbol = polylineSymbol
                        ),
                        Graphic(
                            geometry = Geometry.fromJsonOrNull(redlandsMultipointJson),
                            symbol = pointSymbol
                        )
                    )
                )

                // Update the transformation information in the formatted message whenever the
                // interaction preview changes in the geometry editor
                geometryEditor.interactionPreviewChanged.collect { interactionPreviewChanged ->
                    val interactionMessage = interactionPreviewChanged.interactionPreview
                        ?.toFormattedMessage(geometryEditor.geometry.value)
                    _interactionTransformationMessage.value = interactionMessage
                }
            }
        }
    }

    /**
     * Stops the GeometryEditor and updates the identified graphic.
     */
    fun stopEditor() {
        // Check if there was a previously identified graphic
        identifiedGraphic?.let { graphic ->
            // Update the identified graphic geometry
            graphic.geometry = geometryEditor.stop()
            // Set the original graphic to visible again
            graphic.isVisible = true
        }
    }

    /**
     * Discards the current changes made in the GeometryEditor.
     */
    fun discardEdits() {
        geometryEditor.stop()
        // Update previously identified graphic to be visible again
        identifiedGraphic?.let { graphic ->
            graphic.isVisible = true
        }
    }

    /**
     * Undoes the last event on the geometry editor if possible.
     */
    fun undoEdit() {
        if (geometryEditor.canUndo.value) {
            geometryEditor.undo()
        }
    }

    /**
     * Redoes the last event on the geometry editor if possible.
     */
    fun redoEdit() {
        if (geometryEditor.canRedo.value) {
            geometryEditor.redo()
        }
    }

    /**
     * Identifies the graphic at the tapped screen coordinate in the provided [singleTapConfirmedEvent]
     * and starts the GeometryEditor using the identified graphic's geometry.
     */
    fun identify(singleTapConfirmedEvent: SingleTapConfirmedEvent) {
        viewModelScope.launch {
            if (!geometryEditor.isStarted.value) {

                // Attempt to identify a graphic at the location the user tapped
                val graphicsResult = mapViewProxy.identifyGraphicsOverlays(
                    screenCoordinate = singleTapConfirmedEvent.screenCoordinate,
                    tolerance = 10.0.dp,
                    returnPopupsOnly = false
                ).getOrNull()

                if (graphicsResult != null) {
                    if (graphicsResult.isNotEmpty()) {
                        // Get the tapped graphic
                        identifiedGraphic = graphicsResult.first().graphics.first()
                        // Start the geometry editor with the identified graphic
                        identifiedGraphic?.let { graphic ->
                            graphic.geometry?.let { geometry ->
                                geometryEditor.start(geometry)
                                geometryEditor.selectGeometry()
                                graphic.isVisible = false
                            }
                        }
                    }
                }
            }
        }
    }
}

/**
 * Converts the transformation information to a formatted string using the editor interaction preview, type, or [geometry].
 */
private fun GeometryEditorInteractionPreview.toFormattedMessage(geometry: Geometry?): String? {
    return when (interactionType) {
        is GeometryEditorInteractionType.Rotate -> buildRotationMessage(geometry)
        is GeometryEditorInteractionType.Scale -> buildScaleMessage(geometry)
        is GeometryEditorInteractionType.Move -> buildMoveMessage()
        else -> null
    }
}

/**
 * Calculates the rotation angle based on the current interaction preview and
 * returns a string representation of the rotation angle in degrees.
 */
private fun GeometryEditorInteractionPreview.buildRotationMessage(geometry: Geometry?): String? {
    val sourceGeometry = geometry ?: return null
    val center = sourceGeometry.extent.center
    val originalPoint = sourceGeometry.firstRotationReferencePoint(center) ?: return null
    val previewPoint = previewGeometry.firstRotationReferencePoint(center) ?: return null
    if (originalPoint == previewPoint) return null

    val vector1X = originalPoint.x - center.x
    val vector2X = previewPoint.x - center.x
    val vector1Y = originalPoint.y - center.y
    val vector2Y = previewPoint.y - center.y

    val cross = vector1X * vector2Y - vector1Y * vector2X
    val dot = vector1X * vector2X + vector1Y * vector2Y
    val angle = atan2(cross, dot) * (180.0 / PI)
    val clockwiseNormalized = ((-angle % 360) + 360) % 360

    return "Rotation Angle (degrees): ${clockwiseNormalized.toDisplayString()}"
}

/**
 * Calculates the scale factors based on the current interaction preview and
 * returns a string representation of the scale factors.
 */
private fun GeometryEditorInteractionPreview.buildScaleMessage(geometry: Geometry?): String? {
    val geometryExtent = geometry?.extent ?: return null
    if (geometryExtent.width == 0.0 || geometryExtent.height == 0.0) return null
    val previewExtent = previewGeometry.extent

    return formatValuePair(
        label = "Scale Factor (X, Y)",
        first = previewExtent.width / geometryExtent.width,
        second = previewExtent.height / geometryExtent.height
    )
}

/**
 * Calculates the center point of the current interaction preview to
 * return a formatted message for move interactions.
 */
private fun GeometryEditorInteractionPreview.buildMoveMessage(): String {
    return formatValuePair(
        label = "Center (X, Y)",
        first = previewGeometry.extent.center.x,
        second = previewGeometry.extent.center.y
    )
}

/**
 * Returns the first point in the geometry that is not the [center] point.
 */
private fun Geometry.firstRotationReferencePoint(center: Point): Point? {
    return when (this) {
        is Polyline, is Polygon -> parts[0].points.firstOrNull { point -> point != center }
        is Multipoint -> points.firstOrNull { point -> point != center }
        else -> null
    }
}

private fun formatValuePair(label: String, first: Double, second: Double): String {
    return "$label: ${first.toDisplayString()}, ${second.toDisplayString()}"
}

private fun Double.toDisplayString(): String {
    return String.format(Locale.getDefault(), "%.2f", this)
}

// JSON formatted strings for displayed geometries.
private const val redlandsPolygonJson = """{ "rings": [[[-13046991.222211758,4034618.5047884779],
            [-13046991.222211758,4035962.0723415823],
            [-13045677.652220398,4035962.0723415823],
            [-13045677.652220398,4034618.5047884779],
            [-13046991.222211758,4034618.5047884779]]],
            "spatialReference":{"wkid":3857}}"""
private const val redlandsPolylineJson = """{ "paths": [[[-13044533.805088846,4034221.5100018946],
            [-13043597.938505623,4034197.1337576872],
            [-13043597.938505623,4035135.572073034],
            [-13044522.634505576,4035170.5449295067]]],
            "spatialReference":{"wkid":3857}}"""
private const val redlandsMultipointJson = """{ "points": [[-13045283.292102993,4035739.1925106063],
            [-13045314.922186911,4036533.8852012255],
            [-13044798.24723932,4036138.7808295386],
            [-13044354.514637273,4035719.3623426706],
            [-13044281.57229173,4036473.0999132735]],
            "spatialReference":{"wkid":3857}}"""

/* Copyright 2026 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction.screens.DisplayGeometryEditorInformationDuringInteractionScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                DisplayGeometryEditorInformationDuringInteractionApp()
            }
        }
    }

    @Composable
    private fun DisplayGeometryEditorInformationDuringInteractionApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            DisplayGeometryEditorInformationDuringInteractionScreen(
                sampleName = getString(R.string.display_geometry_editor_information_during_interaction_app_name)
            )
        }
    }
}

/* Copyright 2026 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction.screens

import androidx.compose.animation.animateContentSize
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.automirrored.filled.Redo
import androidx.compose.material.icons.automirrored.filled.Undo
import androidx.compose.material.icons.filled.Check
import androidx.compose.material.icons.filled.Clear
import androidx.compose.material3.Icon
import androidx.compose.material3.IconButton
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.stringResource
import androidx.compose.ui.text.style.TextAlign
import androidx.compose.ui.unit.dp
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction.R
import com.esri.arcgismaps.sample.displaygeometryeditorinformationduringinteraction.components.DisplayGeometryEditorInformationDuringInteractionViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen layout for the sample app
 */
@Composable
fun DisplayGeometryEditorInformationDuringInteractionScreen(sampleName: String) {
    val mapViewModel: DisplayGeometryEditorInformationDuringInteractionViewModel = viewModel()
    val transformationInfo by mapViewModel.interactionTransformationMessage.collectAsStateWithLifecycle()
    val editorStarted by mapViewModel.geometryEditor.isStarted.collectAsStateWithLifecycle()
    val canUndo by mapViewModel.geometryEditor.canUndo.collectAsStateWithLifecycle()
    val canRedo by mapViewModel.geometryEditor.canRedo.collectAsStateWithLifecycle()
    val displayText = if (editorStarted) {
        transformationInfo ?: stringResource(R.string.transform_drag_handles)
    } else {
        stringResource(R.string.tap_on_geometry_to_interact)
    }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it),
                verticalArrangement = Arrangement.spacedBy(4.dp)
            ) {
                MapView(
                    modifier = Modifier
                        .fillMaxSize()
                        .animateContentSize()
                        .weight(1f),
                    arcGISMap = mapViewModel.arcGISMap,
                    mapViewProxy = mapViewModel.mapViewProxy,
                    geometryEditor = mapViewModel.geometryEditor,
                    graphicsOverlays = listOf(mapViewModel.graphicsOverlay),
                    onSingleTapConfirmed = mapViewModel::identify
                )

                Text(
                    modifier = Modifier
                        .fillMaxWidth()
                        .animateContentSize(),
                    text = displayText,
                    textAlign = TextAlign.Center
                )

                ButtonMenuOptions(
                    isGeometryEditorStarted = editorStarted,
                    canGeometryEditorUndo = canUndo,
                    canGeometryEditorRedo = canRedo,
                    onStopEditingButtonClick = mapViewModel::stopEditor,
                    onDiscardEditsButtonClick = mapViewModel::discardEdits,
                    onUndoButtonClick = mapViewModel::undoEdit,
                    onRedoButtonClick = mapViewModel::redoEdit
                )
            }

            mapViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}

/**
 * Composable component to display the menu buttons.
 */
@Composable
fun ButtonMenuOptions(
    isGeometryEditorStarted: Boolean,
    canGeometryEditorUndo: Boolean,
    canGeometryEditorRedo: Boolean,
    onStopEditingButtonClick: () -> Unit,
    onDiscardEditsButtonClick: () -> Unit,
    onUndoButtonClick: () -> Unit,
    onRedoButtonClick: () -> Unit,
) {
    Row(
        modifier = Modifier
            .fillMaxWidth()
            .padding(4.dp),
        horizontalArrangement = Arrangement.SpaceEvenly,
    ) {
        IconButton(
            enabled = isGeometryEditorStarted,
            onClick = onStopEditingButtonClick
        ) { Icon(imageVector = Icons.Default.Check, contentDescription = "Save Edits") }

        IconButton(
            enabled = isGeometryEditorStarted,
            onClick = onDiscardEditsButtonClick
        ) { Icon(imageVector = Icons.Default.Clear, contentDescription = "Discard Edits") }

        IconButton(
            enabled = canGeometryEditorUndo,
            onClick = onUndoButtonClick
        ) { Icon(imageVector = Icons.AutoMirrored.Filled.Undo, contentDescription = "Undo") }

        IconButton(
            enabled = canGeometryEditorRedo,
            onClick = onRedoButtonClick
        ) { Icon(imageVector = Icons.AutoMirrored.Filled.Redo, contentDescription = "Redo") }
    }
}
