Show coordinates in multiple formats | ArcGIS Maps SDK for Kotlin

View on GitHub

Sample viewer app

Format coordinates in a variety of common notations.

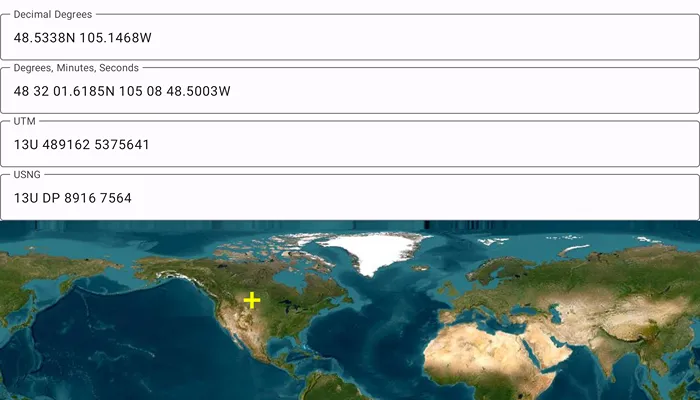

Images of Show coordinates in multiple formats

Use case

The coordinate formatter can format a map location in WGS84 in a number of common coordinate notations. Parsing one of these formats to a location is also supported. Formats include decimal degrees; degrees, minutes, seconds; Universal Transverse Mercator (UTM), and United States National Grid (USNG).

How to use the sample

Tap on the map to see a marker with the tapped location’s coordinate formatted in 4 different ways. You can also put a coordinate string in any of these formats in the text field. Hit Enter and the coordinate string will be parsed to a map location which the marker will move to.

How it works

Get or create a map Point with a spatial reference.
Use one of the static “to” methods on CoordinateFormatter such as CoordinateFormatter.toLatitudeLongitudeOrNull(point = newLocation, format = LatitudeLongitudeFormat.DecimalDegrees, decimalPlaces = 4) to get the formatted string.
To go from a formatted string to a Point, use one of the “from” static methods like CoordinateFormatter.fromUtmOrNull(coordinates = coordinateNotation, utmConversionMode = UtmConversionMode.LatitudeBandIndicators, spatialReference = null).

Relevant API

CoordinateFormatter
CoordinateFormatter.LatitudeLongitudeFormat
CoordinateFormatter.UtmConversionMode

Additional information

This sample uses the GeoView-Compose Toolkit module to be able to implement a composable MapView.

Sample Code

MainActivity.kt

MapViewModel.kt

CoordinatesLayout.kt

MainScreen.kt

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showcoordinatesinmultipleformats

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import androidx.core.view.WindowCompat
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.screens.MainScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)
        // remove focus from text fields when keyboard closes
        WindowCompat.setDecorFitsSystemWindows(window, false)
        // set compose content
        enableEdgeToEdge()
        setContent {
            SampleAppTheme {
                ShowCoordinatesInMultipleFormatsApp()
            }
        }
    }

    @Composable
    private fun ShowCoordinatesInMultipleFormatsApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            MainScreen(sampleName = getString(R.string.show_coordinates_in_multiple_formats_app_name))
        }
    }
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import com.arcgismaps.geometry.CoordinateFormatter
import com.arcgismaps.geometry.LatitudeLongitudeFormat
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.geometry.UtmConversionMode
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel

class MapViewModel(application: Application) : AndroidViewModel(application) {

    var decimalDegrees by mutableStateOf("")
        private set
    var degreesMinutesSeconds by mutableStateOf("")
        private set

    var utm by mutableStateOf("")
        private set

    var usng by mutableStateOf("")
        private set

    // create a ViewModel to handle dialog interactions
    val messageDialogVM: MessageDialogViewModel = MessageDialogViewModel()

    // set up a graphic to indicate where the coordinates relate to, with an initial location
    val initialPoint = Point(0.0, 0.0, SpatialReference.wgs84())

    /**
     * Uses CoordinateFormatter to update the UI with coordinate notation strings based on the
     * given [newLocation] point to convert to coordinate notations
     */
    fun toCoordinateNotationFromPoint(newLocation: Point) {
        // use CoordinateFormatter to convert to Latitude Longitude, formatted as Decimal Degrees
        decimalDegrees = CoordinateFormatter.toLatitudeLongitudeOrNull(
            point = newLocation,
            format = LatitudeLongitudeFormat.DecimalDegrees,
            decimalPlaces = 4
        ) ?: return messageDialogVM.showMessageDialog("Failed to convert from point DD coordinate")

        // use CoordinateFormatter to convert to Latitude Longitude, formatted as Degrees, Minutes, Seconds
        degreesMinutesSeconds = CoordinateFormatter.toLatitudeLongitudeOrNull(
            point = newLocation,
            format = LatitudeLongitudeFormat.DegreesMinutesSeconds,
            decimalPlaces = 4
        ) ?: return messageDialogVM.showMessageDialog("Failed to convert from point DMS coordinate")

        // use CoordinateFormatter to convert to Universal Transverse Mercator, using latitudinal bands indicator
        utm = CoordinateFormatter.toUtmOrNull(
            point = newLocation,
            utmConversionMode = UtmConversionMode.LatitudeBandIndicators,
            addSpaces = true
        ) ?: return messageDialogVM.showMessageDialog("Failed to convert from point UTM coordinate")

        // use CoordinateFormatter to convert to United States National Grid (USNG)
        usng = CoordinateFormatter.toUsngOrNull(
            point = newLocation,
            precision = 4,
            addSpaces = true,
        ) ?: return messageDialogVM.showMessageDialog("Failed to convert from point USNG coordinate")
    }

    /**
     * Uses CoordinateFormatter to update the graphic in the map from the given [coordinateNotation]
     * string entered by the user. Also calls corresponding method to update all the remaining
     * [coordinateNotation] strings using the notation [notationType].
     */
    fun fromCoordinateNotationToPoint(notationType: NotationType, coordinateNotation: String) {
        // ignore empty input coordinate notation strings, do not update UI
        if (coordinateNotation.isEmpty()) return
        val convertedPoint: Point = when (notationType) {
            NotationType.DMS, NotationType.DD -> {
                // use CoordinateFormatter to parse Latitude Longitude - different numeric notations (Decimal Degrees;
                // Degrees, Minutes, Seconds; Degrees, Decimal Minutes) can all be passed to this same method
                CoordinateFormatter.fromLatitudeLongitudeOrNull(
                    coordinates = coordinateNotation,
                    spatialReference = null
                ) ?: return messageDialogVM.showMessageDialog("Failed to convert DMS/DD coordinate to point")
            }

            NotationType.UTM -> {
                // use CoordinateFormatter to parse UTM coordinates
                CoordinateFormatter.fromUtmOrNull(
                    coordinates = coordinateNotation,
                    utmConversionMode = UtmConversionMode.LatitudeBandIndicators,
                    spatialReference = null
                ) ?: return messageDialogVM.showMessageDialog("Failed to convert UTM coordinate to point")
            }

            NotationType.USNG -> {
                // use CoordinateFormatter to parse US National Grid coordinates
                CoordinateFormatter.fromUsngOrNull(
                    coordinates = coordinateNotation,
                    spatialReference = null
                ) ?: return messageDialogVM.showMessageDialog("Failed to convert USNG coordinate to point")
            }
        }

        // update the location shown in the map
        toCoordinateNotationFromPoint(convertedPoint)
    }

    /**
     * Coordinate notations supported by this sample
     */
    enum class NotationType {
        DMS, DD, UTM, USNG
    }

    /**
     * Set's [decimalDegrees] entered in the text field to the [inputString]
     */
    fun setDecimalDegreesCoordinate(inputString: String) {
        decimalDegrees = inputString
    }

    /**
     * Set's [degreesMinutesSeconds] entered in the text field to the [inputString]
     */
    fun degreesMinutesSecondsCoordinate(inputString: String) {
        degreesMinutesSeconds = inputString
    }

    /**
     * Set's [utm] entered in the text field to the [inputString]
     */
    fun setUTMCoordinate(inputString: String) {
        utm = inputString

    }

    /**
     * Set's [usng] entered in the text field to the [inputString]
     */
    fun setUSNGDegreesCoordinate(inputString: String) {
        usng = inputString
    }
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.screens

import android.content.res.Configuration
import android.view.KeyEvent
import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.ime
import androidx.compose.foundation.text.KeyboardActions
import androidx.compose.foundation.text.KeyboardOptions
import androidx.compose.material3.OutlinedTextField
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.State
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberUpdatedState
import androidx.compose.ui.Modifier
import androidx.compose.ui.focus.FocusRequester
import androidx.compose.ui.focus.focusRequester
import androidx.compose.ui.input.key.onKeyEvent
import androidx.compose.ui.platform.LocalDensity
import androidx.compose.ui.platform.LocalFocusManager
import androidx.compose.ui.text.input.ImeAction
import androidx.compose.ui.text.input.KeyboardType
import androidx.compose.ui.tooling.preview.Preview
import androidx.lifecycle.viewmodel.compose.viewModel
import com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.components.MapViewModel

@Composable
fun CoordinatesLayout(mapViewModel: MapViewModel) {
    CoordinateField(
        notationType = MapViewModel.NotationType.DD,
        text = mapViewModel.decimalDegrees,
        labelText = "Decimal Degrees",
        onTextChanged = mapViewModel::setDecimalDegreesCoordinate,
        onQuerySubmit = mapViewModel::fromCoordinateNotationToPoint,
    )

    CoordinateField(
        notationType = MapViewModel.NotationType.DMS,
        text = mapViewModel.degreesMinutesSeconds,
        labelText = "Degrees, Minutes, Seconds",
        onTextChanged = mapViewModel::degreesMinutesSecondsCoordinate,
        onQuerySubmit = mapViewModel::fromCoordinateNotationToPoint,
    )

    CoordinateField(
        notationType = MapViewModel.NotationType.UTM,
        text = mapViewModel.utm,
        labelText = "UTM",
        onTextChanged = mapViewModel::setUTMCoordinate,
        onQuerySubmit = mapViewModel::fromCoordinateNotationToPoint,
    )

    CoordinateField(
        notationType = MapViewModel.NotationType.USNG,
        text = mapViewModel.usng,
        labelText = "USNG",
        onTextChanged = mapViewModel::setUSNGDegreesCoordinate,
        onQuerySubmit = mapViewModel::fromCoordinateNotationToPoint,
    )
}

@Composable
fun CoordinateField(
    modifier: Modifier = Modifier,
    notationType: MapViewModel.NotationType,
    text: String = "",
    onTextChanged: (String) -> Unit,
    onQuerySubmit: (MapViewModel.NotationType, String) -> Unit,
    labelText: String
) {
    // remember the OutlinedTextField's focus requester to change focus on search
    val focusRequester = remember { FocusRequester() }
    // focus manager is used to clear focus from OutlinedTextField on search
    val focusManager = LocalFocusManager.current
    // set the keyboard options for all field to search
    val keyboardOptions = KeyboardOptions(
        keyboardType = KeyboardType.Text,
        imeAction = ImeAction.Search
    )

    OutlinedTextField(
        modifier = modifier.fillMaxWidth().focusRequester(focusRequester).onKeyEvent {
            // submit query when enter is tapped
            if (it.nativeKeyEvent.keyCode == KeyEvent.KEYCODE_ENTER) {
                onQuerySubmit(notationType, text)
                focusManager.clearFocus()
            }
            false
        },
        value = text,
        maxLines = 1,
        singleLine = true,
        onValueChange = onTextChanged,
        label = { Text(labelText) },
        keyboardOptions = keyboardOptions,
        keyboardActions = KeyboardActions(
            onSearch = {
                // submit query when search is tapped
                onQuerySubmit(notationType, text)
                focusManager.clearFocus()
            },
        ),
    )

    // if keyboard is closed, remove focus from text fields
    if (!keyboardAsState().value) {
        focusManager.clearFocus()
    }
}

/**
 * Composable function that returns a false state when keyboard is closed.
 */
@Composable
fun keyboardAsState(): State<Boolean> {
    val isImeVisible = WindowInsets.ime.getBottom(LocalDensity.current) > 0
    return rememberUpdatedState(isImeVisible)
}

@Preview(showBackground = true)
@Preview(uiMode = Configuration.UI_MODE_NIGHT_YES, showBackground = true)
@Composable
fun PreviewCoordinatesLayout() {
    CoordinatesLayout(mapViewModel = viewModel())
}

/* Copyright 2023 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.screens

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.EditLocationAlt
import androidx.compose.material3.FloatingActionButton
import androidx.compose.material3.Icon
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.runtime.LaunchedEffect
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.unit.dp
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.Color
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.Basemap
import com.arcgismaps.mapping.layers.ArcGISTiledLayer
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleMarkerSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.sampleslib.components.BottomSheet
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar
import com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.R
import com.esri.arcgismaps.sample.showcoordinatesinmultipleformats.components.MapViewModel

/**
 * Main screen layout for the sample app
 */
@Composable
fun MainScreen(sampleName: String) {
    // create a ViewModel to handle MapView interactions
    val mapViewModel: MapViewModel = viewModel()
    // create a map that has the WGS 84 coordinate system and set this into the map
    val basemapLayer = ArcGISTiledLayer(LocalContext.current.applicationContext.getString(R.string.basemap_url))
    val arcGISMap = ArcGISMap(Basemap(basemapLayer))
    val coordinateLocationGraphic = Graphic(
        geometry = mapViewModel.initialPoint,
        symbol = SimpleMarkerSymbol(
            style = SimpleMarkerSymbolStyle.Cross,
            color = Color.fromRgba(255, 255, 0, 255),
            size = 20f
        )
    )
    // graphics overlay to display a graphics of the coordinate location
    val graphicsOverlay = GraphicsOverlay().apply {
        graphics.add(coordinateLocationGraphic)
    }
    // the collection of graphics overlays used by the MapView
    val graphicsOverlays = remember { listOf(graphicsOverlay) }
    // update the coordinate notations using the initial point
    LaunchedEffect(Unit) {
        mapViewModel.toCoordinateNotationFromPoint(mapViewModel.initialPoint)
    }
    // track the bottom sheet visibility
    var isBottomSheetVisible by remember { mutableStateOf(true) }

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        floatingActionButton = {
            if (!isBottomSheetVisible) {
                FloatingActionButton(
                    modifier = Modifier.padding(bottom = 36.dp, end = 12.dp),
                    onClick = { isBottomSheetVisible = true }) {
                    Icon(
                        imageVector = Icons.Filled.EditLocationAlt,
                        contentDescription = "Show coordinate formats"
                    )
                }
            }
        },
        content = {
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(it)
            ) {
                MapView(
                    modifier = Modifier.fillMaxSize(),
                    arcGISMap = arcGISMap,
                    graphicsOverlays = graphicsOverlays,
                    onSingleTapConfirmed = { singleTapConfirmedEvent ->
                        // retrieve the map point on MapView tapped
                        val tappedPoint = singleTapConfirmedEvent.mapPoint
                        if (tappedPoint != null) {
                            // update the tapped location graphic
                            coordinateLocationGraphic.geometry = tappedPoint
                            // update the coordinate notations using the tapped point
                            mapViewModel.toCoordinateNotationFromPoint(tappedPoint)
                        }
                    }
                )

                // display a dialog if the sample encounters an error
                mapViewModel.messageDialogVM.apply {
                    if (dialogStatus) {
                        MessageDialog(
                            title = messageTitle,
                            onDismissRequest = ::dismissDialog
                        )
                    }
                }
            }
            BottomSheet(
                sheetTitle = "Set Coordinates",
                isVisible = isBottomSheetVisible,
                onDismissRequest = { isBottomSheetVisible = false }
            ) {
                // layout to display the coordinate text fields.
                CoordinatesLayout(mapViewModel = mapViewModel)
            }
        }
    )
}
