Find route

View on GitHub

Sample viewer app

Display directions for a route between two points.

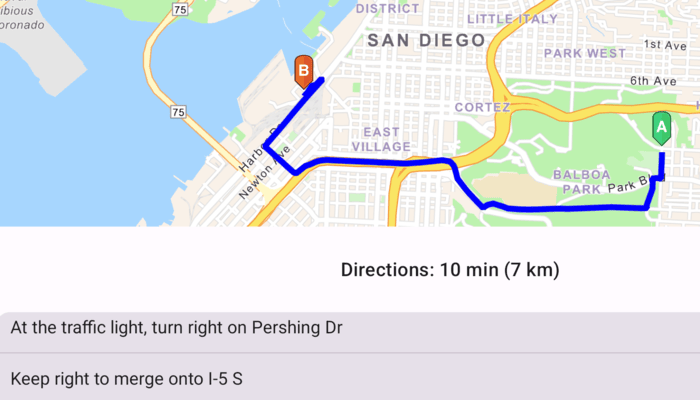

Image of find route

Use case

Find routes with driving directions between any number of locations. You might use the ArcGIS platform to create a custom network for routing on a private roads.

How to use the sample

For simplicity, the sample comes loaded with a start and end stop. You can tap on the floating action button to display a route between these stops. Once the route is generated, turn-by-turn directions are shown in an expandable bottom sheet. Tap on a direction to zoom to that portion of the route.

How it works

Set the ArcGISEnvironment.applicationContext to use a RouteTask
Create a RouteTask using a URL to an online route service.
Generate default RouteParameters using routeTask.createDefaultParameters().
Set returnDirections on the parameters to true.
Add Stops to the parameters stops collection for each destination.
Solve the route using routeTask.solveRoute(routeParameters) to get a RouteResult.
Iterate through the result's Routes. To display the route, create a graphic using the geometry from route.routeGeometry. To display directions, use route.directionManeuvers, and for each DirectionManeuver, display DirectionManeuver.directionText.

Relevant API

DirectionManeuver
Route
RouteParameters
RouteResult
RouteTask
Stop

Sample Code

MainActivity.kt
Use dark colors for code blocksCopy
/* Copyright 2022 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.findroute

import android.graphics.drawable.BitmapDrawable
import android.os.Bundle
import android.util.Log
import android.view.View
import android.widget.AdapterView
import android.widget.ArrayAdapter
import android.widget.ImageView
import android.widget.LinearLayout
import android.widget.ListView
import android.widget.ProgressBar
import androidx.appcompat.app.AppCompatActivity
import androidx.constraintlayout.widget.ConstraintLayout
import androidx.coordinatorlayout.widget.CoordinatorLayout
import androidx.core.content.ContextCompat
import androidx.databinding.DataBindingUtil
import androidx.lifecycle.lifecycleScope
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.arcgismaps.Color
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.PictureMarkerSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.MapView
import com.arcgismaps.tasks.networkanalysis.DirectionManeuver
import com.arcgismaps.tasks.networkanalysis.RouteResult
import com.arcgismaps.tasks.networkanalysis.RouteTask
import com.arcgismaps.tasks.networkanalysis.Stop
import com.esri.arcgismaps.sample.findroute.databinding.ActivityMainBinding
import com.google.android.material.bottomsheet.BottomSheetBehavior
import com.google.android.material.floatingactionbutton.FloatingActionButton
import com.google.android.material.snackbar.Snackbar
import kotlinx.coroutines.launch

class MainActivity : AppCompatActivity() {

    // set up data binding for the activity
    private val activityMainBinding: ActivityMainBinding by lazy {
        DataBindingUtil.setContentView(this, R.layout.activity_main)
    }

    private val graphicsOverlay: GraphicsOverlay by lazy { GraphicsOverlay() }

    private val mapView: MapView by lazy {
        activityMainBinding.mapView
    }

    private val mainContainer: ConstraintLayout by lazy {
        activityMainBinding.mainContainer
    }

    private val mainProgressBar: ProgressBar by lazy {
        activityMainBinding.mainProgressBar
    }

    private val directionFab: FloatingActionButton by lazy {
        activityMainBinding.directionFab
    }

    private val bottomSheet: LinearLayout by lazy {
        activityMainBinding.bottomSheet.bottomSheetLayout
    }

    private val header: ConstraintLayout by lazy {
        activityMainBinding.bottomSheet.header
    }

    private val imageView: ImageView by lazy {
        activityMainBinding.bottomSheet.imageView
    }

    private val directionsListView: ListView by lazy {
        activityMainBinding.bottomSheet.directionsListView
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.API_KEY)
        lifecycle.addObserver(activityMainBinding.mapView)

        mapView.apply {
            // set the map to a new map with the navigation base map
            map = ArcGISMap(BasemapStyle.ArcGISNavigation)
            // set initial viewpoint to San Diego
            setViewpoint(Viewpoint(32.7157, -117.1611, 200000.0))
            mapView.graphicsOverlays.add(graphicsOverlay)
        }

        // create the symbols for the route
        setupSymbols()

        // hide the bottom sheet and make the map view span the whole screen
        bottomSheet.visibility = View.INVISIBLE
        (mainContainer.layoutParams as CoordinatorLayout.LayoutParams).bottomMargin = 0

        // solve the route and display the bottom sheet when the FAB is clicked
        directionFab.setOnClickListener { lifecycleScope.launch { solveRoute() } }
    }

    /**
     * Solves the route using a Route Task, populates the navigation drawer with the directions,
     * and displays a graphic of the route on the map.
     */
    private suspend fun solveRoute() {
        // set the applicationContext as it is required with RouteTask
        ArcGISEnvironment.applicationContext = applicationContext
        // create a route task instance
        val routeTask =
            RouteTask(
                "https://route-api.arcgis.com/arcgis/rest/services/World/Route/NAServer/Route_World"
            )

        // show the progress bar
        mainProgressBar.visibility = View.VISIBLE
        routeTask.createDefaultParameters().onSuccess { routeParams ->
            // create stops
            val stops = listOf(
                Stop(Point(-117.1508, 32.7411, SpatialReference.wgs84())),
                Stop(Point(-117.1555, 32.7033, SpatialReference.wgs84()))
            )

            routeParams.apply {
                setStops(stops)
                // set return directions as true to return turn-by-turn directions in the route's directionManeuvers
                returnDirections = true
            }

            // solve the route
            val routeResult = routeTask.solveRoute(routeParams).getOrElse {
                showError(it.message.toString())
            } as RouteResult
            val route = routeResult.routes[0]
            // create a simple line symbol for the route
            val routeSymbol = SimpleLineSymbol(SimpleLineSymbolStyle.Solid, Color.blue, 5f)

            // create a graphic for the route and add it to the graphics overlay
            graphicsOverlay.graphics.add(Graphic(route.routeGeometry, routeSymbol))
            // get the list of direction maneuvers and display it
            // NOTE: to get turn-by-turn directions the route parameters
            //  must have the isReturnDirections parameter set to true.
            val directions = route.directionManeuvers
            setupBottomSheet(directions)

            // when the route is solved, hide the FAB and the progress bar
            directionFab.visibility = View.GONE
            mainProgressBar.visibility = View.GONE
        }.onFailure {
            showError(it.message.toString())
            mainProgressBar.visibility = View.GONE
        }
    }

    /** Creates a bottom sheet to display a list of direction maneuvers.
     *  [directions] a list of DirectionManeuver which represents the route
     */
    private fun setupBottomSheet(directions: List<DirectionManeuver>) {
        // create a bottom sheet behavior from the bottom sheet view in the main layout
        val bottomSheetBehavior = BottomSheetBehavior.from(bottomSheet).apply {
            // expand the bottom sheet, and ensure it is displayed on the screen when collapsed
            state = BottomSheetBehavior.STATE_EXPANDED
            peekHeight = header.height
            // animate the arrow when the bottom sheet slides
            addBottomSheetCallback(object : BottomSheetBehavior.BottomSheetCallback() {
                override fun onSlide(bottomSheet: View, slideOffset: Float) {
                    imageView.rotation = slideOffset * 180f
                }

                override fun onStateChanged(bottomSheet: View, newState: Int) {
                    imageView.rotation = when (newState) {
                        BottomSheetBehavior.STATE_EXPANDED -> 180f
                        else -> imageView.rotation
                    }
                }
            })
        }

        bottomSheet.apply {
            visibility = View.VISIBLE
            // expand or collapse the bottom sheet when the header is clicked
            header.setOnClickListener {
                bottomSheetBehavior.state = when (bottomSheetBehavior.state) {
                    BottomSheetBehavior.STATE_COLLAPSED -> BottomSheetBehavior.STATE_EXPANDED
                    else -> BottomSheetBehavior.STATE_COLLAPSED
                }
            }
            // rotate the arrow so it starts off in the correct rotation
            imageView.rotation = 180f
        }

        directionsListView.apply {
            // Set the adapter for the list view
            adapter = ArrayAdapter(
                this@MainActivity,
                android.R.layout.simple_list_item_1,
                directions.map { it.directionText }
            )
            // when the user taps a maneuver, set the viewpoint to that portion of the route
            onItemClickListener =
                AdapterView.OnItemClickListener { _, _, position, _ ->
                    directions[position].geometry?.let { geometry ->
                        // set the viewpoint to the selected maneuver
                        mapView.setViewpoint(
                            Viewpoint(geometry.extent, 20.0)
                        )
                        // create a graphic with a symbol for the maneuver and add it to the graphics overlay
                        val selectedRouteSymbol = SimpleLineSymbol(
                            SimpleLineSymbolStyle.Solid,
                            Color.green, 5f
                        )
                        graphicsOverlay.graphics.add(Graphic(geometry, selectedRouteSymbol))
                        // collapse the bottom sheet
                        bottomSheetBehavior.state = BottomSheetBehavior.STATE_COLLAPSED
                    }
                }
        }

        // shrink the map view so it is not hidden under the bottom sheet header
        (mainContainer.layoutParams as CoordinatorLayout.LayoutParams).bottomMargin =
            header.height
    }

    /**
     * Set up the source, destination and route symbols.
     */
    private fun setupSymbols() {
        val startDrawable =
            ContextCompat.getDrawable(this, R.drawable.ic_source) as BitmapDrawable
        val pinSourceSymbol = PictureMarkerSymbol.createWithImage(startDrawable).apply {
            // make the graphic smaller
            width = 30f
            height = 30f
            offsetY = 20f
        }
        // create a point for the new graphic
        val sourcePoint = Point(
            -117.1508, 32.7411, SpatialReference.wgs84()
        )
        // create a graphic and it to the graphics overlay
        graphicsOverlay.graphics.add(Graphic(sourcePoint, pinSourceSymbol))

        val endDrawable =
            ContextCompat.getDrawable(this, R.drawable.ic_destination) as BitmapDrawable

        endDrawable.let {
            val pinDestinationSymbol =
                PictureMarkerSymbol.createWithImage(endDrawable).apply {
                    // make the graphic smaller
                    width = 30f
                    height = 30f
                    offsetY = 20f
                }
            // create a point for the new graphic
            val destinationPoint = Point(-117.1555, 32.7033, SpatialReference.wgs84())
            // create a graphic and add it to the graphics overlay
            graphicsOverlay.graphics.add(Graphic(destinationPoint, pinDestinationSymbol))
        }
    }

    private fun showError(message: String) {
        Log.e(localClassName, message)
        Snackbar.make(mapView, message, Snackbar.LENGTH_SHORT).show()
    }

    private val Color.Companion.blue: Color
        get() {
            return fromRgba(0, 0, 255, 255)
        }

}
