Cut geometry

View on GitHubSample viewer app

Cut a geometry along a polyline.

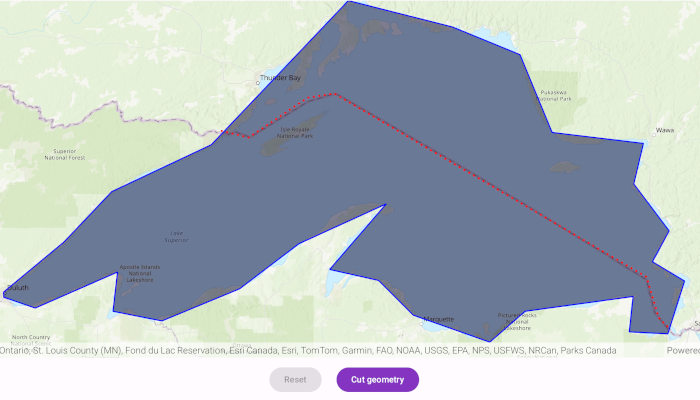

Image of cut geometry

Use case

You might cut a polygon representing a large parcel to subdivide it into smaller parcels.

How to use the sample

Tap the "Cut" button to cut the polygon with the polyline and see the resulting parts (shaded in different colors).

How it works

  1. Pass the geometry and polyline to GeometryEngine.cut to cut the geometry along the polyline.
  2. Loop through the returned list of part geometries. Some of these geometries may be multi-part.

Relevant API

  • GeometryEngine
  • Polygon
  • Polyline

Additional information

This sample uses the GeoView-Compose Toolkit module to be able to implement a composable MapView.

Tags

cut, geometry, geoview-compose, split, toolkit

Sample Code

CutGeometryViewModel.ktCutGeometryViewModel.ktMainActivity.ktCutGeometryScreen.kt
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.cutgeometry.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.GeometryEngine
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.Polygon
import com.arcgismaps.geometry.PolygonBuilder
import com.arcgismaps.geometry.Polyline
import com.arcgismaps.geometry.PolylineBuilder
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.cutgeometry.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch

class CutGeometryViewModel(application: Application) : AndroidViewModel(application) {

    // create a map with the topographic basemap style
    val arcGISMap by mutableStateOf(
        ArcGISMap(BasemapStyle.ArcGISTopographic).apply {
            initialViewpoint = Viewpoint(
                latitude = 39.8,
                longitude = -98.6,
                scale = 10e7
            )
        }
    )

    // create a MapViewProxy to interact with the MapView
    val mapViewProxy = MapViewProxy()

    // get a polygon corresponding to Lake Superior
    private val lakeSuperiorPolygon = makeLakeSuperior()

    // get a polyline that divides Lake Superior into a Canada side and US side
    private val borderPolyline = makeBorderPolyline()

    // create a graphic for the polygon representing Lake Superior
    private val polygonGraphic = Graphic(
        geometry = lakeSuperiorPolygon,
        symbol = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color(R.color.transparentBlue),
            outline = SimpleLineSymbol(
                style = SimpleLineSymbolStyle.Solid,
                color = Color.blue,
                width = 2F
            )
        )
    )

    // create a graphic for the cut line
    private val polylineGraphic = Graphic(
        geometry = borderPolyline,
        symbol = SimpleLineSymbol(
            style = SimpleLineSymbolStyle.Dot,
            color = Color.red,
            width = 3F
        )
    )

    // create a state flow to handle the reset button
    private val _isResetButtonEnabled = MutableStateFlow(false)
    val isResetButtonEnabled = _isResetButtonEnabled.asStateFlow()

    // create a state flow to handle the cut button
    private val _isCutButtonEnabled = MutableStateFlow(false)
    val isCutButtonEnabled = _isCutButtonEnabled.asStateFlow()

    // create a graphic overlay
    val graphicsOverlay = GraphicsOverlay()

    // create a message dialog view model for handling error messages
    val messageDialogVM = MessageDialogViewModel()

    init {
        viewModelScope.launch {
            arcGISMap.load().onFailure { error ->
                messageDialogVM.showMessageDialog(
                    title = "Failed to load map",
                    description = error.message.toString()
                )
            }.onSuccess {
                graphicsOverlay.graphics.add(polygonGraphic)
                graphicsOverlay.graphics.add(polylineGraphic)
                polygonGraphic.geometry?.let { polygonToCut ->
                    mapViewProxy.setViewpoint(Viewpoint(polygonToCut))
                }
                _isCutButtonEnabled.value = true
            }
        }
    }

    /**
     * Clear the current graphics, then re-add the graphics for Lake Superior and the cut polyline.
     */
    fun resetGeometry() {
        graphicsOverlay.graphics.clear()
        graphicsOverlay.graphics.add(polygonGraphic)
        graphicsOverlay.graphics.add(polylineGraphic)
        polygonGraphic.geometry?.let { polygonToCut ->
            mapViewProxy.setViewpoint(Viewpoint(polygonToCut))
        }

        _isResetButtonEnabled.value = false
        _isCutButtonEnabled.value = true
    }

    /**
     * Cut the Lake Superior graphic into a US side and Canada side using the cut polyline
     * and then add the resulting graphics to the graphics overlay.
     */
    fun cutGeometry() {
        polygonGraphic.geometry?.let { graphicGeometry ->
            val parts = GeometryEngine.tryCut(
                geometry = graphicGeometry,
                cutter = polylineGraphic.geometry as Polyline
            )

            // create graphics for the US and Canada sides
            val canadaSide = Graphic(
                geometry = parts[0],
                symbol = SimpleFillSymbol(
                    style = SimpleFillSymbolStyle.BackwardDiagonal,
                    color = Color.green,
                    outline = SimpleLineSymbol(
                        style = SimpleLineSymbolStyle.Null,
                        color = Color.blue,
                        width = 0F
                    )
                )
            )
            val usSide = Graphic(
                geometry = parts[1],
                symbol = SimpleFillSymbol(
                    style = SimpleFillSymbolStyle.ForwardDiagonal,
                    color = Color.yellow,
                    outline = SimpleLineSymbol(
                        style = SimpleLineSymbolStyle.Null,
                        color = Color.blue,
                        width = 0F
                    )
                )
            )
            // add the graphics to the graphics overlay
            graphicsOverlay.graphics.addAll(listOf(canadaSide, usSide))

            // update button state
            _isCutButtonEnabled.value = false
            _isResetButtonEnabled.value = true
        }
    }

    /**
     * Define a blue color for polygon boundary.
     */
    private val Color.Companion.blue: Color
        get() {
            return fromRgba(
                r = 0,
                g = 0,
                b = 255,
                a = 255
            )
        }

    /**
     * Create a polygon corresponding to Lake Superior.
     */
    private fun makeLakeSuperior() : Polygon {
        return PolygonBuilder(SpatialReference.webMercator()) {
            addPoint(Point(x = -10254374.668616, y = 5908345.076380))
            addPoint(Point(x = -10178382.525314, y = 5971402.386779))
            addPoint(Point(x = -10118558.923141, y = 6034459.697178))
            addPoint(Point(x = -9993252.729399, y = 6093474.872295))
            addPoint(Point(x = -9882498.222673, y = 6209888.368416))
            addPoint(Point(x = -9821057.766387, y = 6274562.532928))
            addPoint(Point(x = -9690092.583250, y = 6241417.023616))
            addPoint(Point(x = -9605207.742329, y = 6206654.660191))
            addPoint(Point(x = -9564786.389509, y = 6108834.986367))
            addPoint(Point(x = -9449989.747500, y = 6095091.726408))
            addPoint(Point(x = -9462116.153346, y = 6044160.821855))
            addPoint(Point(x = -9417652.665244, y = 5985145.646738))
            addPoint(Point(x = -9438671.768711, y = 5946341.148031))
            addPoint(Point(x = -9398250.415891, y = 5922088.336339))
            addPoint(Point(x = -9419269.519357, y = 5855797.317714))
            addPoint(Point(x = -9467775.142741, y = 5858222.598884))
            addPoint(Point(x = -9462924.580403, y = 5902686.086985))
            addPoint(Point(x = -9598740.325877, y = 5884092.264688))
            addPoint(Point(x = -9643203.813979, y = 5845287.765981))
            addPoint(Point(x = -9739406.633691, y = 5879241.702350))
            addPoint(Point(x = -9783061.694736, y = 5922896.763395))
            addPoint(Point(x = -9844502.151022, y = 5936640.023354))
            addPoint(Point(x = -9773360.570059, y = 6019099.583107))
            addPoint(Point(x = -9883306.649729, y = 5968977.105610))
            addPoint(Point(x = -9957681.938918, y = 5912387.211662))
            addPoint(Point(x = -10055501.612742, y = 5871965.858842))
            addPoint(Point(x = -10116942.069028, y = 5884092.264688))
            addPoint(Point(x = -10111283.079633, y = 5933406.315128))
            addPoint(Point(x = -10214761.742852, y = 5888134.399970))
            addPoint(Point(x = -10254374.668616, y = 5901877.659929))
        }.toGeometry()
    }

    /**
     * Create a polyline corresponding to the US/Canada border over Lake Superior.
     */
    private fun makeBorderPolyline() : Polyline {
        return PolylineBuilder(SpatialReference.webMercator()) {
            addPoint(Point(x = -9981328.687124, y = 6111053.281447))
            addPoint(Point(x = -9946518.044066, y = 6102350.620682))
            addPoint(Point(x = -9872545.427566, y = 6152390.920079))
            addPoint(Point(x = -9838822.617103, y = 6157830.083057))
            addPoint(Point(x = -9446115.050097, y = 5927209.572793))
            addPoint(Point(x = -9430885.393759, y = 5876081.440801))
            addPoint(Point(x = -9415655.737420, y = 5860851.784463))
        }.toGeometry()
    }

}
