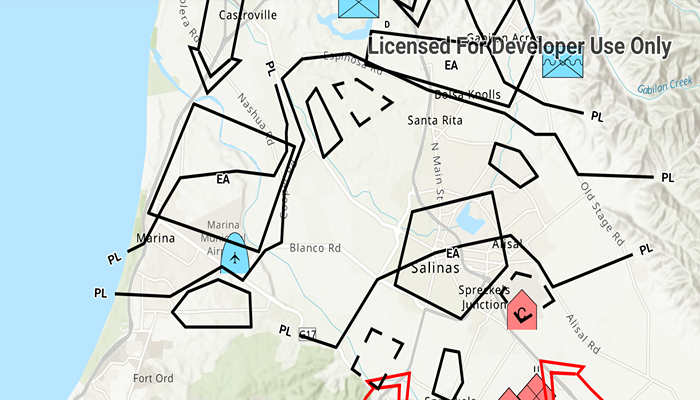

Convert features into graphics to show them with mil2525d symbols.
Use case
A dictionary renderer uses a style file along with a rule engine to display advanced symbology. This is useful for displaying features using precise military symbology.
How to use the sample
Pan and zoom around the map. Observe the displayed military symbology on the map.
How it works
Create a Geodatabase using new Geodatabase(geodatabasePath).
Load the geodatabase using Geodatabase.load().
Instantiate a DictionarySymbolStyle using DictionarySymbolStyle.createFromFile(dictionarySymbolStylePath).
Load the symbol dictionary using dictionarySymbolStyle.load().
For each GeoDatabaseFeatureTable in the GeoDatabase, create a feature layer with it, then add it to the map using map.operationalLayers.add(featureLayer).
Create DictionaryRenderer(dictionarySymbolStyle) and assign it to the feature layer renderer.
Set the viewpoint of the map view to the extent of the feature layer using mapView.setViewpoint(Viewpoint(featureLayer.fullExtent)).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
