Calculate a geodesic path between two points and measure its distance.

Use case
A geodesic distance provides an accurate, real-world distance between two points. Visualizing flight paths between cities is a common example of a geodesic operation since the flight path between two airports takes into account the curvature of the earth, rather than following the planar path between those points, which appears as a straight line on a projected map.
How to use the sample

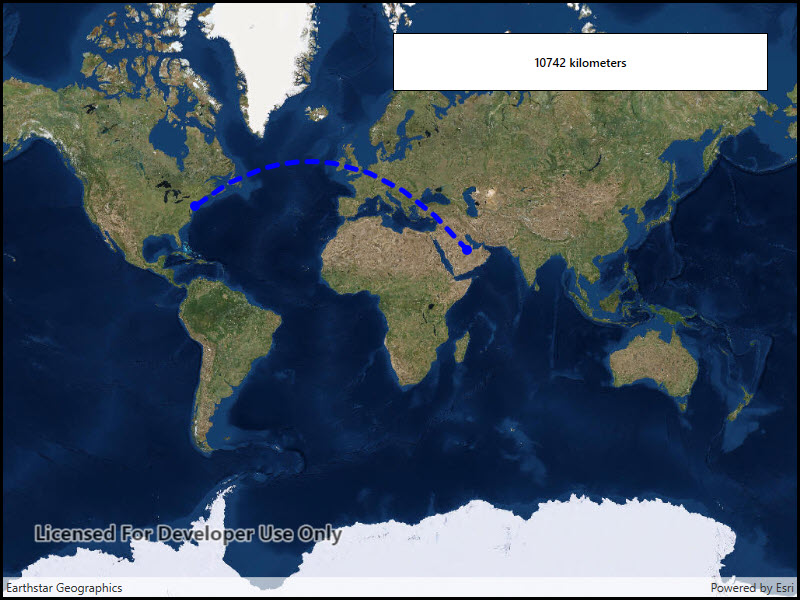

Click anywhere on the map. A line graphic will display the geodesic line between the two points. In addition, text that indicates the geodesic distance between the two points will be updated. Click elsewhere and a new line will be created.
How it works
- A
Pointis created in New York City and displayed as aGraphic. - When a click occurs on the
MapView, a newPointis obtained from the mouse click. ThisPointis added as aGraphic. - A
Polylineis created with the twoPointobjects. GeometryEngine.DensifyGeodeticis called from thePolylineobject, and the returnedGeometryis stored aspathGeometry.GeometryEngine.DistanceGeodeticis called from the startPointobject, and the returnedGeodeticDistanceResultobject’s distance number is displayed on the screen.
Relevant API
- GeometryEngine.DensifyGeodetic
- GeometryEngine.DistanceGeodetic
About the data
The Imagery basemap provides the global context for the displayed geodesic line.
Tags
densify, distance, geodesic, geodetic
Sample Code
<UserControl x:Class="ArcGIS.WPF.Samples.GeodesicOperations.GeodesicOperations" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:esri="http://schemas.esri.com/arcgis/runtime/2013"> <Grid> <esri:MapView x:Name="MyMapView" /> <Border Style="{StaticResource BorderStyle}"> <TextBlock x:Name="ResultsLabel" FontWeight="SemiBold" Text="Tap to set an end point." TextAlignment="Center" /> </Border> </Grid></UserControl>// Copyright 2018 Esri.//// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0//// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific// language governing permissions and limitations under the License.
using Esri.ArcGISRuntime.Geometry;using Esri.ArcGISRuntime.Mapping;using Esri.ArcGISRuntime.Symbology;using Esri.ArcGISRuntime.UI;using Esri.ArcGISRuntime.UI.Controls;
namespace ArcGIS.WPF.Samples.GeodesicOperations{ [ArcGIS.Samples.Shared.Attributes.Sample( name: "Geodesic operations", category: "Geometry", description: "Calculate a geodesic path between two points and measure its distance.", instructions: "Click anywhere on the map. A line graphic will display the geodesic line between the two points. In addition, text that indicates the geodesic distance between the two points will be updated. Click elsewhere and a new line will be created.", tags: new[] { "densify", "distance", "geodesic", "geodetic" })] public partial class GeodesicOperations { // Hold references to the graphics and start point. private Graphic _startLocationGraphic; private Graphic _endLocationGraphic; private Graphic _pathGraphic; private MapPoint _startPoint;
public GeodesicOperations() { InitializeComponent();
// Create the map, set the initial extent, and add the original point graphic. Initialize(); }
private void Initialize() { MyMapView.Map = new Map(BasemapStyle.ArcGISImageryStandard);
// Create the graphics overlay and add it to the map view. GraphicsOverlay graphicsOverlay = new GraphicsOverlay(); MyMapView.GraphicsOverlays.Add(graphicsOverlay);
// Add a graphic at JFK to serve as the origin. _startPoint = new MapPoint(-73.7781, 40.6413, SpatialReferences.Wgs84); SimpleMarkerSymbol startMarker = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle.Circle, System.Drawing.Color.Blue, 10); _startLocationGraphic = new Graphic(_startPoint, startMarker);
// Create the graphic for the destination. _endLocationGraphic = new Graphic { Symbol = startMarker };
// Create the graphic for the path. _pathGraphic = new Graphic { Symbol = new SimpleLineSymbol(SimpleLineSymbolStyle.Dash, System.Drawing.Color.Blue, 5) };
// Add the graphics to the overlay. graphicsOverlay.Graphics.Add(_startLocationGraphic); graphicsOverlay.Graphics.Add(_endLocationGraphic); graphicsOverlay.Graphics.Add(_pathGraphic);
// Update end location when the user taps. MyMapView.GeoViewTapped += MyMapViewOnGeoViewTapped; }
private void MyMapViewOnGeoViewTapped(object sender, GeoViewInputEventArgs geoViewInputEventArgs) { // Get the tapped point, projected to WGS84. MapPoint destination = (MapPoint)geoViewInputEventArgs.Location.Project(SpatialReferences.Wgs84);
// Update the destination graphic. _endLocationGraphic.Geometry = destination;
// Get the points that define the route polyline. PointCollection polylinePoints = new PointCollection(SpatialReferences.Wgs84) { (MapPoint)_startLocationGraphic.Geometry, destination };
// Create the polyline for the two points. Polyline routeLine = new Polyline(polylinePoints);
// Densify the polyline to show the geodesic curve. Geometry pathGeometry = routeLine.DensifyGeodetic(1, LinearUnits.Kilometers, GeodeticCurveType.Geodesic);
// Apply the curved line to the path graphic. _pathGraphic.Geometry = pathGeometry;
// Calculate and show the distance. GeodeticDistanceResult geodeticDistance = _startPoint.DistanceGeodetic(destination, LinearUnits.Kilometers,AngularUnits.Grads,GeodeticCurveType.Geodesic); ResultsLabel.Text = string.Format("{0} kilometers", (int)geodeticDistance.Distance); } }}
