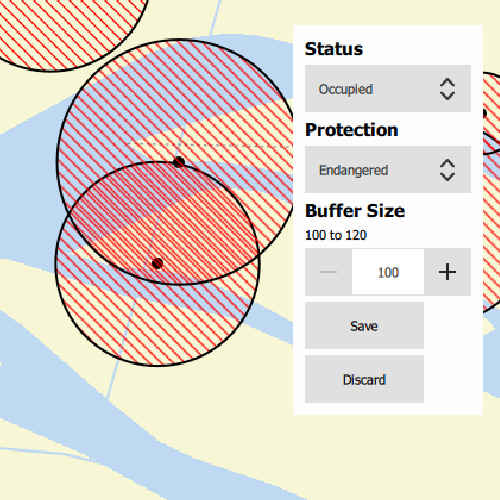

Add features with contingent values

// [WriteFile Name=ContingentValues, Category=EditData]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ContingentValues.h"

// ArcGIS Maps SDK headers
#include "ArcGISFeature.h"
#include "ArcGISVectorTiledLayer.h"
#include "AttributeListModel.h"
#include "Basemap.h"
#include "CodedValueDomain.h"
#include "ContingentCodedValue.h"
#include "ContingentRangeValue.h"
#include "ContingentValuesDefinition.h"
#include "ContingentValuesResult.h"
#include "FeatureIterator.h"
#include "FeatureLayer.h"
#include "FeatureQueryResult.h"
#include "Geodatabase.h"
#include "GeodatabaseFeatureTable.h"
#include "GeodatabaseTypes.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "Polygon.h"
#include "QueryParameters.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleRenderer.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
}

ContingentValues::ContingentValues(QObject* parent /* = nullptr */):
  QObject(parent)
{
  //! [map with basemap from vtpk]
  // Load the basemap from a vector tile package
  const QString vtpkDataPath = defaultDataPath() + "/ArcGIS/Runtime/Data/vtpk/FillmoreTopographicMap.vtpk";
  ArcGISVectorTiledLayer* fillmoreVTPK = new ArcGISVectorTiledLayer(QUrl::fromLocalFile(vtpkDataPath), this);
  Basemap* fillmoreBasemap = new Basemap(fillmoreVTPK, this);
  m_map = new Map(fillmoreBasemap, this);
  //! [map with basemap from vtpk]

  // Load the geodatabase from a mobile geodatabase
  const QString gdbDataPath = defaultDataPath() + "/ArcGIS/Runtime/Data/geodatabase/ContingentValuesBirdNests.geodatabase";
  m_geodatabase = new Geodatabase(gdbDataPath, this);

  // The coded value domains in this sample are hardcoded for simplicity, but can be retrieved from the GeodatabaseFeatureTable's Field's Domains.
  m_statusValues = QVariantMap{{"Occupied", "OCCUPIED"}, {"Unoccupied", "UNOCCUPIED"}};
  m_protectionValues = QVariantMap{{"Endangered", "ENDANGERED"}, {"Not endangered", "NOT_ENDANGERED"}, {"N/A", "NA"}};
}

ContingentValues::~ContingentValues() = default;

void ContingentValues::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ContingentValues>("Esri.Samples", 1, 0, "ContingentValuesSample");
}

MapQuickView* ContingentValues::mapView() const
{
  return m_mapView;
}

// Set the view with a graphics overlay
void ContingentValues::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;

  m_mapView->setMap(m_map);
  m_mapView->setViewpointAsync(Viewpoint(Point(-13236000, 4081200), 8822));

  // Create the graphics overlay with which to display the nest buffer exclusion areas
  m_graphicsOverlay = new GraphicsOverlay(this);
  Symbol* bufferSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::ForwardDiagonal, Qt::red, new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, Qt::black, 2, this), this);
  m_graphicsOverlay->setRenderer(new SimpleRenderer(bufferSymbol, this));
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  createConnections();
  m_geodatabase->load();

  emit mapViewChanged();
}

// Load the Geodatabase, GeodatabaseFeatureTable, and the ContingentValuesDefinition
void ContingentValues::createConnections()
{
  connect(m_geodatabase, &Geodatabase::doneLoading, this, [this]()
  {
    // Retrieve the "BirdNests" geodatabaseFeatureTable which contains the ContingentValuesDefinition, among other important member variables and functions
    m_gdbFeatureTable = m_geodatabase->geodatabaseFeatureTable("BirdNests");

    if (!m_gdbFeatureTable)
      return;

    connect(m_gdbFeatureTable, &GeodatabaseFeatureTable::doneLoading, this, [this]
    {
      // Load the ContingentValuesDefinition to enable access to the GeodatabaseFeatureTable's ContingentValues data such as FieldGroups and ContingentValuesResults
      m_gdbFeatureTable->contingentValuesDefinition()->load();

      // Load and display the mobile geodatabase's predefined bird nests on the map
      FeatureLayer* nestLayer = new FeatureLayer(m_gdbFeatureTable, this);
      m_map->operationalLayers()->append(nestLayer);

      queryAndBufferFeatures();
    });

    m_gdbFeatureTable->load();
  });

  connect(m_mapView, &MapQuickView::mouseClicked, this, &ContingentValues::createNewEmptyFeature);
}

// When the user clicks or taps on the map, instantiate a new feature and show the attribute form interface
void ContingentValues::createNewEmptyFeature(QMouseEvent& mouseEvent)
{
  // Create a new empty feature to define attributes for
  m_newFeature = static_cast<ArcGISFeature*>(m_gdbFeatureTable->createFeature({}, m_mapView->screenToLocation(mouseEvent.position().x(), mouseEvent.position().y()), this));
  auto f = m_gdbFeatureTable->addFeatureAsync(m_newFeature);
  Q_UNUSED(f)

  // Show the attribute form interface
  setFeatureAttributesPaneVisibe(true);
}

// Get a list of a feature's valid contingent values for field within a participating contingent value field group
QVariantList ContingentValues::getContingentValues(const QString& field, const QString& fieldGroupName)
{
  if (m_gdbFeatureTable->contingentValuesDefinition()->loadStatus() != LoadStatus::Loaded)
    return {};

  // Create an empty list with which to return the valid contingent values
  QVariantList contingentValuesNamesList = {};

  // Instantiate a dictionary containing all possible values for a field in the context of the contingent field groups it participates in
  ContingentValuesResult* contingentValuesResult = m_gdbFeatureTable->contingentValues(m_newFeature, field);

  // Loop through the contingent values. The QML UI is hardcoded to expect a list of contingent coded value names or a minimum and maximum value from a contingent range value
  for (ContingentValue* contingentValue : contingentValuesResult->contingentValuesByFieldGroup(this).value(fieldGroupName))
  {
    // Contingent coded values are contingent values defined from a coded value domain.
    // There are often multiple results returned by the ContingentValuesResult
    if (contingentValue->contingentValueType() == ContingentValueType::ContingentCodedValue)
    {
      ContingentCodedValue* contingentCodedValue = static_cast<ContingentCodedValue*>(contingentValue);
      if (contingentCodedValue)
        contingentValuesNamesList.append(contingentCodedValue->codedValue().name());
    }
    // Contingent range values constrain a range value domain
    // the ContingentValuesResult for a field defined by a range value domain often contains only one entry with a minimum and maximum value
    else if (contingentValue->contingentValueType() == ContingentValueType::ContingentRangeValue)
    {
      ContingentRangeValue* contingentRangeValue = static_cast<ContingentRangeValue*>(contingentValue);
      if (contingentRangeValue)
      {
        contingentValuesNamesList.append({contingentRangeValue->minValue()});
        contingentValuesNamesList.append({contingentRangeValue->maxValue()});
      }
    }
  }

  return contingentValuesNamesList;
}

// Validates if the sample's new feature has any constraint violations
bool ContingentValues::validateContingentValues()
{
  if (m_gdbFeatureTable->contingentValuesDefinition()->loadStatus() != LoadStatus::Loaded || !m_newFeature)
    return false;
  // Returns a list of field groups whose contingencies are in violation as well as the type of violation
  QList<ContingencyConstraintViolation*> constraintViolations = m_gdbFeatureTable->validateContingencyConstraints(m_newFeature);

  // If the list is empty, there are no violations and the attribute map satisfies all contingencies
  if (constraintViolations.isEmpty())
    return true;

  return false;
}

// Save the sample's new feature to the map's geodatabse feature table
void ContingentValues::createNewNest()
{
  // Once the attribute map is filled and validated, save the feature to the geodatabase feature table
  auto f = m_gdbFeatureTable->updateFeatureAsync(m_newFeature);
  Q_UNUSED(f)

  queryAndBufferFeatures();
}

void ContingentValues::discardFeature()
{
  auto f = m_gdbFeatureTable->deleteFeatureAsync(m_newFeature);
  Q_UNUSED(f)
}

// Update a specific field with a new value in the new feature's attribute map
void ContingentValues::updateField(const QString& field, const QVariant& value)
{
  if (field == "Status")
    m_newFeature->attributes()->replaceAttribute(field, m_statusValues.value(value.toString()));
  else if (field == "Protection")
    m_newFeature->attributes()->replaceAttribute(field, m_protectionValues.value(value.toString()));
  else if (field == "BufferSize")
    m_newFeature->attributes()->replaceAttribute(field, value.toInt());
  else
    qWarning() << field << "not found in any of the data dictionaries";
}

// The following two functions create a buffer around nest features based on their BufferSize value
// They are included to demonstrate the sample use case

// Kicks off a query feature task to return all features with buffer sizes greater than zero
void ContingentValues::queryAndBufferFeatures()
{
  if (!m_gdbFeatureTable || m_gdbFeatureTable->loadStatus() != LoadStatus::Loaded)
    return;

  m_graphicsOverlay->graphics()->clear();

  QueryParameters params;
  params.setWhereClause("BufferSize > 0");
  m_gdbFeatureTable->queryFeaturesAsync(params).then(this, [this](FeatureQueryResult* result)
  {
    bufferFeaturesFromQueryResults(result);
  });
}

// Buffers all features from the preceeding feature query using the BufferSize field value, create graphics with the results, and adds them to the graphics overlay
void ContingentValues::bufferFeaturesFromQueryResults(FeatureQueryResult* results)
{
  FeatureIterator iterator = results->iterator();

  while (iterator.hasNext())
  {
    Feature* feature = iterator.next(this);
    const double bufferDistance = feature->attributes()->attributeValue("BufferSize").toDouble();
    Polygon buffer = GeometryEngine::buffer(feature->geometry(), bufferDistance);
    m_mapView->graphicsOverlays()->at(0)->graphics()->append(new Graphic(buffer, this));
  }
}

bool ContingentValues::featureAttributesPaneVisibe() const
{
  return m_featureAttributesPaneVisible;
}

void ContingentValues::setFeatureAttributesPaneVisibe(bool showFeatureAttributesPane)
{
  m_featureAttributesPaneVisible = showFeatureAttributesPane;
  emit featureAttributesPaneVisibeChanged();
}

QVariantMap ContingentValues::statusValues() const
{
  return m_statusValues;
}

// [WriteFile Name=ContingentValues, Category=EditData]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CONTINGENTVALUES_H
#define CONTINGENTVALUES_H

// Qt headers
#include <QMouseEvent>
#include <QObject>

namespace Esri::ArcGISRuntime
{
class ArcGISFeature;
class FeatureQueryResult;
class Geodatabase;
class GeodatabaseFeatureTable;
class GraphicsOverlay;
class Map;
class MapQuickView;
}

Q_MOC_INCLUDE("MapQuickView.h")

class ContingentValues : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(QVariantMap statusValues READ statusValues CONSTANT)
  Q_PROPERTY(bool featureAttributesPaneVisibe READ featureAttributesPaneVisibe WRITE setFeatureAttributesPaneVisibe NOTIFY featureAttributesPaneVisibeChanged)

public:
  explicit ContingentValues(QObject* parent = nullptr);
  ~ContingentValues();

  static void init();

  Q_INVOKABLE void createNewNest();
  Q_INVOKABLE void discardFeature();
  Q_INVOKABLE QVariantList getContingentValues(const QString& field, const QString& fieldGroupName);
  Q_INVOKABLE void updateField(const QString& field, const QVariant& value);
  Q_INVOKABLE bool validateContingentValues();

signals:
  void featureAttributesPaneVisibeChanged();
  void mapViewChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  void queryAndBufferFeatures();
  void bufferFeaturesFromQueryResults(Esri::ArcGISRuntime::FeatureQueryResult* results);
  void createConnections();
  void createNewEmptyFeature(QMouseEvent& mouseEvent);
  bool featureAttributesPaneVisibe() const;
  QVariantMap statusValues() const;
  void setFeatureAttributesPaneVisibe(bool showFeatureAttributesPane);

  Esri::ArcGISRuntime::ArcGISFeature* m_newFeature = nullptr;
  Esri::ArcGISRuntime::Geodatabase* m_geodatabase = nullptr;
  Esri::ArcGISRuntime::GeodatabaseFeatureTable* m_gdbFeatureTable = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;

  QVariantMap m_statusValues;
  QVariantMap m_protectionValues;
  bool m_featureAttributesPaneVisible = false;
};

#endif // CONTINGENTVALUES_H

// [WriteFile Name=ContingentValues, Category=EditData]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    id: sampleWindow

    // add a mapView component
    MapView {
        id: view
        anchors.fill: sampleWindow

        MouseArea {
            anchors.fill: parent
            visible: attributePrompt.visible
            onClicked: mouse => mouse.accepted = !attributePrompt.visible
            onWheel:  wheel.accepted = !attributePrompt.visible
        }

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    ContingentValuesSample {
        id: contingentValuesSample
        mapView: view
    }

    Control {
        id: attributePrompt
        anchors {
            top: sampleWindow.top
            right: sampleWindow.right
            margins: 5
        }

        background: Rectangle {
            color: "#fdfdfd"
        }

        visible: contingentValuesSample.featureAttributesPaneVisibe

        contentItem: Column {
            id: inputColumn
            spacing: 5
            padding: 10

            Text {
                text: "Status"
                font {
                    bold: true
                    pointSize: 11
                }
            }

            ComboBox {
                id: statusComboBox

                // This ComboBox is hardcoded, but can be dynamically obtained from the feature layer's domain values
                model: [""].concat(Object.keys(contingentValuesSample.statusValues));

                onCurrentValueChanged: {
                    if (statusComboBox.currentValue === "") {
                        protectionComboBox.model = [""];
                        return;
                    }

                    // Update the feature's attribute map with the selection
                    contingentValuesSample.updateField("Status", statusComboBox.currentValue);
                    // Append the valid contingent coded values to the subsequent ComboBox
                    protectionComboBox.model = [""].concat(contingentValuesSample.getContingentValues("Protection", "ProtectionFieldGroup"));
                }
            }

            Text {
                text: "Protection"
                font {
                    bold: true
                    pointSize: 11
                }
            }

            ComboBox {
                id: protectionComboBox
                model: [""];

                enabled: statusComboBox.currentText !== ""

                onCurrentValueChanged: {
                    if (protectionComboBox.currentValue === "")
                        return;

                    // Update the feature's attribute map with the selection
                    contingentValuesSample.updateField("Protection", protectionComboBox.currentValue);

                    // Get the valid contingent range values for the subsequent SpinBox
                    const minMax = contingentValuesSample.getContingentValues("BufferSize", "BufferSizeFieldGroup")

                    // If getContingentValues() returned results, update the spin box values
                    if (minMax[0] !== "") {
                        rangeValuesSpinBox.from = minMax[0];
                        rangeValuesSpinBox.to = minMax[1];

                        // If the maxValue in the range is 0, set the buffer size to 0
                        if (minMax[1] === 0) {
                            contingentValuesSample.updateField("BufferSize", 0);
                            saveButton.enabled = contingentValuesSample.validateContingentValues();
                        }
                    }
                }
            }

            Text {
                text: "Buffer Size"
                font {
                    bold: true
                    pointSize: 11
                }
            }

            Text {
                text: rangeValuesSpinBox.from + " to " + rangeValuesSpinBox.to;
            }

            SpinBox {
                id: rangeValuesSpinBox
                editable: true
                from: 0;
                to: 0;
                stepSize: 10
                value: 0;

                enabled: protectionComboBox.currentText !== ""

                onValueChanged: {
                    if (protectionComboBox.currentValue === "")
                        return;

                    contingentValuesSample.updateField("BufferSize", rangeValuesSpinBox.value);

                    // Validate that all contingencies are valid, if so, enable the save button
                    saveButton.enabled = contingentValuesSample.validateContingentValues();
                }
            }

            Button {
                id: saveButton
                Text {
                    anchors.fill: parent
                    horizontalAlignment: Text.AlignHCenter
                    verticalAlignment: Text.AlignVCenter
                    text: "Save"
                }

                enabled: false

                onClicked: {
                    const valid = contingentValuesSample.validateContingentValues();
                    if (valid) {
                        contingentValuesSample.createNewNest();
                        contingentValuesSample.featureAttributesPaneVisibe = false;
                    }
                }
            }

            Button {
                id: discardButton
                Text {
                    anchors.fill: parent
                    horizontalAlignment: Text.AlignHCenter
                    verticalAlignment: Text.AlignVCenter
                    text: "Discard"
                }
                onClicked: {
                    contingentValuesSample.featureAttributesPaneVisibe = false;
                    contingentValuesSample.discardFeature();
                }
            }
        }

        onVisibleChanged: {
            if (!visible)
                return;

            // Reset attribute panel values when the panel opens
            statusComboBox.currentIndex = 0;
            protectionComboBox.currentIndex = 0;
            rangeValuesSpinBox.from = 0;
            rangeValuesSpinBox.to = 0;
        }
    }
}

// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ContingentValues.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ContingentValues"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ContingentValues::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/EditData/ContingentValues/main.qml"));

  return app.exec();
}

// Copyright 2022 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    ContingentValues {
        anchors.fill: parent
    }
}
