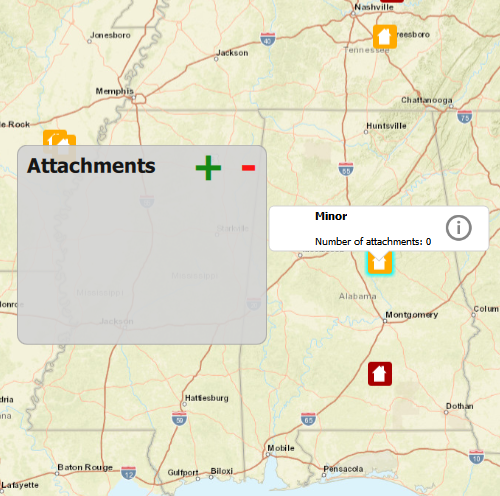

Edit feature attachments

// [WriteFile Name=EditFeatureAttachments, Category=EditData]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "EditFeatureAttachments.h"

// ArcGIS Maps SDK headers
#include "ArcGISFeature.h"
#include "Attachment.h"
#include "AttachmentListModel.h"
#include "AttributeListModel.h"
#include "Basemap.h"
#include "CalloutData.h"
#include "Envelope.h"
#include "Error.h"
#include "Feature.h"
#include "FeatureEditResult.h"
#include "FeatureIterator.h"
#include "FeatureLayer.h"
#include "FeatureQueryResult.h"
#include "IdentifyLayerResult.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "QueryParameters.h"
#include "ServiceFeatureTable.h"
#include "SpatialReference.h"
#include "Viewpoint.h"

// Qt headers
#include <QFile>
#include <QFileInfo>
#include <QMouseEvent>
#include <QUrl>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

namespace
{
  // Convenience RAII struct that deletes all pointers in given container.
  struct FeatureEditListResultLock
  {
    FeatureEditListResultLock(const QList<FeatureEditResult*>& list) : results(list) { }
    ~FeatureEditListResultLock() { qDeleteAll(results); }
    const QList<FeatureEditResult*>& results;
  };
}

EditFeatureAttachments::EditFeatureAttachments(QQuickItem* parent) :
  QQuickItem(parent)
{
}

EditFeatureAttachments::~EditFeatureAttachments() = default;

void EditFeatureAttachments::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<EditFeatureAttachments>("Esri.Samples", 1, 0, "EditFeatureAttachmentsSample");
  qmlRegisterUncreatableType<QAbstractListModel>("Esri.Samples", 1, 0, "AbstractListModel", "AbstractListModel is uncreateable");
  qmlRegisterUncreatableType<CalloutData>("Esri.Samples", 1, 0, "CalloutData", "CalloutData is an uncreatable type");
}

void EditFeatureAttachments::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // create a Map by passing in the Basemap
  m_map = new Map(BasemapStyle::ArcGISStreets, this);
  m_map->setInitialViewpoint(Viewpoint(Point(-10800000, 4500000, SpatialReference(102100)), 3e7));

  // set map on the map view
  m_mapView->setMap(m_map);

  // create the ServiceFeatureTable
  m_featureTable = new ServiceFeatureTable(QUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/DamageAssessment/FeatureServer/0"), this);

  // create the FeatureLayer with the ServiceFeatureTable and add it to the Map
  m_featureLayer = new FeatureLayer(m_featureTable, this);
  m_map->operationalLayers()->append(m_featureLayer);

  connectSignals();
}

void EditFeatureAttachments::connectSignals()
{
  // connect to the mouse clicked signal on the MapQuickView
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouseEvent)
  {
    // first clear the selection
    m_featureLayer->clearSelection();

    // set the properties for qml
    emit hideWindow();

    // call identify on the map view
    m_mapView->identifyLayerAsync(m_featureLayer, mouseEvent.position(), 5, false, 1).then(this, [this](IdentifyLayerResult* identifyResult)
    {
      onIdentifyLayerCompleted_(identifyResult);
    });
  });

  // connect to the viewpoint changed signal on the MapQuickView
  connect(m_mapView, &MapQuickView::viewpointChanged, this, [this]()
  {
    m_featureLayer->clearSelection();
    emit hideWindow();
  });
}

QAbstractListModel* EditFeatureAttachments::attachmentModel() const
{
  return m_selectedFeature ? m_selectedFeature->attachments(false, false) : nullptr;
}

void EditFeatureAttachments::addAttachment(const QUrl& fileUrl, const QString& contentType)
{
  if (QFile::exists(fileUrl.toLocalFile()))
  {
    const QFileInfo fileInfo(fileUrl.path());
    const QString fileName = fileInfo.fileName();

    disconnect(m_attachmentConnection); // disconnect previous connection if necessary

    if (m_selectedFeature->loadStatus() == LoadStatus::Loaded)
    {
      QFile file(fileUrl.toLocalFile());
      m_selectedFeature->attachments(false, false)->addAttachmentAsync(file, contentType, fileName).then(this , [this](QFuture<Attachment*>)
      {
        applyEdits();
      });
    }
    else
    {
      m_attachmentConnection = connect(m_selectedFeature, &ArcGISFeature::loadStatusChanged,
                                       this, [this, fileUrl, contentType, fileName](Esri::ArcGISRuntime::LoadStatus)
      {
        if (m_selectedFeature->loadStatus() == LoadStatus::Loaded)
        {
          QFile file(fileUrl.toLocalFile());
          disconnect(m_attachmentConnection);
          m_selectedFeature->attachments(false, false)->addAttachmentAsync(file, contentType, fileName).then(this , [this](QFuture<Attachment*>)
          {
            applyEdits();
          });
        }
      });
      m_selectedFeature->load();
    }
  }
}

void EditFeatureAttachments::deleteAttachment(int index)
{
  disconnect(m_attachmentConnection); // disconnect previous connection if necessary

  if (m_selectedFeature->loadStatus() == LoadStatus::Loaded)
  {
    qDebug() << "Attachments size: " << m_selectedFeature->attachments(false, false)->rowCount();
    m_selectedFeature->attachments(false, false)->deleteAttachmentAsync(index).then(this, [this]()
    {
      applyEdits();
    });
  }
  else
  {
    m_attachmentConnection = connect(m_selectedFeature, &ArcGISFeature::loadStatusChanged,
                                     this, [this, index](Esri::ArcGISRuntime::LoadStatus)
    {
      if (m_selectedFeature->loadStatus() == LoadStatus::Loaded)
      {
        disconnect(m_attachmentConnection);
        m_selectedFeature->attachments(false, false)->deleteAttachmentAsync(index).then(this, [this]()
        {
          applyEdits();
        });
      }
    });
    m_selectedFeature->load();
  }
}

// process identifyLayerAsync completion on the map view
void EditFeatureAttachments::onIdentifyLayerCompleted_(IdentifyLayerResult* identifyResult)
{
  if (!identifyResult)
    return;

  if (!identifyResult->geoElements().empty())
  {
    // select the item in the result
    m_featureLayer->selectFeature(static_cast<Feature*>(identifyResult->geoElements().at(0)));

    // obtain the selected feature with attributes
    QueryParameters queryParams;
    m_whereClause = "objectid=" + identifyResult->geoElements().at(0)->attributes()->attributeValue("objectid").toString();
    queryParams.setWhereClause(m_whereClause);
    m_featureTable->queryFeaturesAsync(queryParams).then(this, [this](FeatureQueryResult* featureQueryResult)
    {
      onQueryFeaturesCompleted_(featureQueryResult);
    });
  }
}

void EditFeatureAttachments::onQueryFeaturesCompleted_(FeatureQueryResult* featureQueryResult)
{
  if (featureQueryResult && featureQueryResult->iterator().hasNext())
  {
    // first delete if not nullptr
    if (m_selectedFeature)
      delete m_selectedFeature;

    // set selected feature and attachment model members
    m_selectedFeature = static_cast<ArcGISFeature*>(featureQueryResult->iterator().next(this));
    // Don't delete selected feature when parent featureQueryResult is deleted.
    m_selectedFeature->setParent(this);
    const QString featureType = m_selectedFeature->attributes()->attributeValue(QStringLiteral("typdamage")).toString();
    m_mapView->calloutData()->setLocation(m_selectedFeature->geometry().extent().center());
    m_mapView->calloutData()->setTitle(QString("<b>%1</b>").arg(featureType));

    emit featureSelected();
    emit attachmentModelChanged();

    // get the number of attachments
    // enableAutoFetch and enableAutoApplyEdits for AttachmentListModel are set as false
    // to avoid automatic behavior. We will call fetchDataAsync explicitly as needed.
    m_selectedFeature->attachments(false, false)->fetchAttachmentsAsync().then(this, [this](const QList<Attachment*>& attachments)
    {
      m_mapView->calloutData()->setDetail(QString("Number of attachments: %1").arg(attachments.size()));
      m_mapView->calloutData()->setVisible(true); // Resizes the calloutData after details has been set.
    });
  }
}

// process completion of applyEditsAsync from the ServiceFeatureTable
void EditFeatureAttachments::onApplyEditsCompleted_(const QList<FeatureEditResult*>& featureEditResults)
{
  // Lock is a convenience wrapper that deletes the contents of featureEditResults when we leave scope.
  FeatureEditListResultLock lock(featureEditResults);

  if (lock.results.length() > 0)
  {
    // obtain the first item in the list
    FeatureEditResult* featureEditResult = lock.results.first();
    // check if there were errors
    if (!featureEditResult->isCompletedWithErrors())
    {
      qDebug() << "Successfully edited feature attachments";

      // update the selected feature with attributes
      QueryParameters queryParams;
      queryParams.setWhereClause(m_whereClause);
      m_featureTable->queryFeaturesAsync(queryParams).then(this, [this](FeatureQueryResult* featureQueryResult)
      {
        onQueryFeaturesCompleted_(featureQueryResult);
      });
    }
    else
    {
      qDebug() << "Apply edits error:" << featureEditResult->error().message();
    }
  }
}

void EditFeatureAttachments::applyEdits()
{
  m_featureTable->applyEditsAsync(this).then(this, [this](const QList<FeatureEditResult*>& featureEditResults)
  {
    onApplyEditsCompleted_(featureEditResults);
  });
}

// [WriteFile Name=EditFeatureAttachments, Category=EditData]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef EDIT_FEATURE_ATTACHMENTS_H
#define EDIT_FEATURE_ATTACHMENTS_H

// Qt headers
#include <QAbstractListModel>
#include <QQuickItem>
#include <QtContainerFwd>

namespace Esri::ArcGISRuntime
{
  class CalloutData;
  class Map;
  class MapQuickView;
  class FeatureLayer;
  class ServiceFeatureTable;
  class ArcGISFeature;
  class IdentifyLayerResult;
  class FeatureQueryResult;
  class FeatureEditResult;
}

class QString;

class EditFeatureAttachments : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(QAbstractListModel* attachmentModel READ attachmentModel NOTIFY attachmentModelChanged)

public:
  explicit EditFeatureAttachments(QQuickItem* parent = nullptr);
  ~EditFeatureAttachments() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void addAttachment(const QUrl& fileUrl, const QString& contentType);
  Q_INVOKABLE void deleteAttachment(int index);

signals:
  void featureSelected();
  void hideWindow();
  void attachmentModelChanged();

private:
  void connectSignals();
  QAbstractListModel* attachmentModel() const;
  void applyEdits();

  void onIdentifyLayerCompleted_(Esri::ArcGISRuntime::IdentifyLayerResult* identifyResult);
  void onQueryFeaturesCompleted_(Esri::ArcGISRuntime::FeatureQueryResult* featureQueryResult);
  void onApplyEditsCompleted_(const QList<Esri::ArcGISRuntime::FeatureEditResult*>& featureEditResults);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
  Esri::ArcGISRuntime::ServiceFeatureTable* m_featureTable = nullptr;
  Esri::ArcGISRuntime::ArcGISFeature* m_selectedFeature = nullptr;
  QString m_whereClause;
  QMetaObject::Connection m_attachmentConnection;
};

#endif // EDIT_FEATURE_ATTACHMENTS_H

// [WriteFile Name=EditFeatureAttachments, Category=EditData]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Qt.labs.platform
import Esri.Samples
import Esri.ArcGISRuntime.Toolkit

EditFeatureAttachmentsSample {
    id: editAttachmentsSample

    readonly property var featAttributes: ["Destroyed", "Major", "Minor", "Affected", "Inaccessible"]

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Callout {
            id: callout
            background: Rectangle {
                border.color: "lightgrey"
                border.width: 1
            }
            calloutData: mapView.calloutData
            leaderPosition: Callout.LeaderPosition.Automatic
            onAccessoryButtonClicked: {
                attachmentWindow.visible = true;
            }
        }
    }

    onFeatureSelected: {
        // show the callout
        callout.showCallout();
    }

    onHideWindow: {
        // hide the callout
        if (callout.visible)
            callout.dismiss();
        attachmentWindow.visible = false;
    }

    // attachment window
    Rectangle {
        id: attachmentWindow
        anchors.centerIn: parent
        height: 200
        width: 250
        visible: false
        radius: 10
        color: "lightgrey"
        border.color: "darkgrey"
        opacity: 0.90
        clip: true

        // accept mouse events so they do not propogate down to the map
        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        Rectangle {
            id: titleText
            anchors {
                left: parent.left
                right: parent.right
                top: parent.top
            }
            height: 40
            color: "transparent"

            Text {
                anchors {
                    verticalCenter: parent.verticalCenter
                    left: parent.left
                    margins: 10
                }
                text: "Attachments"
                font {
                    bold: true
                    pixelSize: 20
                }
            }

            Row {
                anchors {
                    verticalCenter: parent.verticalCenter
                    right: parent.right
                    margins: 10
                }
                spacing: 15
                Text {
                    text: "+"
                    font {
                        bold: true
                        pixelSize: 40
                    }
                    color: "green"

                    // open a file dialog whenever the add button is clicked
                    MouseArea {
                        anchors.fill: parent
                        onClicked: {
                            fileDialog.open();
                        }
                    }
                }
                Text {
                    text: "-"
                    font {
                        bold: true
                        pixelSize: 40
                    }
                    color: "red"

                    // make sure an item is selected and if so, delete it from the service
                    MouseArea {
                        anchors.fill: parent
                        onClicked: {
                            if (attachmentsList.currentIndex !== -1)  {
                                // Call invokable C++ method to add an attachment to the model
                                editAttachmentsSample.deleteAttachment(attachmentsList.currentIndex);
                            }
                        }
                    }
                }
            }
        }

        ListView {
            id: attachmentsList
            anchors {
                left: parent.left
                right: parent.right
                top: titleText.bottom
                bottom: parent.bottom
                margins: 10
            }
            clip: true
            spacing: 5
            // set the model equal to the C++ attachment list model property
            model: editAttachmentsSample.attachmentModel
            // create the delegate to specify how the view is arranged
            delegate: Item {
                height: 45
                width: attachmentsList.width
                clip: true

                // show the attachment name
                Text {
                    id: label
                    anchors {
                        verticalCenter: parent.verticalCenter
                        left: parent.left
                        right: attachment.left
                    }
                    text: name
                    wrapMode: Text.WrapAnywhere
                    maximumLineCount: 1
                    elide: Text.ElideRight
                    font.pixelSize: 16
                }

                // show the attachment's URL if it is an image
                Image {
                    id: attachment
                    anchors {
                        verticalCenter: parent.verticalCenter
                        right: parent.right
                    }
                    width: 44
                    height: width
                    fillMode: Image.PreserveAspectFit
                    source: attachmentUrl
                }

                MouseArea {
                    id: itemMouseArea
                    anchors.fill: parent
                    onClicked: {
                        attachmentsList.currentIndex = index;
                    }
                }
            }

            highlightFollowsCurrentItem: true
            highlight: Rectangle {
                height: attachmentsList.currentItem.height
                color: "lightsteelblue"
            }
        }
    }

    // file dialog for selecting a file to add as an attachment
    FileDialog {
        id: fileDialog
        folder: {
            const locs = StandardPaths.standardLocations(StandardPaths.PicturesLocation)
            return locs.length > 0 ? locs[locs.length - 1] : "";
        }
        onAccepted: {
            // Call invokable C++ method to add an attachment to the model
            editAttachmentsSample.addAttachment(fileDialog.file, "application/octet-stream");
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "EditFeatureAttachments.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Other headers
#include "Esri/ArcGISRuntime/Toolkit/register.h"

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Edit Feature Attachments"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  EditFeatureAttachments::init();

  // Initialize application view
  QQmlApplicationEngine engine;

  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  Esri::ArcGISRuntime::Toolkit::registerComponents(engine);

  // Set the source
  engine.load("qrc:/Samples/EditData/EditFeatureAttachments/main.qml");

  return app.exec();
}

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    EditFeatureAttachments {
        anchors.fill: parent
    }
}
