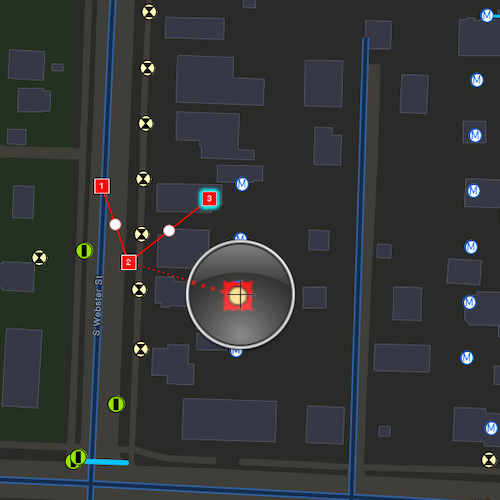

Use the Geometry Editor to edit a geometry and align it to existing geometries on a map.

Use case

A field worker can create new features by editing and snapping the vertices of a geometry to existing features on a map. In a water distribution network, service line features can be represented with the polyline geometry type. By snapping the vertices of a proposed service line to existing features in the network, an exact footprint can be identified to show the path of the service line and what features in the network it connects to. The feature layer containing the service lines can then be accurately modified to include the proposed line.

How to use the sample

To create a geometry, press the create button to choose the geometry type you want to create (i.e. points, multipoints, polyline, or polygon) and interactively tap and drag on the map view to create the geometry.

Snap settings can be configured by enabling and disabling snapping, feature snapping, geometry guides and snap sources.

To interactively snap a vertex to a feature or graphic, ensure that snapping is enabled for the relevant snap source and move the mouse pointer or drag a vertex to nearby an existing feature or graphic. When the pointer is close to that existing geoelement, the edit position will be adjusted to coincide with (or snap to), edges and vertices of its geometry. Click or release the touch pointer to place the vertex at the snapped location.

To edit a geometry, tap the geometry to be edited in the map to select it and then edit the geometry by tapping and dragging its vertices and snapping them to nearby features or graphics.

To undo changes made to the geometry, press the undo button.

To delete a geometry or a vertex, tap the geometry or vertex to select it and then press the delete button.

To save your edits, press the save button.

How it works

Create a Map from the URL and connect it to the MapView.
Set the map’s LoadSettings.featureTilingMode to enabledWithFullResolutionWhenSupported.
Create a GeometryEditor and connect it to the map view.
Call syncSourceSettings after the map’s operational layers are loaded and the geometry editor connected to the map view.
Set SnapSettings.isEnabled and SnapSourceSettings.isEnabled to true for the SnapSource of interest.
Toggle geometry guides using SnapSettings.IsGeometryGuidesEnabled and feature snapping using SnapSettings.IsFeatureSnappingEnabled.
Start the geometry editor with a GeometryType.

Relevant API

FeatureLayer
Geometry
GeometryEditor
GeometryEditorStyle
GraphicsOverlay
MapView
SnapSettings
SnapSource
SnapSourceSettings

About the data

The Naperville water distribution network is based on ArcGIS Solutions for Water Utilities and provides a realistic depiction of a theoretical stormwater network.

Additional information

Snapping is used to maintain data integrity between different sources of data when editing, so it is important that each SnapSource provides full resolution geometries to be valid for snapping. This means that some of the default optimizations used to improve the efficiency of data transfer and display of polygon and polyline layers based on feature services are not appropriate for use with snapping.

To snap to polygon and polyline layers, the recommended approach is to set the FeatureLayer’s feature tiling mode to FeatureTilingMode::EnabledWithFullResolutionWhenSupported and use the default ServiceFeatureTable feature request mode FeatureRequestMode::OnInteractionCache. Local data sources, such as geodatabases, always provide full resolution geometries. Point and multipoint feature layers are also always full resolution.

Snapping can be used during interactive edits that move existing vertices using the VertexTool or ReticleVertexTool. When adding new vertices, snapping also works with a hover event (such as a mouse move without a mouse button press). Using the ReticleVertexTool to add and move vertices allows users of touch screen devices to clearly see the visual cues for snapping.

Geometry guides are enabled by default when snapping is enabled. These allow for snapping to a point coinciding with, parallel to, perpendicular to or extending an existing geometry.

On supported platforms haptic feedback on SnapState::SnappedToFeature and SnapState::SnappedToGeometryGuide is enabled by default when snapping is enabled. Custom haptic feedback can be configured by setting SnapSettings::isHapticFeedbackEnabled to false and listening to GeometryEditor::snapChanged events to provide specific feedback depending on the SnapState.

Sample Code

GeometryEditorButton.qml

SnapGeometryEdits.cpp

SnapGeometryEdits.h

SnapGeometryEdits.qml

SnapSourceListModel.cpp

SnapSourceListModel.h

main.cpp

main.qml

// [WriteFile Name=SnapGeometryEdits, Category=EditData]
// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

// This component defines each of the buttons in the Geometry Editor control UI

RoundButton {
    id: geometryEditorButton

    property string buttonName: ""
    property string iconPath: ""

    Layout.fillWidth: true

    // Set the focus policy so that the buttons do not take focus from the MapView
    focusPolicy: Qt.NoFocus

    radius: 5

    Rectangle {
        anchors.fill: parent
        radius: parent.radius
        opacity: parent.enabled || parent.checked ? 1 : 0.3
        color: geometryEditorButton.down ? "#d0d0d0" : "#e0e0e0"
    }

    Image {
        id: imgComponent
        anchors {
            horizontalCenter: parent.horizontalCenter
            verticalCenter: parent.verticalCenter
            verticalCenterOffset: -textComponent.height/2
        }
        source: iconPath
        width: 20
        fillMode: Image.PreserveAspectFit
    }

    Text {
        id: textComponent
        anchors {
            top: imgComponent.bottom
            horizontalCenter: parent.horizontalCenter
        }
        text: buttonName
        font.pixelSize: 8
    }
}

// [WriteFile Name=SnapGeometryEdits, Category=EditData]
// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SnapGeometryEdits.h"
#include "SnapSourceListModel.h"

// ArcGIS Maps SDK headers
#include "FeatureLayer.h"
#include "FeatureTable.h"
#include "Geometry.h"
#include "GeometryEditor.h"
#include "GeometryEditorElement.h"
#include "GeometryTypes.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "IdentifyGraphicsOverlayResult.h"
#include "Layer.h"
#include "LayerListModel.h"
#include "LoadSettings.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Portal.h"
#include "PortalItem.h"
#include "ReticleVertexTool.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SnapSettings.h"
#include "SnapSourceSettings.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>
#include <QtGlobal>

#ifdef Q_OS_ANDROID
#include "ArcGISRuntimeEnvironment.h"

#include <QCoreApplication>
#include <QJniObject>
#endif

using namespace Esri::ArcGISRuntime;

SnapGeometryEdits::SnapGeometryEdits(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_snapSourceListModel(new SnapSourceListModel(this))
{
  PortalItem* portalItem = new PortalItem("b95fe18073bc4f7788f0375af2bb445e", this);
  m_map = new Map(portalItem, this);

  #ifdef Q_OS_ANDROID
  ArcGISRuntimeEnvironment::setAndroidApplicationContext(QJniObject{QNativeInterface::QAndroidApplication::context()});
  #endif

  m_geometryEditor = new GeometryEditor(this);
  m_graphicsOverlay = new GraphicsOverlay(this);

  // if mobile, use ReticleVertexTool
  #if defined(Q_OS_IOS) || defined(Q_OS_ANDROID)
    m_geometryEditor->setTool(new ReticleVertexTool(this));
  #endif // defined(Q_OS_IOS) || defined(Q_OS_ANDROID)

  connect (m_map, &Map::doneLoading, this, [this]()
  {
    for (Layer* layer : *m_map->operationalLayers())
    {
      connect (layer, &Layer::doneLoading, this, [this]()
      {
        // Enable snap settings after layers load
        if (m_layersLoaded == false)
        {
          m_layersLoaded = true;
          emit layersLoadedChanged();
        }
      });
    }
  });
}

SnapGeometryEdits::~SnapGeometryEdits() = default;

void SnapGeometryEdits::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<SnapGeometryEdits>("Esri.Samples", 1, 0, "SnapGeometryEditsSample");
}

MapQuickView* SnapGeometryEdits::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void SnapGeometryEdits::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // Enable feature tiling mode to load geometries with full resolution for snapping support
  m_map->loadSettings()->setFeatureTilingMode(FeatureTilingMode::EnabledWithFullResolutionWhenSupported);

  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // Set the geometry editor on the map view
  m_mapView->setGeometryEditor(m_geometryEditor);

  emit mapViewChanged();
  createInitialSymbols();
  createConnections();
}

// Create symbols used by all graphics
void SnapGeometryEdits::createInitialSymbols()
{
  m_pointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Square, QColor(255, 45, 0), 10, this);
  m_multiPointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Square, QColor(255, 45, 0), 10, this);
  m_lineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor(255, 45, 0), 2, this);
  m_polygonSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(255, 0, 0, 75),
                      new SimpleLineSymbol(SimpleLineSymbolStyle::Dash, QColor(0, 0, 0), 1.0, this), this);
}

void SnapGeometryEdits::createConnections()
{
  // Allow user to edit existing graphics by clicking on them
  connect (m_mapView, &MapQuickView::mouseClicked, this, [this](const QMouseEvent& mouseEvent)
  {
    if (!m_geometryEditor->isStarted())
    {
      m_mapView->identifyGraphicsOverlayAsync(m_graphicsOverlay, mouseEvent.position(), 10, false).then(this, [this](IdentifyGraphicsOverlayResult* result)
      {
        // Handle editing selected graphics, if any
        auto identifyResult = std::unique_ptr<IdentifyGraphicsOverlayResult>(result);
        // Return if no graphics were identified
        if (identifyResult->graphics().isEmpty())
          return;

        m_editingGraphic = identifyResult->graphics().first();

        // Hide the graphic currently being edited
        m_editingGraphic->setVisible(false);

        // Start the geometry editor with the graphic's geometry
        m_geometryEditor->start(m_editingGraphic->geometry());

        emit geometryEditorStartedChanged();
      });
    }
    emit canUndoChanged();
    emit isElementSelectedChanged();
  });

  // Enable or disable buttons when mouse is released (ie after a drag operation)
  connect(m_mapView, &MapQuickView::mouseReleased, this, [this](const QMouseEvent&)
  {
    emit canUndoChanged();
    emit isElementSelectedChanged();
  });
}

bool SnapGeometryEdits::geometryEditorStarted() const
{
  return (m_geometryEditor && m_geometryEditor->isStarted());
}

bool SnapGeometryEdits::canUndo()
{
  return (m_geometryEditor && m_geometryEditor->canUndo());
}

bool SnapGeometryEdits::isElementSelected()
{
  return (m_geometryEditor && m_geometryEditor->selectedElement() && m_geometryEditor->selectedElement()->canDelete());
}

// Toggles snapping using the enabled state from the snap settings
void SnapGeometryEdits::snappingEnabledStatus(bool snappingCheckedState)
{
  m_geometryEditor->snapSettings()->setEnabled(snappingCheckedState);
}

// Toggles geometry guides using the enabled state from the snap settings
void SnapGeometryEdits::geometryGuidesEnabledStatus(bool geometryGuidesCheckedState)
{
  m_geometryEditor->snapSettings()->setGeometryGuidesEnabled(geometryGuidesCheckedState);
}

// Toggles feature snapping using the enabled state from the snap settings
void SnapGeometryEdits::featureSnappingEnabledStatus(bool featureSnappingCheckedState)
{
  m_geometryEditor->snapSettings()->setFeatureSnappingEnabled(featureSnappingCheckedState);
}

// Starts the GeometryEditor using the selected geometry type
void SnapGeometryEdits::startEditor(GeometryEditorMode geometryEditorMode)
{
  switch (geometryEditorMode)
  {
  case GeometryEditorMode::PointMode:
    m_geometryEditor->start(Esri::ArcGISRuntime::GeometryType::Point);
    break;

  case GeometryEditorMode::MultipointMode:
    m_geometryEditor->start(Esri::ArcGISRuntime::GeometryType::Multipoint);
    break;

  case GeometryEditorMode::PolylineMode:
    m_geometryEditor->start(Esri::ArcGISRuntime::GeometryType::Polyline);
    break;

  case GeometryEditorMode::PolygonMode:
    m_geometryEditor->start(Esri::ArcGISRuntime::GeometryType::Polygon);
    break;

  default:
    break;
  }
  emit geometryEditorStartedChanged();
}

Symbol* SnapGeometryEdits::determineGeometrySymbol(const Geometry& geometry)
{
  Symbol* geometrySymbol = nullptr;
  switch (geometry.geometryType())
  {
  case GeometryType::Point:
    geometrySymbol = m_pointSymbol;
    break;
  case GeometryType::Multipoint:
    geometrySymbol = m_multiPointSymbol;
    break;
  case GeometryType::Polyline:
    geometrySymbol = m_lineSymbol;
    break;
  case GeometryType::Polygon:
    geometrySymbol = m_polygonSymbol;
    break;
  default:
    break;
  }
  return geometrySymbol;
}

// Stops the GeometryEditor and append the new graphic to the graphics overlay
void SnapGeometryEdits::stopEditing()
{
  const Geometry geometry = m_geometryEditor->stop();
  emit geometryEditorStartedChanged();

  if (m_editingGraphic)
  {
    m_editingGraphic->setGeometry(geometry);

    m_editingGraphic->setVisible(true);
    m_editingGraphic = nullptr;

    return;
  }

  Symbol* geometrySymbol = determineGeometrySymbol(geometry);
  if (geometrySymbol)
  {
    m_graphicsOverlay->graphics()->append(new Graphic(geometry, geometrySymbol, this));
  }
}

// Deletes the selected element
void SnapGeometryEdits::deleteSelection()
{
  m_geometryEditor->deleteSelectedElement();
  emit canUndoChanged();
}

// Reverts the last event on the geometry editor
void SnapGeometryEdits::editorUndo()
{
  m_geometryEditor->undo();
  emit canUndoChanged();
}

void SnapGeometryEdits::displaySnapSources()
{
  if (!m_snapSourceListModel)
    return;

  // Sync the snap settings and update the list model
  m_geometryEditor->snapSettings()->syncSourceSettings();
  m_snapSourceListModel->setSnapSourceSettings(m_geometryEditor->snapSettings()->sourceSettings());

  emit snapSourceModelChanged();
}

void SnapGeometryEdits::enableAllLayersInSection(const QString& section)
{
  m_snapSourceListModel->enableAllLayersInSection(section);
  emit snapSourceModelChanged();
}

QAbstractListModel* SnapGeometryEdits::snapSourceListModel() const
{
  return m_snapSourceListModel;
}

// [WriteFile Name=SnapGeometryEdits, Category=EditData]
// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef SNAPGEOMETRYEDITS_H
#define SNAPGEOMETRYEDITS_H

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime {
  class Geometry;
  class GeometryEditor;
  class GeometryEditor;
  class Graphic;
  class GraphicsOverlay;
  class Map;
  class MapQuickView;
  class Portal;
  class PortalItem;
  class SimpleFillSymbol;
  class SimpleLineSymbol;
  class SimpleMarkerSymbol;
  class SnapSourceSettings;
  class Symbol;
}

class SnapSourceListModel;
class QAbstractListModel;

Q_MOC_INCLUDE("MapQuickView.h");
Q_MOC_INCLUDE("QAbstractListModel");

class SnapGeometryEdits : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool geometryEditorStarted READ geometryEditorStarted NOTIFY geometryEditorStartedChanged)
  Q_PROPERTY(bool canUndo READ canUndo NOTIFY canUndoChanged)
  Q_PROPERTY(bool isElementSelected READ isElementSelected NOTIFY isElementSelectedChanged)
  Q_PROPERTY(bool layersLoaded MEMBER m_layersLoaded NOTIFY layersLoadedChanged)
  Q_PROPERTY(QAbstractListModel* snapSourceModel READ snapSourceListModel NOTIFY snapSourceModelChanged)

public:
  explicit SnapGeometryEdits(QObject* parent = nullptr);
  ~SnapGeometryEdits() override;

  enum class GeometryEditorMode {
    PointMode,
    MultipointMode,
    PolylineMode,
    PolygonMode
  };

  Q_ENUM(GeometryEditorMode)

  static void init();
  Q_INVOKABLE void startEditor(GeometryEditorMode geometryEditorMode);
  Q_INVOKABLE void stopEditing();
  Q_INVOKABLE void deleteSelection();
  Q_INVOKABLE void editorUndo();
  Q_INVOKABLE void snappingEnabledStatus(bool checkedValue);
  Q_INVOKABLE void geometryGuidesEnabledStatus(bool checkedValue);
  Q_INVOKABLE void featureSnappingEnabledStatus(bool checkedValue);
  Q_INVOKABLE void displaySnapSources();
  Q_INVOKABLE void enableAllLayersInSection(const QString& section);

signals:
  void canUndoChanged();
  void isElementSelectedChanged();
  void geometryEditorStartedChanged();
  void layersLoadedChanged();
  void mapViewChanged();
  void pointLayersChanged();
  void pointSourceCheckedStateChanged();
  void polylineLayersChanged();
  void polylineSourceCheckedStateChanged();
  void snapSourceModelChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  bool geometryEditorStarted() const;
  bool canUndo();
  void createInitialSymbols();
  void createConnections();
  bool isElementSelected();
  QAbstractListModel* snapSourceListModel() const;
  Esri::ArcGISRuntime::Symbol* determineGeometrySymbol(const Esri::ArcGISRuntime::Geometry& geometry);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::Graphic* m_editingGraphic = nullptr;
  Esri::ArcGISRuntime::GeometryEditor* m_geometryEditor = nullptr;
  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_pointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_multiPointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleLineSymbol* m_lineSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleFillSymbol* m_polygonSymbol = nullptr;
  bool m_layersLoaded = false;
  SnapSourceListModel* m_snapSourceListModel = nullptr;
};

#endif // SNAPGEOMETRYEDITS_H

// [WriteFile Name=SnapGeometryEdits, Category=EditData]
// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    SnapGeometryEditsSample {
        id: snapGeometryEditsSampleModel
        mapView: view

        onGeometryEditorStartedChanged: {
            if (!geometryEditorStarted) {
                pointButton.checked = false;
                multiPointButton.checked = false;
                lineButton.checked = false;
                polygonButton.checked = false;
            }
        }
    }

    Rectangle {
        anchors {
            right: parent.right
            margins: 10
        }

        Control {
            id: control
            anchors.right: parent.right
            padding: 5
            width: 140

            background: Rectangle {
                color: "black"
                opacity: .5
            }

            contentItem: ColumnLayout {
                id: columns
                anchors {
                    verticalCenter: parent.verticalCenter
                    horizontalCenter: parent.horizontalCenter
                }

                GridLayout {
                    id: geometryColumn
                    Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                    columns: 2

                    Text {
                        id: geometryHeader
                        Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                        Layout.columnSpan: 2
                        text: "Create"
                        color: "white"
                        font.pixelSize: 16
                        font.bold: true
                    }

                    GeometryEditorButton {
                        id: pointButton
                        buttonName: qsTr("Point")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/point-32.png"
                        checkable: true
                        enabled: !snapGeometryEditsSampleModel.geometryEditorStarted
                        onClicked: snapGeometryEditsSampleModel.startEditor(SnapGeometryEditsSample.PointMode);
                    }

                    GeometryEditorButton {
                        id: multiPointButton
                        buttonName: qsTr("Multipoint")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/multipoint-32.png"
                        checkable: true
                        enabled: !snapGeometryEditsSampleModel.geometryEditorStarted
                        onClicked: snapGeometryEditsSampleModel.startEditor(SnapGeometryEditsSample.MultipointMode);
                    }

                    GeometryEditorButton {
                        id: lineButton
                        buttonName: qsTr("Line")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/line-32.png"
                        checkable: true
                        enabled: !snapGeometryEditsSampleModel.geometryEditorStarted
                        onClicked: snapGeometryEditsSampleModel.startEditor(SnapGeometryEditsSample.PolylineMode);
                    }

                    GeometryEditorButton {
                        id: polygonButton
                        buttonName: qsTr("Polygon")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/polygon-32.png"
                        checkable: true
                        enabled: !snapGeometryEditsSampleModel.geometryEditorStarted
                        onClicked: snapGeometryEditsSampleModel.startEditor(SnapGeometryEditsSample.PolygonMode);
                    }
                }

                GridLayout {
                    id: editingColumn
                    Layout.fillWidth: true
                    Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                    columns: 2

                    Text {
                        id: editingHeader
                        Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                        Layout.columnSpan: 2
                        text: qsTr("Edit")
                        color: "white"
                        font.pixelSize: 16
                        font.bold: true
                    }

                    GeometryEditorButton {
                        id: undoButton
                        buttonName: qsTr("Undo")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/undo-32.png"
                        enabled: snapGeometryEditsSampleModel.geometryEditorStarted && snapGeometryEditsSampleModel.canUndo
                        onClicked: snapGeometryEditsSampleModel.editorUndo();
                    }

                    GeometryEditorButton {
                        id: deleteButton
                        buttonName: qsTr("Delete")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/erase-32.png"
                        enabled: snapGeometryEditsSampleModel.geometryEditorStarted || snapGeometryEditsSampleModel.isElementSelected
                        onClicked: snapGeometryEditsSampleModel.deleteSelection();
                    }

                    GeometryEditorButton {
                        id: saveEditsButton
                        buttonName: qsTr("Save")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/save-32.png"
                        Layout.columnSpan: 2
                        enabled: snapGeometryEditsSampleModel.geometryEditorStarted
                        onClicked: snapGeometryEditsSampleModel.stopEditing();
                    }

                    GeometryEditorButton {
                        id: snapSettingsButton
                        buttonName: qsTr("Snap Settings")
                        iconPath: "qrc:/Samples/EditData/SnapGeometryEdits/iconAssets/settings.png"
                        Layout.columnSpan: 2
                        enabled: snapGeometryEditsSampleModel.layersLoaded
                        onClicked: {
                            optionPanel.visible = true;
                            snapGeometryEditsSampleModel.displaySnapSources();
                        }
                    }
                }
            }
        }
    }

    Rectangle {
        id: optionPanel
        anchors {
            left: parent.left
            top: parent.top
            bottom: parent.bottom
        }
        width: 360
        visible: false
        color: "white"
        opacity: 1

        ListView {
            id: snapSourceView
            anchors {
                fill: parent
                margins: 10
            }

            header: ColumnLayout {
                id: snappingColumn
                Layout.minimumWidth: optionPanel.width
                spacing: 0
                RowLayout {
                    Layout.minimumWidth: optionPanel.width
                    Layout.minimumHeight: 35

                    Text {
                        Layout.alignment: Qt.AlignLeft
                        Layout.fillWidth: true
                        Layout.minimumWidth: optionPanel.width * 0.75
                        text: "Snapping"
                        font.pixelSize: 15
                        color: "#8434C1"
                        font.bold: true
                    }

                    Text {
                        Layout.alignment: Qt.AlignRight
                        Layout.fillWidth: true
                        Layout.minimumWidth: optionPanel.width * 0.25
                        text: "Done"
                        font.pixelSize: 15
                        color: "#8434C1"
                        font.bold: true
                        MouseArea {
                            anchors.fill: parent
                            onClicked: optionPanel.visible = false;
                        }
                    }
                }

                ColumnLayout {
                    Layout.minimumWidth: optionPanel.width
                    Layout.minimumHeight: 35
                    spacing: 0
                    Rectangle {
                        Layout.alignment: Qt.AlignLeft
                        Layout.minimumWidth: snapSourceView.width - (snapSourceView.anchors.margins / 2)
                        Layout.minimumHeight: 35
                        color: "#E9DFEA"

                        Text {
                            text: qsTr("Snapping enabled")
                            font.pixelSize: 15
                            anchors {
                                left: parent.left
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                        }

                        Switch {
                            anchors {
                                right: parent.right
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                            onCheckedChanged: snapGeometryEditsSampleModel.snappingEnabledStatus(checked)
                        }
                    }
                    Rectangle {
                        Layout.alignment: Qt.AlignLeft
                        Layout.minimumWidth: snapSourceView.width - (snapSourceView.anchors.margins / 2)
                        Layout.minimumHeight: 35
                        color: "#E9DFEA"

                        Text {
                            text: qsTr("Geometry guides")
                            font.pixelSize: 15
                            anchors {
                                left: parent.left
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                        }

                        Switch {
                            anchors {
                                right: parent.right
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                            onCheckedChanged: snapGeometryEditsSampleModel.geometryGuidesEnabledStatus(checked)
                        }
                    }
                    Rectangle {
                        Layout.alignment: Qt.AlignLeft
                        Layout.minimumWidth: snapSourceView.width - (snapSourceView.anchors.margins / 2)
                        Layout.minimumHeight: 35
                        color: "#E9DFEA"


                        Text {
                            text: qsTr("Feature snapping")
                            font.pixelSize: 15
                            anchors {
                                left: parent.left
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                        }

                        Switch {
                            anchors {
                                right: parent.right
                                margins: 10
                                verticalCenter: parent.verticalCenter
                            }
                            onCheckedChanged: snapGeometryEditsSampleModel.featureSnappingEnabledStatus(checked)
                        }
                    }
                }
            }

            model: snapGeometryEditsSampleModel.snapSourceModel

            section {
                property: "section"
                criteria: ViewSection.FullString
                delegate: Item {
                    height: 35
                    width: optionPanel.width

                    RowLayout {
                        Layout.fillWidth: true
                        Layout.minimumWidth: optionPanel.width
                        Layout.minimumHeight: 25

                        Text {
                            Layout.alignment: Qt.AlignLeft
                            Layout.fillWidth: true
                            Layout.minimumWidth: optionPanel.width * 0.5
                            Layout.minimumHeight: 25
                            color: "#8434C1"
                            text: section + " layers"
                            font.pixelSize: 15
                            font.bold: true
                            Layout.topMargin: 10
                            Layout.bottomMargin: 10
                        }

                        Text {
                            Layout.alignment: Qt.AlignRight
                            Layout.minimumWidth: optionPanel.width * 0.5
                            Layout.minimumHeight: 25
                            text: "Enable All Sources"
                            font.pixelSize: 15
                            color: "#8434C1"
                            font.bold: true
                            Layout.topMargin: 10
                            Layout.bottomMargin: 10

                            MouseArea {
                                anchors.fill: parent
                                onClicked: snapGeometryEditsSampleModel.enableAllLayersInSection(section);
                            }
                        }
                    }
                }
            }

            delegate: Item {
                height: 35
                width: optionPanel.width
                id:delegate
                Rectangle {
                    id: wrapper
                    color: "#E9DFEA"
                    width: snapSourceView.width - (snapSourceView.anchors.margins / 2)
                    height: delegate.height
                    anchors {
                        margins: 15
                    }

                    RowLayout {
                        id : row
                        Layout.fillWidth: true
                        Layout.minimumWidth: optionPanel.width
                        width: wrapper.width

                        Text {
                            Layout.alignment: Qt.AlignLeft
                            Layout.fillWidth: true
                            Layout.minimumWidth: optionPanel.width / 2
                            text: name
                            font.pixelSize: 15
                            Layout.leftMargin: 10
                        }

                        Switch {
                            Layout.alignment: Qt.AlignRight
                            Layout.fillWidth: true
                            checked: isEnabled
                            onCheckedChanged: isEnabled = checked;
                        }
                    }
                }
            }
        }
    }
}

// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SnapSourceListModel.h"

// ArcGIS Maps SDK headers
#include "FeatureLayer.h"
#include "FeatureTable.h"
#include "GeometryTypes.h"
#include "GraphicsOverlay.h"
#include "SnapSourceSettings.h"

// Qt headers
#include <QAbstractListModel>
#include <QByteArray>
#include <QDir>
#include <QFileInfo>
#include <QHash>
#include <QList>
#include <QModelIndex>
#include <QObject>
#include <QVariant>

using namespace Esri::ArcGISRuntime;

SnapSourceListModel::SnapSourceListModel(QObject* parent) :
  QAbstractListModel(parent)
{
  setupRoles();
}

void SnapSourceListModel::setupRoles()
{
  m_roles[SectionRole] = "section";
  m_roles[NameRole] = "name";
  m_roles[IsEnabledRole] = "isEnabled";
}

void SnapSourceListModel::enableAllLayersInSection(const QString &section)
{
  beginResetModel();
  for (auto* source : m_snapSourceSettings)
  {
    if (determineSection(source) == section)
      source->setEnabled(true);
  }
  endResetModel();
}

int SnapSourceListModel::rowCount(const QModelIndex& parent) const
{
  Q_UNUSED(parent);
  return m_snapSourceSettings.count();
}

QVariant SnapSourceListModel::data(const QModelIndex& index, int role) const
{
  if (index.row() < 0 || index.row() >= m_snapSourceSettings.count())
    return QVariant();

  SnapSourceSettings* snapSourceSetting = m_snapSourceSettings[index.row()];

  QVariant retVal;
  QString section = determineSection(snapSourceSetting);
  QString name = determineName(snapSourceSetting);

  switch (role)
  {
  case SectionRole:
    retVal = section.isEmpty() ? "Unknown" : section;
    break;
  case NameRole:
    retVal = name.isEmpty() ? "Unknown Name" : name;
    break;
  case IsEnabledRole:
    retVal = snapSourceSetting->isEnabled();
    break;
  default:
    break;
  }

  return retVal;
}

bool SnapSourceListModel::setData(const QModelIndex& index, const QVariant& value, int role)
{
  if (index.isValid())
  {
    SnapSourceSettings* snapSourceSettings = m_snapSourceSettings.at(index.row());
    if (snapSourceSettings)
    {
      switch (role)
      {
        case IsEnabledRole:
        {
        if (snapSourceSettings->isEnabled() != value.toBool())
        {
          snapSourceSettings->setEnabled(value.toBool());
          emit dataChanged(index, index, QVector<int>() << role);
        }
        return true;
      }
      default:
        break;
      }
    }
  }

  return false;
}

QHash<int, QByteArray> SnapSourceListModel::roleNames() const
{
  return m_roles;
}

QString SnapSourceListModel::determineSection(Esri::ArcGISRuntime::SnapSourceSettings *snapSourceSettings) const
{
  // determine if it is a feature layer or graphics overlay
  FeatureLayer* featureLayer = dynamic_cast<FeatureLayer*>(snapSourceSettings->source());

  GraphicsOverlay* graphicsOverlay = dynamic_cast<GraphicsOverlay*>(snapSourceSettings->source());

  QString section;

  if (featureLayer)
  {
    GeometryType type = featureLayer->featureTable()->geometryType();

    switch(type)
    {
    case GeometryType::Point:
      section = "Point";
      break;
    case GeometryType::Polyline:
      section = "Polyline";
      break;
    case GeometryType::Polygon:
      section = "Polygon";
      break;
    default:
      section = "Unknown";
      break;
    }
  }
  else if (graphicsOverlay)
  {
    section = "Graphics Overlay";
  }

  return section;
}

QString SnapSourceListModel::determineName(Esri::ArcGISRuntime::SnapSourceSettings *snapSourceSettings) const
{
  // determine if it is a feature layer or graphics overlay
  FeatureLayer* featureLayer = dynamic_cast<FeatureLayer*>(snapSourceSettings->source());

  GraphicsOverlay* graphicsOverlay = dynamic_cast<GraphicsOverlay*>(snapSourceSettings->source());

  if (featureLayer)
    return featureLayer->name();
  else if (graphicsOverlay)
    return graphicsOverlay->overlayId().isEmpty() ? "Default Graphics Overlay" : graphicsOverlay->overlayId();
  else
    return "Unknown";
}

void SnapSourceListModel::setSnapSourceSettings(QList<Esri::ArcGISRuntime::SnapSourceSettings*> snapSourceSettings)
{
  beginResetModel();
  m_snapSourceSettings.clear();
  m_snapSourceSettings = snapSourceSettings;
  endResetModel();
}

// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

#ifndef SNAPSOURCELISTMODEL_H
#define SNAPSOURCELISTMODEL_H

// Qt headers
#include <QAbstractListModel>
#include <QByteArray>
#include <QHash>
#include <QList>

namespace Esri::ArcGISRuntime {
  class SnapSourceSettings;
}

class SnapSourceListModel : public QAbstractListModel
{
  Q_OBJECT

public:
  enum SnapSourceRoles
  {
    SectionRole = Qt::UserRole + 1,
    NameRole = Qt::UserRole + 2,
    IsEnabledRole = Qt::UserRole + 3
  };

  explicit SnapSourceListModel(QObject* parent = nullptr);
  ~SnapSourceListModel() override = default;

public:
  void setSnapSourceSettings(QList<Esri::ArcGISRuntime::SnapSourceSettings*> snapSourceSettings);
  void setupRoles();
  int size() { return m_snapSourceSettings.size(); }
  void enableAllLayersInSection(const QString& section);

  // QAbstractItemModel interface
  int rowCount(const QModelIndex& parent = QModelIndex()) const override;
  QVariant data(const QModelIndex& index, int role = Qt::DisplayRole) const override;
  bool setData(const QModelIndex& index, const QVariant& value, int role = Qt::EditRole) override;

protected:
  QHash<int, QByteArray> roleNames() const override;

private:
  QHash<int, QByteArray> m_roles;
  QList<Esri::ArcGISRuntime::SnapSourceSettings*> m_snapSourceSettings;
  QString determineSection(Esri::ArcGISRuntime::SnapSourceSettings* snapSourceSettings) const;
  QString determineName(Esri::ArcGISRuntime::SnapSourceSettings* snapSourceSettings) const;
};

#endif // SNAPSOURCELISTMODEL_H

// [Legal]
// Copyright 2024 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SnapGeometryEdits.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("SnapGeometryEdits"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  SnapGeometryEdits::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/EditData/SnapGeometryEdits/main.qml"));

  return app.exec();
}

// Copyright 2024 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    SnapGeometryEdits {
        anchors.fill: parent
    }
}
