Cut geometry

// [WriteFile Name=CutGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "CutGeometry.h"

// ArcGIS Maps SDK headers
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "PolygonBuilder.h"
#include "PolylineBuilder.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

CutGeometry::CutGeometry(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

void CutGeometry::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<CutGeometry>("Esri.Samples", 1, 0, "CutGeometrySample");
}

void CutGeometry::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  // Add a GraphicsOverlay
  m_overlay = new GraphicsOverlay(this);
  m_mapView->graphicsOverlays()->append(m_overlay);

  // Create initial graphics
  createGraphics();

  // Set Viewpoint
  m_mapView->setViewpointGeometryAsync(m_lakeSuperiorGraphic->geometry());
}

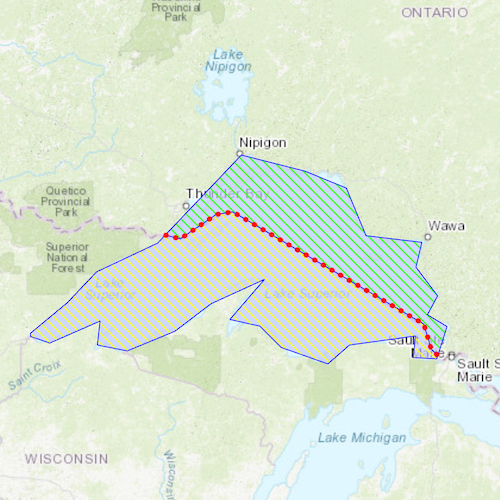

// Cuts the Lake Superior polygon into two and symbolizes each output graphic
void CutGeometry::cutPolygon()
{
  // perform the cut
  QList<Geometry> geoms = GeometryEngine::cut(m_lakeSuperiorGraphic->geometry(),
                                              geometry_cast<Polyline>(m_borderGraphic->geometry()));

  // create graphics for the U.S. side
  SimpleLineSymbol* outline = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor("blue"), 1.0f, this);
  SimpleFillSymbol* usSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::ForwardDiagonal, QColor("#40ff00"), outline, this);
  Graphic* usSide = new Graphic(geoms.at(0), usSymbol, this);

  // create graphics for the Canada side
  SimpleFillSymbol* canadaSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::ForwardDiagonal, QColor("#ffff00"), outline, this);
  Graphic* canadaSide = new Graphic(geoms.at(1), canadaSymbol, this);

  // add graphics
  m_overlay->graphics()->append(canadaSide);
  m_overlay->graphics()->append(usSide);
}

void CutGeometry::resetPolygon()
{
  m_overlay->graphics()->clear();

  m_overlay->graphics()->append(m_lakeSuperiorGraphic);
  m_overlay->graphics()->append(m_borderGraphic);
}

// Create the two baseline graphics
void CutGeometry::createGraphics()
{
  // Lake Superior Graphic
  SimpleLineSymbol* outline = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor("blue"), 1.0f, this);
  SimpleFillSymbol* usSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(198, 204, 255, 178), outline, this);
  m_lakeSuperiorGraphic = new Graphic(createLakeSuperiorPolygon(), usSymbol, this);
  m_overlay->graphics()->append(m_lakeSuperiorGraphic);

  // Border Graphic
  SimpleLineSymbol* borderSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Dot, QColor("red"), 5.0f, this);
  m_borderGraphic = new Graphic(createBorderPolyline(), borderSymbol, this);
  m_borderGraphic->setZIndex(10);
  m_overlay->graphics()->append(m_borderGraphic);
}

// Create the Lake Superior Polygon
Polygon CutGeometry::createLakeSuperiorPolygon()
{
  PolygonBuilder* polygonBuilder = new PolygonBuilder(SpatialReference::webMercator(), this);
  polygonBuilder->addPoint(-10254374.668616, 5908345.076380);
  polygonBuilder->addPoint(-10178382.525314, 5971402.386779);
  polygonBuilder->addPoint(-10118558.923141, 6034459.697178);
  polygonBuilder->addPoint(-9993252.729399, 6093474.872295);
  polygonBuilder->addPoint(-9882498.222673, 6209888.368416);
  polygonBuilder->addPoint(-9821057.766387, 6274562.532928);
  polygonBuilder->addPoint(-9690092.583250, 6241417.023616);
  polygonBuilder->addPoint(-9605207.742329, 6206654.660191);
  polygonBuilder->addPoint(-9564786.389509, 6108834.986367);
  polygonBuilder->addPoint(-9449989.747500, 6095091.726408);
  polygonBuilder->addPoint(-9462116.153346, 6044160.821855);
  polygonBuilder->addPoint(-9417652.665244, 5985145.646738);
  polygonBuilder->addPoint(-9438671.768711, 5946341.148031);
  polygonBuilder->addPoint(-9398250.415891, 5922088.336339);
  polygonBuilder->addPoint(-9419269.519357, 5855797.317714);
  polygonBuilder->addPoint(-9467775.142741, 5858222.598884);
  polygonBuilder->addPoint(-9462924.580403, 5902686.086985);
  polygonBuilder->addPoint(-9598740.325877, 5884092.264688);
  polygonBuilder->addPoint(-9643203.813979, 5845287.765981);
  polygonBuilder->addPoint(-9739406.633691, 5879241.702350);
  polygonBuilder->addPoint(-9783061.694736, 5922896.763395);
  polygonBuilder->addPoint(-9844502.151022, 5936640.023354);
  polygonBuilder->addPoint(-9773360.570059, 6019099.583107);
  polygonBuilder->addPoint(-9883306.649729, 5968977.105610);
  polygonBuilder->addPoint(-9957681.938918, 5912387.211662);
  polygonBuilder->addPoint(-10055501.612742, 5871965.858842);
  polygonBuilder->addPoint(-10116942.069028, 5884092.264688);
  polygonBuilder->addPoint(-10111283.079633, 5933406.315128);
  polygonBuilder->addPoint(-10214761.742852, 5888134.399970);
  polygonBuilder->addPoint(-10254374.668616, 5901877.659929);
  return polygonBuilder->toPolygon();
}

// Create the U.S./Canada Border Polyline
Polyline CutGeometry::createBorderPolyline()
{
  PolylineBuilder* polylineBuilder = new PolylineBuilder(SpatialReference::webMercator(), this);
  polylineBuilder->addPoint(-9981328.687124, 6111053.281447);
  polylineBuilder->addPoint(-9946518.044066, 6102350.620682);
  polylineBuilder->addPoint(-9872545.427566, 6152390.920079);
  polylineBuilder->addPoint(-9838822.617103, 6157830.083057);
  polylineBuilder->addPoint(-9446115.050097, 5927209.572793);
  polylineBuilder->addPoint(-9430885.393759, 5876081.440801);
  polylineBuilder->addPoint(-9415655.737420, 5860851.784463);
  return polylineBuilder->toPolyline();
}

// [WriteFile Name=CutGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CUTGEOMETRY_H
#define CUTGEOMETRY_H

// ArcGIS Maps SDK headers
#include "Polygon.h"
#include "Polyline.h"

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class Graphic;
class GraphicsOverlay;
}

class CutGeometry : public QQuickItem
{
  Q_OBJECT

public:
  explicit CutGeometry(QQuickItem* parent = nullptr);
  ~CutGeometry() override = default;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void cutPolygon();
  Q_INVOKABLE void resetPolygon();

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::Graphic* m_lakeSuperiorGraphic = nullptr;
  Esri::ArcGISRuntime::Graphic* m_borderGraphic = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_overlay = nullptr;

private:
  void createGraphics();
  Esri::ArcGISRuntime::Polygon createLakeSuperiorPolygon();
  Esri::ArcGISRuntime::Polyline createBorderPolyline();
};

#endif // CUTGEOMETRY_H

// [WriteFile Name=CutGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

CutGeometrySample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Button {
        id: cutOrResetButton
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }

        text: "Cut"
        onClicked: {
            if (cutOrResetButton.text === "Cut")
            {
                cutPolygon();
                cutOrResetButton.text = "Reset";
            }
            else
            {
                cutOrResetButton.text = "Cut";
                resetPolygon();
            }
        }
    }
}

// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "CutGeometry.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("CutGeometry"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  CutGeometry::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Geometry/CutGeometry/CutGeometry.qml"));

  view.show();

  return app.exec();
}
