Format coordinates in a variety of common notations.

Use case

The coordinate formatter can format a map location in WGS84 in a number of common coordinate notations. Parsing one of these formats to a location is also supported. Formats include decimal degrees; degrees, minutes, seconds; Universal Transverse Mercator (UTM), and United States National Grid (USNG).

How to use the sample

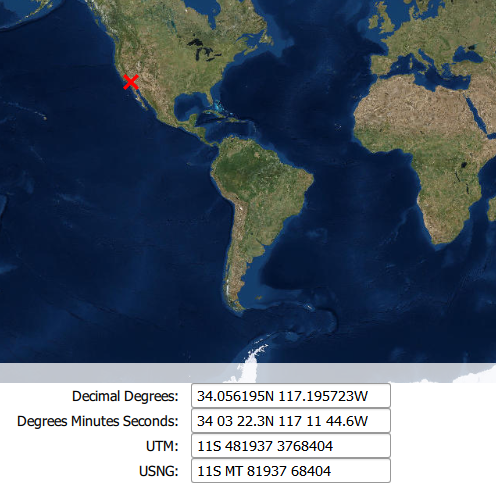

Click on the map to see a callout with the clicked location’s coordinate formatted in 4 different ways. You can also put a coordinate string in any of these formats in the text field. Hit Enter and the coordinate string will be parsed to a map location which the callout will move to.

How it works

Get or create a map Point with a spatial reference.
Use one of the static “to” methods on CoordinateFormatter such as CoordinateFormatter::toLatitudeLongitude(point, LatitudeLongitudeFormat::DecimalDegrees, 4) to get the formatted string.
To go from a formatted string to a Point, use one of the “from” static methods like CoordinateFormatter::fromUtm(coordinateString, map.spatialReference(), UtmConversionMode::LatitudeBandIndicators).

Relevant API

CoordinateFormatter
LatitudeLongitudeFormat
UtmConversionMode

Sample Code

FormatCoordinates.cpp

FormatCoordinates.h

FormatCoordinates.qml

main.cpp

main.qml

// [WriteFile Name=FormatCoordinates, Category=Geometry]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "FormatCoordinates.h"

// ArcGIS Maps SDK headers
#include "CoordinateFormatter.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"

using namespace Esri::ArcGISRuntime;

namespace
{
  // Initial point marker 'X' symbol appears.
  const Point startPoint(-117.195723, 34.056195, SpatialReference::wgs84());
}

FormatCoordinates::FormatCoordinates(QObject* parent) :
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISImageryStandard, this)),
  m_graphicsOverlay(new GraphicsOverlay(this))
{
  // create a graphic
  SimpleMarkerSymbol* symbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::X, QColor(Qt::red), 15.0, this);

  Graphic* graphic = new Graphic(startPoint, symbol, this);

  // and add insert the graphic
  m_graphicsOverlay->graphics()->append(graphic);
}

FormatCoordinates::~FormatCoordinates() = default;

void FormatCoordinates::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<FormatCoordinates>("Esri.Samples", 1, 0, "FormatCoordinatesSample");
}

// handle case where the user changed one of the text fields
void FormatCoordinates::handleTextUpdate(QString textType, QString text)
{
  Point point = createPointFromText(textType, text);
  handleLocationUpdate(std::move(point));
}

// handle case where user clicked on the map
void FormatCoordinates::handleLocationUpdate(Point point)
{
  if (!point.isEmpty())
  {
    m_mapView->graphicsOverlays()->at(0)->graphics()->at(0)->setGeometry(point);
    setTextFromPoint(point);
  }
}

Point FormatCoordinates::createPointFromText(const QString& textType, const QString& text) const
{
  //! [FormatCoordinates CoordinateFormatter various text to point]
  if (strDecimalDegrees() == textType
      || strDegreesMinutesSeconds() == textType) {
    return CoordinateFormatter::fromLatitudeLongitude(text, m_map->spatialReference());
  }
  if (strUsng() == textType) {
    return CoordinateFormatter::fromUsng(text, m_map->spatialReference());
  }
  if (strUtm() == textType) {
    return CoordinateFormatter::fromUtm(text, m_map->spatialReference(), UtmConversionMode::LatitudeBandIndicators);
  }
  return Point();
  //! [FormatCoordinates CoordinateFormatter various text to point]
}

void FormatCoordinates::setTextFromPoint(Point point)
{
  // last parm = decimal places
  m_coordinatesInDD = CoordinateFormatter::toLatitudeLongitude(point, LatitudeLongitudeFormat::DecimalDegrees, 6);

  // last parm = decimal places
  m_coordinatesInDMS = CoordinateFormatter::toLatitudeLongitude(point, LatitudeLongitudeFormat::DegreesMinutesSeconds, 1);

  //! [FormatCoordinates CoordinateFormatter point to USNG]
  int decimalPlaces = 5;
  bool addSpaces = true;
  m_coordinatesInUsng = CoordinateFormatter::toUsng(point, decimalPlaces, addSpaces);
  //! [FormatCoordinates CoordinateFormatter point to USNG]

  // last parm = add spaces
  m_coordinatesInUtm = CoordinateFormatter::toUtm(point, UtmConversionMode::LatitudeBandIndicators, true);

  emit coordinatesChanged();
}

QString FormatCoordinates::coordinatesInDD() const
{
  return m_coordinatesInDD;
}

QString FormatCoordinates::coordinatesInDMS() const
{
  return m_coordinatesInDMS;
}

QString FormatCoordinates::coordinatesInUsng() const
{
  return m_coordinatesInUsng;
}

QString FormatCoordinates::coordinatesInUtm() const
{
  return m_coordinatesInUtm;
}

QString FormatCoordinates::strDecimalDegrees() const
{
  return tr("Degrees");
}

QString FormatCoordinates::strDegreesMinutesSeconds() const
{
  return tr("DMS");
}

QString FormatCoordinates::strUsng() const
{
  return tr("Usng");
}

QString FormatCoordinates::strUtm() const
{
  return tr("Utm");
}

void FormatCoordinates::setMapView(MapQuickView* mapView)
{
  if (m_mapView)
  {
    m_mapView->setMap(nullptr); // Remove map from old mapView.
    m_mapView->graphicsOverlays()->clear(); // Remove Graphics overlays from old mapView.
  }

  m_mapView = mapView;

  if (!m_mapView)
  {
    return;
  }

  // set map and graphics overlay on the map view
  m_mapView->setMap(m_map);
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // connect to the mouse clicked signal on the MapQuickView
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouseEvent)
  {
    // get the point from the mouse point
    Point mapPoint = m_mapView->screenToLocation(mouseEvent.position().x(), mouseEvent.position().y());

    // using the point, refresh the graphic and the text
    handleLocationUpdate(std::move(mapPoint));
  });

  handleLocationUpdate(startPoint);
}

// [WriteFile Name=FormatCoordinates, Category=Geometry]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef FORMATCOORDINATES_H
#define FORMATCOORDINATES_H

// ArcGIS Maps SDK headers
#include "Point.h"

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class GraphicsOverlay;
}

Q_MOC_INCLUDE("MapQuickView.h")

class FormatCoordinates : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView MEMBER m_mapView WRITE setMapView)
  Q_PROPERTY(QString coordinatesInDD READ coordinatesInDD NOTIFY coordinatesChanged)
  Q_PROPERTY(QString coordinatesInDMS READ coordinatesInDMS NOTIFY coordinatesChanged)
  Q_PROPERTY(QString coordinatesInUsng READ coordinatesInUsng NOTIFY coordinatesChanged)
  Q_PROPERTY(QString coordinatesInUtm READ coordinatesInUtm NOTIFY coordinatesChanged)
  Q_PROPERTY(QString strDecimalDegrees READ strDecimalDegrees CONSTANT)
  Q_PROPERTY(QString strDegreesMinutesSeconds READ strDegreesMinutesSeconds CONSTANT)
  Q_PROPERTY(QString strUsng READ strUsng CONSTANT)
  Q_PROPERTY(QString strUtm READ strUtm CONSTANT)

public:
  explicit FormatCoordinates(QObject* parent = nullptr);
  ~FormatCoordinates() override;

  static void init();
  Q_INVOKABLE void handleTextUpdate(QString textType, QString text);
  Q_INVOKABLE void handleLocationUpdate(Esri::ArcGISRuntime::Point point);

signals:
  void coordinatesChanged();

private:
  QString coordinatesInDD() const;
  QString coordinatesInDMS() const;
  QString coordinatesInUsng() const;
  QString coordinatesInUtm() const;
  QString strDecimalDegrees() const;
  QString strDegreesMinutesSeconds() const;
  QString strUsng() const;
  QString strUtm() const;

  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  Esri::ArcGISRuntime::Point createPointFromText(const QString& textType, const QString& text) const;
  void setTextFromPoint(Esri::ArcGISRuntime::Point point);

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;

  QString m_coordinatesInDD;
  QString m_coordinatesInDMS;
  QString m_coordinatesInUsng;
  QString m_coordinatesInUtm;
};

#endif // FORMATCOORDINATES_H

// [WriteFile Name=FormatCoordinates, Category=Geometry]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    clip: true

    readonly property int fontPixelSize: 14
    property string labelSuffix: ":  "

    FormatCoordinatesSample {
        id: model
        mapView: view
    }

    Rectangle {
        anchors.fill: parent

        GridLayout {
            columns: 2
            anchors.fill: parent

            MapView {
                id: view
                Layout.fillWidth: true
                Layout.fillHeight: true
                Layout.columnSpan: 2

                Component.onCompleted: {
                    // Set the focus on MapView to initially enable keyboard navigation
                    forceActiveFocus();
                }
            }

            Text {
                id: labelDD
                font.pixelSize: fontPixelSize
                Layout.margins: 5
                horizontalAlignment: Text.AlignRight
                text: model.strDecimalDegrees + labelSuffix
            }

            TextField {
                id: textDD
                font.pixelSize: fontPixelSize
                text: model.coordinatesInDD.length === 0 ? "invalid point" : model.coordinatesInDD
                selectByMouse: true
                Layout.fillWidth: true
                Layout.margins: 5
                onAccepted: {
                    model.handleTextUpdate(model.strDecimalDegrees, text);
                }
            }

            Text {
                id: labelDMS
                font.pixelSize: fontPixelSize
                Layout.margins: 5
                horizontalAlignment: Text.AlignRight
                text: model.strDegreesMinutesSeconds + labelSuffix
            }

            TextField {
                id: textDMS
                font.pixelSize: fontPixelSize
                selectByMouse: true
                Layout.margins: 5
                text: model.coordinatesInDMS.length === 0 ? "invalid point" : model.coordinatesInDMS
                Layout.fillWidth: true
                onAccepted: {
                    model.handleTextUpdate(model.strDegreesMinutesSeconds, text);
                }
            }

            Text {
                id: labelUtm
                font.pixelSize: fontPixelSize
                Layout.margins: 5
                horizontalAlignment: Text.AlignRight
                text: model.strUtm + labelSuffix
            }

            TextField {
                id: textUtm
                font.pixelSize: fontPixelSize
                text: model.coordinatesInUtm.length === 0 ? "invalid point" : model.coordinatesInUtm
                selectByMouse: true
                Layout.fillWidth: true
                Layout.margins: 5
                onAccepted: {
                    model.handleTextUpdate(model.strUtm, text);
                }
            }

            Text {
                id: labelUsng
                font.pixelSize: fontPixelSize
                Layout.margins: 5
                horizontalAlignment: Text.AlignRight
                text: model.strUsng + labelSuffix
            }

            TextField {
                id: textUsng
                font.pixelSize: fontPixelSize
                text: model.coordinatesInUsng.length === 0 ? "invalid point" : model.coordinatesInUsng
                selectByMouse: true
                Layout.fillWidth: true
                Layout.margins: 5
                onAccepted: {
                    model.handleTextUpdate(model.strUsng, text);
                }
            }
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "FormatCoordinates.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

using namespace Esri::ArcGISRuntime;

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("FormatCoordinates"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  FormatCoordinates::init();

  // Initialize application view
  QQmlApplicationEngine engine;

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // On some linux platforms the string 'linux' is replaced with 1.
  // Fix the replacement paths which were created.
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Geometry/FormatCoordinates/main.qml"));

  return app.exec();
}

// [WriteFile Name=FormatCoordinates, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick.Controls

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    FormatCoordinates {
        anchors.fill: parent
    }
}

Use case

How to use the sample

How it works

Relevant API

Tags

Sample Code
