Project

// [WriteFile Name=ProjectGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ProjectGeometry.h"

// ArcGIS Maps SDK headers
#include "CalloutData.h"
#include "Envelope.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

ProjectGeometry::ProjectGeometry(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

void ProjectGeometry::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ProjectGeometry>("Esri.Samples", 1, 0, "ProjectGeometrySample");
  qmlRegisterUncreatableType<CalloutData>("Esri.Samples", 1, 0, "CalloutData", "CalloutData is an uncreatable type");
}

void ProjectGeometry::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // connect to mouse clicked signal
  connect(m_mapView, &MapQuickView::mouseClicked, this, &ProjectGeometry::onMouseClicked);

  // Create a map using a topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  // Set initial viewpoint to Minneapolis
  Viewpoint initialViewpoint(Envelope(-10995912.335747, 5267868.874421, -9880363.974046, 5960699.183877, SpatialReference::webMercator()));
  m_map->setInitialViewpoint(initialViewpoint);

  // Add a GraphicsOverlay
  GraphicsOverlay* overlay = new GraphicsOverlay(this);
  m_mapView->graphicsOverlays()->append(overlay);

  // Add a Point Graphic
  SimpleMarkerSymbol* sms = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor("red"), 5.0f /*size*/, this);
  m_inputGraphic = new Graphic(this);
  m_inputGraphic->setSymbol(sms);
  overlay->graphics()->append(m_inputGraphic);

  // Set map to map view
  m_mapView->setMap(m_map);

  // Set up callout data
  m_calloutData = m_mapView->calloutData();
  m_calloutData->setTitle(QStringLiteral("Coordinates"));
}

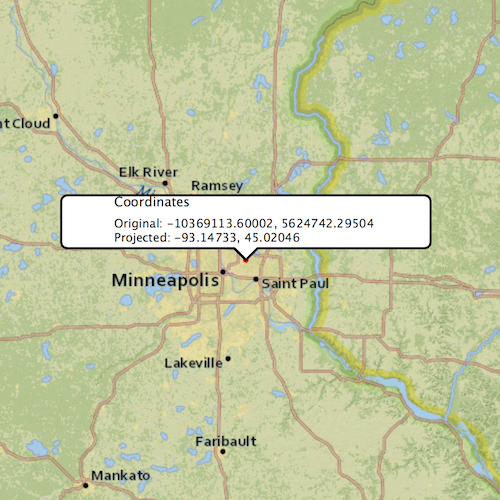

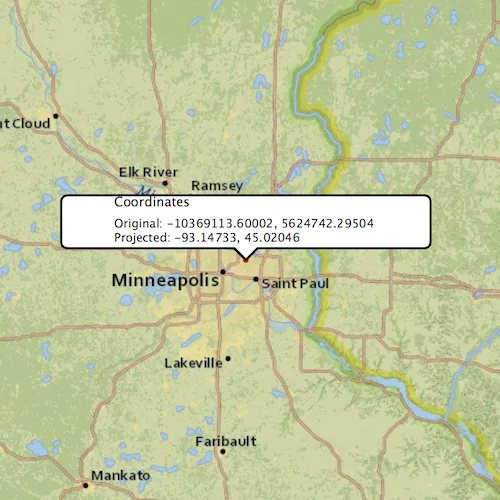

void ProjectGeometry::onMouseClicked(QMouseEvent& event)
{
  // get the mouse click as a point
  const Point originalPoint = m_mapView->screenToLocation(event.position().x(), event.position().y());

  // show the clicked location on the map with a graphic
  m_inputGraphic->setGeometry(originalPoint);

  // create the output SpatialReference by specifying a well known ID (WKID)
  const SpatialReference spatialReference(4326);

  // project the web mercator point to WGS84
  const Point projectedPoint = geometry_cast<Point>(GeometryEngine::project(originalPoint, spatialReference));

  // update callout data
  m_calloutData->setLocation(originalPoint);
  const QString ox = QString::number(originalPoint.x(), 'f', 5);
  const QString oy = QString::number(originalPoint.y(), 'f', 5);
  const QString px = QString::number(projectedPoint.x(), 'f', 5);
  const QString py = QString::number(projectedPoint.y(), 'f', 5);
  m_calloutData->setDetail(QString("Original: %1, %2\nProjected: %3, %4").arg(ox, oy, px, py));
  m_calloutData->setVisible(true);
}

// [WriteFile Name=ProjectGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef PROJECTGEOMETRY_H
#define PROJECTGEOMETRY_H

// Qt headers
#include <QMouseEvent>
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class Graphic;
class CalloutData;
}

class ProjectGeometry : public QQuickItem
{
  Q_OBJECT

public:
  explicit ProjectGeometry(QQuickItem* parent = nullptr);
  ~ProjectGeometry() override = default;

  void componentComplete() override;
  static void init();

private slots:
  void onMouseClicked(QMouseEvent& event);

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::Graphic* m_inputGraphic = nullptr;
  Esri::ArcGISRuntime::CalloutData* m_calloutData = nullptr;
};

#endif // PROJECTGEOMETRY_H

// [WriteFile Name=ProjectGeometry, Category=Geometry]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Window
import QtQuick.Controls
import Esri.Samples
import Esri.ArcGISRuntime.Toolkit

ProjectGeometrySample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        // Declare a callout
        Callout {
            id: callout
            calloutData: mapView.calloutData
            accessoryButtonVisible: false
            autoAdjustWidth: true
            maxWidth: 350
            leaderPosition: Callout.LeaderPosition.Automatic
        }
    }
}

// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ProjectGeometry.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Other headers
#include "Esri/ArcGISRuntime/Toolkit/register.h"

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ProjectGeometry"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ProjectGeometry::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  Esri::ArcGISRuntime::Toolkit::registerComponents(*(view.engine()));

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Geometry/ProjectGeometry/ProjectGeometry.qml"));

  view.show();

  return app.exec();
}
