Display a scene with a terrain surface and some imagery.
Use case
Scene views are 3D representations of real-world areas and objects. Scene views are helpful for visualizing complex datasets where 3D relationships, topography, and elevation of elements are important factors.
How to use the sample

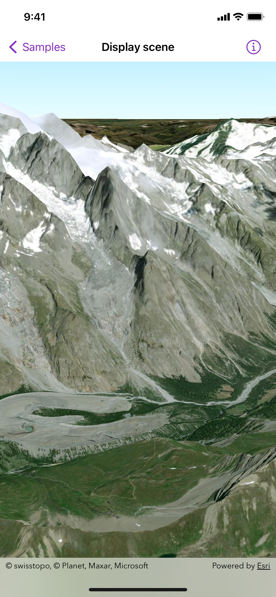

When loaded, the sample will display a scene. Pan and zoom to explore the scene.
How it works
Create a Scene object with arcGISImageryStandard basemap style.
Create a Surface object.
Add an ArcGISTiledElevationSource object to the surface.
Set the surface to the scene's base surface.
Create a SceneView instance with the scene.
Relevant API
ArcGISTiledElevationSource
Scene
SceneView
Surface
Tags
3D, basemap, elevation, scene, surface
Sample Code
DisplaySceneView.swift
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
// Copyright 2022 Esri//// Licensed under the Apache License, Version 2.0 (the "License");// you may not use this file except in compliance with the License.// You may obtain a copy of the License at//// https://www.apache.org/licenses/LICENSE-2.0//// Unless required by applicable law or agreed to in writing, software// distributed under the License is distributed on an "AS IS" BASIS,// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.// See the License for the specific language governing permissions and// limitations under the License.import SwiftUI
import ArcGIS
structDisplaySceneView: View{
/// A scene with imagery basemap style and a tiled elevation source.@StateObjectprivatevar scene = makeScene()
/// Makes a scene.privatestaticfuncmakeScene() -> ArcGIS.Scene {
// Creates a scene.let scene =Scene(basemapStyle: .arcGISImageryStandard)
// Sets the initial viewpoint of the scene. scene.initialViewpoint =Viewpoint(
latitude: 45.74,
longitude: 6.88,
scale: 4_500,
camera: Camera(
latitude: 45.74,
longitude: 6.88,
altitude: 4500,
heading: 10,
pitch: 70,
roll: 0 )
)
// Creates a surface.let surface =Surface()
// Creates a tiled elevation source.let worldElevationServiceURL =URL(string: "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer")!let elevationSource =ArcGISTiledElevationSource(url: worldElevationServiceURL)
// Adds the elevation source to the surface. surface.addElevationSource(elevationSource)
// Sets the surface to the scene's base surface. scene.baseSurface = surface
return scene
}
var body: someView {
// Creates a scene view with the scene.SceneView(scene: scene)
}
}
