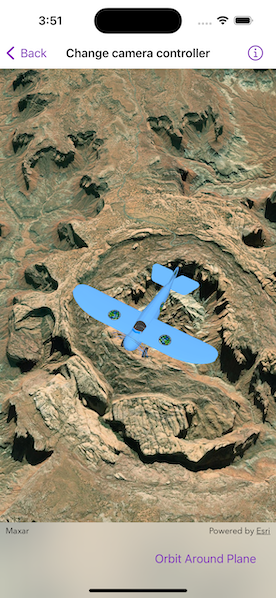

Change camera controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
// Copyright 2023 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import SwiftUI

struct ChangeCameraControllerView: View {
    /// A scene with imagery basemap style and a tiled elevation source.
    @State private var scene: ArcGIS.Scene = {
        // Creates a scene.
        let scene = Scene(basemapStyle: .arcGISImageryStandard)

        // Sets the initial viewpoint of the scene.
        scene.initialViewpoint = Viewpoint(
            latitude: .nan,
            longitude: .nan,
            scale: .nan,
            camera: Camera(
                lookingAt: Point(
                    x: -109.937516,
                    y: 38.456714,
                    spatialReference: .wgs84
                ),
                distance: 5500,
                heading: 150,
                pitch: 20,
                roll: 0
            )
        )

        // Creates a surface.
        let surface = Surface()

        // Creates a tiled elevation source.
        let worldElevationServiceURL = URL(
            string: "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
        )!
        let elevationSource = ArcGISTiledElevationSource(url: worldElevationServiceURL)

        // Adds the elevation source to the surface.
        surface.addElevationSource(elevationSource)

        // Sets the surface to the scene's base surface.
        scene.baseSurface = surface
        return scene
    }()

    /// A graphics overlay containing an airplane graphic.
    @State private var graphicsOverlay: GraphicsOverlay = {
        let planePosition = Point(x: -109.937516, y: 38.456714, z: 5000, spatialReference: .wgs84)
        let planeSymbol = ModelSceneSymbol(url: .bristol, scale: 100)
        let planeGraphic = Graphic(geometry: planePosition, symbol: planeSymbol)
        let graphicsOverlay = GraphicsOverlay(graphics: [planeGraphic])
        graphicsOverlay.sceneProperties.surfacePlacement = .absolute
        return graphicsOverlay
    }()

    /// A Boolean value indicating whether the settings view should be presented.
    @State private var isShowingSettings = false

    /// The camera controller kind of the scene view.
    @State private var cameraControllerKind: CameraControllerKind = .globe

    enum CameraControllerKind: CaseIterable {
        case globe
        case plane
        case crater

        /// A human-readable label for the camera controller kind.
        var label: String {
            switch self {
            case .globe: return "Pan Around Globe"
            case .plane: return "Orbit Around Plane"
            case .crater: return "Orbit Around Crater"
            }
        }
    }

    /// The camera controller of the scene view.
    @State private var cameraController: CameraController = GlobeCameraController()

    var body: some View {
        SceneView(
            scene: scene,
            cameraController: cameraController,
            graphicsOverlays: [graphicsOverlay]
        )
        .toolbar {
            ToolbarItem(placement: .bottomBar) {
                Picker("Camera Controller", selection: $cameraControllerKind) {
                    ForEach(CameraControllerKind.allCases, id: \.self) { kind in
                        Text(kind.label)
                    }
                }
                .task(id: cameraControllerKind) {
                    cameraController = makeCameraController(kind: cameraControllerKind)
                }
            }
        }
    }

    /// Creates a camera controller with the given kind of camera controller.
    /// - Parameter kind: The camera controller kind.
    /// - Returns: A camera controller.
    func makeCameraController(kind: CameraControllerKind) -> CameraController {
        switch kind {
        case .crater:
            let targetLocation = Point(
                x: -109.929589,
                y: 38.437304,
                z: 1700,
                spatialReference: .wgs84
            )
            let cameraController = OrbitLocationCameraController(
                target: targetLocation,
                distance: 5000
            )
            cameraController.cameraPitchOffset = 3
            cameraController.cameraHeadingOffset = 150
            return cameraController
        case .plane:
            let targetGraphic = graphicsOverlay.graphics.first!
            let cameraController = OrbitGeoElementCameraController(
                target: targetGraphic,
                distance: 5000
            )
            cameraController.cameraPitchOffset = 30
            cameraController.cameraHeadingOffset = 150
            return cameraController
        case .globe:
            return GlobeCameraController()
        }
    }
}

private extension URL {
    static var bristol: URL { Bundle.main.url(forResource: "Bristol", withExtension: "dae", subdirectory: "Bristol")! }
}
