Navigate route

View on GitHub

Use a routing service to navigate between two points.

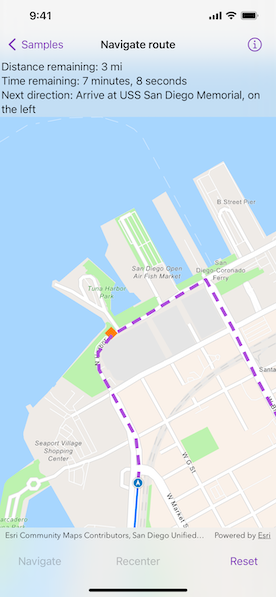

Image of navigate route

Use case

Navigation is often used by field workers while traveling between two points to get live directions based on their location.

How to use the sample

Tap "Navigate" to simulate traveling and to receive directions from a preset starting point to a preset destination. Tap "Reset" to start the simulation from the beginning.

How it works

  1. Create an RouteTask using a URL to an online route service.
  2. Generate default RouteParameters using RouteTask.makeDefaultParameters().
  3. Set returnsRoutes, returnsStops, and returnsDirections on the parameters to true.
  4. Assign all Stop objects to the route parameters using RouteParameters.setStops(_:).
  5. Solve the route using RouteTask.solveRoute(using:) to get a RouteResult.
  6. Create an RouteTracker using the route result, and the index of the desired route to take.
  7. Create a RouteTrackerLocationDataSource with the route tracker and a SimulatedLocationDataSource object to snap the location display to the route.
  8. Use RouteTracker.trackingStatus to be notified of TrackingStatus changes, and use them to display updated route information. TrackingStatus includes a variety of information on the route progress, such as the remaining distance, remaining geometry or traversed geometry (represented by an Polyline), or the remaining time (TimeInterval), amongst others.
  9. Use RouteTracker.voiceGuidances to be notified of new voice guidances. From the voice guidance, get the VoiceGuidance.text representing the directions and use a text-to-speech engine to output the maneuver directions.
  10. You can also query the tracking status for the current DirectionManeuver index, retrieve that maneuver from the Route, and get its direction text to display in the GUI.
  11. To establish whether the destination has been reached, get the destinationStatus from the tracking status. If the destination status is reached and the remainingDestinationCount is 1, you have arrived at the destination and can stop routing. If there are several destinations on your route and the remaining destination count is greater than 1, switch the route tracker to the next destination.

Relevant API

  • DestinationStatus
  • DirectionManeuver
  • Location
  • LocationDataSource
  • Route
  • RouteParameters
  • RouteTask
  • RouteTracker
  • RouteTrackerLocationDataSource
  • SimulatedLocationDataSource
  • Stop
  • VoiceGuidance

About the data

The route taken in this sample goes from the San Diego Convention Center, site of the annual Esri User Conference, to the Fleet Science Center, San Diego.

Tags

directions, maneuver, navigation, route, turn-by-turn, voice

Sample Code

NavigateRouteView.swift
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
// Copyright 2023 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import ArcGIS
import AVFoundation
import SwiftUI

struct NavigateRouteView: View {
    /// The view model for this sample.
    @StateObject private var model = Model()

    var body: some View {
        MapView(
            map: model.map,
            viewpoint: model.viewpoint,
            graphicsOverlays: model.graphicsOverlays
        )
        .onViewpointChanged(kind: .centerAndScale) { model.viewpoint = $0 }
        .locationDisplay(model.locationDisplay)
        .errorAlert(presentingError: $model.error)
        .overlay(alignment: .top) {
            Text(model.statusText)
                .frame(maxWidth: .infinity, alignment: .leading)
                .padding(8)
                .background(.thinMaterial, ignoresSafeAreaEdges: .horizontal)
        }
        .task {
            // Solves the route and sets the navigation.
            await model.solveRoute()
            model.setNavigation()
        }
        .toolbar {
            ToolbarItemGroup(placement: .bottomBar) {
                Button("Navigate") {
                    model.isNavigatingRoute = true
                }
                .task(id: model.isNavigatingRoute) {
                    guard model.isNavigatingRoute else { return }
                    await model.startNavigation()
                }
                .disabled(model.isNavigateDisabled || model.isNavigatingRoute)

                Spacer()

                Button("Recenter") {
                    model.autoPanMode = .navigation
                }
                .disabled(!model.isNavigatingRoute || model.autoPanMode == .navigation)

                Spacer()

                Button("Reset") {
                    Task {
                        await model.resetNavigation()
                        model.isNavigatingRoute = false
                    }
                }
                .disabled(model.isResettingRoute)
            }
        }
    }
}

private extension NavigateRouteView {
    /// A view model for this sample.
    @MainActor
    class Model: ObservableObject {
        /// A Boolean value indicating whether the navigate button is disabled.
        @Published var isNavigateDisabled = true

        /// A Boolean value indicating whether the sample is navigating the route.
        @Published var isNavigatingRoute = false

        /// A Boolean value indicating whether navigation is being reset.
        @Published var isResettingRoute = false

        /// The error shown in the error alert.
        @Published var error: Error?

        /// The viewpoint of the map.
        @Published var viewpoint: Viewpoint?

        /// The current auto-pan mode.
        @Published var autoPanMode: LocationDisplay.AutoPanMode {
            didSet {
                locationDisplay.autoPanMode = autoPanMode
            }
        }

        /// The status text to display to the user.
        @Published var statusText: String = defaultStatus

        /// A map with a navigation basemap style.
        let map = Map(basemapStyle: .arcGISNavigation)

        /// The map's location display.
        let locationDisplay = LocationDisplay()

        /// The default status to display when not navigating.
        static let defaultStatus = "Directions are shown here."

        /// The route task.
        private let routeTask = RouteTask(url: .routeTask)

        /// The route result.
        private var routeResult: RouteResult?

        /// The route tracker.
        private var routeTracker: RouteTracker!

        /// The directions for the route.
        private var directions: [DirectionManeuver] = []

        /// An AVSpeechSynthesizer for text to speech.
        private let speechSynthesizer = AVSpeechSynthesizer()

        /// The graphics overlay for the stops.
        private let stopGraphicsOverlay: GraphicsOverlay

        /// The graphics overlay for the route.
        private let routeGraphicsOverlay: GraphicsOverlay

        /// Formats the time remaining for display.
        private let timeFormatter: DateComponentsFormatter = {
            let formatter = DateComponentsFormatter()
            formatter.allowedUnits = [.hour, .minute, .second]
            formatter.unitsStyle = .full
            return formatter
        }()

        /// The map's graphics overlays.
        var graphicsOverlays: [GraphicsOverlay] {
            return [stopGraphicsOverlay, routeGraphicsOverlay]
        }

        /// A graphic of the route remaining.
        private let routeRemainingGraphic: Graphic

        /// A graphic of the route traversed.
        private let routeTraversedGraphic: Graphic

        init() {
            autoPanMode = .off

            // Creates the graphics for each stop.
            let stopGraphics = stops.map {
                Graphic(
                    geometry: $0.geometry,
                    symbol: SimpleMarkerSymbol(style: .diamond, color: .orange, size: 20)
                )
            }

            // Creates the graphics for the route remaining and traversed.
            routeRemainingGraphic = Graphic(symbol: SimpleLineSymbol(style: .dash, color: .systemPurple, width: 5))
            routeTraversedGraphic = Graphic(symbol: SimpleLineSymbol(style: .solid, color: .systemBlue, width: 3))

            // Creates the graphics overlay for the stops and route.
            stopGraphicsOverlay = GraphicsOverlay(graphics: stopGraphics)
            routeGraphicsOverlay = GraphicsOverlay(graphics: [routeRemainingGraphic, routeTraversedGraphic])
        }

        /// Solves the route.
        func solveRoute() async {
            do {
                // Creates the default parameters from the route task.
                let parameters = try await routeTask.makeDefaultParameters()

                // Configures the parameters.
                parameters.returnsDirections = true
                parameters.returnsStops = true
                parameters.returnsRoutes = true
                parameters.outputSpatialReference = .wgs84

                // Sets the stops on the parameters.
                parameters.setStops(stops)

                // Solves the route based on the parameters.
                routeResult = try await routeTask.solveRoute(using: parameters)

                // Enables the navigate button.
                isNavigateDisabled = false
            } catch {
                self.error = error
            }
        }

        /// Sets the route tracker and location display's data source with a solved route. Updates
        /// the list of directions, the route ahead graphic, and the map's viewpoint.
        func setNavigation() {
            guard let routeResult else { return }

            // Creates a route tracker from the route results.
            routeTracker = RouteTracker(routeResult: routeResult, routeIndex: 0, skipsCoincidentStops: true)
            guard let routeTracker else { return }

            routeTracker.voiceGuidanceUnitSystem = Locale.current.usesMetricSystem ? .metric : .imperial

            // Gets the route and its geometry from the route result.
            guard let firstRoute = routeResult.routes.first,
                  let routeGeometry = firstRoute.geometry else {
                return
            }

            // Updates the directions.
            directions = firstRoute.directionManeuvers

            // Creates the mock data source from the route's geometry.
            let densifiedRoute = GeometryEngine.geodeticDensify(
                routeGeometry,
                maxSegmentLength: 50,
                lengthUnit: .meters,
                curveType: .geodesic
            ) as! Polyline
            let mockDataSource = SimulatedLocationDataSource(polyline: densifiedRoute)

            // Creates a route tracker location data source.
            let routeTrackerLocationDataSource = RouteTrackerLocationDataSource(
                routeTracker: routeTracker,
                locationDataSource: mockDataSource
            )

            // Sets the location display's data source.
            locationDisplay.dataSource = routeTrackerLocationDataSource

            // Updates the graphics and viewpoint.
            routeRemainingGraphic.geometry = routeGeometry
            viewpoint = Viewpoint(boundingGeometry: routeGeometry, rotation: 0)
        }

        /// Starts monitoring multiple asynchronous streams of information.
        private func startTracking() async {
            await withTaskGroup(of: Void.self) { group in
                group.addTask { await self.trackAutoPanMode() }
                group.addTask { await self.trackStatus() }
                group.addTask { await self.trackVoiceGuidance() }
            }
        }

        /// Monitors the asynchronous stream of tracking statuses.
        ///
        /// When new statuses are delivered, update the route's traversed and remaining graphics.
        private func trackStatus() async {
            for await status in routeTracker.$trackingStatus {
                if let status {
                    routeTraversedGraphic.geometry = status.routeProgress.traversedGeometry
                    routeRemainingGraphic.geometry = status.routeProgress.remainingGeometry

                    switch status.destinationStatus {
                    case .notReached, .approaching:
                        statusText = """
                        Distance remaining: \(status.routeProgress.remainingDistance.distanceRemainingText)
                        Time remaining: \(timeFormatter.string(from: status.routeProgress.remainingTime)!)
                        """
                        if status.currentManeuverIndex + 1 < directions.count {
                            statusText.append("\nNext direction: \(directions[status.currentManeuverIndex + 1].text)")
                        }
                    case .reached:
                        if status.remainingDestinationCount > 1 {
                            statusText = "Intermediate stop reached, continue to next stop."
                            try? await routeTracker.switchToNextDestination()
                        } else {
                            await locationDisplay.dataSource.stop()
                        }
                    @unknown default:
                        break
                    }
                }
            }
        }

        /// Monitors the asynchronous stream of voice guidances.
        private func trackVoiceGuidance() async {
            for try await voiceGuidance in routeTracker.voiceGuidances {
                speechSynthesizer.stopSpeaking(at: .word)
                speechSynthesizer.speak(AVSpeechUtterance(string: voiceGuidance.text))
            }
        }

        /// Monitors the asynchronous stream of auto-pan modes.
        ///
        /// Updates the current auto-pan mode if it does not match the location display's auto-pan
        /// mode.
        private func trackAutoPanMode() async {
            for await mode in locationDisplay.$autoPanMode {
                if autoPanMode != mode {
                    autoPanMode = mode
                }
            }
        }

        /// Starts navigating the route.
        func startNavigation() async {
            do {
                try await locationDisplay.dataSource.start()
                locationDisplay.autoPanMode = .navigation
                await startTracking()
            } catch {
                self.error = error
            }
        }

        /// Resets relevant stateful properties.
        func resetNavigation() async {
            guard !isResettingRoute else { return }
            isResettingRoute = true
            locationDisplay.autoPanMode = .off
            await locationDisplay.dataSource.stop()
            setNavigation()
            routeTraversedGraphic.geometry = nil
            speechSynthesizer.stopSpeaking(at: .immediate)
            statusText = Self.defaultStatus
            isResettingRoute = false
        }
    }

    /// The stops for this sample.
    static var stops: [Stop] {
        let one = Stop(point: Point(x: -117.160386727, y: 32.706608, spatialReference: .wgs84))
        one.name = "San Diego Convention Center"
        let two = Stop(point: Point(x: -117.173034, y: 32.712329, spatialReference: .wgs84))
        two.name = "USS San Diego Memorial"
        let three = Stop(point: Point(x: -117.147230, y: 32.730467, spatialReference: .wgs84))
        three.name = "RH Fleet Aerospace Museum"
        return [one, two, three]
    }
}

private extension TrackingDistance {
    var distanceRemainingText: String {
        "\(displayText) \(self.displayTextUnits.abbreviation)"
    }
}

private extension URL {
    /// The URL for the route task.
    static var routeTask: URL {
        URL(string: "http://sampleserver7.arcgisonline.com/server/rest/services/NetworkAnalysis/SanDiego/NAServer/Route")!
    }
}

Your browser is no longer supported. Please upgrade your browser for the best experience. See our browser deprecation post for more details.
