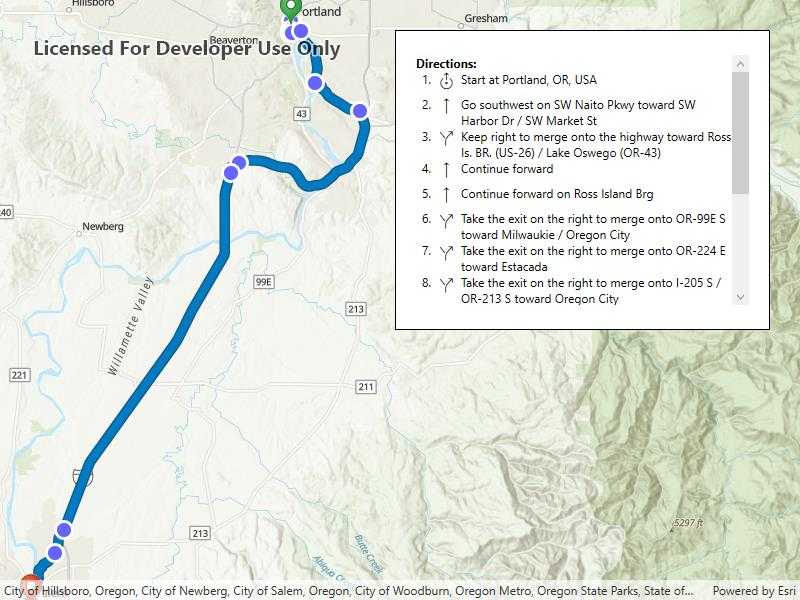

Display route layer

<UserControl x:Class="ArcGIS.WPF.Samples.DisplayRouteLayer.DisplayRouteLayer"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:converters="clr-namespace:ArcGIS.WPF.Viewer.Converters"
             xmlns:esri="http://schemas.esri.com/arcgis/runtime/2013">
    <UserControl.Resources>
        <converters:DirectionPointTypeToIconConverter x:Key="Converter" />
    </UserControl.Resources>
    <Grid>
        <esri:MapView x:Name="MyMapView" />
        <Border Height="300" Style="{StaticResource BorderStyle}">
            <ScrollViewer Height="250" VerticalScrollBarVisibility="Auto">
                <StackPanel>
                    <TextBlock FontWeight="Bold" Text="Directions:" />
                    <ItemsControl x:Name="DirectionsList">
                        <ItemsControl.ItemTemplate>
                            <DataTemplate>
                                <Grid>
                                    <Grid.ColumnDefinitions>
                                        <ColumnDefinition Width="22" />
                                        <ColumnDefinition Width="25" />
                                        <ColumnDefinition Width="*" />
                                    </Grid.ColumnDefinitions>
                                    <TextBlock Margin="0,0,5,5"
                                               HorizontalAlignment="Right"
                                               Text="{Binding Attributes[Sequence], StringFormat={}{0}.}" />
                                    <TextBlock Grid.Column="1"
                                               Margin="0,0,5,5"
                                               FontFamily="{StaticResource CalciteUIIconsMediumFontFamily}"
                                               FontSize="24"
                                               Text="{Binding Attributes[DirectionPointType], Converter={StaticResource Converter}}" />
                                    <TextBlock Grid.Column="2"
                                               Text="{Binding Attributes[DisplayText]}"
                                               TextWrapping="Wrap" />
                                </Grid>
                            </DataTemplate>
                        </ItemsControl.ItemTemplate>
                    </ItemsControl>
                </StackPanel>
            </ScrollViewer>
        </Border>
    </Grid>
</UserControl>

// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.
// You may obtain a copy of the License at: http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an
// "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific
// language governing permissions and limitations under the License.

using Esri.ArcGISRuntime;
using Esri.ArcGISRuntime.Data;
using Esri.ArcGISRuntime.Mapping;
using Esri.ArcGISRuntime.Portal;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace ArcGIS.WPF.Samples.DisplayRouteLayer
{
    [ArcGIS.Samples.Shared.Attributes.Sample(
        name: "Display route layer",
        category: "Layers",
        description: "Display a route layer and its directions using a feature collection.",
        instructions: "Pan and zoom to view the route displayed by the feature collection layer. Toggle to view or hide the turn-by-turn directions.",
        tags: new[] { "directions", "feature collection", "route layer" })]
    [ArcGIS.Samples.Shared.Attributes.OfflineData()]
    [ArcGIS.Samples.Shared.Attributes.ClassFile("Converters\\DirectionPointTypeToIconConverter.cs")]

    public partial class DisplayRouteLayer
    {
        private readonly string _itemId = "0e3c8e86b4544274b45ecb61c9f41336";

        public DisplayRouteLayer()
        {
            InitializeComponent();
            _ = Initialize();
        }

        private async Task Initialize()
        {
            // Create a new map with the topographic basemap style.
            MyMapView.Map = new Map(BasemapStyle.ArcGISTopographic);

            try
            {
                // Create a portal instance.
                ArcGISPortal portal = await ArcGISPortal.CreateAsync();

                // Get the portal item containing route data.
                PortalItem item = await PortalItem.CreateAsync(portal, _itemId);

                // Create a collection of feature layers, then load.
                var featureCollection = new FeatureCollection(item);
                await featureCollection.LoadAsync();

                if (featureCollection.LoadStatus == LoadStatus.Loaded)
                {
                    // Select all tables.
                    IList<FeatureCollectionTable> tables = featureCollection.Tables;

                    // List the turn-by-turn directions.
                    FeatureCollectionTable directionPoints = tables.Where(t => t.TableName == "DirectionPoints").FirstOrDefault();
                    DirectionsList.ItemsSource = directionPoints;

                    // Create a FeatureCollectionLayer and add it to the map.
                    FeatureCollectionLayer featureCollectionLayer = new FeatureCollectionLayer(featureCollection);
                    MyMapView.Map.OperationalLayers.Add(featureCollectionLayer);

                    // Set the viewpoint to the full extent of the FeatureCollectionLayer in Oregon, US.
                    await MyMapView.SetViewpointAsync(new Viewpoint(featureCollectionLayer.FullExtent));
                }
            }
            catch (Exception ex)
            {
                // Report exceptions.
                MessageBox.Show("Error: " + ex.Message, ex.GetType().Name, MessageBoxButton.OK, MessageBoxImage.Error);
            }
        }
    }
}
