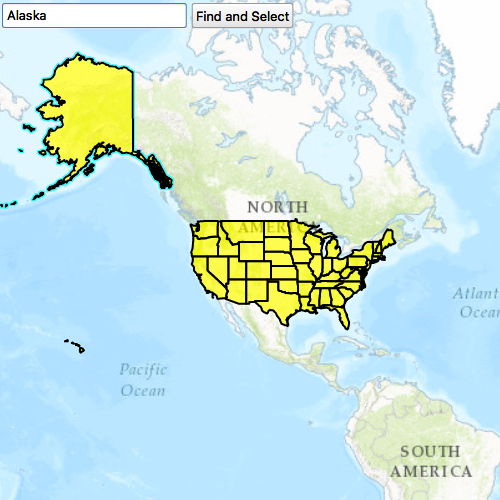

Feature layer query

// [WriteFile Name=FeatureLayerQuery, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "FeatureLayerQuery.h"

// ArcGIS Maps SDK headers
#include "Basemap.h"
#include "Feature.h"
#include "FeatureIterator.h"
#include "FeatureLayer.h"
#include "FeatureQueryResult.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "QueryParameters.h"
#include "ServiceFeatureTable.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleRenderer.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

// Qt headers
#include <QColor>
#include <QFuture>
#include <QList>
#include <QUrl>
#include <QUuid>

// STL headers
#include <memory>

using namespace Esri::ArcGISRuntime;

FeatureLayerQuery::FeatureLayerQuery(QQuickItem* parent) :
  QQuickItem(parent)
{
}

FeatureLayerQuery::~FeatureLayerQuery() = default;

void FeatureLayerQuery::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<FeatureLayerQuery>("Esri.Samples", 1, 0, "FeatureLayerQuerySample");
}

void FeatureLayerQuery::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);
  m_map->setInitialViewpoint(Viewpoint(Point(-11e6, 5e6, SpatialReference(102100)), 9e7));

  // Set map to map view
  m_mapView->setMap(m_map);

  // create the feature table
  m_featureTable = new ServiceFeatureTable(QUrl("https://services.arcgis.com/jIL9msH9OI208GCb/arcgis/rest/services/USA_Daytime_Population_2016/FeatureServer/0"), this);
  // create the feature layer using the feature table
  m_featureLayer = new FeatureLayer(m_featureTable, this);

  // line symbol for the outline
  SimpleLineSymbol* outline = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor("black"), 2.0f, this);
  // fill symbol
  SimpleFillSymbol* sfs = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(255, 255, 0, 153), outline, this);
  // create the renderer using the symbology created above
  SimpleRenderer* renderer = new SimpleRenderer(sfs, this);
  // set the renderer for the feature layer
  m_featureLayer->setRenderer(renderer);
  m_featureLayer->setMaxScale(10000);

  // add the feature layer to the map
  m_map->operationalLayers()->append(m_featureLayer);

  connect(m_featureTable, &ServiceFeatureTable::loadStatusChanged, this, [this](LoadStatus loadStatus)
  {
    loadStatus == LoadStatus::Loaded ? m_initialized = true : m_initialized = false;
    emit layerInitializedChanged();
  });
}

bool FeatureLayerQuery::layerInitialized() const
{
  return m_initialized;
}

void FeatureLayerQuery::runQuery(const QString& stateName)
{
  // create a query parameter object and set the where clause
  QueryParameters queryParams;
  queryParams.setWhereClause(QString("STATE_NAME LIKE '" + formatStateNameForQuery(stateName) + "%'"));
  m_featureTable->queryFeaturesAsync(queryParams).then(this, [this](FeatureQueryResult* rawQueryResult)
  {
    auto queryResult = std::unique_ptr<FeatureQueryResult>(rawQueryResult);

    if (queryResult && !queryResult->iterator().hasNext())
    {
      m_queryResultsCount = 0;
      emit queryResultsCountChanged();
      return;
    }

    // clear any existing selection
    m_featureLayer->clearSelection();
    QList<Feature*> features;

    // iterate over the result object
    while (queryResult->iterator().hasNext())
    {
      Feature* feature = queryResult->iterator().next(this);
      // add each feature to the list
      features.append(feature);
    }

    // select the feature
    m_featureLayer->selectFeatures(features);
    // zoom to the first feature
    m_mapView->setViewpointGeometryAsync(features.at(0)->geometry(), 30);
    // set the count for QML property
    m_queryResultsCount = static_cast<int>(features.count());
    emit queryResultsCountChanged();
  });
}

QString FeatureLayerQuery::formatStateNameForQuery(const QString& stateName) const
{
  // format state names as expected by the service, for instance "Rhode Island"
  if (stateName.isEmpty())
    return QString();

  const QStringList words = stateName.split(" ", Qt::SkipEmptyParts);
  QStringList formattedWords;

  for (const QString& word : words)
  {
    QString formattedWord = word.toLower();
    formattedWord[0] = formattedWord[0].toUpper();
    formattedWords.append(formattedWord);
  }

  return QString(formattedWords.join(" "));
}

int FeatureLayerQuery::queryResultsCount() const
{
  return m_queryResultsCount;
}

// [WriteFile Name=FeatureLayerQuery, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef FEATURE_LAYER_QUERY_H
#define FEATURE_LAYER_QUERY_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class Map;
  class MapQuickView;
  class FeatureLayer;
  class ServiceFeatureTable;
}

class FeatureLayerQuery : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool layerInitialized READ layerInitialized NOTIFY layerInitializedChanged)
  Q_PROPERTY(int queryResultsCount READ queryResultsCount NOTIFY queryResultsCountChanged)

public:
  explicit FeatureLayerQuery(QQuickItem* parent = nullptr);
  ~FeatureLayerQuery() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void runQuery(const QString& stateName);

signals:
  void layerInitializedChanged();
  void queryResultsCountChanged();

private:
  bool layerInitialized() const;
  int queryResultsCount() const;

private:
  QString formatStateNameForQuery(const QString& stateName) const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
  Esri::ArcGISRuntime::ServiceFeatureTable* m_featureTable = nullptr;
  bool m_initialized = false;
  int m_queryResultsCount = 0;
};

#endif // FEATURE_LAYER_QUERY_H

// [WriteFile Name=FeatureLayerQuery, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

FeatureLayerQuerySample {
    id: featureLayerQuerySample
    width: 800
    height: 600

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Row {
        id: findRow

        anchors {
            top: parent.top
            bottom: mapView.top
            left: parent.left
            right: parent.right
            margins: 5
        }
        spacing: 5

        TextField {
            id: findText

            width: parent.width * 0.25
            placeholderText: "Enter a state name to select"
            inputMethodHints: Qt.ImhNoPredictiveText
            selectByMouse: true
            validator: RegularExpressionValidator{ regularExpression: /^[a-zA-Z ]*$/ }
            Keys.onReturnPressed: {
                // Call C++ invokable function to run the query
                featureLayerQuerySample.runQuery(findText.text);
            }
        }

        Button {
            text: "Find and Select"
            enabled: featureLayerQuerySample.layerInitialized
            onClicked: {
                // Call C++ invokable function to run the query
                featureLayerQuerySample.runQuery(findText.text);
            }
        }
    }

    Dialog {
        id: errorMsgDialog
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        property alias text : textLabel.text
        Text {
            id: textLabel
            text: "No state named " + findText.text.toUpperCase() + " exists."
        }
    }

    onQueryResultsCountChanged: {
        // Use the C++ property to determine if no features were returned
        if (featureLayerQuerySample.queryResultsCount === 0)
            errorMsgDialog.visible = true;
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "FeatureLayerQuery.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("FeatureLayerQuery"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  FeatureLayerQuery::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Features/FeatureLayerQuery/FeatureLayerQuery.qml"));

  view.show();

  return app.exec();
}
