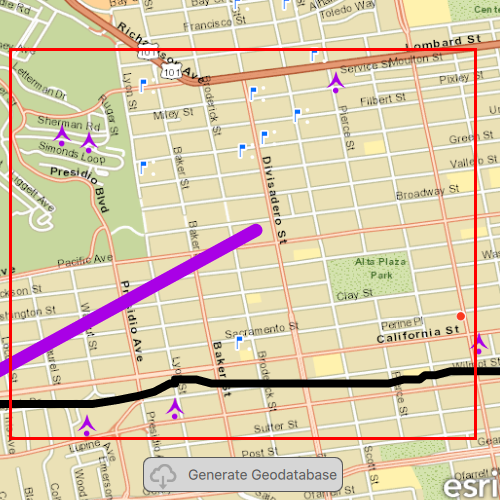

Generate geodatabase replica from feature service

// [WriteFile Name=GenerateGeodatabaseReplicaFromFeatureService, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "GenerateGeodatabaseReplicaFromFeatureService.h"

// ArcGIS Maps SDK headers
#include "ArcGISFeatureServiceInfo.h"
#include "ArcGISTiledLayer.h"
#include "Basemap.h"
#include "Envelope.h"
#include "Error.h"
#include "FeatureLayer.h"
#include "GenerateGeodatabaseJob.h"
#include "GenerateGeodatabaseParameters.h"
#include "GenerateLayerOption.h"
#include "Geodatabase.h"
#include "GeodatabaseFeatureTable.h"
#include "GeodatabaseSyncTask.h"
#include "GeometryEngine.h"
#include "IdInfo.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "ServiceFeatureTable.h"
#include "SpatialReference.h"
#include "TaskTypes.h"
#include "TileCache.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QUrl>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
  #endif

    return dataPath;
  }
} // namespace

GenerateGeodatabaseReplicaFromFeatureService::GenerateGeodatabaseReplicaFromFeatureService(QQuickItem* parent) :
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data/")
{
}

GenerateGeodatabaseReplicaFromFeatureService::~GenerateGeodatabaseReplicaFromFeatureService() = default;

void GenerateGeodatabaseReplicaFromFeatureService::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<GenerateGeodatabaseReplicaFromFeatureService>("Esri.Samples", 1, 0, "GenerateGeodatabaseReplicaFromFeatureServiceSample");
}

void GenerateGeodatabaseReplicaFromFeatureService::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  //! [Create a map using a local tile package]
  TileCache* tileCache = new TileCache(m_dataPath + "tpkx/SanFrancisco.tpkx", this);
  ArcGISTiledLayer* tiledLayer = new ArcGISTiledLayer(tileCache, this);
  Basemap* basemap = new Basemap(tiledLayer, this);
  m_map = new Map(basemap, this);
  //! [Create a map using a local tile package]

  // set an initial viewpoint
  Envelope env(-122.50017, 37.74500, -122.43843, 37.81638, SpatialReference(4326));
  Viewpoint viewpoint(env);
  m_map->setInitialViewpoint(viewpoint);

  // Set map to map view
  m_mapView->setMap(m_map);

  //! [Features GenerateGeodatabase Part 1]
  // create the GeodatabaseSyncTask
  m_syncTask = new GeodatabaseSyncTask(QUrl(m_featureServiceUrl), this);
  //! [Features GenerateGeodatabase Part 1]

  // connect to sync task doneLoading signal
  connect(m_syncTask, &GeodatabaseSyncTask::doneLoading, this, [this](const Error& error)
  {
    if (!error.isEmpty())
    {
      emit updateStatus("Generate failed");
      emit hideWindow(5000, false);
      return;
    }

    // add online feature layers to the map, and obtain service IDs
    m_featureServiceInfo = m_syncTask->featureServiceInfo();
    const auto infos = m_featureServiceInfo.layerInfos();
    for (const IdInfo& idInfo : infos)
    {
      // get the layer ID from the idInfo
      QString id = QString::number(idInfo.infoId());

      // add the layer to the map
      QUrl featureLayerUrl(m_featureServiceInfo.url().toString() + "/" + id);
      ServiceFeatureTable* serviceFeatureTable = new ServiceFeatureTable(featureLayerUrl, this);
      FeatureLayer* featureLayer = new FeatureLayer(serviceFeatureTable, this);
      m_map->operationalLayers()->append(featureLayer);

      // add the layer id to the string list
      m_serviceIds << id;
    }

  });

  // connect to map doneLoading signal
  connect(m_map, &Map::doneLoading, this, [this](const Error& error)
  {
    if (error.isEmpty())
    {
      // load the sync task once the map loads
      m_syncTask->load();
    }
  });
}

void GenerateGeodatabaseReplicaFromFeatureService::addFeatureLayers(const QString& serviceUrl, const QStringList& serviceIds)
{
  for (const QString& id : serviceIds)
  {
    ServiceFeatureTable* serviceFeatureTable = new ServiceFeatureTable(QUrl(serviceUrl + id), this);
    FeatureLayer* featureLayer = new FeatureLayer(serviceFeatureTable, this);
    m_map->operationalLayers()->append(featureLayer);
  }
}

//! [Features GenerateGeodatabase Part 2]
GenerateGeodatabaseParameters GenerateGeodatabaseReplicaFromFeatureService::getUpdatedParameters(Envelope gdbExtent)
{
  // create the parameters
  GenerateGeodatabaseParameters params;
  params.setReturnAttachments(false);
  params.setOutSpatialReference(SpatialReference::webMercator());
  params.setExtent(gdbExtent);

  // set the layer options for all of the service IDs
  QList<GenerateLayerOption> layerOptions;
  for (const QString& id : std::as_const(m_serviceIds))
  {
    GenerateLayerOption generateLayerOption(id.toInt());
    layerOptions << generateLayerOption;
  }
  params.setLayerOptions(layerOptions);

  return params;
}

void GenerateGeodatabaseReplicaFromFeatureService::generateGeodatabaseFromCorners(double xCorner1, double yCorner1, double xCorner2, double yCorner2)
{
  // create an envelope from the QML rectangle corners
  const Point corner1 = m_mapView->screenToLocation(xCorner1, yCorner1);
  const Point corner2 = m_mapView->screenToLocation(xCorner2, yCorner2);
  const Envelope extent(corner1, corner2);
  const Envelope geodatabaseExtent = geometry_cast<Envelope>(GeometryEngine::project(extent, SpatialReference::webMercator()));

  // get the updated parameters
  GenerateGeodatabaseParameters params = getUpdatedParameters(geodatabaseExtent);

  // execute the task and obtain the job
  const QString outputGdb = m_tempPath.path() + "/wildfire.geodatabase";
  GenerateGeodatabaseJob* generateJob = m_syncTask->generateGeodatabase(params, outputGdb);

  // connect to the job's status changed signal
  if (generateJob)
  {
    connect(generateJob, &GenerateGeodatabaseJob::statusChanged, this, [this, generateJob](JobStatus jobStatus)
    {
      // connect to the job's status changed signal to know once it is done
      switch (jobStatus) {
      case JobStatus::Failed:
        emit updateStatus("Generate failed");
        emit hideWindow(5000, false);
        break;
      case JobStatus::NotStarted:
        emit updateStatus("Job not started");
        break;
      case JobStatus::Paused:
        emit updateStatus("Job paused");
        break;
      case JobStatus::Started:
        emit updateStatus("In progress...");
        break;
      case JobStatus::Succeeded:
        emit updateStatus("Complete");
        emit hideWindow(1500, true);
        addOfflineData(generateJob->result());
        break;
      default:
        break;
      }
    });

    // start the generate job
    generateJob->start();
  }
  else
  {
    emit updateStatus("Generate failed");
    emit hideWindow(5000, false);
  }
}
//! [Features GenerateGeodatabase Part 2]

void GenerateGeodatabaseReplicaFromFeatureService::addOfflineData(Geodatabase* gdb)
{
  // remove the original online feature layers
  m_map->operationalLayers()->clear();

  // load the geodatabase
  connect(gdb, &Geodatabase::doneLoading, this, [this, gdb](Error)
  {
    // create a feature layer from each feature table, and add to the map
    const auto tables = gdb->geodatabaseFeatureTables();
    for (GeodatabaseFeatureTable* featureTable : tables)
    {
      FeatureLayer* featureLayer = new FeatureLayer(featureTable, this);
      m_map->operationalLayers()->append(featureLayer);
    }

    // unregister geodatabase since there will be no edits uploaded
    auto unregisterFuture = m_syncTask->unregisterGeodatabaseAsync(gdb);
    Q_UNUSED(unregisterFuture)
  });
  gdb->load();
}

// [WriteFile Name=GenerateGeodatabaseReplicaFromFeatureService, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef GENERATE_GEODATABASE_H
#define GENERATE_GEODATABASE_H

// ArcGIS Maps SDK headers
#include "ArcGISFeatureServiceInfo.h"
#include "Envelope.h"
#include "GenerateGeodatabaseParameters.h"

// Qt headers
#include <QQuickItem>
#include <QStringList>
#include <QTemporaryDir>

namespace Esri::ArcGISRuntime
{
  class Map;
  class MapQuickView;
  class GeodatabaseSyncTask;
  class Geodatabase;
}

class GenerateGeodatabaseReplicaFromFeatureService : public QQuickItem
{
  Q_OBJECT

public:
  explicit GenerateGeodatabaseReplicaFromFeatureService(QQuickItem* parent = nullptr);
  ~GenerateGeodatabaseReplicaFromFeatureService() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void generateGeodatabaseFromCorners(double xCorner1, double yCorner1, double xCorner2, double yCorner2);

signals:
  void updateStatus(QString status);
  void hideWindow(int time, bool success);

private:
  void addFeatureLayers(const QString& serviceUrl, const QStringList& serviceIds);
  Esri::ArcGISRuntime::GenerateGeodatabaseParameters getUpdatedParameters(Esri::ArcGISRuntime::Envelope gdbExtent);
  void addOfflineData(Esri::ArcGISRuntime::Geodatabase* gdb);

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GeodatabaseSyncTask* m_syncTask = nullptr;
  QString m_dataPath;
  QString m_featureServiceUrl = QStringLiteral("https://sampleserver6.arcgisonline.com/arcgis/rest/services/Sync/WildfireSync/FeatureServer/");
  QStringList m_serviceIds;
  Esri::ArcGISRuntime::ArcGISFeatureServiceInfo m_featureServiceInfo;
  QTemporaryDir m_tempPath;
};

#endif // GENERATE_GEODATABASE_H

// [WriteFile Name=GenerateGeodatabaseReplicaFromFeatureService, Category=Features]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

GenerateGeodatabaseReplicaFromFeatureServiceSample {
    id: generateSample
    width: 800
    height: 600

    property string statusText: ""

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    onHideWindow: (time, success) => {
        generateWindow.hideWindow(time);

        if (success) {
            extentRectangle.visible = false;
            downloadButton.visible = false;
        }
    }

    onUpdateStatus: status => statusText = status;

    Rectangle {
        id: extentRectangle
        anchors.centerIn: parent
        width: parent.width - 50
        height: parent.height - 125
        color: "transparent"
        border {
            color: "red"
            width: 3
        }
    }

    // Create the download button to generate geodatabase
    Rectangle {
        id: downloadButton
        property bool pressed: false
        anchors {
            horizontalCenter: parent.horizontalCenter
            bottom: parent.bottom
            bottomMargin: 23
        }

        width: 200
        height: 35
        color: pressed ? "#959595" : "#D6D6D6"
        radius: 8
        border {
            color: "#585858"
            width: 1
        }

        Row {
            anchors.fill: parent
            spacing: 5
            Image {
                width: 38
                height: width
                source: "qrc:/Samples/Features/GenerateGeodatabaseReplicaFromFeatureService/download.png"
            }

            Text {
                anchors.verticalCenter: parent.verticalCenter
                text: "Generate Geodatabase"
                font.pixelSize: 14
                color: "#474747"
            }
        }

        MouseArea {
            anchors.fill: parent
            onPressed: downloadButton.pressed = true
            onReleased: downloadButton.pressed = false
            onClicked: {
                generateSample.generateGeodatabaseFromCorners(extentRectangle.x, extentRectangle.y, (extentRectangle.x + extentRectangle.width), (extentRectangle.y + extentRectangle.height));
                generateWindow.visible = true;
            }
        }
    }

    // Create a window to display the generate window
    Rectangle {
        id: generateWindow
        anchors.fill: parent
        color: "transparent"
        visible: false
        clip: true

        Rectangle {
            anchors.fill: parent
            color: "#60000000"
        }

        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        Rectangle {
            anchors.centerIn: parent
            width: 125
            height: 100
            color: "lightgrey"
            opacity: 0.8
            radius: 5
            border {
                color: "#4D4D4D"
                width: 1
            }

            Column {
                anchors {
                    fill: parent
                    margins: 10
                }
                spacing: 10

                BusyIndicator {
                    anchors.horizontalCenter: parent.horizontalCenter
                }

                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    text: statusText
                    font.pixelSize: 16
                }
            }
        }

        Timer {
            id: hideWindowTimer

            onTriggered: generateWindow.visible = false;
        }

        function hideWindow(time) {
            hideWindowTimer.interval = time;
            hideWindowTimer.restart();
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "GenerateGeodatabaseReplicaFromFeatureService.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("GenerateGeodatabaseReplicaFromFeatureService"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  GenerateGeodatabaseReplicaFromFeatureService::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Features/GenerateGeodatabaseReplicaFromFeatureService/GenerateGeodatabaseReplicaFromFeatureService.qml"));

  view.show();

  return app.exec();
}
