1. Sign up for an account
2. Get an access token
Get an access token by implementing a type of authentication.
Need help choosing a type of authentication?
API key authentication
- Build public applications
A public application is an application that allows anonymous access without requiring users to sign in with an ArcGIS account. It supports API key or app authentication. that don't require users to sign in with an ArcGIS accountAn ArcGIS account is an identity with a user type and set of privileges that can access specific ArcGIS products, tools, APIs, services, and resources. The main account types that can be used for development are an ArcGIS Location Platform account, ArcGIS Online account, and ArcGIS Enterprise account. ArcGIS Location Platform and ArcGIS Online accounts are also associated with a subscription. . - Use a long-lived API key
An API key is a long-lived access token created using API key credentials. They are valid for up to one year and are typically embedded directly into client applications. access token to authenticate service requests. - Applications can access location services
ArcGIS Location Services, also referred to as Location Services, are services hosted by Esri that provide geospatial functionality for developing mapping applications. They include the ArcGIS Basemap Styles service, ArcGIS Static Basemap Tiles service, ArcGIS Places service, ArcGIS Geocoding service, ArcGIS Routing service, ArcGIS GeoEnrichment service, and ArcGIS Elevation service. An ArcGIS Location Platform or ArcGIS Online account is required to use the services. , spatial analysis servicesSpatial analysis services are services that perform geometry and statistical analyses on feature and raster data. , the portal serviceA portal service provides the functionality to securely create, access, and manage content, data services, users, and groups in a portal. The service can be hosted by Esri or in ArcGIS Enterprise. , and secure data servicesData services, also known as hosted data services, are services created dynamically to store and provide access to your data in ArcGIS. Examples are feature services, vector tile services, map tile services, image services, and scene services. in a portal. - Privileges
Privileges are a set of permissions assigned to ArcGIS accounts, developer credentials, and applications that grant access to secure resources and functionality in ArcGIS. and portal itemAn item, also known as a content item, is a resource stored in a portal such as a web map, hosted layer, style, script tool, file, or notebook. access are defined by the developer. - Service usage and data storage is billed to the developer.
Learn more about API key authentication
OAuth 2.0 user authentication
- Build private applications
A private application is an application that requires users to sign in with an ArcGIS account. It supports user authentication. for your organization that requires users to sign in with an ArcGIS accountAn ArcGIS account is an identity with a user type and set of privileges that can access specific ArcGIS products, tools, APIs, services, and resources. The main account types that can be used for development are an ArcGIS Location Platform account, ArcGIS Online account, and ArcGIS Enterprise account. ArcGIS Location Platform and ArcGIS Online accounts are also associated with a subscription. . - Create OAuth 2.0 credentials
Developer credentials are a type of item in a portal that contains parameters for authentication. There are two types of developer credentials: API key credentials and OAuth credentials. and implement OAuth 2.0 flows to get an access token. - Applications can access all resources available to the signed-in user, including location services
ArcGIS Location Services, also referred to as Location Services, are services hosted by Esri that provide geospatial functionality for developing mapping applications. They include the ArcGIS Basemap Styles service, ArcGIS Static Basemap Tiles service, ArcGIS Places service, ArcGIS Geocoding service, ArcGIS Routing service, ArcGIS GeoEnrichment service, and ArcGIS Elevation service. An ArcGIS Location Platform or ArcGIS Online account is required to use the services. , spatial analysis servicesSpatial analysis services are services that perform geometry and statistical analyses on feature and raster data. , data servicesData services, also known as hosted data services, are services created dynamically to store and provide access to your data in ArcGIS. Examples are feature services, vector tile services, map tile services, image services, and scene services. , secure itemsAn item, also known as a content item, is a resource stored in a portal such as a web map, hosted layer, style, script tool, file, or notebook. , and portalArcGIS portal, also known as a portal, is a website with applications and tools that can be used to create, manage, access, and share geospatial content and data. It supports security and authentication, developer credentials, content and data service management, user and group management, and site administration. A portal can be hosted in Esri's infrastructure or your own infrastructure. management operations. - Privileges
Privileges are a set of permissions assigned to ArcGIS accounts, developer credentials, and applications that grant access to secure resources and functionality in ArcGIS. and portal itemAn item, also known as a content item, is a resource stored in a portal such as a web map, hosted layer, style, script tool, file, or notebook. access are defined by the user's account. - Service usage and data storage is billed to the organization of the user signed into the application.

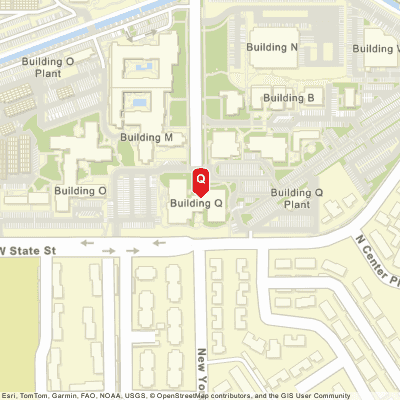

3. Make a request
Use your access token to make a request to the service.
https://static-maps-api.arcgis.com/arcgis/rest/services/static-maps-service/beta/static-maps/arcgis/streets/centered-at?x=-117.195646&y=34.0561&radius=200&symbolStyle=pin&symbolLabel=Q&token=<ACCESS_TOKEN>
