Query with time extent

Query data using a time extent.

Use case

This workflow can be used to return records that are between a specified start and end date. For example, records of Canada goose sightings over time could be queried to only show sightings during the winter migration time period.

How to use the sample

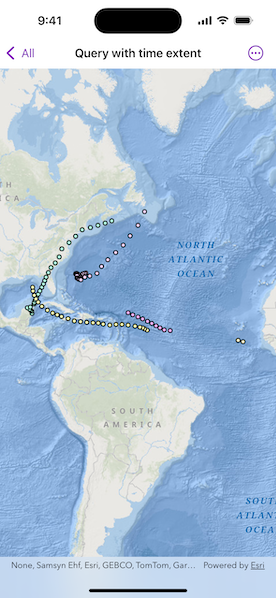

Run the sample, and a subset of records will be displayed on the map.

How it works

1. Create a ServiceFeatureTable from a URL of a time-enabled service. Time-enabled services will have TimeInfo defined in the service description. This information is specified in ArcMap or ArcGIS Pro prior to publishing the service.
2. Set the feature table’s featureRequestMode property to manualCache, so that the developer can control how and when the feature table is populated with data.
3. Create a FeatureLayer with the feature table and add it to a map’s operational layers to display it.
4. Create a TimeExtent object using Date objects for the start time and end time being queried.
5. Create a default QueryParameters object and set the parameter’s timeExtent property.
6. Populate the feature table using ServiceFeatureTable.populateFromService(using:clearCache:outFields:) with the custom query parameters created in the previous steps.
7. The feature table is populated with data that matches the provided query.

Relevant API

• QueryParameters
• ServiceFeatureTable.populateFromService(using:clearCache:outFields:)
• TimeExtent

About the data

This sample uses Atlantic hurricane data from the year 2000. The data is from the National Hurricane Center (NOAA / National Weather Service).

Tags

query, time, time extent
