Find a route and directions | ArcGIS Maps SDK for Java

Learn how to find a route and directions with the route service A routing service is a service that uses network analysis and streets data to calculate the most effective path and turn-by-turn directions on a street network, optimize fleet routing and deliveries, find the closest facilities, calculate service areas, and more. It is hosted by Esri as the ArcGIS Routing service and can also be hosted in ArcGIS Enterprise. Learn more .

find a route and directions

Routing is the process of finding the path from an origin An origin is a point that defines the start of a route. Learn more to a destination A destination is a point that defines the final stop in a route. Learn more in a street network. You can use the Routing service A routing service is a service that uses network analysis and streets data to calculate the most effective path and turn-by-turn directions on a street network, optimize fleet routing and deliveries, find the closest facilities, calculate service areas, and more. It is hosted by Esri as the ArcGIS Routing service and can also be hosted in ArcGIS Enterprise. Learn more to find routes A route is a polyline that defines the best path between two or more points in a street network. Learn more , get driving directions, calculate drive times, and solve complicated, multiple vehicle routing problems. To create a route, you typically define a set of stops (origin and one or more destinations) and use the service to find a route with directions. You can also use a number of additional parameters such as barriers and mode of travel to refine the results.

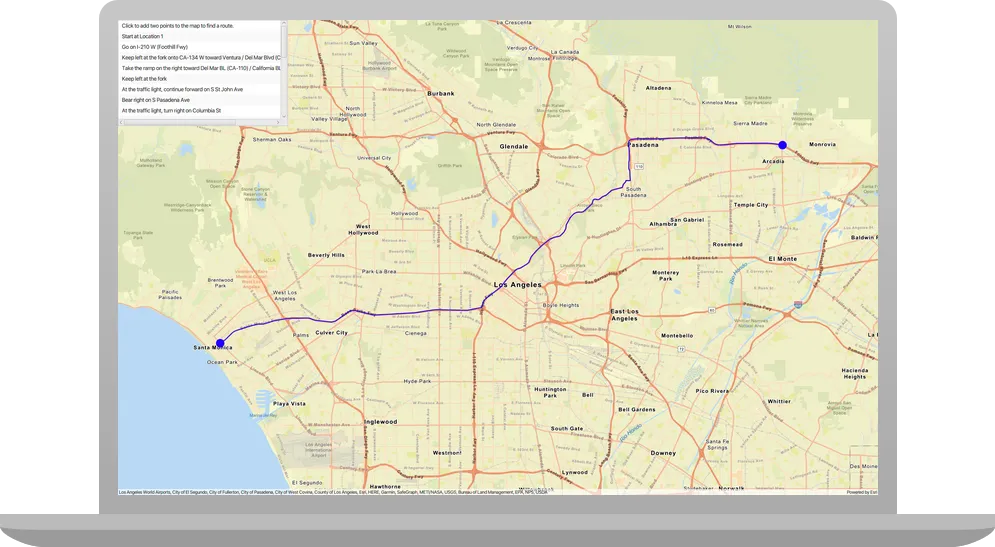

In this tutorial, you define an origin and destination by clicking on the map. These values are used to get a route and directions from the route service. The directions are also displayed on the map.

Prerequisites

Before starting this tutorial:

You need an ArcGIS Location Platform or ArcGIS Online account.
Confirm that your system meets the minimum system requirements.
An IDE for Java.

Steps

Get an access token

You need an access token An access token is an authorization string that provides access to secure ArcGIS content, data, and services. Its capabilities are determined by the privileges it supports. It is obtained by implementing API key authentication, User authentication, or App authentication. Learn more to use the location services ArcGIS Location Services, also referred to as Location Services, are services hosted by Esri that provide geospatial functionality for developing mapping applications. They include the ArcGIS Basemap Styles service, ArcGIS Static Basemap Tiles service, ArcGIS Places service, ArcGIS Geocoding service, ArcGIS Routing service, ArcGIS GeoEnrichment service, and ArcGIS Elevation service. An ArcGIS Location Platform or ArcGIS Online account is required to use the services. Learn more used in this tutorial.

Go to the Create an API key tutorial to obtain an access token An access token is an authorization string that provides access to secure ArcGIS content, data, and services. Its capabilities are determined by the privileges it supports. It is obtained by implementing API key authentication, User authentication, or App authentication. Learn more using your ArcGIS Location Platform An ArcGIS Location Platform account, formerly known as an ArcGIS Developer account, is an identity associated with an ArcGIS Location Platform subscription. Learn more or ArcGIS Online An ArcGIS Online account, also known as an ArcGIS Organization account, is an identity associated with an ArcGIS Online subscription. It can be used to access ArcGIS tools and develop applications with ArcGIS location services for an organization. Learn more account.
Ensure that the following privileges Privileges are a set of permissions assigned to ArcGIS accounts, developer credentials, and applications that grant access to secure resources and functionality in ArcGIS. Learn more are enabled: Location services > Basemaps > Basemap styles service and Location services > Routing.
Copy the access token as it will be used in the next step.

To learn more about other ways to get an access token, go to Types of authentication.

Open a Java project with Gradle

To start this tutorial, complete the Display a map tutorial, or download and unzip the Display a map solution into a new folder.
Open the build.gradle file as a project in IntelliJ IDEA.
In IntelliJ IDEA’s Project tool window, open src/main/java/com.example.app and double-click App.
In the start() method, set the API key property on the ArcGISRuntimeEnvironment with your access token An access token is an authorization string that provides access to secure ArcGIS content, data, and services. Its capabilities are determined by the privileges it supports. It is obtained by implementing API key authentication, User authentication, or App authentication. Learn more . Replace YOUR_ACCESS_TOKEN with your copied access token. Be sure to surround your access token with double quotes as it is a string.
App.java
ArcGISRuntimeEnvironment.setApiKey("YOUR_ACCESS_TOKEN");
Warning

The access token is stored directly in the code as a convenience for this tutorial. Storing access tokens in the source code is not best practice.

Add import statements and variable declarations

Add import statements and variable declarations to reference the packages and classes required for this tutorial.

In IntelliJ IDEA’s Project tool window, open src/main/java/com.example.app and double-click App.

Add the following imports above the existing imports:

App.java

1
import com.esri.arcgisruntime.concurrent.ListenableFuture;
2
import com.esri.arcgisruntime.geometry.Geometry;
3
import com.esri.arcgisruntime.mapping.view.Graphic;
4
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
5
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
6
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;
7
import com.esri.arcgisruntime.tasks.networkanalysis.Route;
8
import com.esri.arcgisruntime.tasks.networkanalysis.RouteParameters;
9
import com.esri.arcgisruntime.tasks.networkanalysis.RouteResult;
10
import com.esri.arcgisruntime.tasks.networkanalysis.RouteTask;
11
import com.esri.arcgisruntime.tasks.networkanalysis.Stop;
12

13
import javafx.collections.FXCollections;
14
import javafx.collections.ListChangeListener;
15
import javafx.collections.ObservableList;
16
import javafx.geometry.Point2D;
17
import javafx.geometry.Pos;
18
import javafx.scene.paint.Color;
19
import javafx.scene.control.Alert;
20
import javafx.scene.control.ListView;
21
import javafx.scene.input.MouseButton;
22
import java.util.List;
23

24
import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
25
import com.esri.arcgisruntime.mapping.ArcGISMap;
26
import com.esri.arcgisruntime.mapping.view.MapView;
27
import com.esri.arcgisruntime.mapping.BasemapStyle;
28
import com.esri.arcgisruntime.mapping.Viewpoint;
29

30
import javafx.application.Application;
31
import javafx.scene.Scene;
32
import javafx.scene.layout.StackPane;
33
import javafx.stage.Stage;

Within the App class, add the following member variables to easily reference them from other parts of the application:

Member variables ensure that objects are not deallocated while asynchronous methods are executing. If an object is deallocated while one of its asynchronous methods is executing, the completion callback closure will never be called.
App.java
1 private MapView mapView; 2 3 private Graphic routeGraphic; 4 private RouteTask routeTask; 5 private RouteParameters routeParameters; 6 private final ObservableList<Stop> routeStops = FXCollections.observableArrayList(); 7 private final ListView<String> directionsList = new ListView<>();

Update the map

A streets basemap layer A basemap layer is the layer in a map or scene that displays basemap data. The data source for a basemap layer is typically a basemap service. Learn more is typically used in routing applications. Update the basemap to use the ARCGIS_STREETS basemap style, and change the position of the map to center on Los Angeles.

Update the BasemapStyle from ARCGIS_TOPOGRAPHIC to ARCGIS_STREETS.

Update the latitude and longitude coordinates to center on Los Angeles.

App.java


81 collapsed lines
2
//   Copyright 2020 Esri
3
//   Licensed under the Apache License, Version 2.0 (the "License");
4
//   you may not use this file except in compliance with the License.
5
//   You may obtain a copy of the License at
6
//
7
//   http://www.apache.org/licenses/LICENSE-2.0
8
//
9
//   Unless required by applicable law or agreed to in writing, software
10
//   distributed under the License is distributed on an "AS IS" BASIS,
11
//   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
12
//   See the License for the specific language governing permissions and
13
//   limitations under the License.
14

15
package com.example.app;
16

17
import com.esri.arcgisruntime.concurrent.ListenableFuture;
18
import com.esri.arcgisruntime.geometry.Geometry;
19
import com.esri.arcgisruntime.mapping.view.Graphic;
20
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
21
import com.esri.arcgisruntime.symbology.SimpleLineSymbol;
22
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;
23
import com.esri.arcgisruntime.tasks.networkanalysis.Route;
24
import com.esri.arcgisruntime.tasks.networkanalysis.RouteParameters;
25
import com.esri.arcgisruntime.tasks.networkanalysis.RouteResult;
26
import com.esri.arcgisruntime.tasks.networkanalysis.RouteTask;
27
import com.esri.arcgisruntime.tasks.networkanalysis.Stop;
28

29
import javafx.collections.FXCollections;
30
import javafx.collections.ListChangeListener;
31
import javafx.collections.ObservableList;
32
import javafx.geometry.Point2D;
33
import javafx.geometry.Pos;
34
import javafx.scene.paint.Color;
35
import javafx.scene.control.Alert;
36
import javafx.scene.control.ListView;
37
import javafx.scene.input.MouseButton;
38
import java.util.List;
39

40
import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
41
import com.esri.arcgisruntime.mapping.ArcGISMap;
42
import com.esri.arcgisruntime.mapping.view.MapView;
43
import com.esri.arcgisruntime.mapping.BasemapStyle;
44
import com.esri.arcgisruntime.mapping.Viewpoint;
45

46
import javafx.application.Application;
47
import javafx.scene.Scene;
48
import javafx.scene.layout.StackPane;
49
import javafx.stage.Stage;
50

51
public class App extends Application {
52

53
  private MapView mapView;
54

55
  private Graphic routeGraphic;
56
  private RouteTask routeTask;
57
  private RouteParameters routeParameters;
58
  private final ObservableList<Stop> routeStops = FXCollections.observableArrayList();
59
  private final ListView<String> directionsList = new ListView<>();
60

61
  public static void main(String[] args) {
62
    Application.launch(args);
63
  }
64

65
  @Override
66
  public void start(Stage stage) {
67

68
    // set the title and size of the stage and show it
69
    stage.setTitle("Find a route and directions tutorial");
70
    stage.setWidth(800);
71
    stage.setHeight(700);
72
    stage.show();
73

74
    // create a JavaFX scene with a stack pane as the root node
75
    // and add it to the scene
76
    StackPane stackPane = new StackPane();
77
    Scene scene = new Scene(stackPane);
78

79
    stage.setScene(scene);
80

81
    ArcGISRuntimeEnvironment.setApiKey("YOUR_ACCESS_TOKEN");
82

83
    // create a MapView to display the map and add it to the stack pane
84
    mapView = new MapView();
85
    stackPane.getChildren().add(mapView);
86

87
    ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_STREETS);
88

89
    // set the map on the map view
90
    mapView.setMap(map);
91

92
    mapView.setViewpoint(new Viewpoint(34.05398, -118.24532, 144447.638572));
14 collapsed lines
93

94
  }
95

96
  /**
97
   * Stops and releases all resources used in application.
98
   */
99
  @Override
100
  public void stop() {
101
    if (mapView != null) {
102
      mapView.dispose();
103
    }
104
  }
105

106
}

Add a UI to display driving directions
