CIMSymbol lines and polygons

CIM line and polygon symbols

This sample shows how to render FeatureLayers using line and polygon CIMSymbols. CIMSymbols allow the user to add more customizations to their symbols, using one or more symbol layers to create the desired effect on the layer.

This sample is using a CIMLineSymbol to depict the Tahoe Rim Trail, a hiking trail that loops around Lake Tahoe. The polygon showing the boundary of Lake Tahoe is rendered using a CIMPolygonSymbol. See the CIM Specification for more information.

CIM line and polygon symbols are not currently supported in 3D SceneViews. Additionally, not everything listed in the CIM specification is currently supported.

Click here for more information on CIMSymbol limitations.

CIMSymbol utility methods

This sample also demonstrates how to use the methods in the cimSymbolUtils class to get and set different properties on a CIMSymbol.

How it works

The symbol controls located within the Expand widget in the top-right corner allow the user to change the size and rotation of the CIMPointSymbols in the view. When the Slider value is updated, the current symbol gets cloned into a new symbol, and cimSymbolUtils.scaleCIMSymbolTo() is called on the new symbol to update the size (or rotation) of the symbol to match the value of the slider. Then, the renderer is updated with the new symbol.

Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
13
sizeSlider.on(["thumb-drag", "thumb-change"], (event) => {
  const value = event.value;
  document.getElementById("size").innerHTML = value;
  // clone the current symbol
  const newSymbol = trailheads.renderer.symbol.clone();
  // use CIM util function to scale the symbol to a new size
  cimSymbolUtils.scaleCIMSymbolTo(newSymbol, value);
  // update the renderer to the new symbol
  trailheads.renderer = {
    type: "simple",
    symbol: newSymbol
  };
});

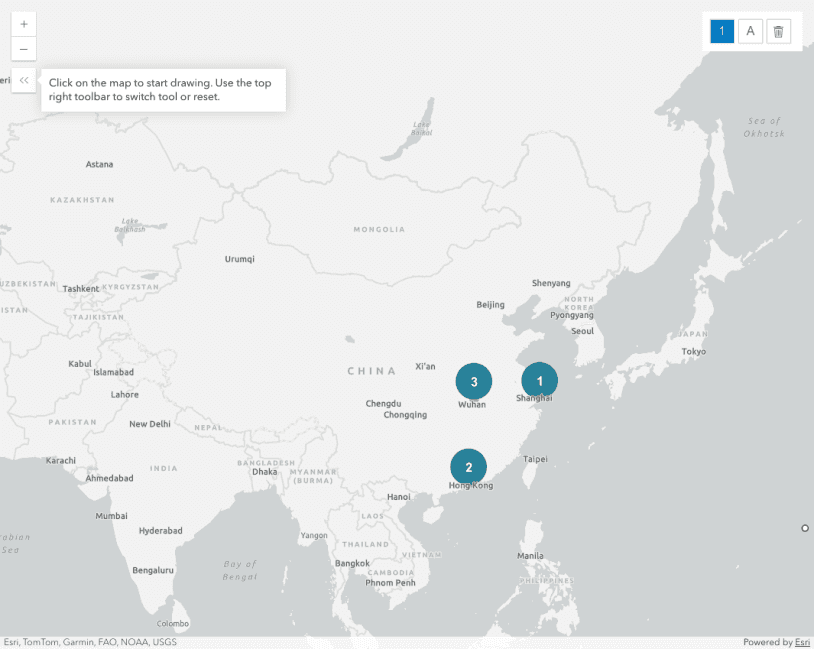

Image preview of related sample Intro to CIMSymbol

Intro to CIMSymbol

Learn the basics about CIMSymbol and how to use a primitiveOverride on the text

Image preview of related sample Arrows along a line

Arrows along a line

Use a CIMSymbol to draw a line with arrow markers at a fixed distance

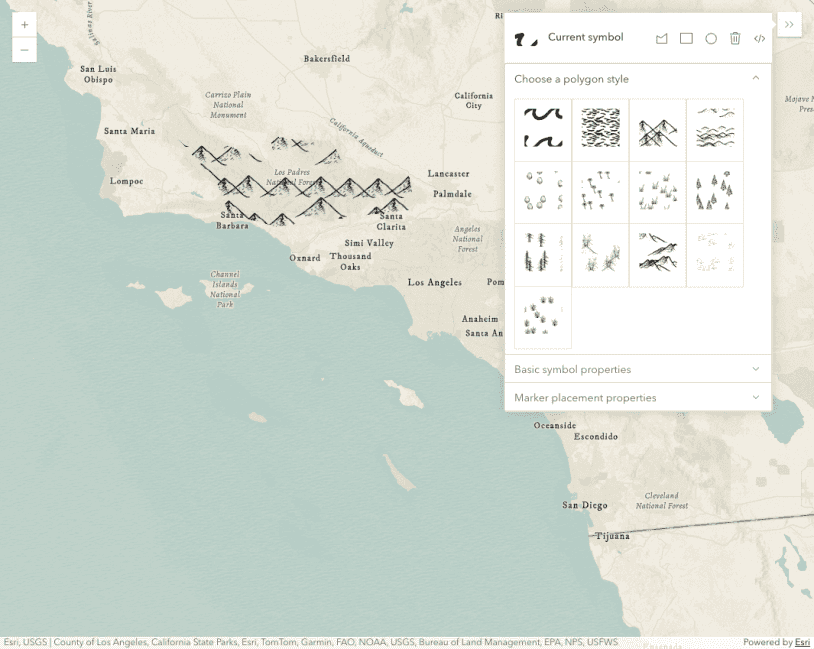

Image preview of related sample Adjust marker placement in polygon symbols
