Masking effect using a custom layer view | Sample | ArcGIS Maps SDK for JavaScript

Skip to content

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no" />
    <title>Masking effect using a custom layer view | Sample | ArcGIS Maps SDK for JavaScript</title>

    <!-- Load the ArcGIS Maps SDK for JavaScript from CDN -->
    <script type="module" src="https://js.arcgis.com/5.0/"></script>

    <style>
      html,
      body {
        height: 100%;
        margin: 0;
      }
    </style>
  </head>

  <body class="calcite-mode-dark">
    <arcgis-map zoom="3">
      <arcgis-zoom slot="top-left"></arcgis-zoom>
      <calcite-panel slot="top-right" id="controls" heading="Halo radius (px)">
        <calcite-block expanded label="conrols block">
          <calcite-slider
            id="haloSlider"
            value="25"
            min="1"
            max="50"
            label-handles
            label-ticks
            ticks="50">
          </calcite-slider>
        </calcite-block>
      </calcite-panel>
    </arcgis-map>

    <script type="module">
      const [
        Map,
        Handles,
        BaseLayerView2D,
        Layer,
        FeatureLayer,
        TileInfo,
        webMercatorUtils,
        Polygon,
        Polyline,
        Point,
        reactiveUtils,
      ] = await $arcgis.import([
        "@arcgis/core/Map.js",
        "@arcgis/core/core/Handles.js",
        "@arcgis/core/views/2d/layers/BaseLayerView2D.js",
        "@arcgis/core/layers/Layer.js",
        "@arcgis/core/layers/FeatureLayer.js",
        "@arcgis/core/layers/support/TileInfo.js",
        "@arcgis/core/geometry/support/webMercatorUtils.js",
        "@arcgis/core/geometry/Polygon.js",
        "@arcgis/core/geometry/Polyline.js",
        "@arcgis/core/geometry/Point.js",
        "@arcgis/core/core/reactiveUtils.js",
      ]);

      const CustomLayerView2D = BaseLayerView2D.createSubclass({
        constructor: function () {
          // Maps from tile id to the image used by that tile.
          this.tileContexts = new window.Map();

          // The handles to the property watchers; we need to store them
          // so that we can unwatch the properties when the layer view
          // is detached.
          this.watchHandles = new Handles();

          // Set to true when the images in the tiles have become obsolete
          // and must be regenerated. This is triggered by a change of
          // layer.geometry, layer.color or layer.distance.
          this.needsImageUpdate = false;
        },

        // Called when the layer is added to the map.
        attach: function () {
          const layerView = this;
          const layer = layerView.layer;

          const handler = ([geometry, distance, color], [oldGeometry, oldDistance, oldColor]) => {
            if (!layer.geometry) {
              layerView.projectedGeometry = null;
              layerView.needsImageUpdate = true;
              layerView.requestRender();
              return;
            }
            if (geometry !== oldGeometry) {
              if (layer.geometry.spatialReference.wkid === 4326) {
                layerView.projectedGeometry = webMercatorUtils.geographicToWebMercator(
                  layer.geometry,
                );
              } else {
                layerView.projectedGeometry = layer.geometry;
              }

              layerView.needsImageUpdate = true;
              layerView.requestRender();
            } else {
              layerView.needsImageUpdate = true;
              layerView.requestRender();
            }
          };

          // Make sure that the effect is applied automatically at load time.
          handler([this.layer.geometry, this.layer.distance, this.layer.color], [null, null, null]);

          // Update and reapply the effect every time that the `geometry`, `distance`
          // or `color` properties on the layer change.
          this.watchHandles.add([
            reactiveUtils.watch(
              () => [this.layer.geometry, this.layer.distance, this.layer.color],
              handler,
            ),
          ]);
        },

        // Called to regenerate a tile.
        drawGeometry: function (ctx, bounds) {
          ctx.globalCompositeOperation = "source-over";
          const width = ctx.canvas.width;
          const height = ctx.canvas.height;

          // No geometry; entire map is unmasked.
          if (!this.projectedGeometry) {
            ctx.clearRect(0, 0, width, height);
            return;
          }

          // We mask the entire map; we will "carve" the unmasked area using
          // an operation that subtracts opacity iteratively.
          const c = this.layer.color;
          ctx.fillStyle = "rgba(" + c[0] + ", " + c[1] + ", " + c[2] + ", 1)";
          ctx.fillRect(0, 0, width, height);

          // Every iteration reduces opacity by a constant term and each iteration acts
          // on a progressively smaller region.
          // The factor "3" is fairly arbitrary, but it works well with "destination-out".
          // Lower values would cause a visible discontinuity between the fully illuminated
          // area and the beginning of the shaded area.
          const unmaskTerm = 3 / this.layer.distance;
          ctx.globalCompositeOperation = "destination-out";

          if (
            this.projectedGeometry.type === "polygon" ||
            this.projectedGeometry.type === "polyline" ||
            this.projectedGeometry.type === "extent"
          ) {
            // Polygons, polylines and extents are carved using increasingly thinner lines
            // and a single fill operation at the end.

            // All geometry types are treated as rings.
            const rings =
              this.projectedGeometry.type === "extent"
                ? Polygon.fromExtent(this.projectedGeometry).rings
                : this.projectedGeometry.rings || this.projectedGeometry.paths;

            // Rings are transformed to tile coordinates.
            const transformed = rings.map((ring) => {
              return ring.map((coords) => {
                return [
                  Math.round((width * (coords[0] - bounds[0])) / (bounds[2] - bounds[0])),
                  Math.round(height * (1 - (coords[1] - bounds[1]) / (bounds[3] - bounds[1]))),
                ];
              });
            });

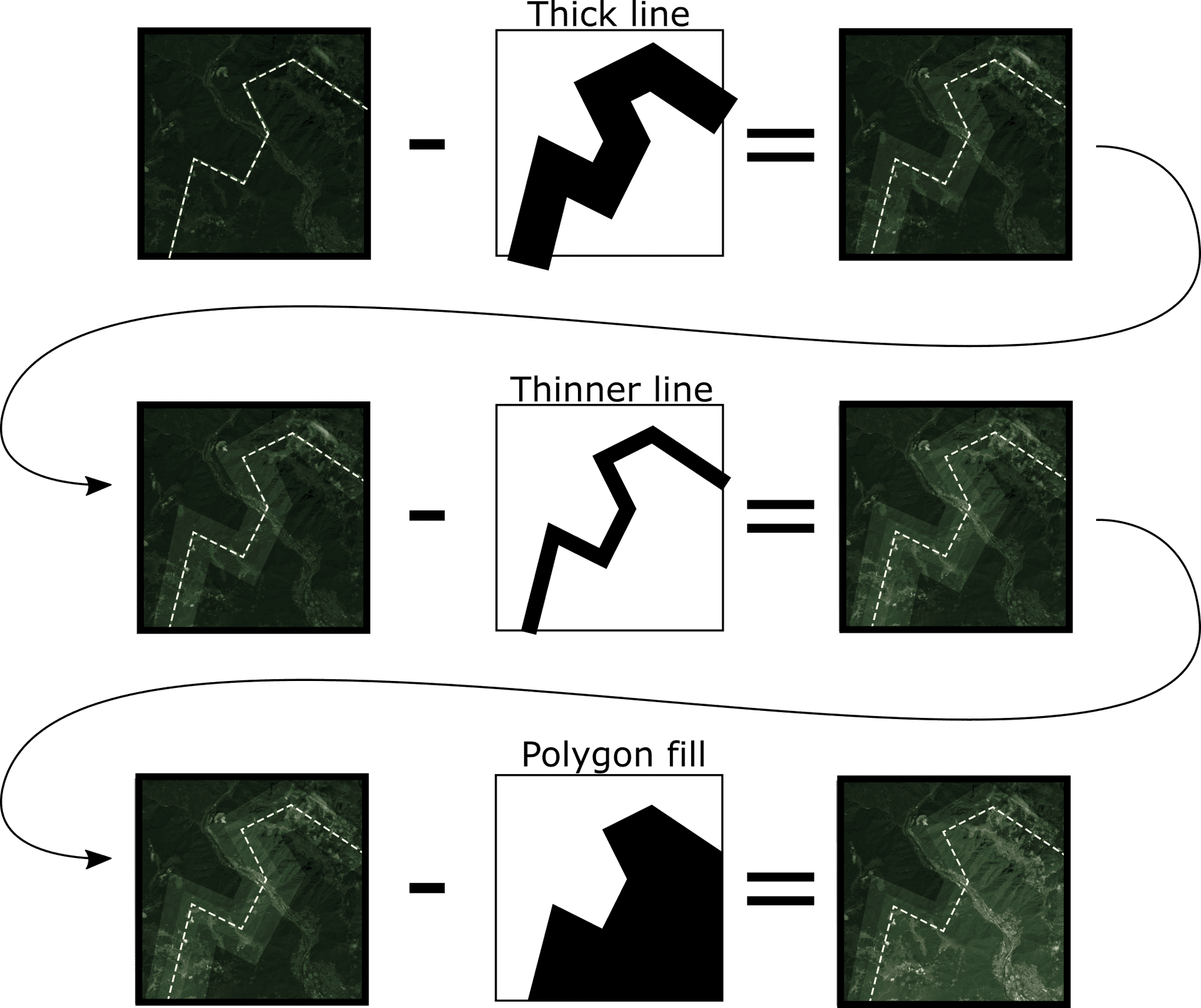

            // The rings are drawn as increasingly thinner lines; this produces
            // a blurred edge around the unmasked area, so that transition from
            // unmasked to masked is gradual.
            ctx.lineJoin = "round";

            for (let r = 1; r <= this.layer.distance; ++r) {
              ctx.strokeStyle = "rgba(0, 0, 0, " + unmaskTerm + ")";
              ctx.lineWidth = this.layer.distance + 1 - r;

              for (let i = 0; i < transformed.length; ++i) {
                const ring = transformed[i];

                ctx.beginPath();
                ctx.moveTo(ring[0][0], ring[0][1]);

                for (let j = 1; j < ring.length; ++j) {
                  ctx.lineTo(ring[j][0], ring[j][1]);
                }

                // If it's not a polyline, meaning it's a polygon or an extent,
                // we close the path.
                this.projectedGeometry.type !== "polyline" && ctx.closePath();
                ctx.stroke();
              }
            }

            if (this.projectedGeometry.type !== "polyline") {
              // If it's not a polyline, meaning it's a polygon or an extent,
              // we carve the space occupied by the geometry using a fill
              // operation; this is what fully unmask the geometry.
              ctx.fillStyle = "rgba(0, 0, 0, 1)";

              for (let i = 0; i < transformed.length; ++i) {
                const ring = transformed[i];

                ctx.beginPath();
                ctx.moveTo(ring[0][0], ring[0][1]);

                for (let j = 1; j < ring.length; ++j) {
                  ctx.lineTo(ring[j][0], ring[j][1]);
                }

                ctx.closePath();
                ctx.fill();
              }
            }
          } else if (
            this.projectedGeometry.type === "point" ||
            this.projectedGeometry.type === "multipoint"
          ) {
            // Points an multipoints are carved using increasingly smaller circles.

            // The "point" case is equivalent to a "multipoint" with a single point.
            const points =
              this.projectedGeometry.type === "multipoint"
                ? this.projectedGeometry.points
                : [[this.projectedGeometry.x, this.projectedGeometry.y]];

            // Points are transformed to tile coordinates.
            const transformed = points.map((coords) => {
              return [
                Math.round((width * (coords[0] - bounds[0])) / (bounds[2] - bounds[0])),
                Math.round(height * (1 - (coords[1] - bounds[1]) / (bounds[3] - bounds[1]))),
              ];
            });

            // The points are drawn using increasingly smaller circles.
            for (let r = 1; r <= this.layer.distance; ++r) {
              const size = this.layer.distance + 1 - r;
              ctx.fillStyle = "rgba(0, 0, 0, " + unmaskTerm + ")";

              for (let i = 0; i < transformed.length; ++i) {
                const point = transformed[i];
                ctx.beginPath();
                ctx.arc(point[0], point[1], Math.round(size / 2), 0, 360);
                ctx.fill();
              }
            }
          }
        },

        // Creates the images for new tiles that don't have a texture yet, and destroys the images
        // of tiles that are not on screen anymore.
        manageTileImages: function () {
          const gl = this.context;

          const tileIdSet = new Set();

          // Create new images as needed.
          for (let i = 0; i < this.tiles.length; ++i) {
            const tile = this.tiles[i];
            tileIdSet.add(tile.id);

            let ctx = this.tileContexts.get(tile.id);

            if (ctx) {
              if (this.needsImageUpdate) {
                this.drawGeometry(ctx, tile.bounds);
              }
            } else {
              const canvas = document.createElement("canvas");
              canvas.width = this.layer.tileInfo.size[0];
              canvas.height = this.layer.tileInfo.size[1];
              ctx = canvas.getContext("2d");
              this.tileContexts.set(tile.id, ctx);
              this.drawGeometry(ctx, tile.bounds);
            }
          }

          // Destroys unneeded images.
          this.tileContexts.forEach((_, id) => {
            if (!tileIdSet.has(id)) {
              this.tileContexts.delete(id);
            }
          });

          this.needsImageUpdate = false;
        },

        // Example of a render implementation that draws tile boundaries.
        render: function (renderParameters) {
          this.manageTileImages();

          const tileSize = this.layer.tileInfo.size[0];
          const state = renderParameters.state;
          const pixelRatio = state.pixelRatio;
          const width = state.size[0];
          const height = state.size[1];
          const context = renderParameters.context;
          const coords = [0, 0];

          context.clearRect(0, 0, width * pixelRatio, height * pixelRatio);

          // Apply rotation for everything that will be applied to the canvas.
          if (state.rotation !== 0) {
            context.translate(width * pixelRatio * 0.5, height * pixelRatio * 0.5);
            context.rotate((state.rotation * Math.PI) / 180);
            context.translate(-width * pixelRatio * 0.5, -height * pixelRatio * 0.5);
          }

          // Set the style for all the text.
          context.globalAlpha = this.layer.color[3];

          for (let i = 0; i < this.tiles.length; ++i) {
            // Retrieve the current tile and its associated texture.
            const tile = this.tiles[i];
            const ctx = this.tileContexts.get(tile.id);

            const screenScale = (tile.resolution / state.resolution) * pixelRatio;
            state.toScreenNoRotation(coords, tile.coords);
            context.drawImage(
              ctx.canvas,
              coords[0],
              coords[1],
              tileSize * screenScale,
              tileSize * screenScale,
            );
          }
        },

        // Destroy the shader program, the buffers and all the tile images.
        detach: function () {
          this.watchHandles.removeAll();
        },

        // Required when using tiling; this methods is called every time that `this.tiles`
        // changes, to give the derived class a chance to perform per-tile work as needed;
        // This is where, for instance, tile data could be fetched from a server.
        tilesChanged: function () {},
      });

      const CustomLayer = Layer.createSubclass({
        tileInfo: TileInfo.create({ size: 512, spatialReference: { wkid: 3857 } }),

        constructor: function () {
          this.geometry = null;
          this.distance = 10;
          this.color = [0, 0, 0, 1];
        },

        createLayerView: function (view) {
          if (view.type === "2d") {
            return new CustomLayerView2D({
              view: viewElement,
              layer: this,
            });
          }
        },

        properties: {
          geometry: {},
          distance: {},
          color: {},
        },
      });

      const viewElement = document.querySelector("arcgis-map");

      const layer = new CustomLayer({
        distance: 25,
        color: [0, 0, 0, 0.8],
      });

      const map = new Map({
        basemap: "satellite",
        layers: [layer],
      });
      viewElement.map = map;

      // The polygon geometry of a country is queried from a feature layer.
      const countries = new FeatureLayer({
        url: "https://services.arcgis.com/P3ePLMYs2RVChkJx/arcgis/rest/services/World_Countries_(Generalized)/FeatureServer/0",
      });
      const query = countries.createQuery();
      query.where = "ISO = 'IT'";
      countries.queryFeatures(query).then((result) => {
        const geometries = [
          // The loaded geometry.
          result.features[0].geometry,

          // Other test geometries.
          new Polygon({
            rings: [
              [
                [11, 44],
                [12, 44],
                [12, 43],
                [11, 43],
              ],
            ],
            spatialReference: {
              wkid: 4326,
            },
          }),
          new Point({
            x: 11,
            y: 44,
            spatialReference: {
              wkid: 4326,
            },
          }),
          new Polyline({
            paths: [
              [
                [11, 44],
                [12, 44],
                [12, 43],
                [11, 43],
              ],
            ],
            spatialReference: {
              wkid: 4326,
            },
          }),
        ];

        // Set up an automated loop that switches between the different geometries.
        let i = 0;

        function next() {
          layer.geometry = geometries[i];
          if (layer.geometry) {
            viewElement.goTo(layer.geometry).catch((error) => {
              if (error.name !== "AbortError") {
                console.error(error);
              }
            });
          }

          // Switch to the next geometry in 3 seconds.
          i = (i + 1) % geometries.length;
          setTimeout(next, 3000);
        }

        next();
      });

      const slider = document.getElementById("haloSlider");
      slider.addEventListener("calciteSliderChange", () => {
        layer.distance = slider.value;
      });
    </script>
  </body>
</html>
