Add elevation source from tile package | ArcGIS Maps SDK for Kotlin

View on GitHub

Sample viewer app

Set the terrain surface with elevation described by a local tile package.

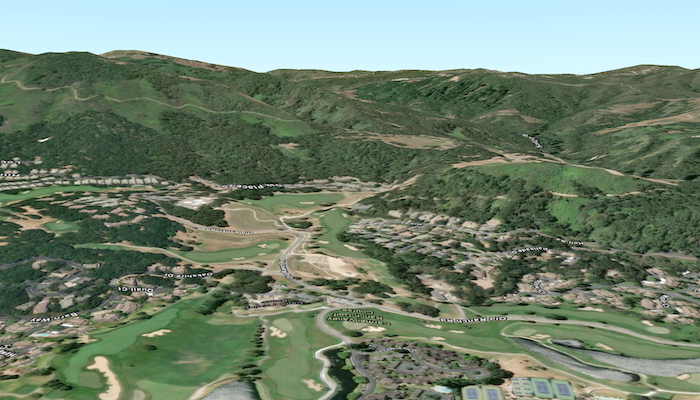

Image of add elevation source from tile package

Use case

In a scene view, the terrain surface is what the basemap, operational layers, and graphics are draped onto. For example, when viewing a scene in a mountainous region, applying a terrain surface to the scene will help in recognizing the slopes, valleys, and elevated areas.

How to use the sample

When loaded, the sample will show a scene with a terrain surface applied. Pan and zoom to explore the scene and observe how the terrain surface allows visualizing elevation differences.

How it works

Create an ArcGISScene with an ArcGISImagery basemap style.
Create an ArcGISTiledElevationSource using the path to a local elevation tile package (.tpkx).
Create a Surface and add the elevation source to the surface’s elevationSources collection.
Assign the surface to the scene’s baseSurface.
Display the scene in a SceneView by passing the ArcGISScene.

Relevant API

ArcGISTiledElevationSource
Surface

Offline data

This sample uses the Monterey Elevation tile package, using CompactV2 storage format (.tpkx). It is downloaded from ArcGIS Online automatically.

Additional information

The tile package must be a LERC (limited error raster compression) encoded TPK/TPKX. Details on can be found in the topic Share a tile package in the ArcGIS Pro documentation.

Sample Code

DownloadActivity.kt

MainActivity.kt

AddElevationSourceFromTilePackageViewModel.kt

AddElevationSourceFromTilePackageScreen.kt

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addelevationsourcefromtilepackage

import android.content.Intent
import android.os.Bundle
import com.esri.arcgismaps.sample.sampleslib.DownloaderActivity

class DownloadActivity : DownloaderActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        downloadAndStartSample(
            Intent(this, MainActivity::class.java),
            getString(R.string.add_elevation_source_from_tile_package_app_name),
            listOf(
                "https://arcgisruntime.maps.arcgis.com/home/item.html?id=52ca74b4ba8042b78b3c653696f34a9c"
            )
        )
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addelevationsourcefromtilepackage

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.addelevationsourcefromtilepackage.screens.AddElevationSourceFromTilePackageScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        setContent {
            SampleAppTheme {
                AddElevationSourceFromTilePackageApp()
            }
        }
    }

    @Composable
    private fun AddElevationSourceFromTilePackageApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            AddElevationSourceFromTilePackageScreen(
                sampleName = getString(R.string.add_elevation_source_from_tile_package_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addelevationsourcefromtilepackage.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.ArcGISTiledElevationSource
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Surface
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.view.Camera
import com.esri.arcgismaps.sample.addelevationsourcefromtilepackage.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch
import java.io.File

class AddElevationSourceFromTilePackageViewModel(app: Application) : AndroidViewModel(app) {
    // Message dialog view model to display errors
    val messageDialogVM = MessageDialogViewModel()

    // Base provision path for this sample's offline resources
    private val provisionPath: String by lazy {
        val basePath = app.getExternalFilesDir(null)?.path ?: ""
        basePath + File.separator + app.getString(R.string.add_elevation_source_from_tile_package_app_name)
    }

    // Camera location point (Monterey, CA)
    private val cameraLocation: Point by lazy {
        Point(
            x = -121.8,
            y = 36.525,
            z = 300.0,
            spatialReference = SpatialReference.wgs84()
        )
    }

    // Camera to view the scene
    private val camera: Camera by lazy {
        Camera(
            locationPoint = cameraLocation,
            heading = 180.0,
            pitch = 80.0,
            roll = 0.0
        )
    }

    // Create the ArcGISScene with imagery basemap
    val arcGISScene: ArcGISScene = ArcGISScene(BasemapStyle.ArcGISImagery).apply {
        // Create a surface and add the local elevation source if found
        baseSurface = Surface().apply {
            val tilePackageFile = File(provisionPath, "MontereyElevation.tpkx")
            if (tilePackageFile.exists()) {
                elevationSources.add(ArcGISTiledElevationSource(tilePackageFile.path))
            } else {
                messageDialogVM.showMessageDialog(
                    title = "Elevation tile package not found",
                    description = "Expected file at:\n${tilePackageFile.path}"
                )
            }
        }
        // Set initial viewpoint using boundingGeometry with camera
        initialViewpoint = Viewpoint(
            boundingGeometry = cameraLocation,
            camera = camera
        )
    }

    init {
        viewModelScope.launch {
            arcGISScene.load().onFailure { error ->
                messageDialogVM.showMessageDialog(error)
            }
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.addelevationsourcefromtilepackage.screens

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.toolkit.geoviewcompose.SceneView
import com.esri.arcgismaps.sample.addelevationsourcefromtilepackage.components.AddElevationSourceFromTilePackageViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

@Composable
fun AddElevationSourceFromTilePackageScreen(sampleName: String) {
    val sceneViewModel: AddElevationSourceFromTilePackageViewModel = viewModel()

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = { padding ->
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(padding)
            ) {
                SceneView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f),
                    arcGISScene = sceneViewModel.arcGISScene
                )
            }

            // Display a dialog if the sample encounters an error
            sceneViewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}
