Show extruded graphics | ArcGIS Maps SDK for Kotlin

View on GitHub

Sample viewer app

Extrude graphics based on an attribute value.

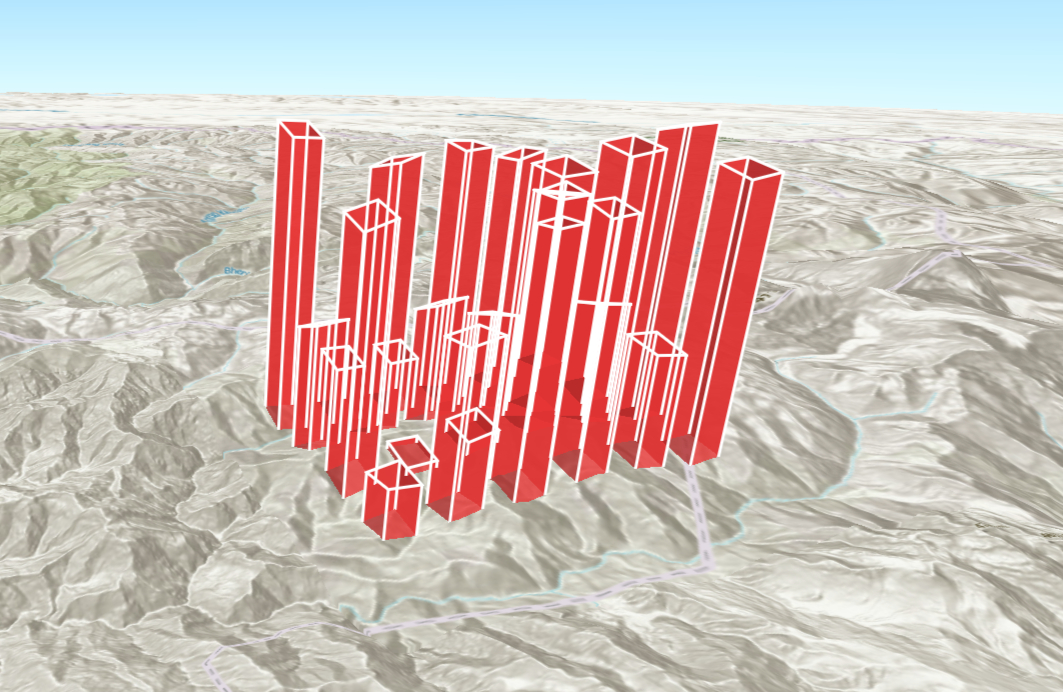

Image of show extruded graphics

Use case

Graphics representing features can be vertically extruded to represent properties of the data that might otherwise go unseen. Extrusion can add visual prominence to data beyond what may be offered by varying the color, size, or shape of symbol alone. For example, graphics representing wind turbines in a wind farm application can be extruded by a real-world “height” attribute so that they can be visualized in a landscape. Likewise, census data can be extruded by a thematic “population” attribute to visually convey population levels across a country.

How to use the sample

Run the sample. Note that the graphics are extruded to the level set in their height property.

How it works

Create a GraphicsOverlay and SimpleRenderer.
Set the extrusion mode for the renderer with RendererSceneProperties.extrusionMode = ExtrusionMode.BaseHeight.
Specify the attribute name of the graphic that the extrusion mode will use, RendererSceneProperties.extrusionExpression = "[height]".
Set the renderer on the graphics overlay using, GraphicsOverlay.renderer.
Create graphics with their attribute set, graphic.attributes["height"].

Relevant API

ExtrusionMode
RendererSceneProperties
SimpleRenderer

About the data

Data is hard coded in this sample as a demonstration of how to create and set an attribute to a graphic. To extrude graphics based on pre-existing attributes (e.g. from a feature layer) see the FeatureLayerExtrusion sample.

Sample Code

MainActivity.kt

ShowExtrudedGraphicsViewModel.kt

ShowExtrudedGraphicsScreen.kt

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showextrudedgraphics

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.showextrudedgraphics.screens.ShowExtrudedGraphicsScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        setContent {
            SampleAppTheme {
                ShowExtrudedGraphicsApp()
            }
        }
    }

    @Composable
    private fun ShowExtrudedGraphicsApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            ShowExtrudedGraphicsScreen(
                sampleName = getString(R.string.show_extruded_graphics_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showextrudedgraphics.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.PolygonBuilder
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.ArcGISTiledElevationSource
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.symbology.ExtrusionMode
import com.arcgismaps.mapping.view.GraphicsOverlay
import com.arcgismaps.mapping.view.SurfacePlacement
import com.arcgismaps.mapping.view.Graphic
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleRenderer
import com.arcgismaps.mapping.symbology.RendererSceneProperties
import com.arcgismaps.mapping.view.Camera
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch
import kotlin.random.Random

/**
 * ViewModel for the ShowExtrudedGraphics sample.
 *
 * Prepares a 3D scene, adds an elevation source and a graphics overlay whose
 * renderer is configured to extrude graphics based on the "height" attribute.
 */
class ShowExtrudedGraphicsViewModel(application: Application) : AndroidViewModel(application) {

    // Create a camera and set the scene's initial viewpoint.
    private val camera = Camera(
        latitude = 28.4,
        longitude = 83.0,
        altitude = 20_000.0,
        heading = 10.0,
        pitch = 70.0,
        roll = 0.0
    )
    // A 3D scene with a topographic basemap and an initial camera viewpoint.
    val arcGISScene = ArcGISScene(BasemapStyle.ArcGISTopographic).apply {

        initialViewpoint = Viewpoint(camera = camera, boundingGeometry = camera.location)

        // Add a global elevation source to the base surface so extruded geometry has context.
        baseSurface.elevationSources.add(
            ArcGISTiledElevationSource(
                uri = WORLD_ELEVATION_SERVICE_URL
            )
        )
    }


    // Graphics overlay that will contain extruded polygon graphics.
    val graphicsOverlay: GraphicsOverlay

    // Message dialog view model for reporting load errors.
    val messageDialogVM = MessageDialogViewModel()

    val squareSize = 0.01

    init {
        // Build renderer configured to extrude using the "height" attribute.
        val outline = SimpleLineSymbol(
            style = SimpleLineSymbolStyle.Solid,
            color = Color.white,
            width = 1f
        )

        val fillSymbol = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(220, 50, 50, 200),
            outline = outline
        )

        val renderer = SimpleRenderer(symbol = fillSymbol).apply {
            // Set extrusion mode and expression so the renderer uses the "height" attribute.
            sceneProperties = RendererSceneProperties().apply {
                extrusionMode = ExtrusionMode.BaseHeight
                extrusionExpression = "[height]"
            }
        }

        // Initialize the graphics overlay and assign the renderer.
        graphicsOverlay = GraphicsOverlay().apply {
            sceneProperties.surfacePlacement = SurfacePlacement.DrapedBillboarded
            this.renderer = renderer
        }

        // Populate the overlay with extruded graphics.
        addExtrudedGraphics()
        viewModelScope.launch {

            // Load the scene; if loading fails, show a message.
            arcGISScene.load().onFailure { messageDialogVM.showMessageDialog(it) }
        }
    }

    // Adds a grid of square polygons to the graphics overlay and assigns each a random height.
    private fun addExtrudedGraphics() {
        val baseX = camera.location.x - 0.01
        val baseY = camera.location.y + 0.25
        val spacing = 0.01
        val columns = 6
        val rows = 4
        val maxHeight = 10_000

        for (column in 0 until columns) {
            for (row in 0 until rows) {
                val startX = baseX + column * (squareSize + spacing)
                val startY = baseY + row * (squareSize + spacing)
                val polygon = polygonForPoint(startX, startY)
                val height = Random.nextInt(0, maxHeight + 1)
                val graphic = Graphic(geometry = polygon).apply {
                    // The renderer will use this attribute to extrude the graphic.
                    attributes["height"] = height
                }
                graphicsOverlay.graphics.add(graphic)
            }
        }
    }

    // Helper to construct a square polygon given a lower-left origin.
    private fun polygonForPoint(x: Double, y: Double) =
        PolygonBuilder().apply {
            addPoint(Point(x = x, y = y))
            addPoint(Point(x = x, y = y + squareSize))
            addPoint(Point(x = x + squareSize, y = y + squareSize))
            addPoint(Point(x = x + squareSize, y = y))
        }.toGeometry()

    companion object {
        // World elevation service used to provide base surface elevation.
        private const val WORLD_ELEVATION_SERVICE_URL =
            "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.showextrudedgraphics.screens

import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.toolkit.geoviewcompose.SceneView
import com.esri.arcgismaps.sample.showextrudedgraphics.components.ShowExtrudedGraphicsViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main composable screen for the ShowExtrudedGraphics sample.
 * Displays a SceneView bound to the scene prepared in the ViewModel.
 */
@Composable
fun ShowExtrudedGraphicsScreen(sampleName: String) {
    val viewModel: ShowExtrudedGraphicsViewModel = viewModel()

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = {
            Column(modifier = Modifier
                .fillMaxSize()
                .padding(it)) {

                // SceneView displays the 3D ArcGISScene prepared by the ViewModel.
                SceneView(
                    modifier = Modifier
                        .fillMaxSize()
                        .weight(1f),
                    arcGISScene = viewModel.arcGISScene,
                    graphicsOverlays = listOf(viewModel.graphicsOverlay)
                )

            }

            // Show any message dialogs coming from the ViewModel (loading / errors)
            viewModel.messageDialogVM.apply {
                if (dialogStatus) {
                    MessageDialog(
                        title = messageTitle,
                        description = messageDescription,
                        onDismissRequest = ::dismissDialog
                    )
                }
            }
        }
    )
}
