Apply class breaks renderer to sublayer

Apply a renderer to a sublayer.

Use case

A layer showing animal populations contains sublayers for different species. A renderer could be applied which gives each sublayer a different color, so that populations of each species can be compared visually.

How to use the sample

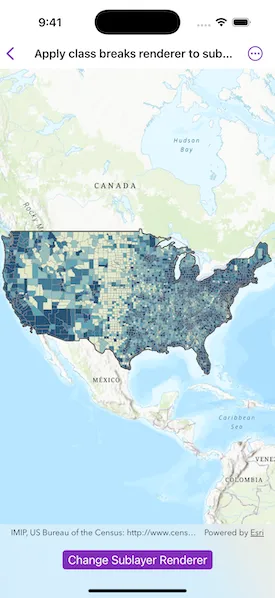

Wait for the map image layer to load. Tap the ‘Change Sublayer Renderer’ button to apply a unique value renderer to see different population ranges in the counties sub-layer data.

How it works

1. Create an ArcGISMapImageLayer from its URL.
2. After it is done loading, get its map image sublayers.
3. Get the MapImageSublayer you want.
4. Create a ClassBreaksRenderer with a collection of ClassBreaks for different population ranges.
5. Set class breaks renderer as the renderer of the sublayer.

Relevant API

• ArcGISMapImageLayer
• ArcGISMapImageSubLayer
• ClassBreak
• ClassBreaksRenderer

About the data

This application displays census data from an ArcGIS Server map service. It contains various population statistics, including total population for each county in 2007.

Additional information

The service hosting the layer must support dynamic layers to be able to change the rendering of sublayers.

Tags

class breaks, dynamic layer, dynamic rendering, renderer, sublayer, symbology, visualization
