import SnappingOptions from "@arcgis/core/views/interactive/snapping/SnappingOptions.js";
Inheritance
SnappingOptions→SnappingOptions→Accessor
Since
ArcGIS Maps SDK for JavaScript 4.19

The SnappingOptions allows users to configure snapping for their editing or drawing experience in both the Sketch.snappingOptions and Editor.snappingOptions widgets.

Properties that autocast to this class also accept instances of SnappingOptions. Autocasting plain objects still creates instances of this deprecated SnappingOptions class.

Snapping options provide the ability to specify whether an application will utilize self snapping, feature snapping, or both. Both are described below.

It is also possible to toggle snapping by pressing and holding down the CTRL key. This toggles the snapping on/off.

Self snapping (Geometry guides)

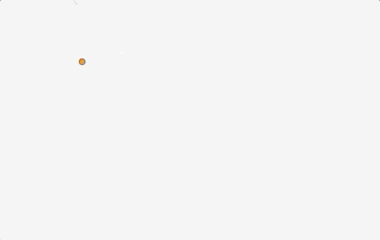

Self snapping is set via the selfEnabled property. This means that while a user is actively creating or updating a feature or graphic, they will see visualizations to help identify perpendicular and parallel lines, in addition to visualizations which aid in snapping to an extension of an existing feature. The following briefly demonstrates what self snapping looks like in a 2D application. Although this is shown for 2D, the same premise applies for 3D as well.

Feature snapping

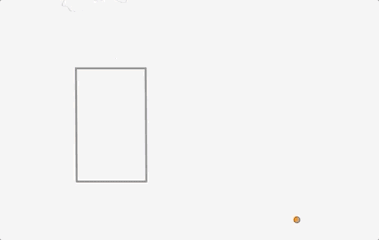

Feature snapping is set via the featureEnabled property. It provides the ability to snap vertices of a graphic or feature that is currently being drawn or reshaped to that of an existing feature's vertex, edge, or end point. These existing features belong to layers within the Map and must be specified in the featureSources property. The following two images demonstrate feature snapping in a 2D application. Similar to self snapping, the same premise applies for 3D as well.

The above shows feature snapping to an existing feature's vertex endpoint and edge while creating a new feature. The bottom demonstrates taking an existing feature and reshaping its geometry to snap to another feature's vertex points.

Things to consider: Layer types currently supported for snapping are: FeatureLayer, GraphicsLayer (except Mesh geometries), GeoJSONLayer, WFSLayer, CSVLayer, MapNotesLayer (2D only), SketchLayer (2D only), 3D Object SceneLayer (3D only), and BuildingSceneLayer (3D only). Snapping is not yet implemented when using the Sketch widget's circle tool. It will be addressed in a future release. Enabling snapping via the CTRL key is not currently supported using the Sketch widget's rectangle and circle tools. However, snapping can still be activated by setting the enabled property to true in the Sketch widget or its view model. Note that this enables snapping for all tools. This behavior is subject to change in a future release.

NameDetails3D Example2D Example

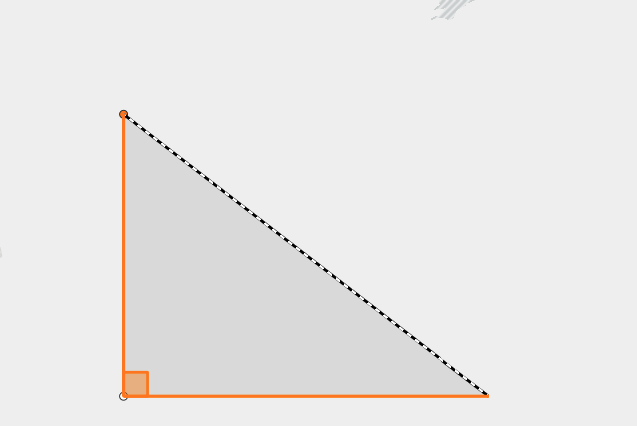

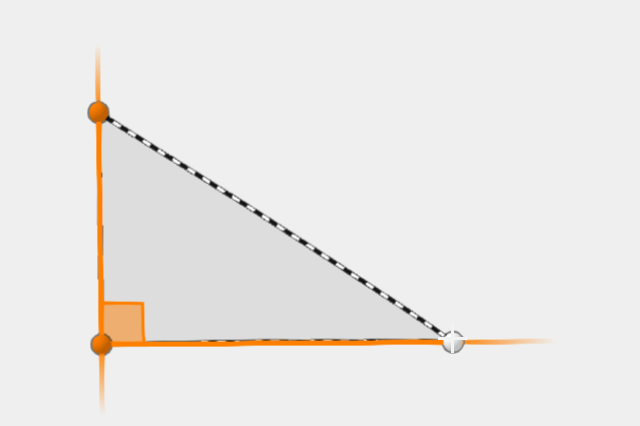

RectangleSnap lines that are perpendicular to each otherRectangleRectangle-2d

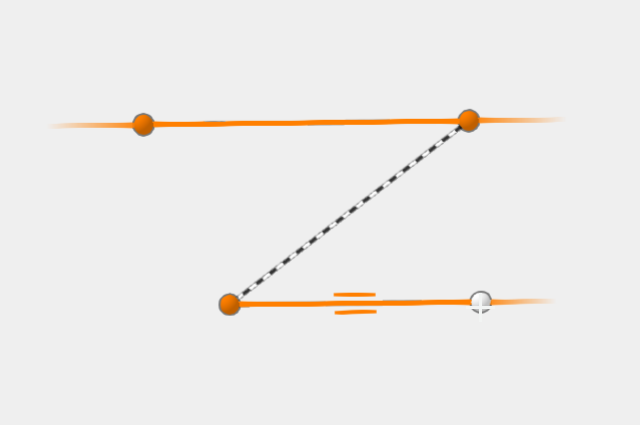

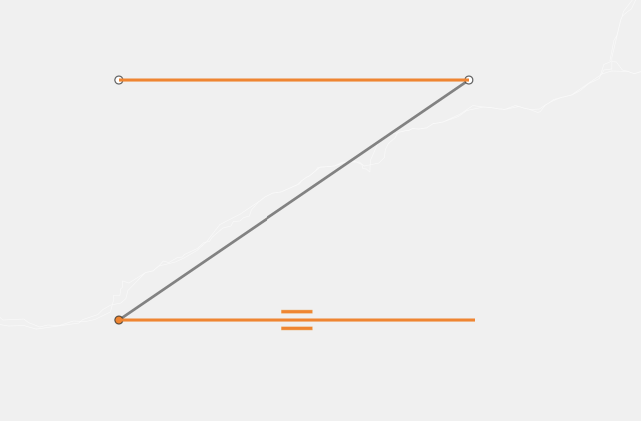

ParallelSnap to all parallel linesParallelParallel-2d

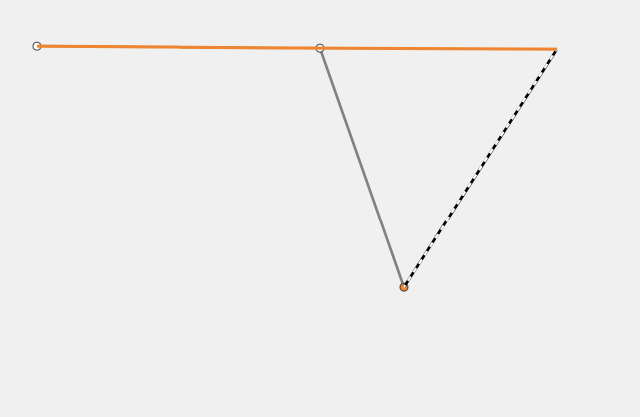

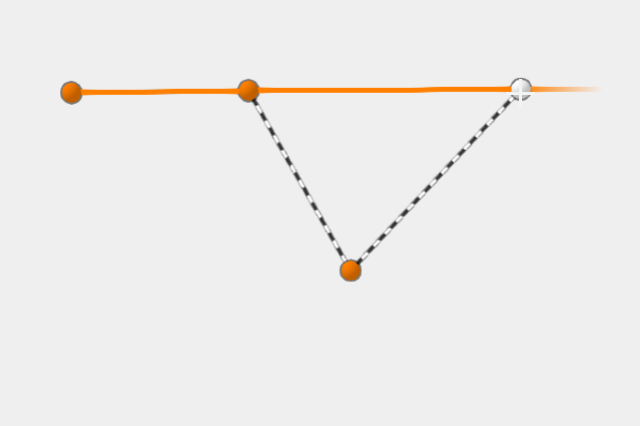

ExtensionSnap to an extension of the current shapeExtensionExtension-2

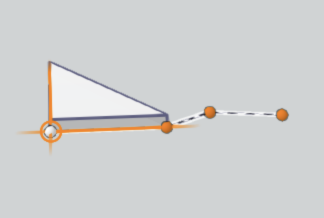

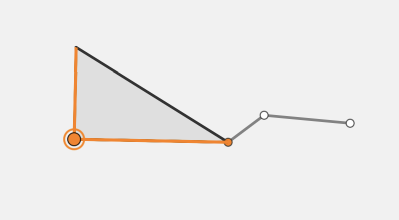

Vertex (as seen when updating geometries)Snap vertices to an existing vertexVertexVertex-2
See also
Example
// Create a new instance of Sketch, and set
// a layer for one of the featureSources property.
// This enables feature snapping on that layer.
const sketch = new Sketch({
layer: graphicsLayer,
view: view,
snappingOptions: { // autocasts to SnappingOptions()
enabled: true, // global snapping is turned on
// assigns a collection of FeatureSnappingLayerSource() and enables feature snapping on this layer
featureSources: [{ layer: graphicsLayer, enabled: true }]
}
});

Constructors

Constructor

Constructor
Since
ArcGIS Maps SDK for JavaScript 5.2

Parameters

ParameterTypeDescriptionRequired
properties
See the properties table for a list of all the properties that may be passed into the constructor.

Properties

Any properties can be set, retrieved or listened to. See the Watch for changes topic.

attributeRulesEnabled

inherited Property
Type
boolean
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

When true, enables support for attribute rule-based snapping. When enabled, resources needed for rule-based snapping, including any Utility Networks present in the map, will be automatically loaded.

Default value
false

declaredClass

readonlyinherited Property
Type
string
Inherited from: Accessor

The name of the class. The declared class name is formatted as esri.folder.className.

distance

inherited Property
Type
number
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

Snapping distance for snapping in pixels.

Default value
5

enabled

inherited Property
Type
boolean
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

Indicates whether snapping is enabled.

The default is false for a new SnappingOptions instance. Snapping configured through ViewOptions.snapping is disabled by default in a MapView and enabled by default in a SceneView.

Default value
false

featureEnabled

inherited Property
Type
boolean
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

Indicates whether feature snapping is enabled.

Default value
true

featureSources

autocast inherited Property
Type
Collection<FeatureSnappingLayerSource>
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

List of sources for feature snapping. See FeatureSnappingLayerSource for supported layer sources.

When used through ViewOptions.snapping, supported layers in the view's map are used automatically if this property has not been explicitly configured. Explicitly configuring this property replaces the automatic source list.

gridEnabled

inherited Property
Type
boolean
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

Turns the grid on or off. The grid is a network of columns and rows used to divide the view into equal-area squares. The GridControls provides a user interface to interact and configure the grid's properties.

Note

It is recommended to wait for the view to be loaded first before setting the gridEnabled prop in the GridControls constructor. The grid is dependent on the view to be loaded first for it to be displayed.

  • This grid is only supported in a 2D MapView.
See also
Default value
false
Example
// Turn on the grid programmatically for the GridControls.
// Wait for the view to load first.
view.when(() => {
const gridControls = new GridControls({
view,
snappingOptions: {
enabled: true,
gridEnabled: true
}
});
// Add GridControls to the view
view.ui.add(gridControls, "top-left");
});

selfEnabled

inherited Property
Type
boolean
Inherited from: SnappingOptions
Since
ArcGIS Maps SDK for JavaScript 5.2

Indicates whether self snapping is enabled within one feature while drawing or reshaping.

Default value
true
