Coloring options for textured buildings

This sample shows the most common use cases of coloring textured buildings and other 3D objects in a SceneLayer. In urban planning it's important to emphasize certain buildings. We can achieve that now by keeping the textures on the important buildings and removing it on the less important ones. We still want to keep all the buildings for context, but texture will only be applied to the buildings of interest.

Desaturating textures can be used in the same purpose. We only care about texture colors for certain buildings of interest.

Several options are available when changing colors on textured buildings. These options can be set through the colorMixMode property of the FillSymbol3DLayer.material.

For example if the building has this initial texture:

colorMixMode-texture

Using tint will set the new color on the desaturated texture:

colorMixMode-tint
Use dark colors for code blocksCopy
1
2
3
4
5
6
7
8
9
10
11
12
const symbol = {
  type: "mesh-3d", // autocasts as new MeshSymbol3D()
  symbolLayers: [
    {
      type: "fill", // autocasts as new FillSymbol3DLayer()
      material: {
        color: "blue",
        colorMixMode: "tint"
      }
    }
  ]
};

replace will replace the texture with the new color:

colorMixMode-replace

multiply will multiply the initial texture color with the new color. When the buildings have a colorful texture, the final color will be quite dark. In our example, the roof of the building has a red tone and the resulting color will be dark after the multiplication with blue:

colorMixMode-multiply
Image preview of related sample Visualize features by type

Visualize features by type

Visualize features by type

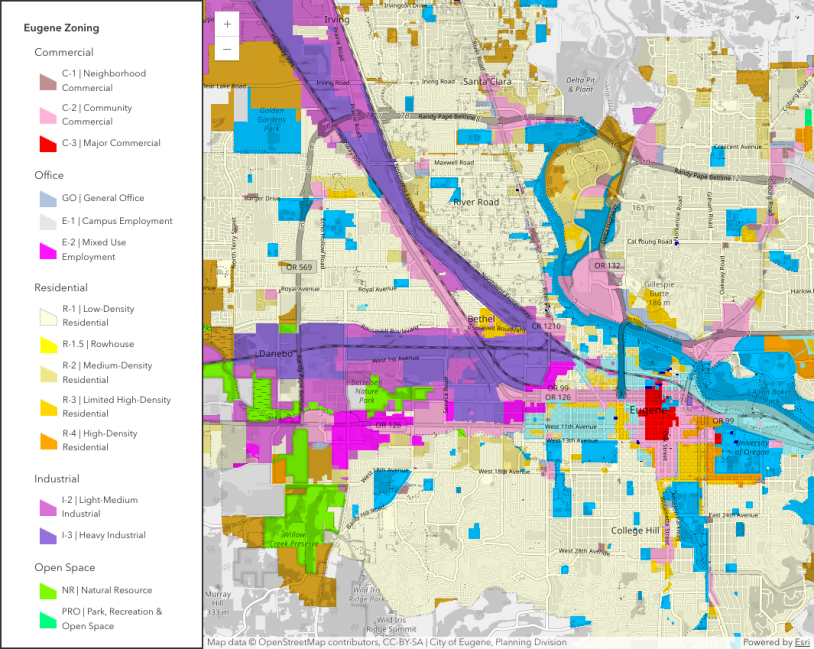

Image preview of related sample Unique value groups with headings
