This sample demonstrates how to update the color of Histogram bars (bins) to match the color of features defined by the renderer.

As the user slides the slider thumbs, the histogram bars and renderer update to match the features in the map.

Data lines are also rendered on the histogram to provide context and meaning to specific data values. These data lines can be useful for maps intended for communicating and influencing policy changes.

      const histogramConfig = {
        average: null,
        barCreatedFunction: (index, element) => {
          const bin = histogramResult.bins[index];
          const midValue = (bin.maxValue - bin.minValue) / 2 + bin.minValue;
          const color = getColorFromValue(colorSlider.stops, midValue);
          element.setAttribute("fill", color.toHex());
          bars.push(element);
        },
        bins: histogramResult.bins,

        dataLines: [
          { label: "HUD low income", value: 83500 },
          { label: "Fed poverty line", value: 25750 },
        ],

        standardDeviation: null,
      };

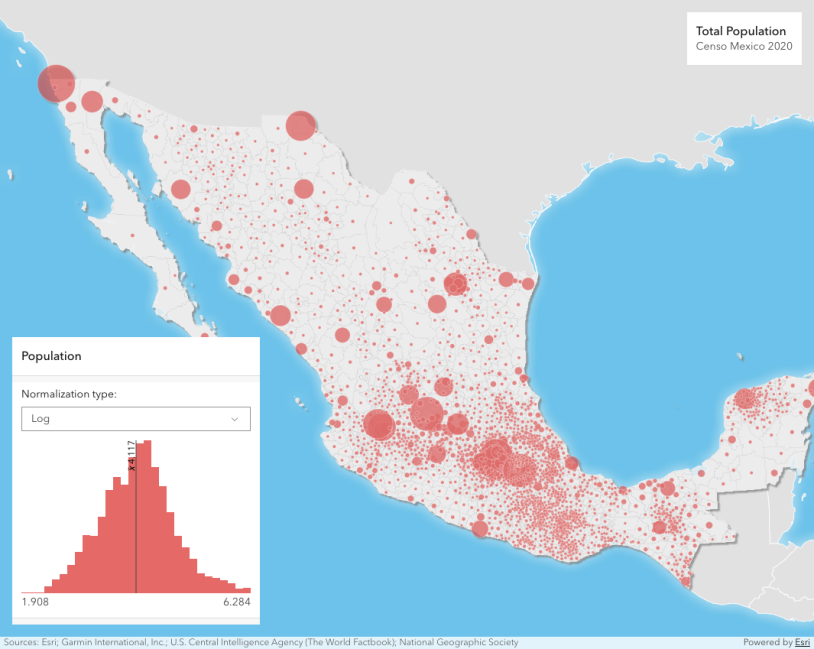

Histogram component

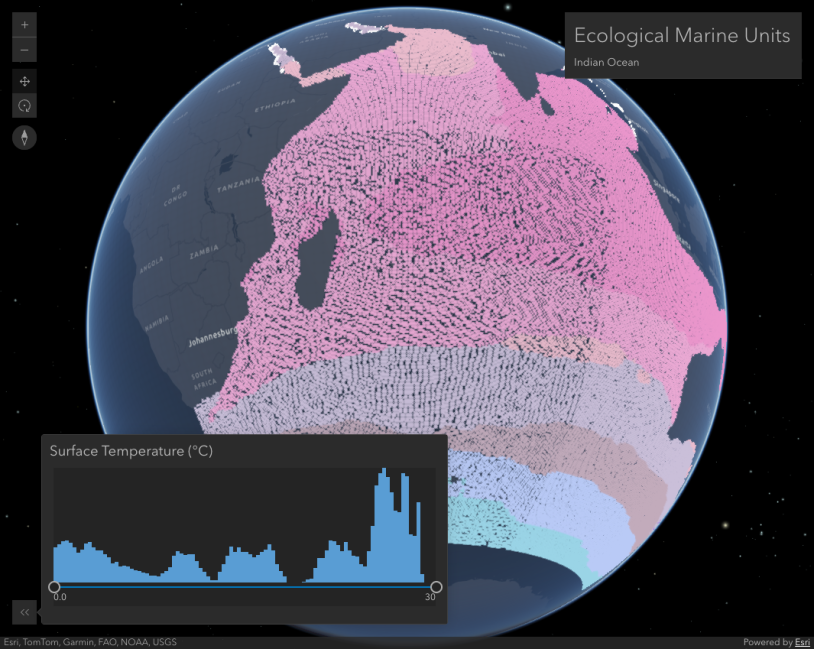

Histogram Range Slider

Update a renderer's attribute

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no" />
    <title>Customize ColorSlider Histogram | Sample | ArcGIS Maps SDK for JavaScript</title>

    <!-- Load the ArcGIS Maps SDK for JavaScript from CDN -->
    <script type="module" src="https://js.arcgis.com/5.0/"></script>

    <style>
      html,
      body {
        height: 100%;
        margin: 0;
      }
      calcite-card {
        padding: 3px;
        text-align: center;
        width: 280px;
      }
    </style>
  </head>

  <body>
    <arcgis-map scale="577790" center="-117.8099, 34.0441">
      <arcgis-zoom slot="top-left"></arcgis-zoom>
      <calcite-card slot="top-right">
        <h2>Median Household Income</h2>
        <div id="description">
          This app allows you to explore median household incomes in the Los Angeles Area. The
          slider contains two lines that indicate values of interest: the federal poverty level and
          the low-income threshold for a family of four in Los Angeles.
        </div>
        <arcgis-slider-color-legacy precision="2"></arcgis-slider-color-legacy>
      </calcite-card>
    </arcgis-map>

    <script type="module">
      const [Map, FeatureLayer, colorRendererCreator, colorSymbology, histogram, Color, intl] =
        await $arcgis.import([
          "@arcgis/core/Map.js",
          "@arcgis/core/layers/FeatureLayer.js",
          "@arcgis/core/smartMapping/renderers/color.js",
          "@arcgis/core/smartMapping/symbology/color.js",
          "@arcgis/core/smartMapping/statistics/histogram.js",
          "@arcgis/core/Color.js",
          "@arcgis/core/intl.js",
        ]);

      const colorSlider = document.querySelector("arcgis-slider-color-legacy");
      await colorSlider.componentOnReady();

      // listen to arcgisThumbChange and arcgisThumbDrag events
      // update the layer's renderer to match the slider's color stops
      colorSlider.addEventListener("arcgisThumbChange", updateRendererFromSlider);
      colorSlider.addEventListener("arcgisThumbDrag", updateRendererFromSlider);
      colorSlider.addEventListener("arcgisPropertyChange", updateRendererFromSlider);

      const layer = new FeatureLayer({
        portalItem: {
          id: "340a8efc331f4cd59fecbc4ab8e2a311",
        },
        definitionExpression: "MEDHINC_CY > 0",
        visible: false,
      });

      const viewElement = document.querySelector("arcgis-map");
      viewElement.map = new Map({
        basemap: {
          portalItem: {
            id: "3582b744bba84668b52a16b0b6942544",
          },
        },
        layers: [layer],
      });

      // configure parameters for the color renderer generator
      // the layer must be specified along with a field name
      // or arcade expression. The basemap and other properties determine
      // the appropriate default color scheme.
      const redAndGreenScheme = colorSymbology.getSchemeByName({
        basemap: viewElement.map.basemap,
        geometryType: "polygon",
        theme: "above-and-below",
        name: "Red and Green 4",
      });

      // flip the red and green scheme so green is on top
      const moneyScheme = colorSymbology.flipColors(redAndGreenScheme);

      const colorParams = {
        view: viewElement.view,
        layer: layer,
        field: "MEDHINC_CY",
        theme: "above-and-below",
        colorScheme: moneyScheme,
      };

      const rendererResult = await colorRendererCreator.createContinuousRenderer(colorParams);

      // set the renderer to the layer and add it to the map
      const vv = rendererResult.visualVariable;
      layer.renderer = rendererResult.renderer;
      layer.visible = true;

      const histogramResult = await histogram({
        ...colorParams,
        numBins: 60,
      });

      // create reference to histogram bar elements for updating
      // their style as the user drags slider thumbs
      const bars = [];

      const histogramConfig = {
        average: null,
        barCreatedFunction: (index, element) => {
          const bin = histogramResult.bins[index];
          const midValue = (bin.maxValue - bin.minValue) / 2 + bin.minValue;
          const color = getColorFromValue(colorSlider.stops, midValue);
          element.setAttribute("fill", color.toHex());
          bars.push(element);
        },
        bins: histogramResult.bins,

        dataLines: [
          { label: "HUD low income", value: 83500 },
          { label: "Fed poverty line", value: 25750 },
        ],

        standardDeviation: null,
      };

      colorSlider.updateFromRendererResult(rendererResult, histogramResult);
      colorSlider.histogramConfig = histogramConfig;
      colorSlider.labelFormatFunction = (value) => {
        return intl.formatNumber(value, {
          style: "currency",
          currency: "USD",
          currencyDisplay: "symbol",
          maximumFractionDigits: 0,
          minimumFractionDigits: 0,
        });
      };

      function updateRendererFromSlider() {
        const renderer = layer.renderer.clone();
        const colorVariable = renderer.visualVariables[0].clone();
        colorVariable.stops = colorSlider.stops;
        renderer.visualVariables = [colorVariable];
        layer.renderer = renderer;

        bars.forEach((bar, index) => {
          const bin = colorSlider.histogramConfig.bins[index];
          if (bin) {
            const midValue = (bin.maxValue - bin.minValue) / 2 + bin.minValue;
            const color = getColorFromValue(colorSlider.stops, midValue);
            bar.setAttribute("fill", color.toHex());
          }
        });
      }

      // infers the color for a given value
      // based on the stops from a ColorVariable
      function getColorFromValue(stops, value) {
        let minStop = stops[0];
        let maxStop = stops[stops.length - 1];

        const minStopValue = minStop.value;
        const maxStopValue = maxStop.value;

        if (value < minStopValue) {
          return minStop.color;
        }

        if (value > maxStopValue) {
          return maxStop.color;
        }

        const exactMatches = stops.filter((stop) => {
          return stop.value === value;
        });

        if (exactMatches.length > 0) {
          return exactMatches[0].color;
        }

        minStop = null;
        maxStop = null;
        stops.forEach((stop, i) => {
          if (!minStop && !maxStop && stop.value >= value) {
            minStop = stops[i - 1];
            maxStop = stop;
          }
        });

        const weightedPosition = (value - minStop.value) / (maxStop.value - minStop.value);

        return Color.blendColors(minStop.color, maxStop.color, weightedPosition);
      }
