Add WMS layer

View on GitHub

Display a WMS layer using a WMS service URL.

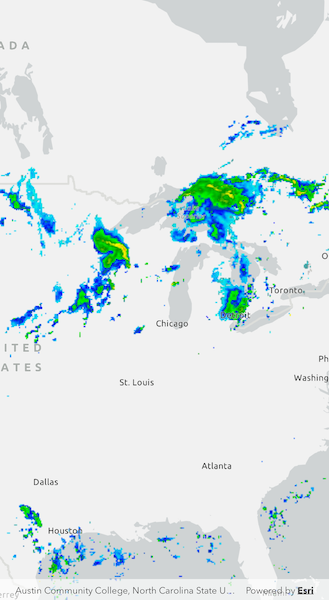

Image of add WMS layer

Use case

WMS is an OGC standard for displaying maps from images that are dynamically-generated on a web server. WMS is particularly useful for data that changes frequently, contains cartographically complex detail, or requires an open source data standard.

How to use the sample

The map will load automatically when the sample starts.

How it works

Create a WmsLayer specifying the URL of the service and the names of layers you want to display.
- Note: The name comes from the Name property, not the Title property. On many services, the title is human-readable while the name is a numeric identifier.
Add the layer to the map as an operational layer.

Relevant API

ArcGISMap
ArcGISMapView
WmsLayer

About the data

This sample uses the WMS service behind the U.S. National Weather Service radar map. Because WMS services generate map images on-the-fly, this layer is always up-to-date with the latest NOAA nowCOAST real-time coastal observations, forecasts, and warnings.

Sample Code

add_wms_layer.dart
Use dark colors for code blocksCopy
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/utils/sample_state_support.dart';
import 'package:flutter/material.dart';

class AddWmsLayer extends StatefulWidget {
  const AddWmsLayer({super.key});

  @override
  State<AddWmsLayer> createState() => _AddWmsLayerState();
}

class _AddWmsLayerState extends State<AddWmsLayer> with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      // Add a map view to the widget tree and set a controller.
      body: ArcGISMapView(
        controllerProvider: () => _mapViewController,
        onMapViewReady: onMapViewReady,
      ),
    );
  }

  void onMapViewReady() async {
    // Create a map with a basemap style.
    final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISLightGray);
    // Set the map to the map view controller.
    _mapViewController.arcGISMap = map;

    // The URL to a WMS service showing U.S. weather radar.
    final uri = Uri.parse(
      'https://nowcoast.noaa.gov/geoserver/observations/weather_radar/wms?SERVICE=WMS&REQUEST=GetCapabilities',
    );
    // A list of uniquely-identifying WMS layer names to display.
    final layerNames = ['conus_base_reflectivity_mosaic'];
    // Create a WMS layer using the URL and list of names.
    final wmsLayer =
        WmsLayer.withUriAndLayerNames(uri: uri, layerNames: layerNames);
    // Load the layer and get the extent.
    await wmsLayer.load();
    final layerExtent = wmsLayer.fullExtent;
    // Set the viewpoint to the layer's extent.
    if (layerExtent != null) {
      _mapViewController.setViewpoint(Viewpoint.fromTargetExtent(layerExtent));
    }
    // Add the WMS layer to the map's operational layers.
    map.operationalLayers.add(wmsLayer);
  }
}
