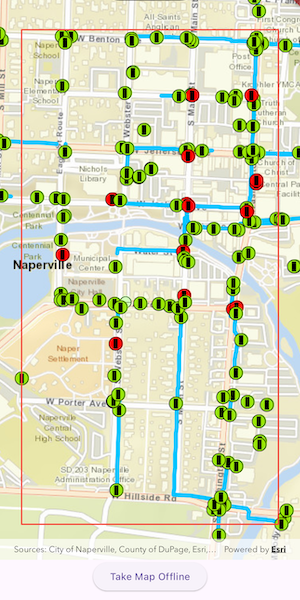

Generate offline map

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';

import '../../utils/sample_state_support.dart';

class GenerateOfflineMap extends StatefulWidget {
  const GenerateOfflineMap({super.key});

  @override
  State<GenerateOfflineMap> createState() => _GenerateOfflineMapState();
}

class _GenerateOfflineMapState extends State<GenerateOfflineMap>
    with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();
  // Declare a map to be loaded later.
  late final ArcGISMap _map;
  // Declare the OfflineMapTask.
  late final OfflineMapTask _offlineMapTask;
  // Declare the GenerateOfflineMapJob.
  GenerateOfflineMapJob? _generateOfflineMapJob;
  // Progress of the GenerateOfflineMapJob.
  int? _progress;
  // A flag for when the map is viewing offline data.
  var _offline = false;
  // A flag for when the map view is ready and controls can be used.
  var _ready = false;
  // Declare global keys to be used when converting screen locations to map coordinates.
  final _mapKey = GlobalKey();
  final _outlineKey = GlobalKey();

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        child: Stack(
          children: [
            Column(
              children: [
                Expanded(
                  child: Stack(
                    children: [
                      // Add a map view to the widget tree and set a controller.
                      ArcGISMapView(
                        key: _mapKey,
                        controllerProvider: () => _mapViewController,
                        onMapViewReady: onMapViewReady,
                      ),
                      // Add a red outline that marks the region to be taken offline.
                      Visibility(
                        visible: _progress == null && !_offline,
                        child: IgnorePointer(
                          child: SafeArea(
                            child: Container(
                              margin: const EdgeInsets.fromLTRB(
                                30.0,
                                30.0,
                                30.0,
                                50.0,
                              ),
                              child: Container(
                                key: _outlineKey,
                                decoration: BoxDecoration(
                                  border: Border.all(
                                    color: Colors.red,
                                    width: 2.0,
                                  ),
                                ),
                              ),
                            ),
                          ),
                        ),
                      ),
                    ],
                  ),
                ),
                Center(
                  // Add a button to take the outlined region offline.
                  child: ElevatedButton(
                    onPressed:
                        _progress != null || _offline ? null : takeOffline,
                    child: const Text('Take Map Offline'),
                  ),
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            Visibility(
              visible: !_ready,
              child: SizedBox.expand(
                child: Container(
                  color: Colors.white30,
                  child: const Center(child: CircularProgressIndicator()),
                ),
              ),
            ),
            // Display a progress indicator and a cancel button during the offline map generation.
            Visibility(
              visible: _progress != null,
              child: Center(
                child: Container(
                  width: MediaQuery.of(context).size.width / 2,
                  padding: const EdgeInsets.all(20.0),
                  decoration: BoxDecoration(
                    color: Colors.white,
                    borderRadius: BorderRadius.circular(10.0),
                  ),
                  child: Column(
                    mainAxisSize: MainAxisSize.min,
                    children: [
                      // Add a progress indicator.
                      Text('$_progress%'),
                      LinearProgressIndicator(
                        value: _progress != null ? _progress! / 100.0 : 0.0,
                      ),
                      const SizedBox(height: 20.0),
                      // Add a button to cancel the job.
                      ElevatedButton(
                        onPressed: () => _generateOfflineMapJob?.cancel(),
                        child: const Text('Cancel'),
                      ),
                    ],
                  ),
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }

  void onMapViewReady() async {
    // Create the map from a portal item.
    final portalItem = PortalItem.withPortalAndItemId(
      portal: Portal.arcGISOnline(),
      itemId: 'acc027394bc84c2fb04d1ed317aac674',
    );
    _map = ArcGISMap.withItem(portalItem);
    _mapViewController.arcGISMap = _map;

    // Offline map generation does not consider rotation, so disable it.
    _mapViewController.interactionOptions.rotateEnabled = false;

    // Create an OfflineMapTask for the map.
    _offlineMapTask = OfflineMapTask.withOnlineMap(_map);

    setState(() => _ready = true);
  }

  // Calculate the Envelope of the outlined region.
  Envelope? outlineEnvelope() {
    final outlineContext = _outlineKey.currentContext;
    final mapContext = _mapKey.currentContext;
    if (outlineContext == null || mapContext == null) return null;

    // Get the global screen rect of the outlined region.
    final outlineRenderBox = outlineContext.findRenderObject() as RenderBox;
    final outlineGlobalScreenRect =
        outlineRenderBox.localToGlobal(Offset.zero) & outlineRenderBox.size;

    // Convert the global screen rect to a rect local to the map view.
    final mapRenderBox = mapContext.findRenderObject() as RenderBox;
    final mapLocalScreenRect =
        outlineGlobalScreenRect.shift(-mapRenderBox.localToGlobal(Offset.zero));

    // Convert the local screen rect to map coordinates.
    final locationTopLeft =
        _mapViewController.screenToLocation(screen: mapLocalScreenRect.topLeft);
    final locationBottomRight = _mapViewController.screenToLocation(
      screen: mapLocalScreenRect.bottomRight,
    );
    if (locationTopLeft == null || locationBottomRight == null) return null;

    // Create an Envelope from the map coordinates.
    return Envelope.fromPoints(locationTopLeft, locationBottomRight);
  }

  // Take the selected region offline.
  void takeOffline() async {
    // Get the Envelope of the outlined region.
    final envelope = outlineEnvelope();
    if (envelope == null) return;

    // Cause the progress indicator to appear.
    setState(() => _progress = 0);

    // Create parameters specifying the region to take offline.
    // Provides a min scale to avoid requesting a huge download. Note maxScale defaults to 0.0.
    const minScale = 1e4;
    final parameters =
        await _offlineMapTask.createDefaultGenerateOfflineMapParameters(
      areaOfInterest: envelope,
      minScale: minScale,
    );
    parameters.continueOnErrors = false;

    // Prepare an empty directory to store the offline map.
    final documentsUri = (await getApplicationDocumentsDirectory()).uri;
    final downloadDirectoryUri = documentsUri.resolve('offline_map');
    final downloadDirectory = Directory.fromUri(downloadDirectoryUri);
    if (downloadDirectory.existsSync()) {
      downloadDirectory.deleteSync(recursive: true);
    }
    downloadDirectory.createSync();

    // Create a job to generate the offline map.
    _generateOfflineMapJob = _offlineMapTask.generateOfflineMap(
      parameters: parameters,
      downloadDirectoryUri: downloadDirectoryUri,
    );

    // Listen for progress updates.
    _generateOfflineMapJob!.onProgressChanged.listen((progress) {
      setState(() => _progress = progress);
    });

    try {
      // Run the job.
      final result = await _generateOfflineMapJob!.run();

      // Get the offline map and display it.
      _mapViewController.arcGISMap = result.offlineMap;
      _generateOfflineMapJob = null;
    } catch (e) {
      // If an error happens (such as cancellation), reset state.
      _generateOfflineMapJob = null;
      setState(() => _progress = null);
      return;
    }

    // The job was successful and we are now viewing the offline amp.
    setState(() {
      _progress = null;
      _offline = true;
    });
  }
}
