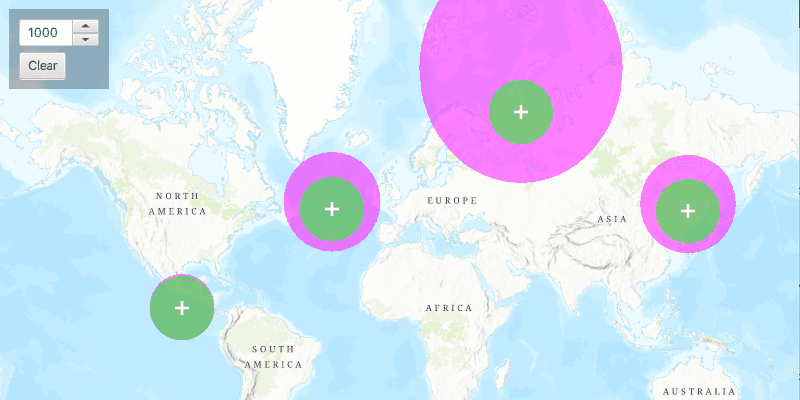

Buffer

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.buffer {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;

  exports com.esri.samples.buffer;
}

/*
 * Copyright 2018 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.buffer;

import java.util.Arrays;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Point2D;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Spinner;
import javafx.scene.input.MouseButton;
import javafx.scene.layout.Background;
import javafx.scene.layout.BackgroundFill;
import javafx.scene.layout.CornerRadii;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.scene.paint.Color;
import javafx.scene.paint.Paint;
import javafx.stage.Stage;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.geometry.GeodeticCurveType;
import com.esri.arcgisruntime.geometry.GeometryEngine;
import com.esri.arcgisruntime.geometry.LinearUnit;
import com.esri.arcgisruntime.geometry.LinearUnitId;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.geometry.Polygon;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.symbology.SimpleFillSymbol;
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;

public class BufferSample extends Application {

  private MapView mapView;

  @Override
  public void start(Stage stage) {

    try {
      // create stack pane and application scene
      StackPane stackPane = new StackPane();
      Scene scene = new Scene(stackPane);

      // set title, size, and add scene to stage
      stage.setTitle("Buffer Sample");
      stage.setWidth(800);
      stage.setHeight(700);
      stage.setScene(scene);
      stage.show();

      // authentication with an API key or named user is required to access basemaps and other location services
      String yourAPIKey = System.getProperty("apiKey");
      ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

      // create a map with the topographic basemap style
      ArcGISMap map = new ArcGISMap(BasemapStyle.ARCGIS_TOPOGRAPHIC);

      // create a map view and set the map to it
      mapView = new MapView();
      mapView.setMap(map);

      // create a graphics overlay to contain the buffered geometry graphics
      GraphicsOverlay graphicsOverlay = new GraphicsOverlay();
      mapView.getGraphicsOverlays().add(graphicsOverlay);

      // create a spinner to set the buffer size (in miles)
      Spinner<Integer> bufferSpinner = new Spinner<>(500, 2000, 1000);
      bufferSpinner.setEditable(true);

      // set up units to convert from miles to meters
      final LinearUnit miles = new LinearUnit(LinearUnitId.MILES);
      final LinearUnit meters = new LinearUnit(LinearUnitId.METERS);

      // create a white cross marker symbol to show where the user clicked
      final SimpleMarkerSymbol markerSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbol.Style.CROSS, Color.WHITE, 14);

      // create a semi-transparent purple fill symbol for the geodesic buffers
      final SimpleFillSymbol geodesicFillSymbol = new SimpleFillSymbol(SimpleFillSymbol.Style.SOLID,
        Color.web("fuchsia", 0.5), null);

      // create a semi-transparent green fill symbol for the planar buffers
      final SimpleFillSymbol planarFillSymbol = new SimpleFillSymbol(SimpleFillSymbol.Style.SOLID,
        Color.web("lime", 0.5), null);

      // create buffers around the clicked location
      mapView.setOnMouseClicked(e -> {
        if (e.isStillSincePress() && e.getButton() == MouseButton.PRIMARY) {
          Point2D point2D = new Point2D(e.getX(), e.getY());
          // buffer around the clicked point
          Point point = mapView.screenToLocation(point2D);
          Polygon geodesicBufferGeometry = GeometryEngine.bufferGeodetic(point, miles.convertTo(meters, bufferSpinner.getValue()),
            meters, Double.NaN, GeodeticCurveType.GEODESIC);
          Polygon planarBufferGeometry = GeometryEngine.buffer(point, miles.convertTo(meters, bufferSpinner.getValue()));
          // show the buffered regions
          Graphic geodesicBufferGraphic = new Graphic(geodesicBufferGeometry, geodesicFillSymbol);
          Graphic planarBufferGraphic = new Graphic(planarBufferGeometry, planarFillSymbol);
          graphicsOverlay.getGraphics().addAll(Arrays.asList(geodesicBufferGraphic, planarBufferGraphic));
          // show a white marker where clicked
          Graphic markerGraphic = new Graphic(point, markerSymbol);
          graphicsOverlay.getGraphics().add(markerGraphic);
          // set the z index of each graphic so they display in the correct order
          geodesicBufferGraphic.setZIndex(0);
          planarBufferGraphic.setZIndex(1);
          markerGraphic.setZIndex(2);
        }
      });

      // create a button to clear graphics
      Button clearButton = new Button("Clear");
      // clear the graphics overlay when the clear button is clicked
      clearButton.setOnMouseClicked(event -> graphicsOverlay.getGraphics().clear());

      // create a vbox that contains the spinner and clear button
      VBox controlsVBox = new VBox(6);
      controlsVBox.setBackground(new Background(new BackgroundFill(Paint.valueOf("rgba(0,0,0,0.3)"), CornerRadii.EMPTY,
        Insets.EMPTY)));
      controlsVBox.setPadding(new Insets(10.0));
      controlsVBox.setMaxSize(100, 75);
      controlsVBox.getChildren().addAll(bufferSpinner, clearButton);
      // add the map view and vbox to the stack pane
      stackPane.getChildren().addAll(mapView, controlsVBox);
      StackPane.setAlignment(controlsVBox, Pos.TOP_LEFT);
      StackPane.setMargin(controlsVBox, new Insets(10, 0, 0, 10));
    } catch (Exception e) {
      // on any error, display the stack trace.
      e.printStackTrace();
    }
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {

    if (mapView != null) {
      mapView.dispose();
    }
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }

}
